Modern railway systems depend on thousands of precision fasteners to keep tracks, bridges, and supporting structures securely connected.
Every railway nut must withstand constant vibration, heavy axle loads, changing weather conditions, and years of continuous service.
Because of these demanding applications, manufacturers need equipment capable of producing consistent internal threads with dependable repeatability.

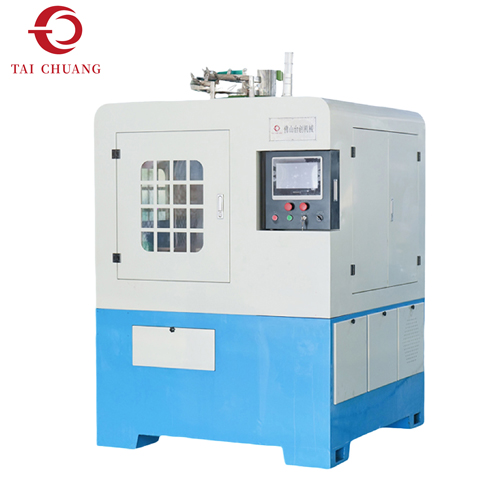

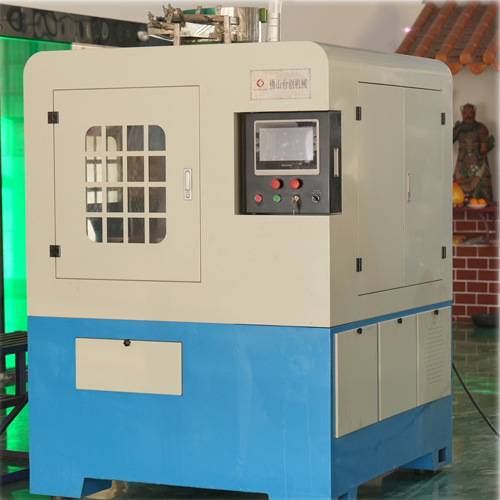

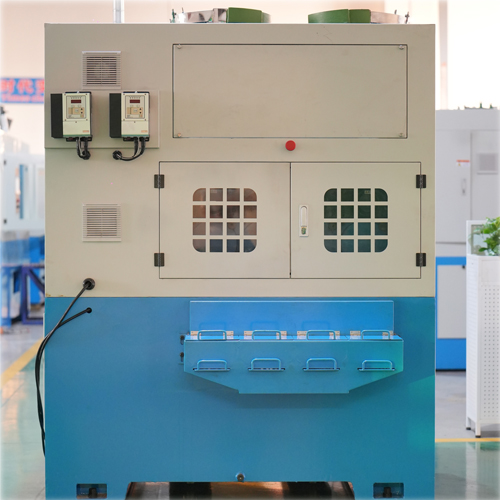

TAICHUANG developed the Railway Fastener Nut Tapping Machine to meet the production requirements of railway fastening manufacturers around the world.
TAICHUANG can provide nut tapping machine from M10-M20,with specifications below：ItemNameParameterNameParameters/BrandCasting basePallet stroke180mmMain spindle servo motor4.4Kw/1500rpm(M10-M16)Feed linear guidewayGHH25CAX465Main spindle servo motor5.5Kw/1500rpm(M14-M20)Feed ball screwFSC2520K3X342Feed servo motor0.75Kw/3000rmpBaiting trackBaiting angle90 degree angleCooling pump370WMain spindleMax.processing outer diameter∅35Touch screenInovanceMax.processing lengththan nominal thread size ×2Main engineInovanceQty of main spindle2Circuit-breakerCHNTFixture modeFalt pushSquare nut,hexagonal nutCircuit-breakerCHNTClampRound nut,flangle nut,polygonal nutThermal overloadCHNTSpring jawflange nutKAIDCEClamping cylinderCylinderSDA50X20SBCylinder sensorAirtacCooling deviceProductivity per spindle 20-30pcs/minPower switchSiemensOverall DimensionsOverall Dimensions1380×1420×1850mmEquipment weightabout 2200KG
Railway fasteners are commonly produced from high-strength materials and must comply with strict engineering standards.
During production, manufacturers often face challenges such as:
maintaining thread accuracy on hardened materials
reducing tooling wear during continuous production
keeping production stable over long operating hours
processing different railway fastener specifications
improving manufacturing efficiency without sacrificing quality
Our equipment is engineered to help factories overcome these practical production challenges.
Our Railway Fastener Nut Tapping Machine is purpose-engineered to process high-strength nuts and threaded fasteners widely adopted across all rail infrastructure manufacturing scenarios, perfectly matching the strict production standards of rail hardware factories. It delivers stable tapping performance for core fastener parts applied in the following key fields:
Conventional railway track fastening systems
Elastic rail clip & rail clip assembly fittings
Concrete/wood sleeper fastening component sets
Railway bridge fixed connection hardware
Urban metro, light rail and subway infrastructure projects
High-speed passenger rail line supporting fasteners
Heavy-load freight railway track components
With global railway infrastructure booming, high-speed rail expansion, urban transit network construction and freight railway upgrading projects advancing at a rapid pace, rail fastener manufacturers are facing surging order volumes and ever-stricter national rail quality inspection standards. Ordinary tapping equipment struggles to sustain long-hour mass production while keeping uniform thread precision, dimensional stability and anti-fatigue performance of finished nuts. Our dedicated railway nut tapping machine is built to resolve this pain point: it maintains consistent high-precision thread quality during non-stop high-volume batch production, cuts product defect rates drastically, and accommodates flexible production adjustments to satisfy diverse customized fastener demands for global railway construction and transportation supply chains.
Can the machine process different railway fastener standards?
Yes. Machine configuration can be customized according to various international and regional railway fastener specifications.
Is the equipment suitable for hardened steel nuts?
Yes. The machine can be configured for high-strength materials commonly used in railway fastening systems.
Can the production line be expanded in the future?
Yes. The machine can be integrated into automated production lines as manufacturing capacity grows.
How is thread quality maintained during long production runs?
Stable spindle performance, precise tooling, and controlled feeding help maintain consistent thread quality throughout continuous operation.
Do you provide overseas technical support?
Yes. We offer installation guidance, operator training, spare parts supply, and long-term technical support for international customers.
