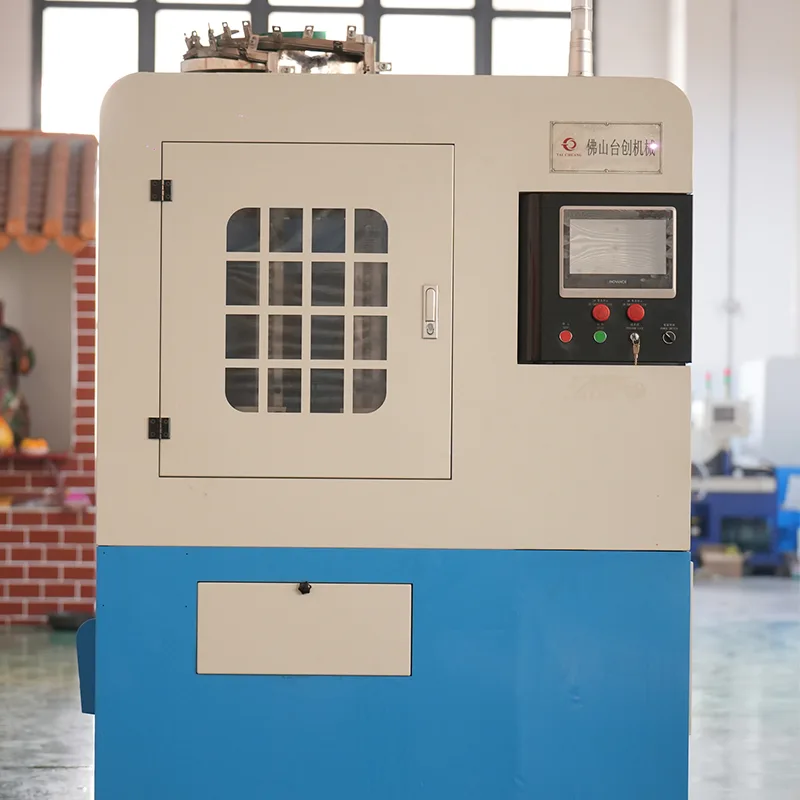

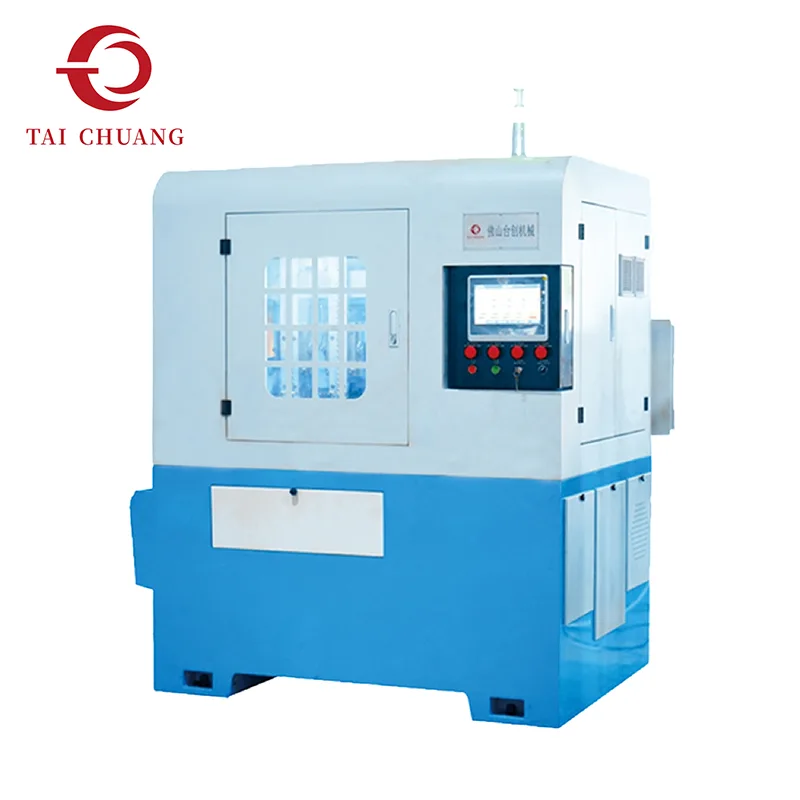

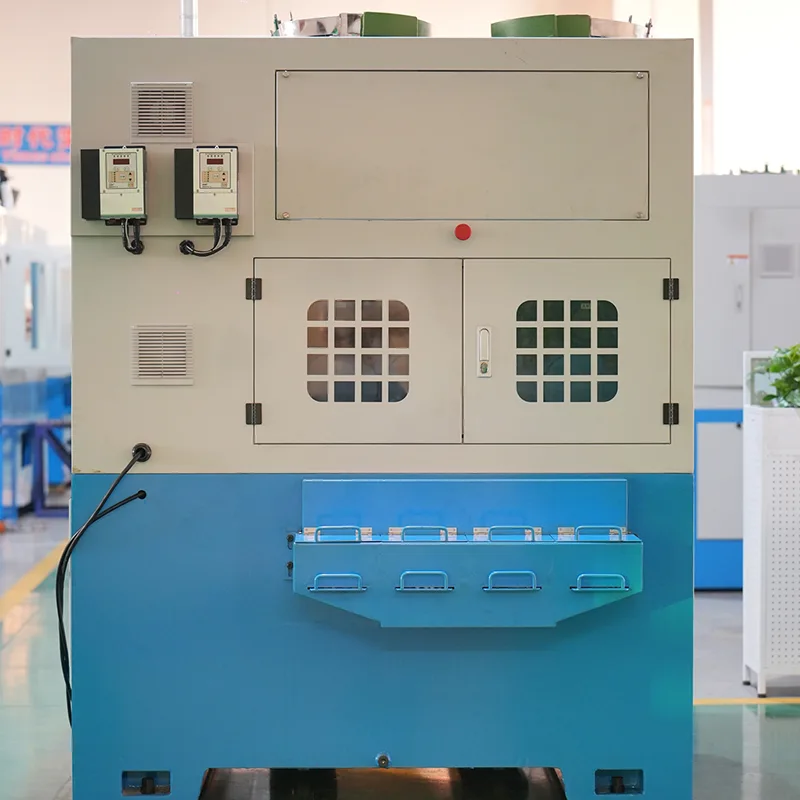

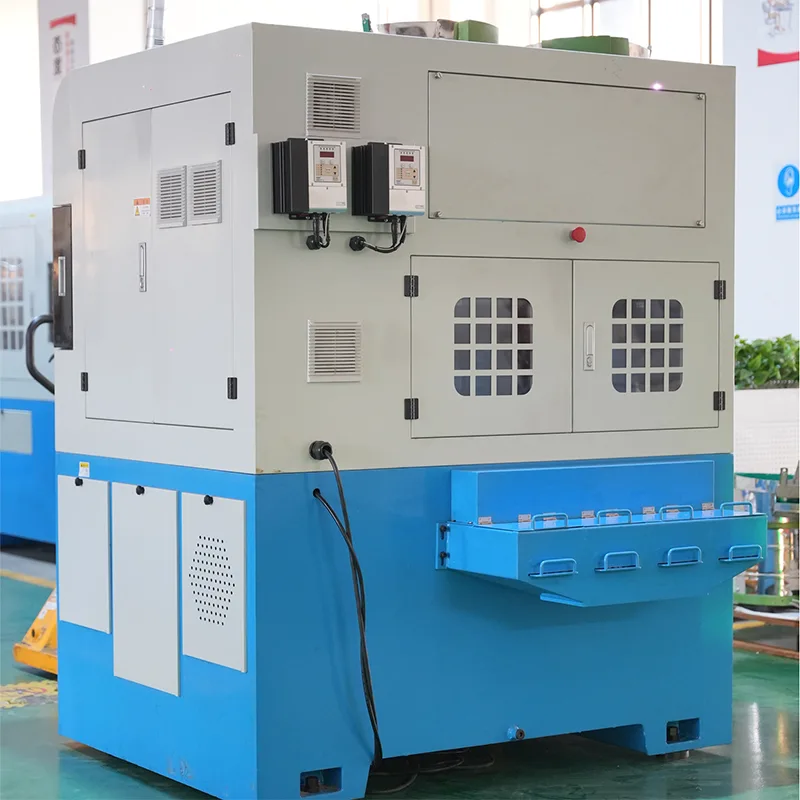

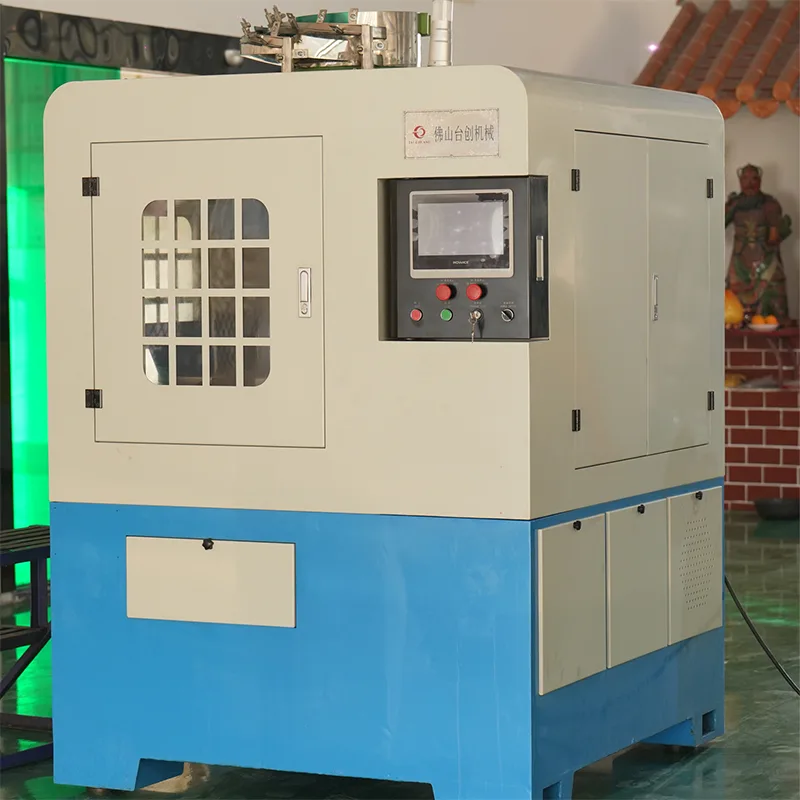

The TAICHUANG TCWB-M10TG-2 Double Spindles Pass Through Nut Tapping Machine is a high-precision, industrial-grade solution designed to streamline and optimize the tapping process for pass-through nuts. Built with robust engineering and cutting-edge technology, this machine delivers consistent, accurate threads to meet the demands of automotive, construction, and hardware manufacturing industries.As a manufacturer focusing on nut tapping solutions for many years, we understand that efficiency alone is not enough. Stability, thread accuracy, and machine lifespan are equally important.
Maintain stable tapping quality during long-hour operation
Reduce downtime caused by tap wear or operator errors
Support standardized production for export-oriented fastener factories
By using a pass through structure with double spindles, the machine balances productivity and control, making it suitable for medium to large batch production.
|
Product name |
Double Spindles Pass Through Nut Tapping Machine |
|
Tapping Range |
M5-M10 |
|
Colors available |
Blue color,or as per request |
|
Standards that follow to |
ISO、CE |
|
Fixture mode |
The fixture is customed according to the nut type. |
|
MOQ |
1 |
|
Production lead time |
About 1 month |
|
Warranty time |
1 years for normal use |
|
Payment term |
TT30%deposit,70%balance paid before shipment |
|
FOB loading port |
Nansha, China |
|
Place of origin |
Foshan，China |
TAICHUANG can provide nut tapping machine from M5-M10,with specifications below：
| Item | Name | Parameter | Name | Parameters/Brand |
| Casting base | Pallet stroke | 150mm | Main spindle servo motor | 2.0Kw/3000rpm(M5-M8) |
| Feed linear guideway | GHH20CAX410 | Main spindle servo motor | 2.5Kw/3000rpm(M6-M10) | |
| Feed ball screw | SFNH2020X275 | Feed servo motor | 0.4Kw/3000rmp | |
| Baiting track | Baiting angle | 90 degree angle | Cooling pump | 370W |
| Main spindle | Max.processing outer diameter | ∅25 | Touch screen | Inovance |
| Max.processing length | less than nominal thread size ×2 | Main engine | Inovance | |
| Qty of main spindle | 2 | Circuit-breaker | CHNT | |
| Fixture mode | Falt push | Square nut,hexagonal nut | Circuit-breaker | CHNT |
| Clamp | round nut,flangle nut,polygonal nut | Thermal overload | CHNT | |
| Spring jaw | flange material | KA | IDCE | |
| Clamping cylinder | Cylinder | SDA50X20SB | Cylinder sensor | Airtac |
| 2 spindles | Productivity per spindle | 20-30pcs/min | Power switch | Siemens |
| Overall Dimensions | Overall Dimensions | 1150×1150×1750mm | Equipment weight | about 1500KG |
TAICHUANG nut tapping machine have been exporting to more than 10 countries, such as Germany, Italy, Türkiye, India, Philippine, Russia, Mexico, Japan，Korea，Vietnam, China Taiwan.etc. Thanks to the superior quality, all customers are satisfied about us. TAICHUANG nut tapping machine has been the first choice for our customers.
We provide clear operation guidance, installation support, and troubleshooting instructions. If needed, customers can also receive visual materials such as operation videos and maintenance guidelines.
Is this machine suitable for continuous production?
Yes, it is designed specifically for stable long-hour operation.
Can it be customized for different nut types?
We can adjust the configuration based on nut shape and production requirements.
Is this double spindle pass through nut tapping machine suitable for export markets?
Yes, many units are delivered to overseas customers with stable performance.
