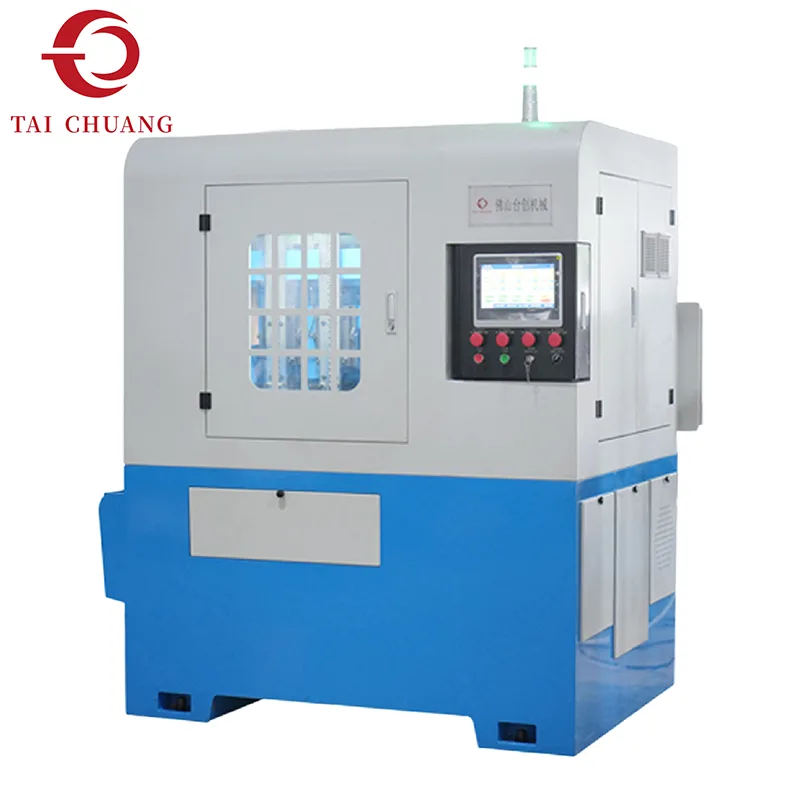

The TCWB-M20TG-4 is a four spindles pass through nut tapping machine designed for manufacturers who need both higher output and stable performance when tapping medium to large size nuts. It is often selected by factories that have outgrown double spindle machines and are looking to scale production without increasing labor or quality risk.
From our experience, increasing spindle quantity on large-size nut tapping is not simply a matter of adding speed. Without proper structure and control, problems such as vibration, uneven thread depth, and accelerated tool wear can quickly appear. This model was developed specifically to solve those issues.
|
Product name |
CNC Pass Through Nut Tapping Machine |
|
Tapping Range |
M10-M20 |
|
Colors available |
Blue color,or as per request |
|
Standards that follow to |
ISO、CE |
|
Fixture mode |
The fixture is customed according to the nut type. |
|
MOQ |
1 |
|
Production lead time |
About 1 month |
|
Warranty time |
1 years for normal use |
|
Payment term |
TT30%deposit,70%balance paid before shipment |
|
FOB loading port |
Nansha, China |
|
Place of origin |
Foshan，China |
TAICHUANG can provide nut tapping machine from M10 to M20, with specifications below:
|
Item |
Name |
Parameter |
Name |
Parameters/Brand |
|
Casting base |
Pallet stroke |
180mm |
Main spindle servo motor |
4.4Kw/1500rpm(M10-M16) |
|
Feed linear guideway |
GHH25CAX465 |
Main spindle servo motor |
5.5Kw/1500rpm(M14-M20) |
|
|
Feed ball screw |
FSC2520K3X342 |
Feed servo motor |
0.75Kw/3000rmp |
|
|
Baiting track |
Baiting angle |
90/80 degree angle |
Multi-stage pump CRK12-20-2 |
1.5KW |
|
Main spindle |
Max.processing outer diameter |
∅35 |
Touch screen |
Inovance |
|
Max.processing length |
lessthan nominal thread size ×2 |
Main engine |
Inovance |
|
|
111 |
2 |
Circuit-breaker |
CHNT |
|
|
Fixture mode |
Falt push |
Square nut,hexagonal nut |
Circuit-breaker |
CHNT |
|
Clamp |
Round nut,flangle nut,polygonal nut |
Thermal overload |
CHNT |
|
|
Spring jaw |
flangenut |
KA |
IDCE |
|
|
Clamping cylinder |
Cylinder |
SDA50X20SB |
Cylinder sensor |
Airtac |
|
Cooling device |
Productivity per spindle |
20-30pcs/min |
Power switch |
Siemens |
|
Overall Dimensions |
Overall Dimensions |
1850×1500×1880mm |
Equipment weight |
about3000KG |
As a manufacturer, we designed the TCWB-M20TG-4 around real production conditions rather than theoretical capacity. The four-spindle configuration allows higher throughput, while the pass through design ensures smooth and continuous nut flow.
During development, our focus was on:
Maintaining tapping stability under higher cutting torque
Keeping spindle motion consistent across all stations
Ensuring the machine can operate reliably during long production shifts
This balance makes the nut tapping machine suitable for factories that handle large batch orders with strict delivery schedules.
CNC Pass Through Nut Tapping Machine is widely used in:
Automotive fastener production
Structural construction hardware manufacturing
Industrial bolt and nut factories
High-precision export-oriented fastener plants
Smart manufacturing fastener facilities
It supports hex nuts, flange nuts, and standard industrial nut types requiring strict dimensional tolerance.
The CNC system enhances thread forming stability by providing digital control over tapping speed, feed rate, and torque.
Core technical features include:
Programmable tapping parameters
Digital spindle speed control
Stable pass through feeding mechanism
High-precision positioning system
Real-time monitoring capability
This CNC nut tapping machine ensures consistent performance across long production cycles while minimizing adjustment downtime.
We provide operation guidance and after-sales support to help customers integrate the machine smoothly. Each unit is packed in reinforced plywood packaging suitable for international transportation.
Specialized in nut tapping machine technology
Focused on precision thread processing systems
Experience serving global fastener manufacturers
Export-ready CNC configurations
Emphasis on stable, repeatable industrial performance
TAICHUANG provides professional CNC pass through nut tapping machine solutions tailored for international manufacturing markets.
1. Fully Automatic
2. CNC System Control
3. Full Cover
4. HMI Monitor
5. Single Spindle or Double Spindles for your option
6. Double Servo
7. Vertical Reciprocating
8. Vibrating Bowl Feeder
9. Tap Screw Broken Alarm
10. Lack Material Alarm
11. Defective Parts Automatically Separated
Does the machine detect broken taps?
Yes, tap breakage detection with an automatic alarm.
Is automatic defective part separation available?
Yes, defective parts are automatically separated.
Will the machine damage the threads at high speed?
No. The servo control and torque monitoring system ensure smooth tapping without thread deformation.
