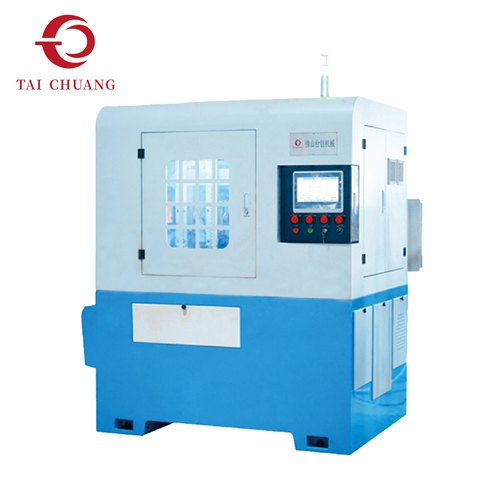

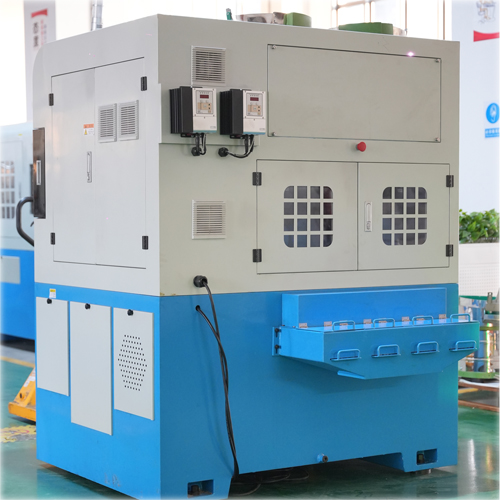

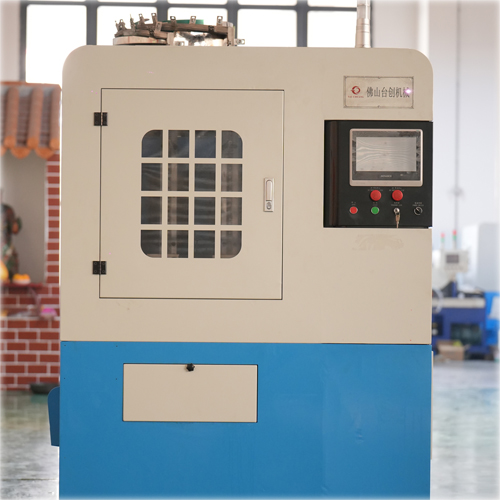

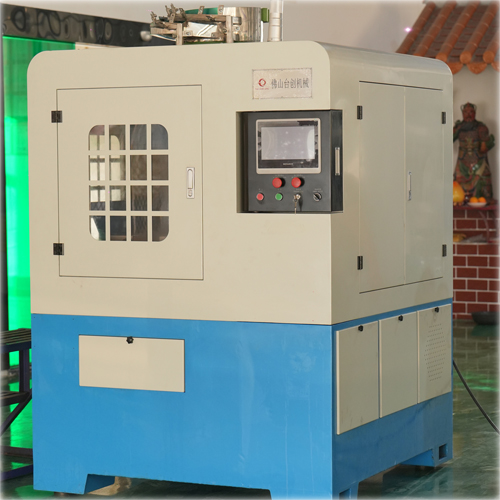

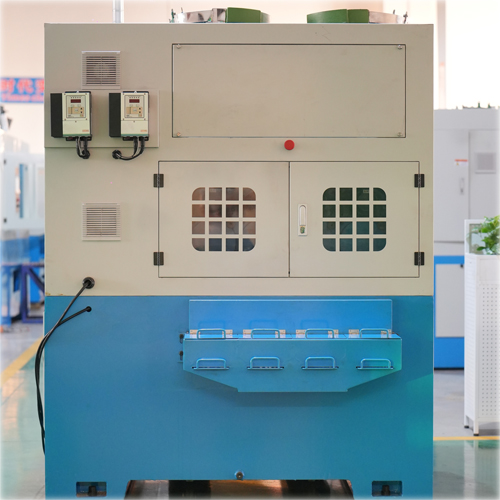

TAICHUANG’s servo nut tapping machine is precision-engineered to deliver exceptional threading accuracy and consistent performance through state-of-the-art servo-driven control technology.Compared with conventional mechanical tapping machines, this advanced model enables fully precise control over spindle speed, torque output, and tapping depth throughout the entire operation cycle.The closed-loop servo system ensures stable, repeatable performance with minimal deviation, significantly improving thread quality, reducing scrap rates, and extending tool service life by lowering unnecessary tool wear.
Designed for high-volume and high-precision fastener production, this intelligent servo tapping machine combines robust construction, smooth operation, and reliable stability to meet the strict requirements of modern manufacturing.It serves as an ideal upgrading solution for manufacturers aiming to enhance production efficiency, improve threading consistency, and achieve higher overall productivity with a durable, low-maintenance, and highly intelligent nut tapping solution.
Product specifications
TAICHUANG can provide nut tapping machine from M4-M62,with specifications below：
|
Item |
Name |
Parameter |
Name |
Parameters/Brand |
|
Casting base |
Pallet stroke |
150mm |
Main spindle servo motor |
2.0Kw/3000rpm(M5-M8) |
|
Feed linear guideway |
GHH20CAX410 |
Main spindle servo motor |
2.5Kw/3000rpm(M6-M10) |
|
|
Feed ball screw |
SFNH2020X275 |
Feed servo motor |
0.4Kw/3000rmp |
|
|
Baiting track |
Baiting angle |
90 degree angle |
Cooling pump |
370W |
|
Main spindle |
Max.processing outer diameter |
∅25 |
Touch screen |
Inovance |
|
Max.processing length |
less than nominal thread size ×2 |
Main engine |
Inovance |
|
|
Qty of main spindle |
2 |
Circuit-breaker |
CHNT |
|
|
Fixture mode |
Falt push |
Square nut,hexagonal nut |
Circuit-breaker |
CHNT |
|
|
Clamp |
round nut,flangle nut,polygonal nut |
Thermal overload |
CHNT |
|
|
Spring jaw |
flange material |
KA |
IDCE |
|
Clamping cylinder |
Cylinder |
SDA50X20SB |
Cylinder sensor |
Airtac |
|
2 spindles |
Productivity per spindle |
20-30pcs/min |
Power switch |
Siemens |
|
Overall Dimensions |
Overall Dimensions |
1150×1150×1750mm |
Equipment weight |
about 1500KG |
Designed for demanding applications, this high precision servo nut tapping machine guarantees:
Accurate thread pitch and depth
Stable spindle operation
Minimal vibration during tapping
Excellent repeatability in mass production
Even when processing stainless steel or high-strength materials, the machine maintains reliable performance.
Key Features
· Servo-powered tapping system for smooth, consistent operation
· Delivers ultra-precise threading results every time
· Built-in automatic feeding for seamless, hands-off production
· Smart PLC control for easy operation and reliable performance
· Flexible multi-spindle setups available to match your output needs
· Works reliably with a wide range of materials and nut sizes
The servo nut tapping machine is suitable for various nut types, including:

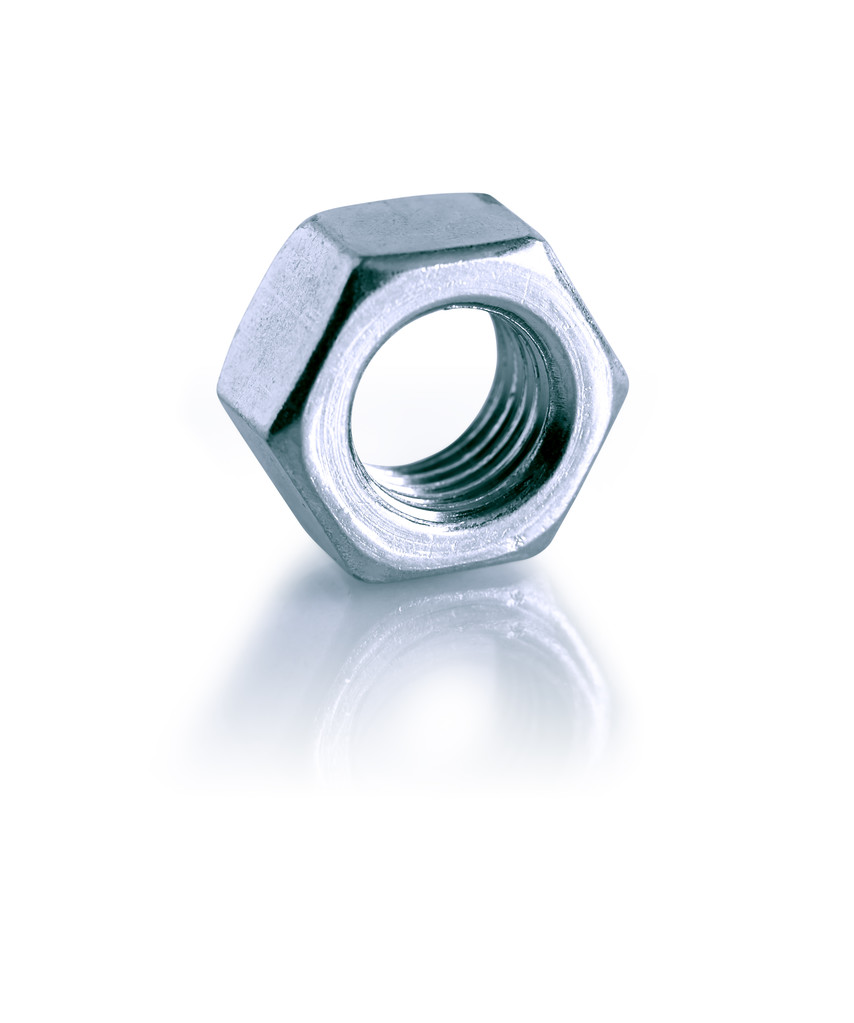

Hex nuts
Flange nuts
Weld nuts
Rivet nuts
Custom fasteners
It is widely used in:
· Automotive industry
· Aerospace fasteners
· Wind power equipment
· Construction hardware
· Electronics components
If you are experiencing:
Inconsistent thread quality
Frequent tap breakage
Low production efficiency
This servo nut tapping machine provides a reliable, high-performance solution to optimize your production line.
Looking for a high precision, intelligent, and automatic nut tapping machine?
Contact us now for:
Free consultation
Sample testing
Customized solutions
