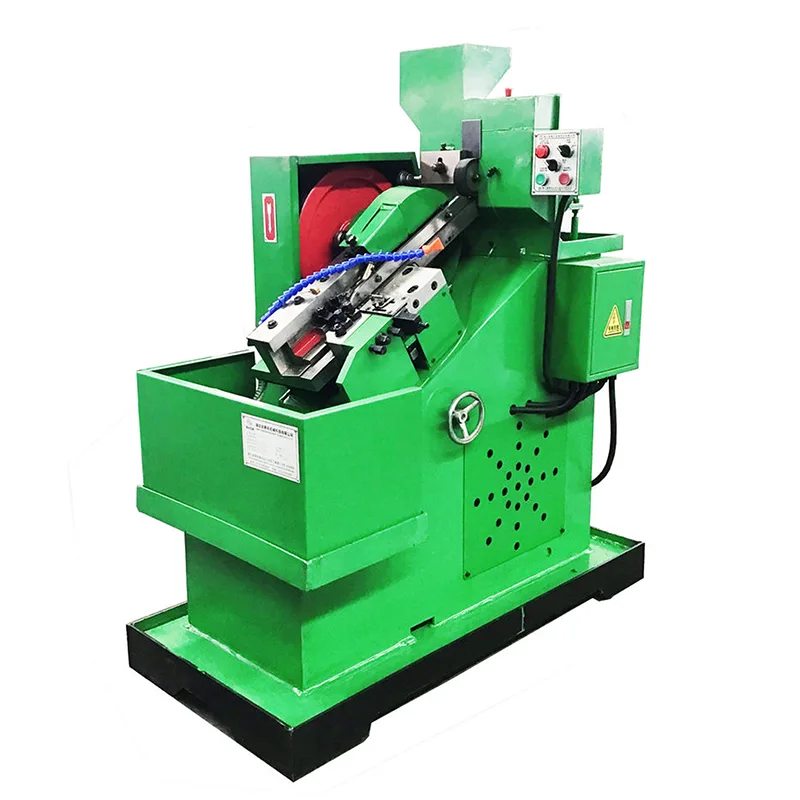

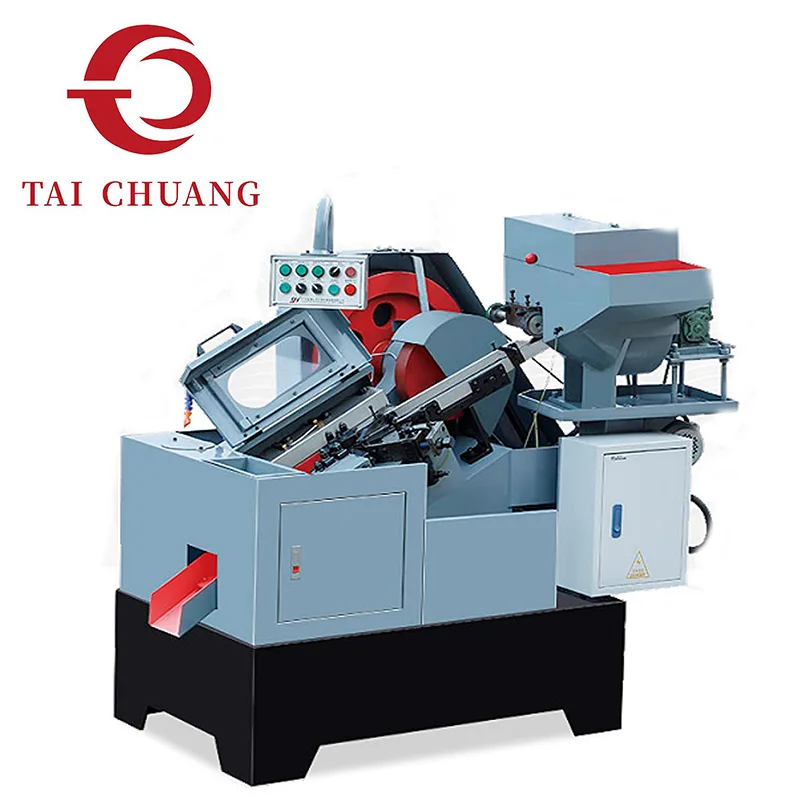

As a reliable supplier, TAICHUANG's hopper type thread rolling machine is designed to support structured fastener feeding and consistent thread forming through a clear and practical working concept. By combining a hopper-based material storage system with controlled feeding and cold rolling technology, this solution helps maintain orderly part flow and stable rolling behavior during normal production operation.

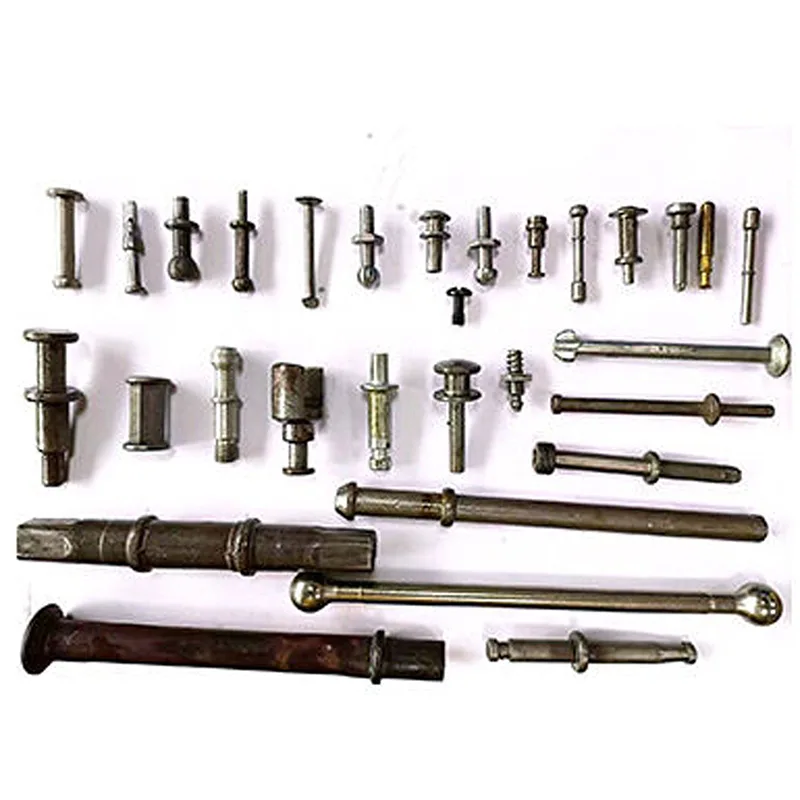

The threading machine is used for processing the thread of non-standard parts and various common screws. Its appearance has greatly improved the production efficiency of enterprises for difficult screws and hardware. This product is the exclusive machine for the production of difficult screws in the fastener business.
|
Model |
Max.Blank Diameter/mm |
Max.Blank Length/mm |
Moving Dies Stationary Length/mm |
Capacity/pcs/min |
Main Motor Power/kw |
Volume(L*W*H)/m |
Weight/kg |
|
|
R3-20T |
3 |
20 |
55*18*20 |
45*18*20 |
330-380 |
Level 4-0.75kw |
1.27*0.72*1.08 |
200 |
|
R4-25T |
4 |
25 |
80*20*25 |
65*20*25 |
280-330 |
Level 4-2.2kw |
1.30*0.65*1.35 |
260 |
|
R4-40T |
5 |
40 |
89*25*40 |
76*25*40 |
230-260 |
Level 6-2.2kw |
1.75*1.10*1.60 |
850 |
|
R5-65T |
6 |
65 |
105*25*65 |
90*25*65 |
120-140 |
Level 4-3.0kw |
1.52*1.20*1.25 |
950 |
|
R6-80T |
8 |
80 |
125*25*80 |
110*25*80 |
80-100 |
Level 4-4.0kw |
1.60*1.25*1.50 |
1000 |
Thread forming is completed through cold deformation, allowing the material to maintain its fiber structure and surface integrity. This thread rolling machine emphasizes repeatable rolling results and consistent thread geometry based on confirmed rolling parameters.
Rather than frequent manual adjustment, the system is configured according to actual product drawings and application requirements. This approach supports stable rolling behavior and helps maintain uniform thread quality across extended production schedules.
Thread rolling solutions associated with TAICHUANG follow ISO-based quality inspection procedures and are supported by CE conformity references commonly required by international buyers. Each thread rolling machine is inspected for structural integrity, operational stability, and safety-related elements prior to shipment.
Q1: What is the main advantage of a hopper type thread rolling machine?
The hopper feeding system supports organized part storage and continuous delivery into the rolling process.
Q2: Is this thread rolling machine suitable for different fastener sizes?
Suitability is determined based on confirmed drawings, material type, and thread specifications reviewed before selection.
Q3: Does hopper feeding affect rolling accuracy?
Rolling accuracy is primarily determined by die alignment and process configuration. The hopper supports stable feeding rather than forming precision.
