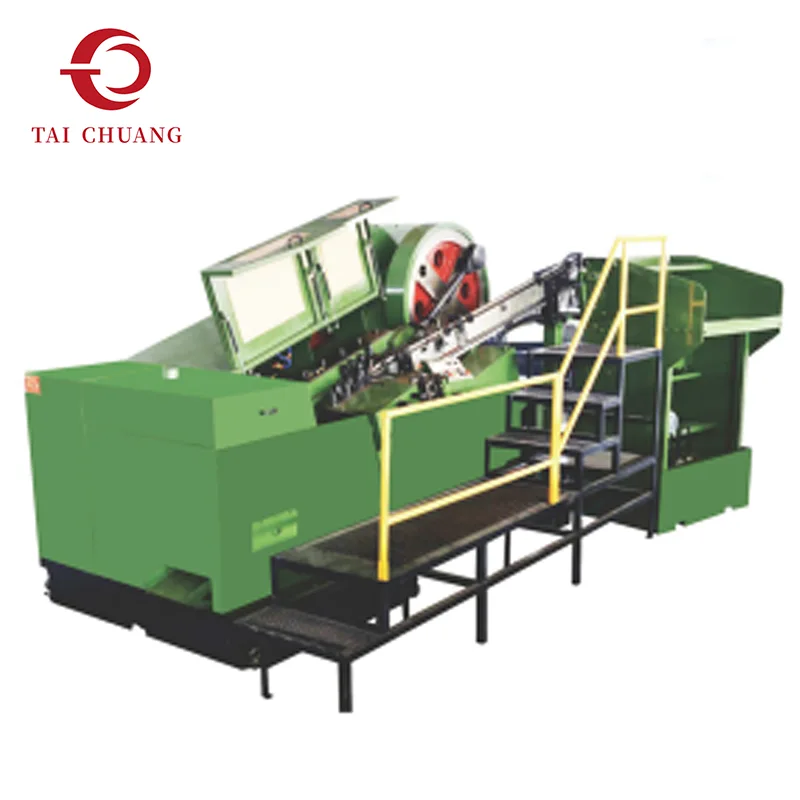

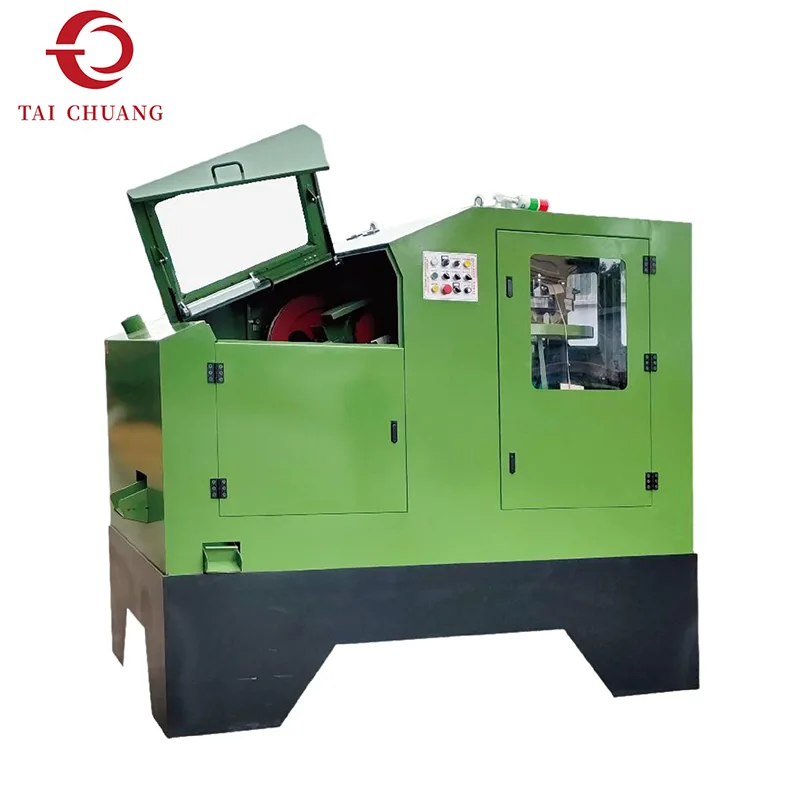

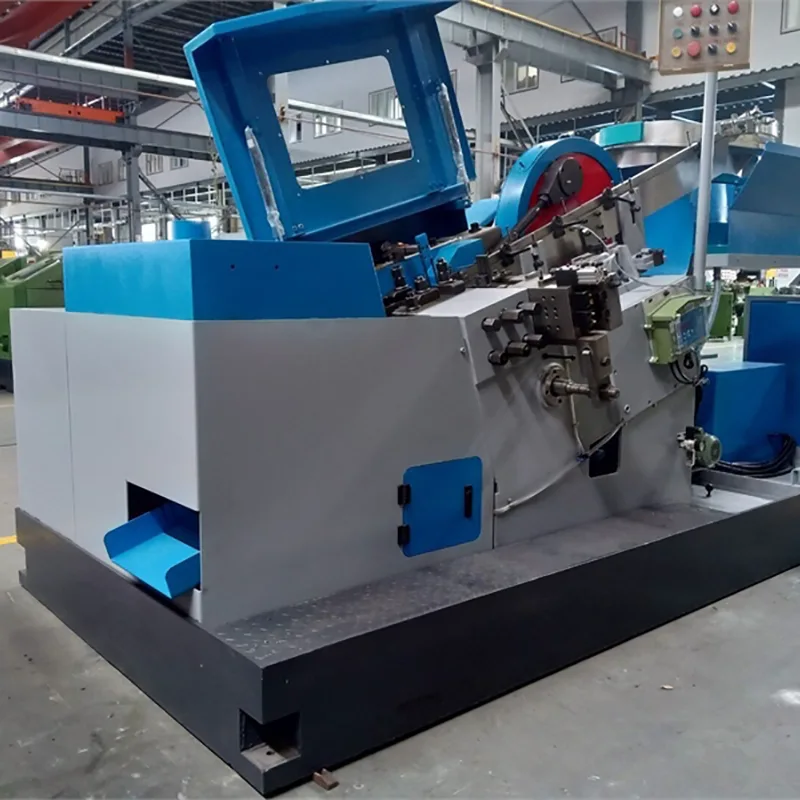

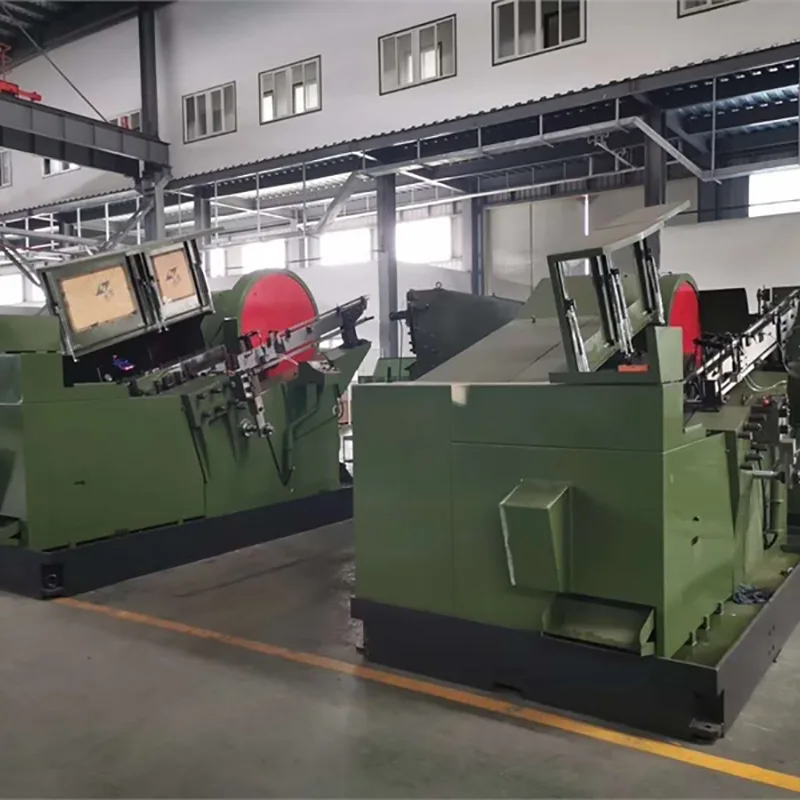

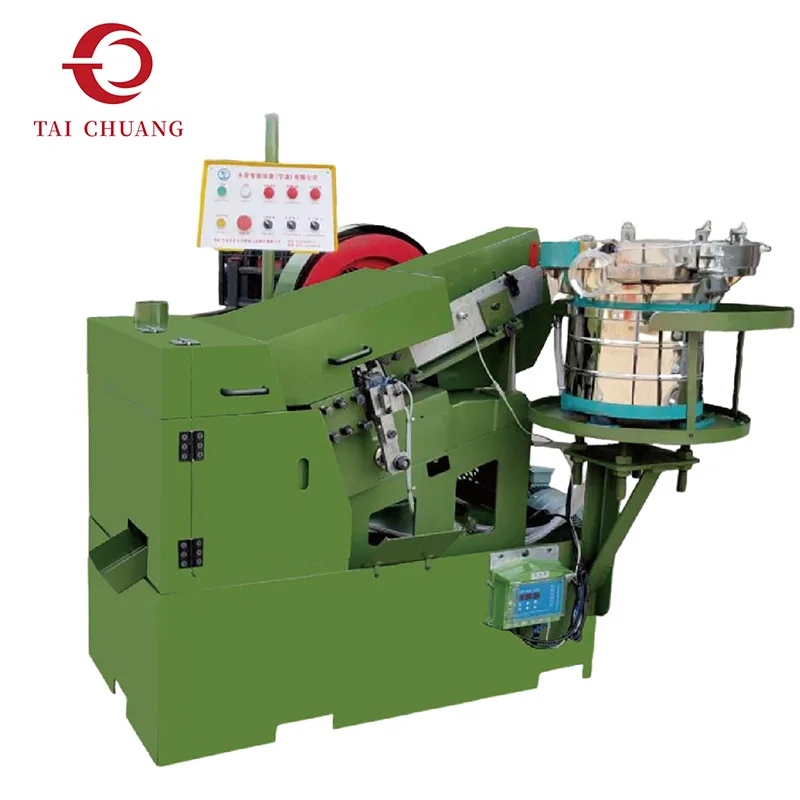

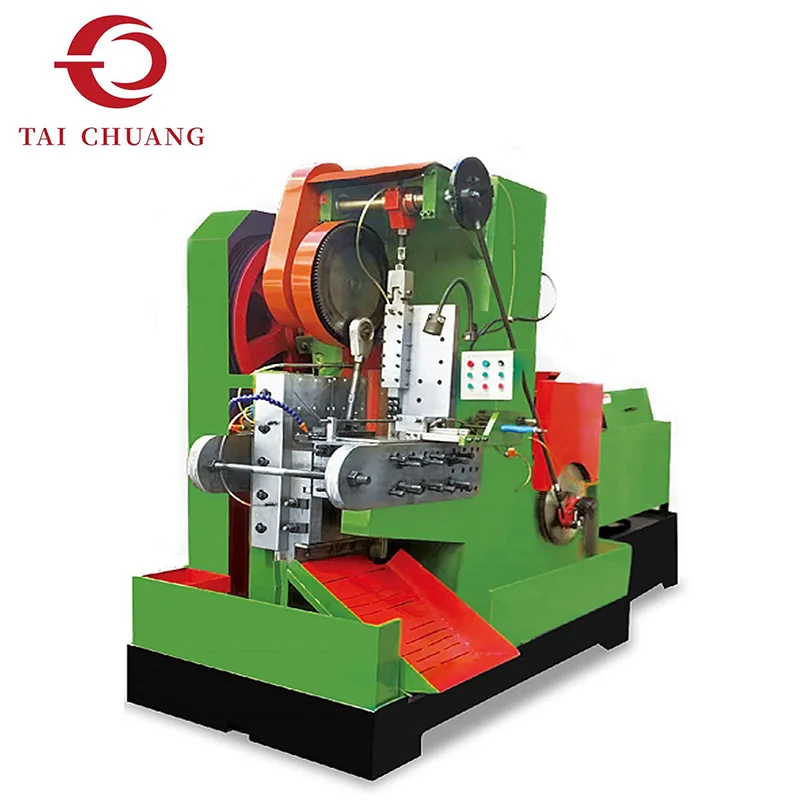

This High Speed Bolt Screw Threading Rolling Machine is used to form external threads on bolts and screws through a rolling process. Compared with cutting methods, thread rolling helps achieve smoother thread surfaces and more uniform profiles.We recommend this machine for customers who require stable threading results and efficient production rhythm in daily operation.
|
Model |
Diameter(mm) |
Screw length(mm) |
Thread length(mm) |
Moving Dies Stationary Length |
Main Motor(KW) |
Max.output(PCS/MIN.) |
Approx.wt(KG) |
Machine Size(mm) |
|
CY05Z |
3-5 |
75 |
50 |
76/89/25 |
2.2 |
110-150 |
1050 |
1600*1300*1650 |
|
CY06Z |
3-6 |
75 |
50 |
90/105/25 |
4 |
160-185 |
1600 |
1800*1500*1700 |
|
CY08Z |
4-8 |
100 |
75 |
108/127/25 |
5.5 |
145-165 |
1940 |
2000*1600*1700 |
|
CY10Z |
6-10 |
150/300 |
120 |
150/165/25 |
11 |
85-120 |
4050 |
2900*1220*2180 |
|
CY12Z |
8-12 |
150/200 |
120 |
190/215/35 |
15 |
65-85 |
5600 |
3300*1500*2350 |
|
CY16Z |
12-16 |
150/250/300 |
150 |
230/265/38 |
22 |
45-60 |
7300 |
3500*1900*2200 |
|
CY20Z |
14-20 |
200/300/400 |
150 |
290/330/50 |
37 |
40-50 |
14500 |
4700*2200*2200 |
|
CY24Z |
16-24 |
200/300/400 |
150 |
380/420/50 |
45 |
35-45 |
19500 |
5100*2320*2600 |
|
CY30Z |
22-30 |
300 |
150 |
400/450/50 |
55 |
20-30 |
26800 |
5700*3300*2700 |
|
CY36Z |
24-36 |
300 |
150 |
600/650/65 |
75 |
20-30 |
32500 |
6100*3500*2900 |
|
CY42Z |
30-42 |
400 |
150 |
51/64/19 |
90 |
15-30 |
38800 |
7200*4100*3200 |
|
CY02X |
1-3 |
25 |
20 |
76/89/25 |
1.5 |
275-330 |
830 |
1150*1000*1680 |
|
CY05X |
2-5 |
40 |
30 |
90/105/25 |
2.2 |
230-280 |
1040 |
1560*1180*1790 |
|
CY06XN |
3-6 |
75 |
50 |
90/105/25 |
5.5 |
280-380 |
3200 |
2300*1250*2000 |
|
CY06X |
3-6 |
75 |
50 |
90/105/25 |
4 |
170-220 |
1900 |
2140*1200*2100 |
|
CY06XT |
3-6 |
75 |
50 |
108/127/25 |
4 |
170-200 |
1800 |
1700*1500*1800 |
|
CY08X |
4-8 |
75 |
50 |
108/127/25 |
5.5 |
170-220 |
2215 |
2410*1200*2100 |
|
CY08XN |
4-8 |
75 |
50 |
150/165/25 |
7.5 |
280-360 |
3800 |
2600*1300*2000 |
|
CY10XT |
6-10 |
100 |
50 |
150/165/25 |
11 |
130-150 |
3100 |
2900*1350*1900 |
|
CY10X |
6-10 |
150 |
100 |
150/165/25 |
15 |
110-150 |
4200 |
3100*1500*1900 |
|
CY12XT |
8-12 |
75 |
50 |
190/215/35 |
7.5 |
120-150 |
3050 |
3000*1350*1900 |
|
CY12X |
8-12 |
150 |
100 |
190/215/35 |
22 |
110-140 |
4500 |
3300*1530*1980 |
Across different thread rolling machine types, customers usually focus on the following performance aspects:
Stable rolling accuracy and repeatable thread quality
Smooth feeding and discharge for continuous operation
Reasonable structure design for daily factory use

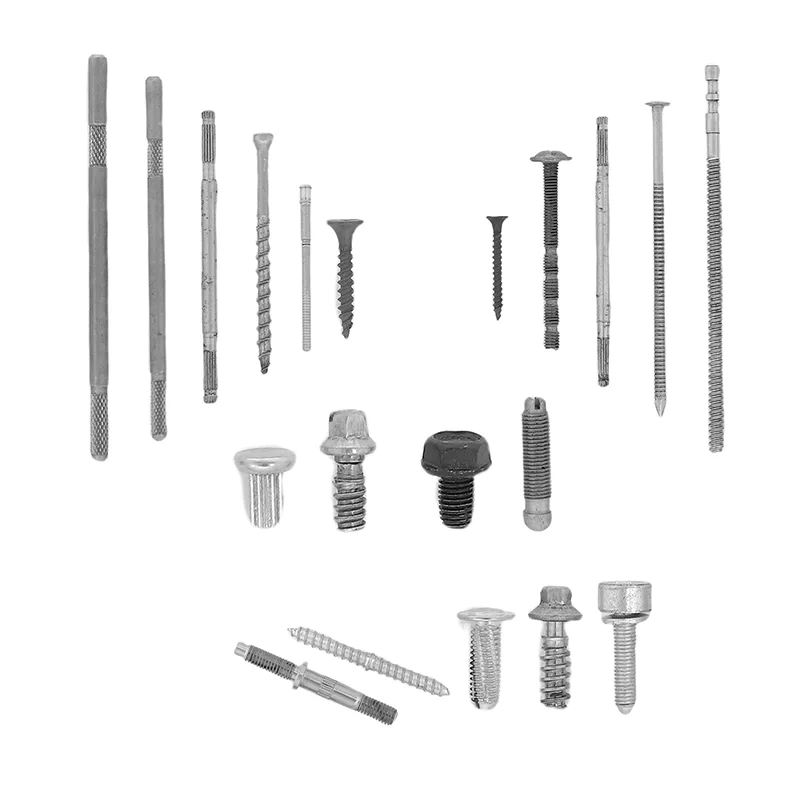

Comatibility with carbon steel, alloy steel, and stainless steel fasteners
Machines presented here are selected based on real production feedback, focusing on reliability, efficiency, and long service life, rather than short-term output claims.

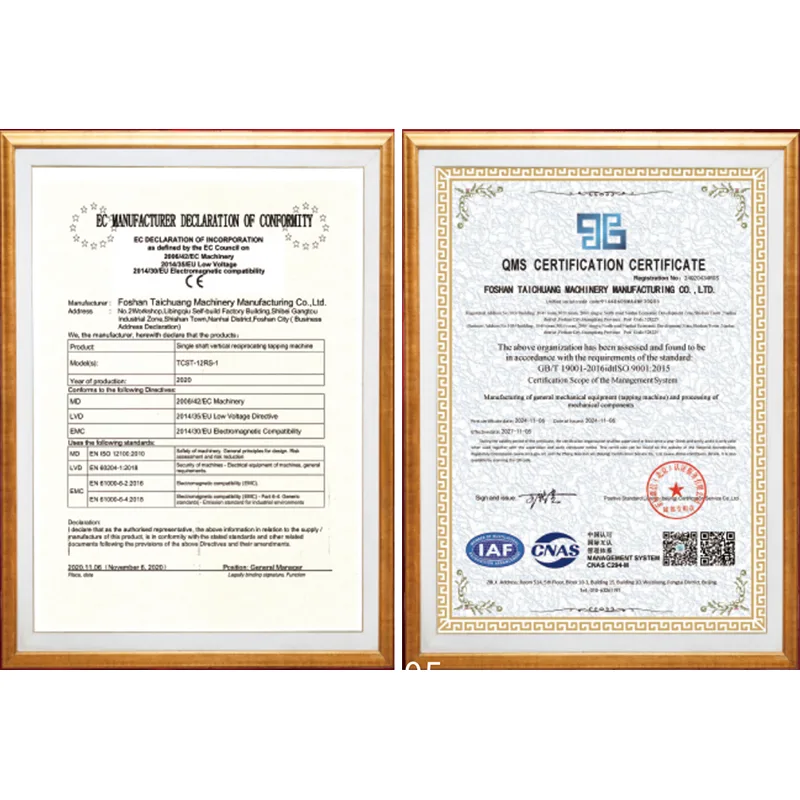

This High Speed Bolt Screw Threading Rolling Machine follows CE safety requirements and ISO-based quality inspection procedures. Functional testing, visual checks, and rolling accuracy verification are conducted before delivery to ensure stable performance.
Export-standard packaging is applied, including reinforced structure fixing and moisture protection to ensure safe international transportation.
Q1: Is this machine suitable for our bolt specifications?
The suitable application range is defined based on confirmed bolt drawings, material type, and thread requirements. Selection is made according to actual production needs.
Q2: What advantages does thread rolling offer compared to cutting?
Thread rolling improves material flow, surface finish, and fatigue resistance without removing material.
Q3: What information should we prepare before inquiry?
Bolt drawings, thread size, material type, and expected production requirements help evaluate suitability more accurately.
