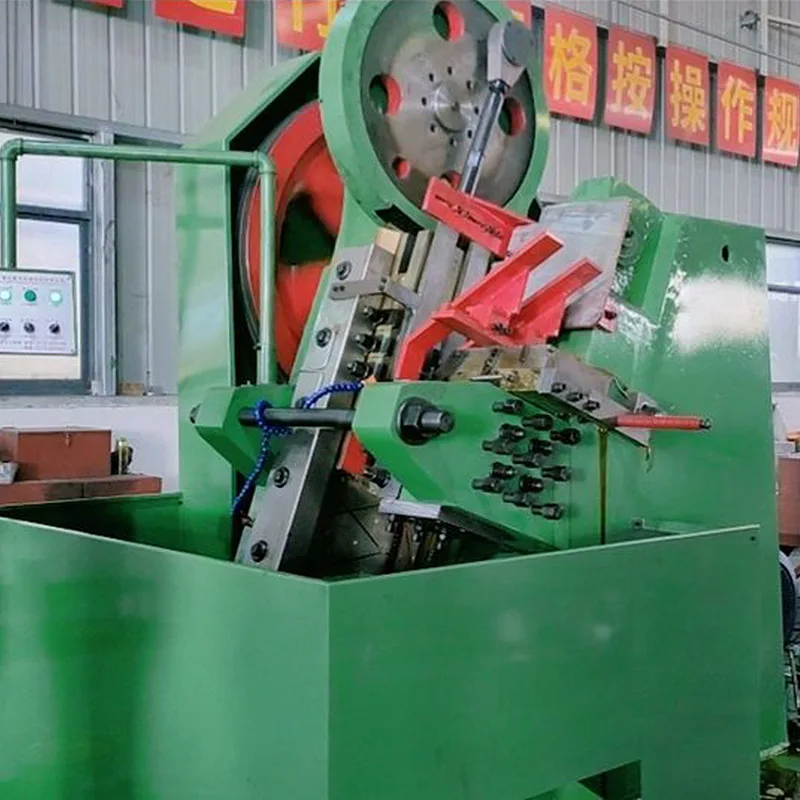

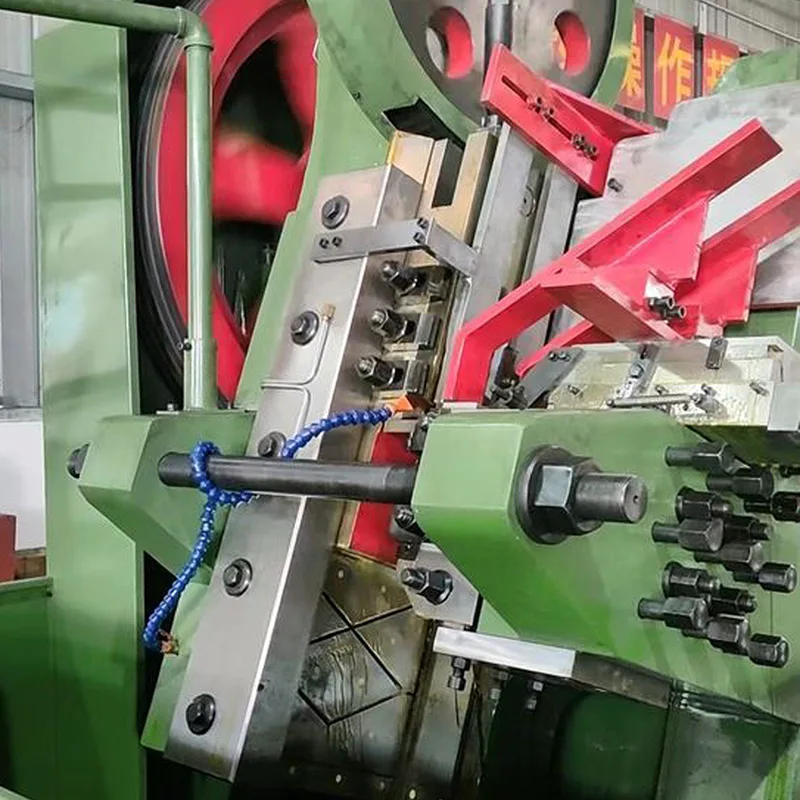

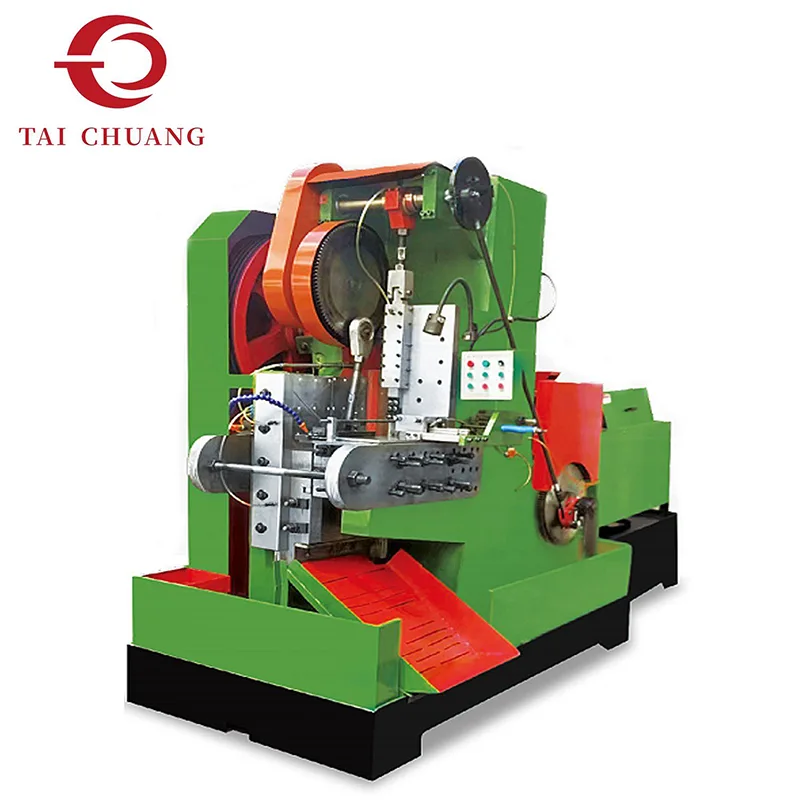

The Automatic Cutting and Threading Rolling Machine is designed to combine material feeding, length cutting, and thread forming into one continuous and coordinated process. Compared with conventional threading solutions that rely on pre-cut blanks, this integrated structure helps improve length consistency and reduces intermediate handling steps.
This type of thread rolling machine is commonly applied for headless screws and long rod fasteners, where precise length control and stable axial alignment are critical. Raw material is fed automatically, cut to the required length, and transferred directly into the rolling section, allowing threads to be formed without repositioning the workpiece.
| Model | FR6-80 | FR8-100 | FR10-100 | FR12-120 |
| Max.Blank Diameter/mm | 8 | 10 | 12 | 14 |
| Max.Blank Length/mm | 80 | 100 | 100 | 120 |
| Moving Dies Stationary Length/mm | 125*25*80 | 140*30*100 | 170*30*100 | 210*40*120 |
| 110*25*80 | 125*30*100 | 150*30*100 | 190*40*120 | |
| Capacity/pcs/min | 85 | 70 | 65 | 55 |
| Main Motor Power/kw | 4 | 5.5 | 7.5 | 11 |
| Volume(L*W*H)/cm | 140*155*170 | 220*150*190 | 260*155*210 | 300*180*235 |
| Weight/kg | 1800 | 2800 | 3800 | 5500 |

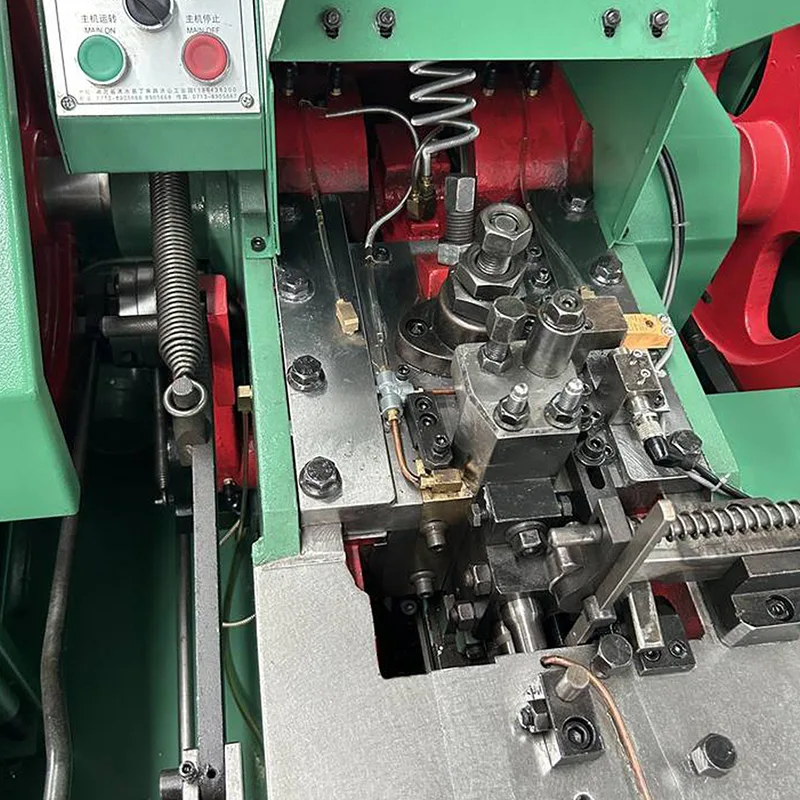

The working process begins with automatic material feeding, where bar stock or wire material is guided into the cutting unit in a controlled sequence. The cutting mechanism separates each piece to a preset length, ensuring consistency before thread formation.

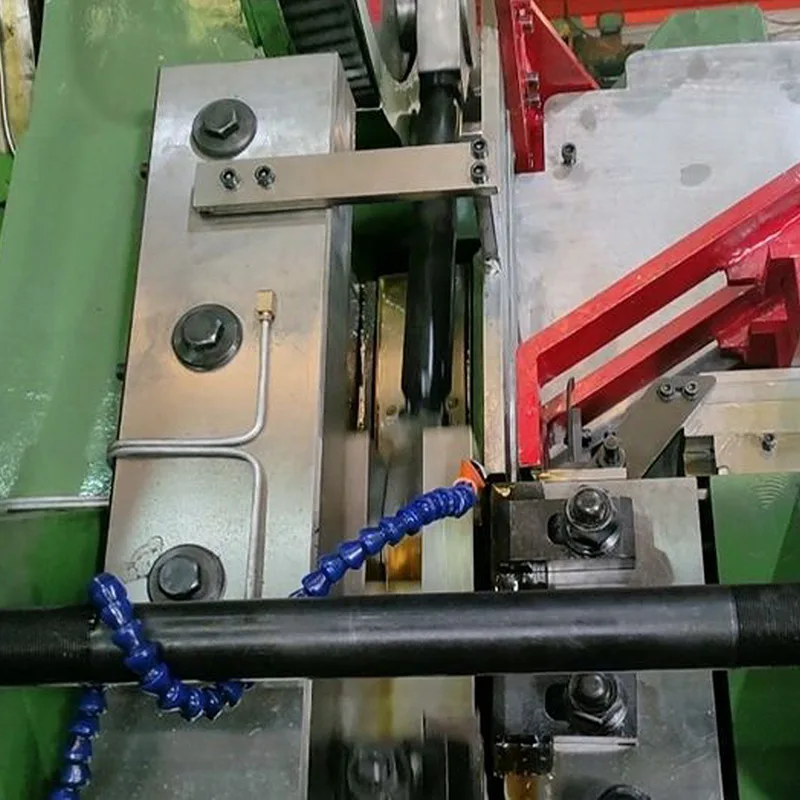

After cutting, the workpiece is transferred directly into the rolling zone. Thread forming is completed through cold deformation using rolling dies rather than cutting chips. This method supports uniform thread profiles and stable surface finish based on defined rolling parameters.
Compared with separate cutting and threading steps, an Automatic Cutting and Threading Rolling Machine can help:
Improve length repeatability between finished parts
Reduce handling errors caused by multiple transfers
Simplify workflow planning and operator coordination
Maintain consistent thread appearance across production runs
What types of products are suitable for this machine?

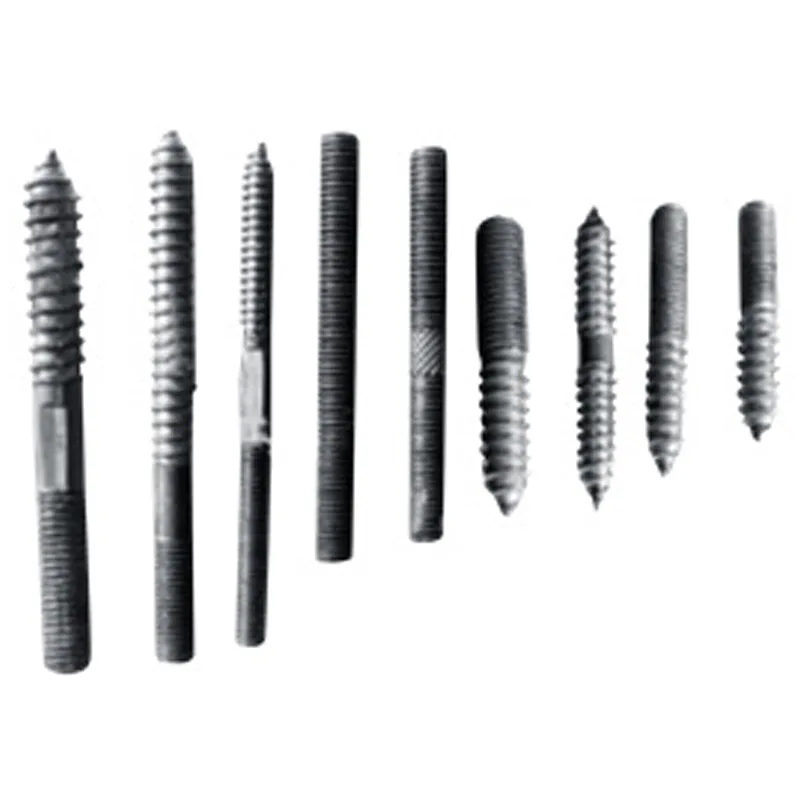

This machine is mainly applied for headless screws and long rod fasteners that require both length cutting and thread rolling in one process.
How does this machine differ from standard thread rolling machines?
Unlike machines that require pre-cut blanks, this model integrates feeding, cutting, and rolling, helping improve length consistency and workflow efficiency.
Is thread quality affected by the cutting process?
The cutting stage is completed before rolling, and thread formation is achieved through rolling deformation, supporting stable thread profiles when properly adjusted.
