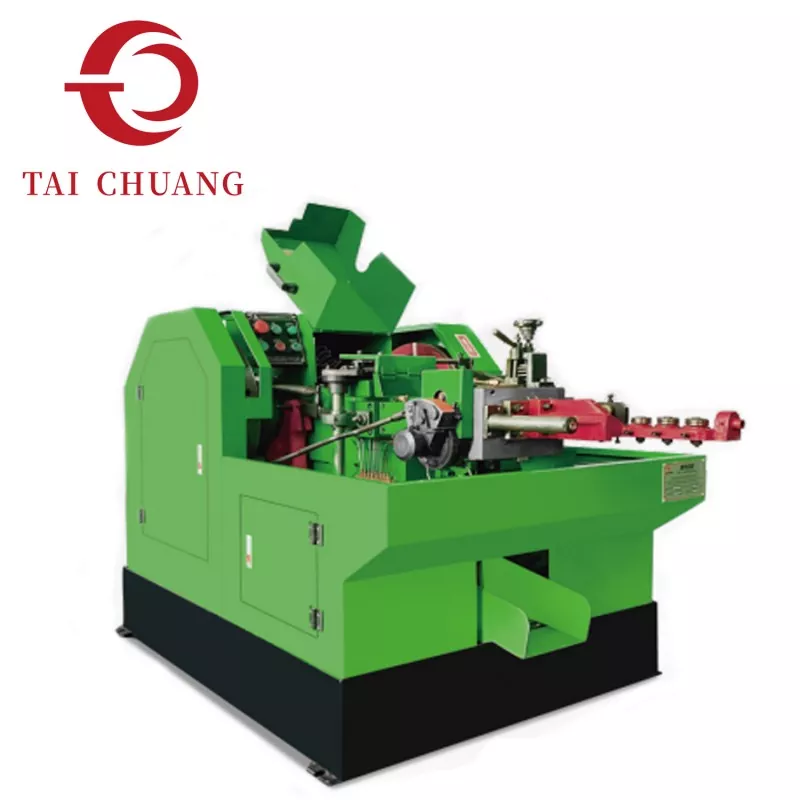

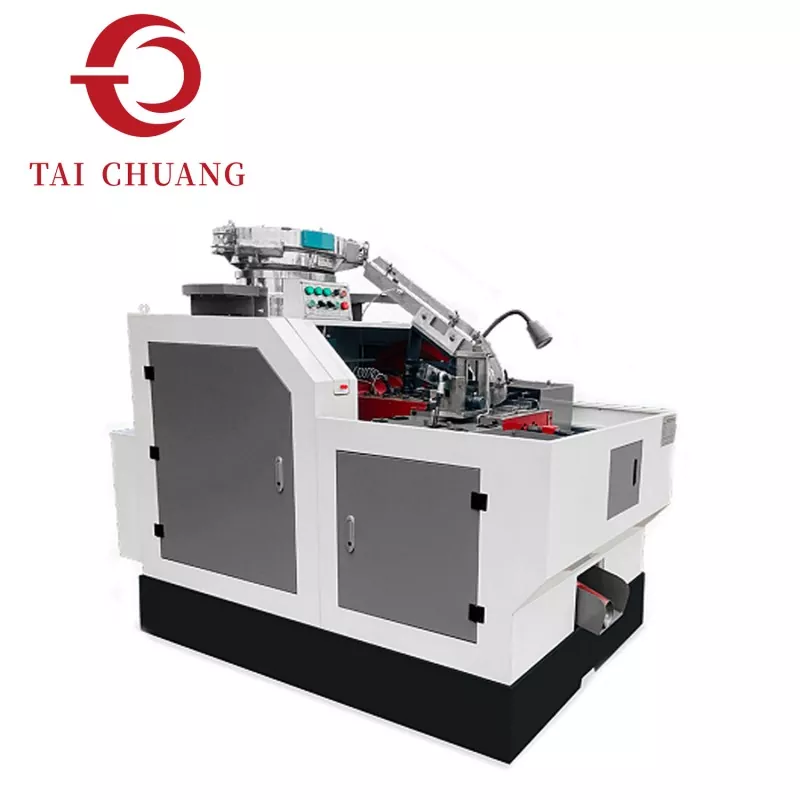

Precision Part Cold Former equipment is widely used in modern metal forming, and TAICHUANG supplies advanced machines for manufacturers producing complex metal components and precision fastener parts. Using cold forging technology, a professional part cold former shapes metal wire or rod into finished or semi-finished components through high-pressure forming rather than material removal.
By integrating a reliable equipment into the production process, manufacturers can achieve high productivity, consistent dimensional accuracy, and strong mechanical properties in large-scale industrial manufacturing.
The Part Cold Former operates through a continuous cold forming process designed for efficient production.
Wire or rod material is automatically fed into the cold former from a coil or bar feeder.
The machine cuts the material into precise lengths required for forming.

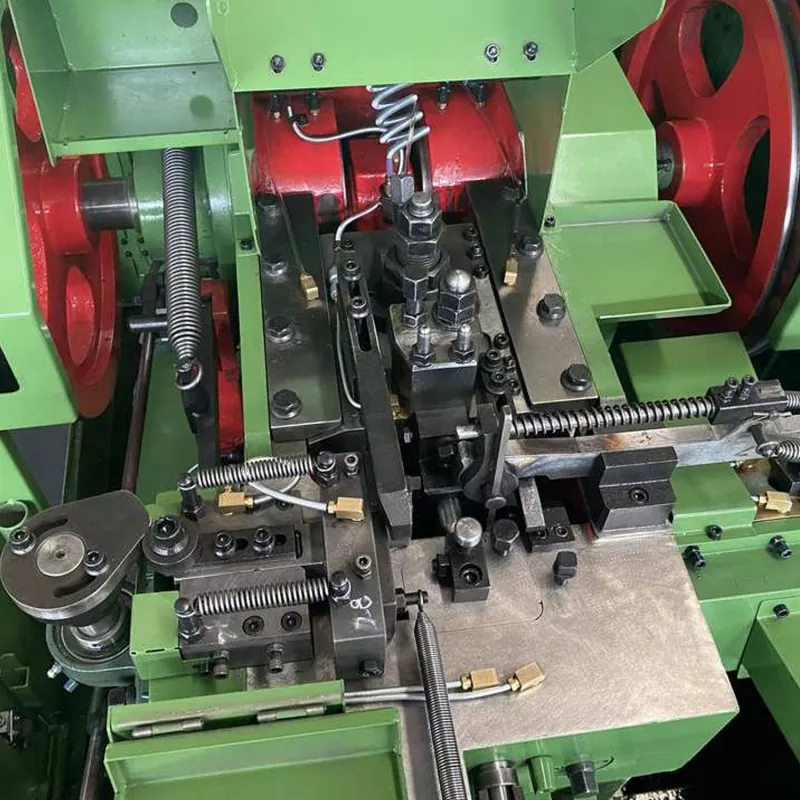

Multiple forming dies apply high pressure to reshape the material into the desired component geometry.
The finished or semi-finished component exits the Part Cold Former, ready for additional processing if required.
This production cycle allows this machine to manufacture large quantities of metal parts with stable quality.
TAICHUANG Cold Heading Machines stand out with five core strengths: superior precision & stability, high efficiency & flexibility, exceptional durability, advanced automation, wide application adaptability, and comprehensive safety & environmental friendliness.
Rigid & Stable Machine Structure: Key castings (e.g., machine body, main slide) undergo annealing for stress relief, ensuring no deformation during long-term use. The main slide adopts an OVERARM structure with wear-resistant high-alloy steel side plates, maintaining consistent motion precision.
High Shearing & Forming Accuracy: Full-circle shear blades deliver flat and vertical shear surfaces; synchronized ejection on the die side prevents workpiece sticking, guaranteeing excellent forming consistency.
Precise Cam & Transmission System: Cams are designed via computer-aided engineering and CNC-machined for smooth, accurate operation. Critical components are manufactured by machining centers, featuring minimal fit clearance, stable runtime, and low noise.
Consistent Dimensional Precision: Meets the strict requirements of precision parts in automotive, electronics, aerospace, and other high-end industries.
High-Speed Multi-Station Forming: 3/4/6-station models enable one-step forming of complex parts, with a maximum production speed of 160 pcs/min. Single-machine daily output is 3x higher than traditional processes.
Stepless Speed Regulation & Quick Mold Change: Inverter + PLC realizes stepless speed adjustment for efficient test runs and product switching. Some models are equipped with a quick mold change system, suitable for both small-batch customization and large-scale production.
Advanced Automation Integration: HMI interface + automatic detection enables full-process control (feeding, sizing, stopping, fault alarming). Seamlessly integrates with thread rolling, tapping, and other equipment to form high-efficiency production lines.
Durable Core Components: Ductile iron machine body (high strength, toughness, and wear resistance); embedded oil-free self-lubricating bearings reduce energy consumption and extend the service life of connecting shafts.
Forced Lubrication & Protection Systems: Oil pressure protection + forced lubrication ensures full lubrication of moving parts; air circuit overload protection prolongs mold and machine lifespan.
Imported Key Elements: Hydraulic and pneumatic components from international brands guarantee reliable operation and low failure rates.
Comprehensive Safety Design: Pneumatic clutch-brake system features low starting current, smooth braking, and precise stopping at the bottom dead center. Multiple safety doors and protective covers ensure operator safety.
Low Pollution & Noise: Enclosed protective covers reduce hot oil mist; sound insulation cotton covers reduce noise by ~30%, improving workshop working conditions.
Wide Application Coverage: Capable of forming standard fasteners (bolts, nuts, screws) and complex special-shaped parts (automotive structural parts, electronic precision components, industrial machinery parts).
High Material Utilization: Cold Heading process achieves over 95% material utilization, far exceeding cutting processes (reducing waste by ~30%) to save energy and costs.
Most production facilities use the part cold former as a key piece of equipment in a full cold forging line.

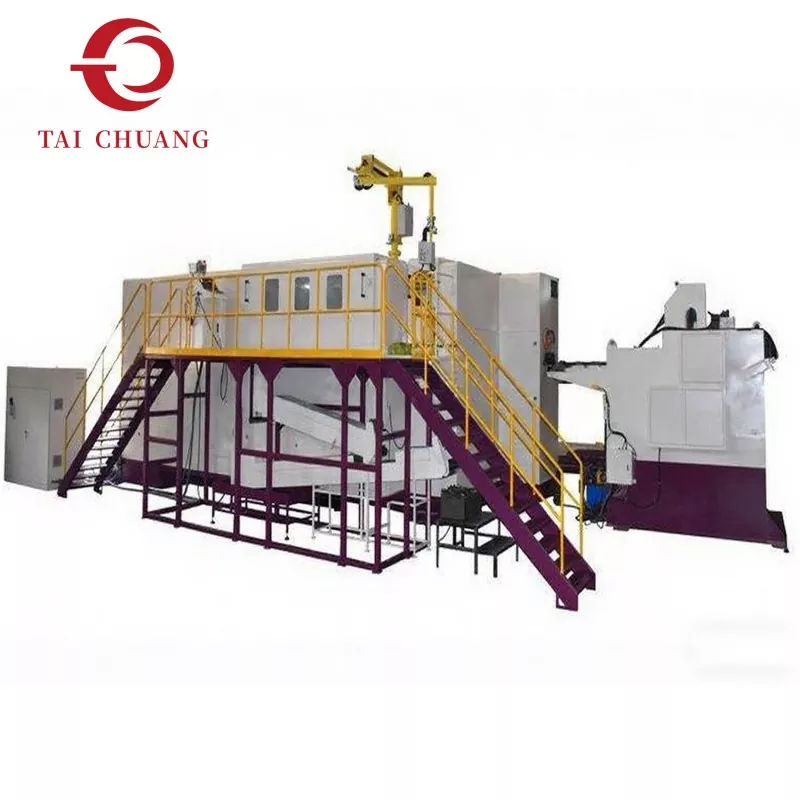

A typical automated line includes several machines working together:
Thread rolling machine – adds external threads on fasteners
Nut tapping machine – creates internal threads for nuts
By combining these machines, factories can set up a stable, high-efficiency cold forming production process.
TAICHUANG Part Cold Formers are engineered for manufacturers who demand stable, high-efficiency cold forging solutions. Built with a heavy duty frame, precision forming systems, and reliable control components, our machines run consistently even under long hour, high load production conditions.
For businesses producing large quantities of precision metal parts, TAICHUANG’s professional cold forming equipment helps boost productivity, maintain stable part quality, and integrate smoothly into automated production lines.
