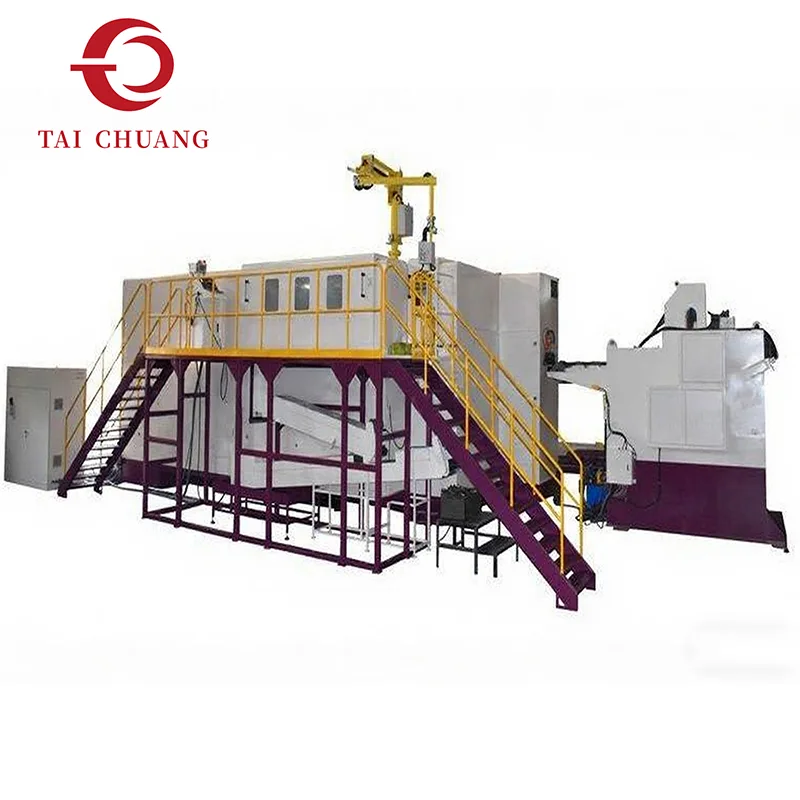

Our 8-station part cold heading machine takes multi-stage cold forming to a more advanced level. By breaking down the shaping process across eight controlled stations, this industrial machine can handle more refined contours, deeper cavities, and tighter dimensional precision.
This setup is built for parts that need careful, step-by-step forming to keep their shape stable and maintain the material’s internal integrity.
TAICHUANG offers this 8-station configuration for manufacturers working on highly engineered components, where progressive deformation is key to achieving the required quality and performance.
|
Model |
Unit |
SJBP-88S |
SJBP-108S |
SJBP-138L |
SJBP-208L |
SJBP-308L |
|
Forging station |
No. |
8 |
8 |
8 |
8 |
8 |
|
Forging force |
kgs |
110000 |
130000 |
180000 |
430000 |
800000 |
|
Max cut-off dia |
mm |
Φ13 |
Φ16 |
Φ23 |
Φ30 |
Φ45 |
|
Max cut-off length |
mm |
100 |
133 |
190 |
240 |
400 |
|
Speed Range |
pcs/min |
60-100 |
45-90 |
50-80 |
35-55 |
20-40 |
|
P.K.O Stroke |
mm |
26 |
30 |
50 |
50 |
70 |
|
K.O.Stroke |
mm |
90 |
115 |
175 |
220 |
330 |
|
Main slide stroke |
mm |
140 |
190 |
270 |
346 |
520 |
|
Main motor |
kw |
30 |
37 |
45 |
90 |
200 |
|
Cut-off die size |
mm |
Φ42*60L |
Φ52*75L |
Φ75*100L |
Φ82*130L |
Φ129*180L |
|
Punch die size |
mm |
Φ45*115L |
Φ53*115L |
Φ60*130L |
Φ90*215L |
Φ138*270L |
|
Main die size |
mm |
Φ60*120L |
Φ75*135L |
Φ94*190L(315L) |
Φ125*240L |
Φ185*420L |
|
Die pitch |
mm |
80 |
94 |
110 |
140 |
200 |
|
Machine dimension (L*"W"*H) |
cm |
458*285*185 |
495*336*210 |
645*330*248 |
800*440*320 |
1075*550*400 |
|
Lifting reference weight |
Ton |
24 |
30 |
41 |
98 |
240 |
|
Max forging dia on head |
mm |
Φ20 |
Φ24 |
Φ28 |
Φ44 |
Φ65 |
|
Normal bolt size |
mm |
5-10 |
6-12 |
8-14 |
12-22 |
24-36 |
|
Shank length of blank |
mm |
15-77 |
15-110 |
20-160 |
30-210 |
60-320 |
With eight dedicated forming stations, this 8-Station Part Cold Heading Machine lets deformation happen in small, controlled steps instead of big, abrupt changes. This gradual approach gives you much better control over the final shape and helps keep the material’s internal structure aligned properly.
Key forming capabilities include:
1. Advanced stepped shaft structures
2. Multi-layer contour refinement
3. Deep cavity and extrusion features
4. High concentricity control
5. Complex engineered part geometry
When compared to standard multi-station systems, this 8-station cold heading machine offers the greatest flexibility in shaping complex geometries during cold forming operations.

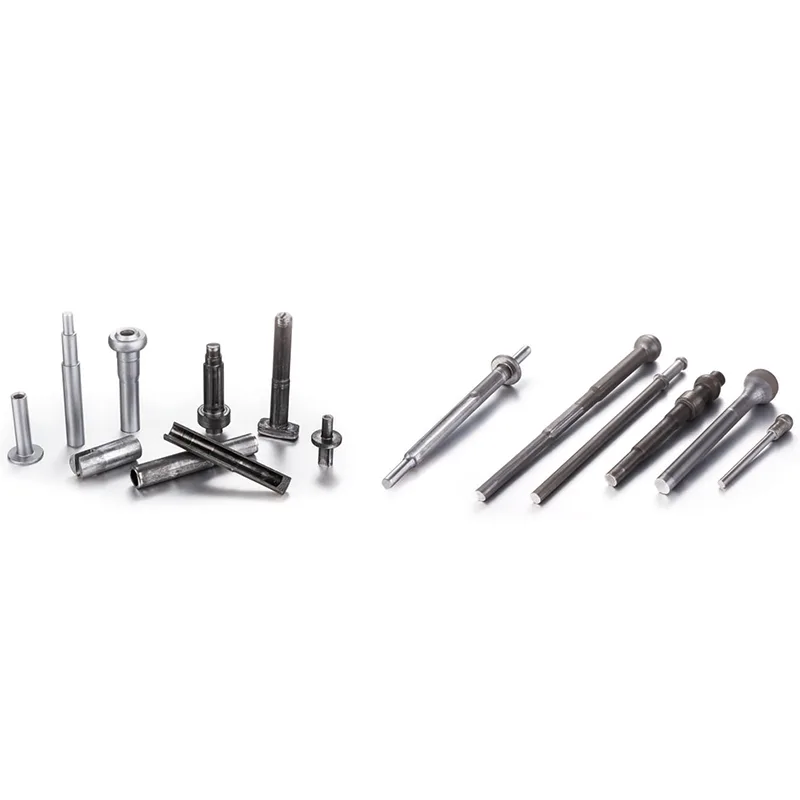

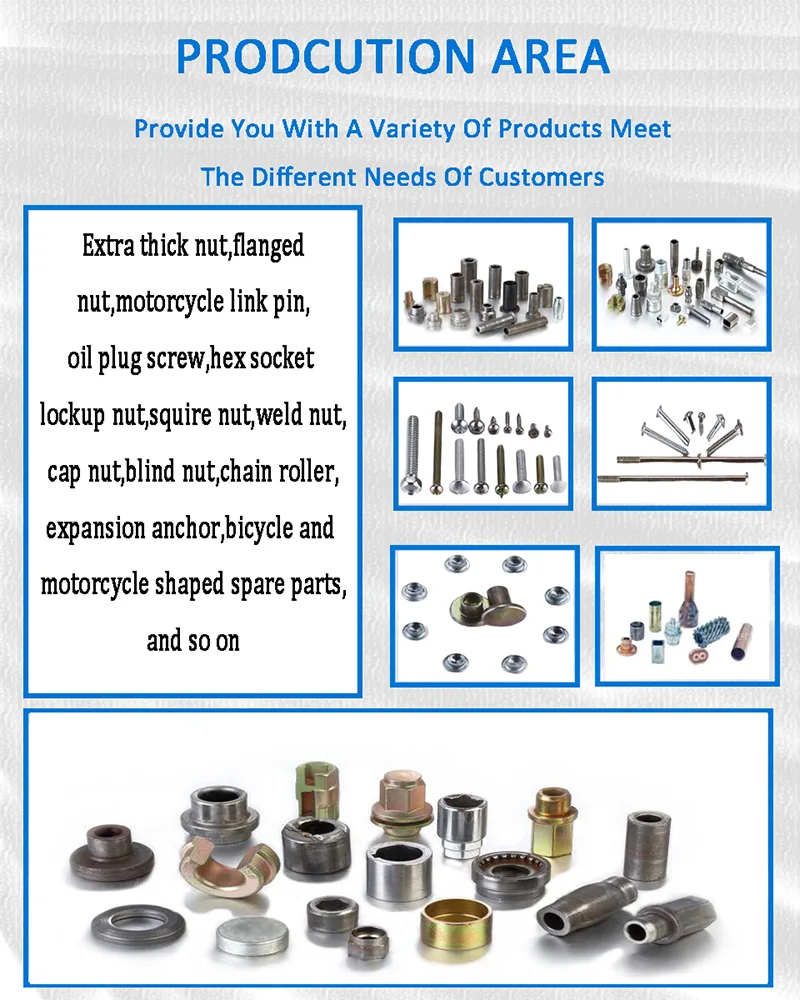

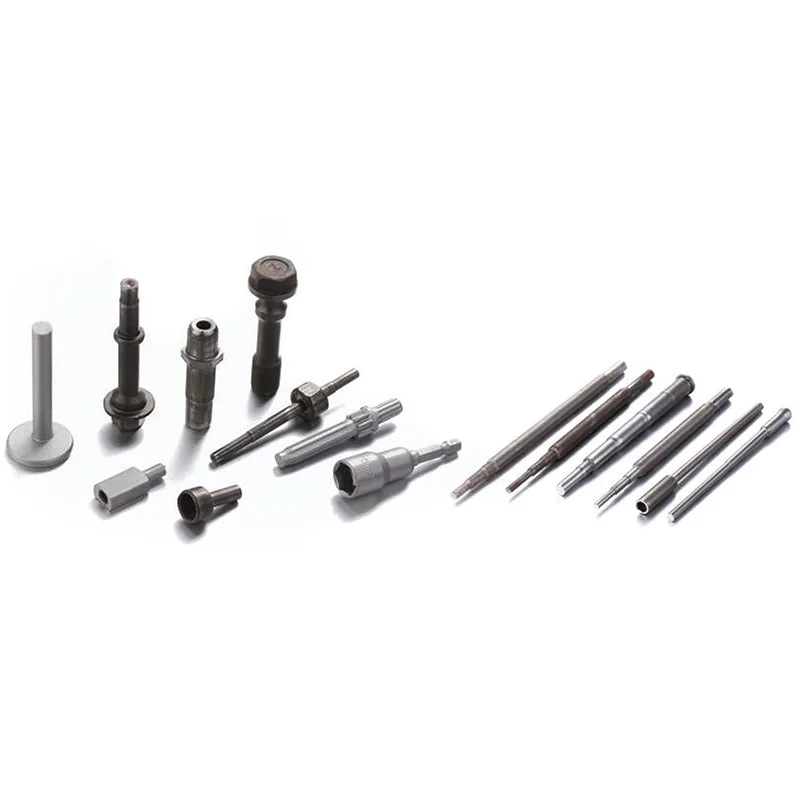

Our 8-Station Part Cold Heading Machine is widely used for manufacturing high-precision components across demanding industries, including:
1. Aerospace-grade industrial parts
2. High-performance automotive components
3. Precision hardware for heavy equipment
4. Components for energy and infrastructure projects
5. Custom engineered metal fittings
The machine is capable of processing industrial carbon steel and alloy materials commonly used in advanced cold heading production.
Experience in exporting industrial forming equipment
Focus on precision, durability, and structural stability
Solutions designed for global manufacturing standards
Technical support for long-term production operations
TAICHUANG provides professional multi-station cold heading machine solutions for international industrial markets.
Q1: When is an 8-station machine necessary?
When components require many forming stages or complex shaping sequences.
Q2: Is it suitable for high-precision parts?
Yes. Gradual deformation improves dimensional stability.
Q3: What industries commonly use this equipment?
Automotive, aerospace components, industrial hardware, and machinery manufacturing.
