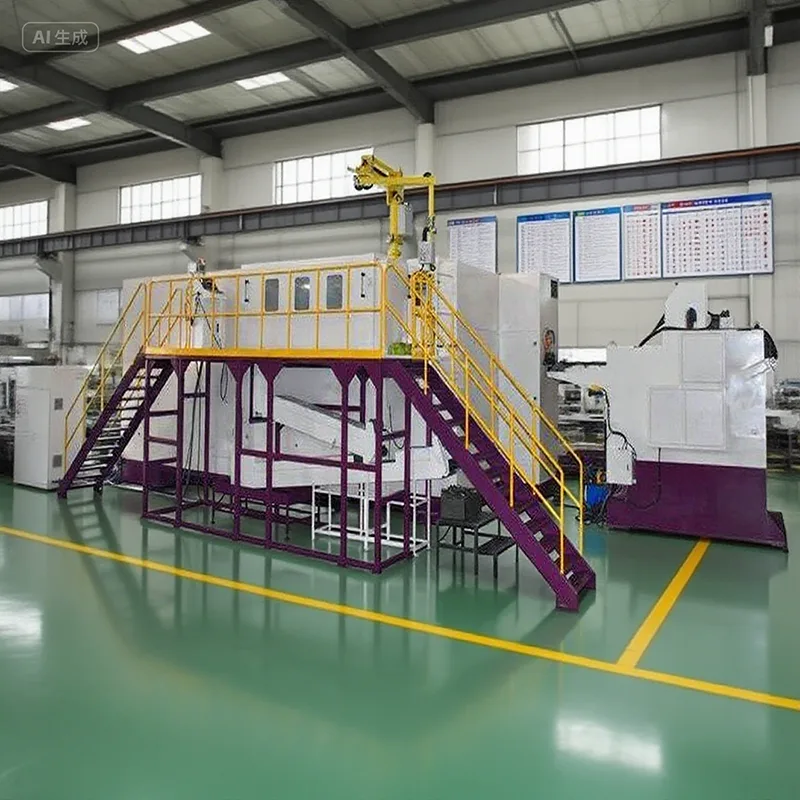

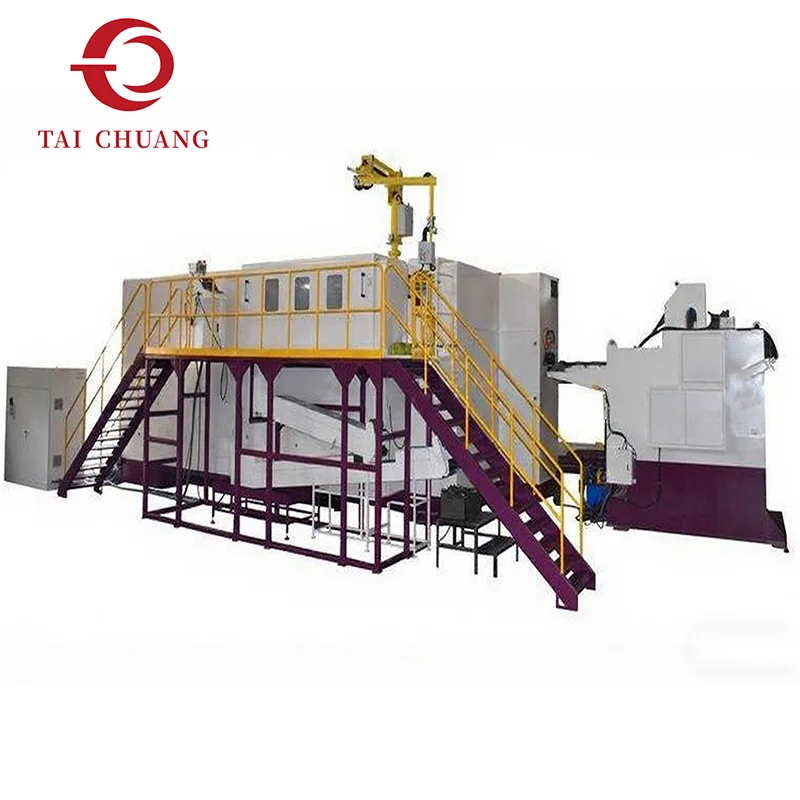

6-Station Part Cold Heading Machine

Multi-stage forming performance defines this 6-Station Part Cold Heading Machine, offered by the professional manufacturer, TAICHUANG, for industrial cold heading applications. The six-station configuration expands the forming sequence to support more complex component geometries while maintaining stable material flow and controlled deformation during continuous cold heading production.

Send Inquiry

Product Description

Built with an extra forming station in the production sequence, this 6-Station Part Cold Heading Machine delivers expanded shaping capability for more demanding parts. It lets complex geometries be formed gradually through stable, controlled deformation.

During operation, metal wire or rod is cut to length and transferred between stations, where each step completes a portion of the forming process. Distributing the deformation across six stations improves material flow and lowers the chance of excessive stress buildup during forming.

TAICHUANG provides this cold heading machine for manufacturers who need extra forming steps beyond what standard cold forming equipment can offer.

Product specifications

Model	Unit	SJBP-66S	SJBP-86S	SJBP-86L	SJBP-106S
Forging station	NO.	6	6	6	6
Forging force	Kgs	53,000	95,000	105,000	115,000
Max cut-off dia	mm	Φ10	Φ13	Φ13	Φ16
Max cut-off length	mm	100	100	200	133
Speed Range	pcs/min	100-160	80-125	50-110	85-140
P.K.O Stroke	mm	26	26	35	30
K.O.Stroke	mm	85	90	170	115
Main slide stroke	mm	136	140	270	190
Main motor	kw	18.5	22	30	30
Cut-off-die size	mm	Φ32*45L	Φ42*60L	Φ42*60L	Φ52*75L
Punch die size	mm	Φ40*90L	Φ45*115L	Φ45*130L	Φ53*115L
Main die size	mm	Φ50*120L	Φ60*120L	Φ60*190L	Φ75*135L
Die pitch	mm	64	80	80	94
Machine dimension	cm	350240170	420270200	520270200	460300210
Lifting reference weight	Ton	15	18	21	23
Max forging dia on head	mm	Φ14	Φ18	Φ18	Φ22
Normal bolt size	mm	3-8	5-10	5-10	6-12
Shank length of blank	mm	15-70	15-77	30-160	15-110

Model	Unit	SJBP-136S	SJBP-136L	SJBP-136LL	SJBP-166S	SJBP-166LL
Forging station	NO.	6	6	6	6	6
Forging force	Kgs	148,000	148,000	150,000	280,000	320,000
Max cut-off dia	mm	Φ18	Φ18	Φ18	Φ23	Φ25
Max cut-off length	mm	140	190	300	190	350
Speed Range	pcs/min	60-105	60-100	42-75	50-80	30-60
P.K.O Stroke	mm	30	40	40	40	45
K.O.Stroke	mm	115	170	280	170	320
Main slide stroke	mm	200	270	380	274	490
Main motor	kw	45	37	45	75	75
Cut-off-die size	mm	Φ58*80L	Φ58*80L	Φ58*80L	Φ75*100L	Φ75*100L
Punch die size	mm	Φ60*130L	Φ60*130L	Φ70*229L	Φ75*185L	Φ75*185L
Main die size	mm	Φ94*190L	Φ94*190L	Φ100*305L	Φ108*200L	Φ108*345L
Die pitch	mm	110	110	110	129	129
Machine dimension	cm	460310220	550310220	750310260	650360260	870360300
Lifting reference weight	Ton	30	35	42	56	65
Max forging dia on head	mm	Φ25	Φ25	Φ25	Φ32	Φ32
Normal bolt size	mm	8-14	8-14	8-14	10-18	10-18
Shank length of blank	mm	20-110	20-160	60-270	20-160	70-310

Model	Unit	SJBP-206L	SJBP-206LL	SJBP-206LLT	SJBP-256S	SJBP-256LL
Forging station	NO.	6	6	6	6	6
Forging force	Kgs	420,000	420,000	480,000	500,000	520,00
Max cut-off dia	mm	Φ30	Φ30	Φ32	Φ36	Φ36
Max cut-off length	mm	240	360	420	280	380
Speed Range	pcs/min	40-65	40-60	30-60	30-60	30-55
P.K.O Stroke	mm	50	50	90	55	50
K.O.Stroke	mm	220	325	380	230	320
Main slide stroke	mm	346	496	560	330	510
Main motor	kw	90	90	110	110	132
Cut-off-die size	mm	Φ82*130L	Φ82*130L	Φ90*150L	Φ92*130L	Φ109*150L
Punch die size	mm	Φ90*215L	Φ90*215L	Φ90*235L	Φ120*270L	Φ120*270L
Main die size	mm	Φ125*240L	Φ125*345L	Φ125*400L	Φ148*250L	Φ148*355L
Die pitch	mm	140	140	140	160	160
Machine dimension	cm	800380320	870354320	1000390340	900470350	980470350
Lifting reference weight	Ton	90	95	105	135	145
Max forging dia head	mm	Φ44	Φ44	Φ44	Φ50	Φ50
Normal bolt size	mm	12-22	12-20	12-20	16-30	16-28
Shank length of blank	mm	30-210	100-310	60-360	35-220	60-310

Model	Unit	SJBP-276S	SJBP-306S	SJBP-306L	SJBP-426S
Forging station	NO.	6	6	6	6
Forging force	Kgs	660,000	700,000	730,000	1,300,000
Max cut-off dia	mm	Φ36	Φ41	Φ45	Φ55
Max cut-off length	mm	320	320	400	460
Speed Range	pcs/min	30-50	30-50	27-50	26-40
P.K.O Stroke	mm	60	60	70	80
K.O.Stroke	mm	280	280	330	350
Main slide stroke	mm	450	450	520	650
Main motor	kw	160	185	200	375
Cut-off-die size	mm	Φ129*180L	Φ129*180L	Φ129*180L	Φ175*195L
Punch die size	mm	Φ138*270L	Φ138*270L	Φ138*270L	Φ195*330L
Main die size	mm	Φ178*300L	Φ185*300L	Φ185*420L	Φ238*430L
Die pitch	mm	190	200	200	270
Machine dimension	cm	950520450	950520450	1010520460	1360620500
Lifting reference weight	Ton	170	200	220	380
Max forging dia head	mm	Φ70	Φ80	Φ80	Φ90
Normal bolt size	mm	16-27	20-30	24-36	30-42
Shank length of blank	mm	50-260	50-260	60-320	80-350

Key Features

Extended Forming Capability

With six dedicated forming stations, the 6-Station Part Cold Heading Machine allows you to complete more shaping steps in a single production cycle. This extra station opens up the ability to produce more complex part geometries that cannot be formed on standard lower-station machines.

Controlled Material Flow

By gradually deforming the material across multiple stations, the machine ensures more even material flow and better control during forming. This results in more stable dimensions, improved surface quality, and less stress on the material being formed.

Production Efficiency

All critical forming operations are completed in one pass through the machine. This eliminates the need for secondary processes or multiple setups, helping you shorten production time and improve overall output.

Reliable Industrial Operation

Built specifically for continuous daily production, the machine is engineered to run consistently in demanding manufacturing environments. It offers stable performance, low downtime, and long-term durability for regular industrial use.

Applications

Our 6-Station Part Cold Heading Machine is widely used for manufacturing a variety of precision components that require progressive forming and stable quality.

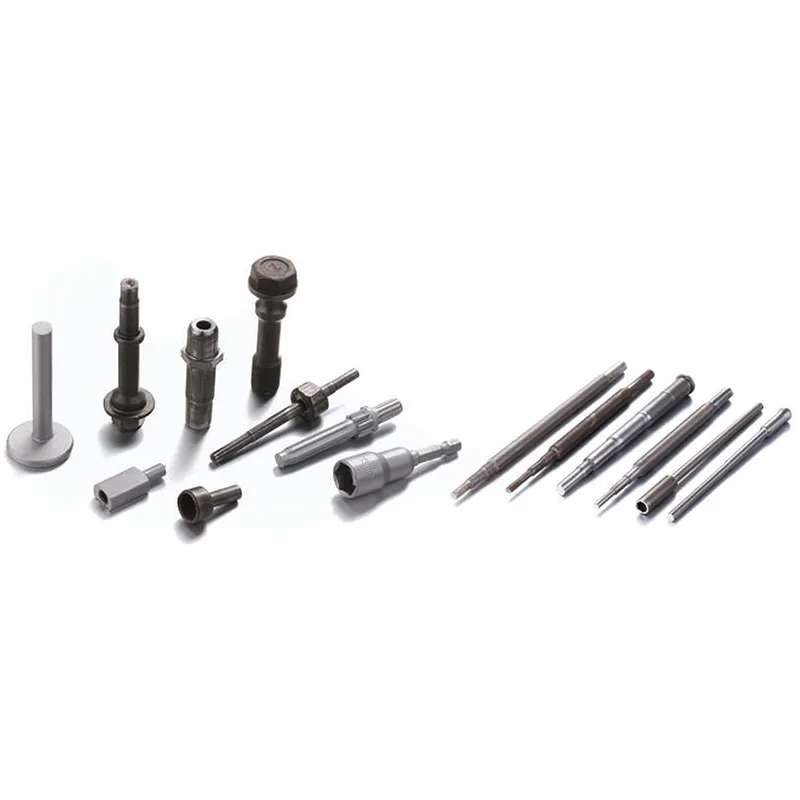

Typical parts produced on this machine include:

· Stepped shafts with multiple diameter changes

· Custom-designed hardware parts for special applications

· Mechanical connectors used in assembly and transmission

· Precision bushings with tight tolerance requirements

· Various industrial fittings for different equipment systems

This machine is suitable for manufacturers focusing on high-quality metal components, serving industries such as:

· Automotive manufacturing and auto parts supply

· Construction hardware and standard fastener production

· General machinery and mechanical component production

· Industrial equipment and assembly parts

FAQ

Q1: What is the advantage of a 6-station machine over a 5-station model?

The extra forming station allows additional shaping operations and greater flexibility when producing more complex parts.

Q2: Is the machine suitable for high-volume production?

Yes. Multi-station cold heading machines are commonly used for mass production of metal components.

Q3: Does cold heading improve product strength?

Yes. Because material is formed rather than cut, the internal grain structure remains continuous, improving strength.
