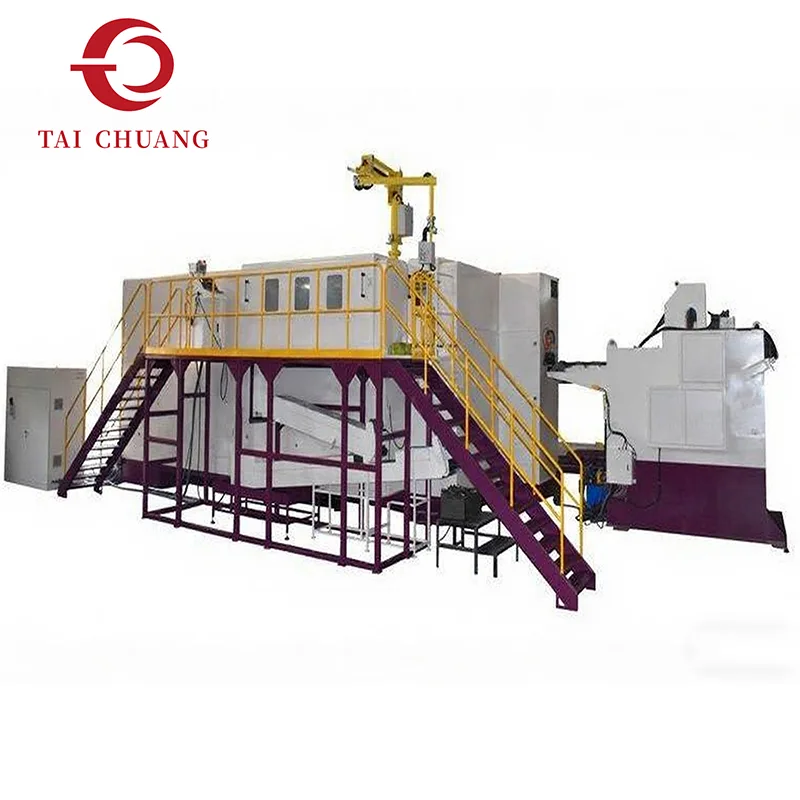

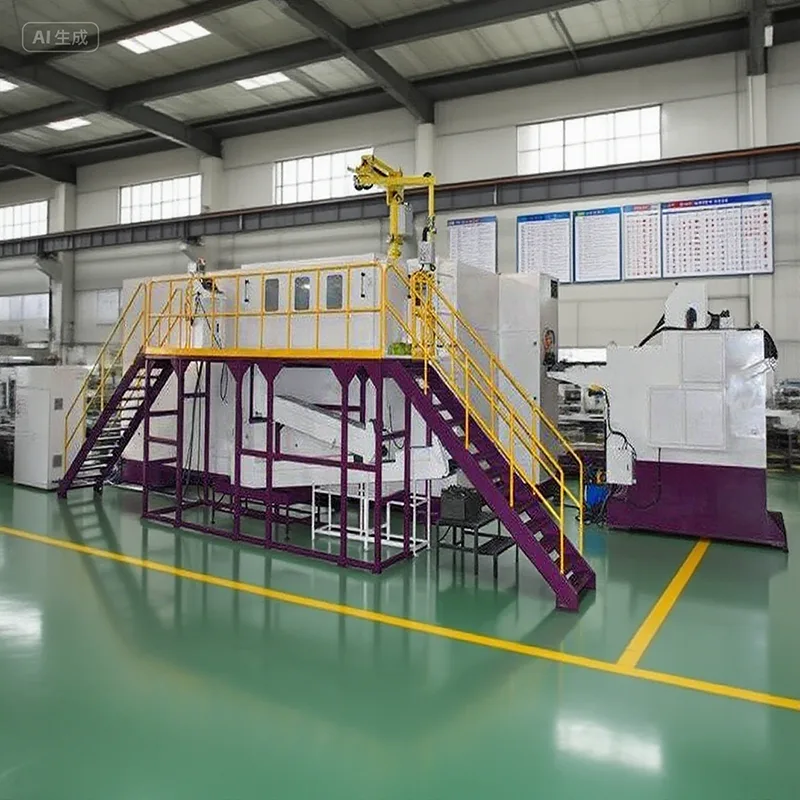

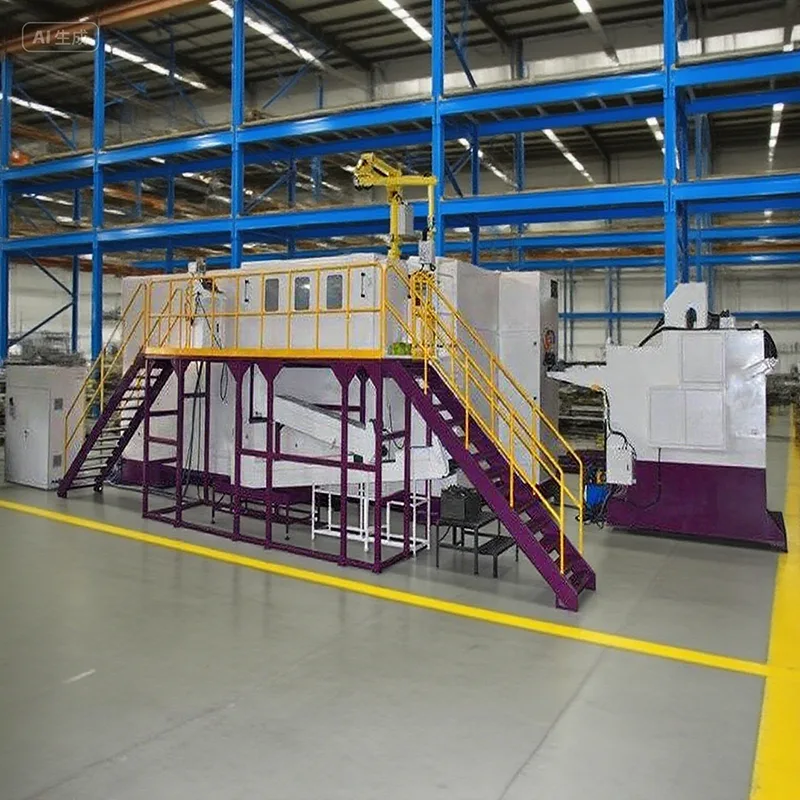

5-Station Part Cold Heading Machine is engineered for complex metal part forming that exceeds the capability of basic 2-die or 3-station systems. By distributing deformation across five independent forming stages, this multi-station cold heading machine ensures controlled material flow and improved geometry repeatability.
As a professional cold heading machine supplier, TAICHUANG focuses on building industrial cold heading equipment that balances forming precision, machine durability, and long-term production stability. This model is suitable for manufacturers producing automotive parts, industrial components, and engineered metal fittings.
|
Model |
Unit |
SJBP-65S |
SJBP-85S |
SJBP-105S |
SJBP-135L |
SJBP-135UL |
|
Forging station |
No. |
5 |
5 |
5 |
5 |
5 |
|
Forging force |
kgs |
48000 |
85000 |
98000 |
145000 |
155000 |
|
Max cut-off dia |
mm |
Φ8 |
Φ11 |
Φ13 |
Φ16 |
Φ18 |
|
Max cut-off length |
mm |
100 |
110 |
140 |
190 |
450 |
|
Speed Range |
pcs/min |
120-200 |
95-160 |
90-140 |
60-100 |
32-55 |
|
P.K.O Stroke |
mm |
20 |
26 |
30 |
30 |
60 |
|
K.O.Stroke |
mm |
80 |
90 |
115 |
165 |
420 |
|
Main slide stroke |
mm |
136 |
140 |
190 |
270 |
280 |
|
Main motor |
kw |
15 |
22 |
30 |
37 |
45 |
|
Cut-off die size |
mm |
Φ30*45L |
Φ35*50L |
Φ45*59L |
Φ63*69L |
Φ58*80L |
|
Punch die size |
mm |
Φ40*90L |
Φ45*115L |
Φ53*115L |
Φ60*130L |
Φ60*229L |
|
Main die size |
mm |
Φ50*110L |
Φ60*120L |
Φ75*135L |
Φ86*190L |
Φ86*450L |
|
Die pitch |
mm |
60 |
80 |
94 |
110 |
110 |
|
Machine dimension (L*"W"*H) |
cm |
350*220*170 |
420*250*190 |
450*280*210 |
560*300*220 |
800*300*220 |
|
Lifting reference weight |
Ton |
11 |
15 |
19 |
31 |
55 |
|
Normal bolt size |
mm |
3-6 |
5-8 |
6-10 |
8-14 |
8-14 |
|
Shank length of blank |
mm |
10-70 |
15-77 |
15-110 |
20-160 |
120-400 |
|
Model |
Unit |
SJBP-165S |
SJBP-205L |
SJBP-205LL |
SJBO-205LL |
SJBP-305L |
|
Forging station |
No. |
5 |
5 |
5 |
5 |
5 |
|
Forging force |
kgs |
220000 |
380000 |
380000 |
480000 |
600000 |
|
Max cut-off dia |
mm |
Φ23 |
Φ25 |
Φ25 |
Φ32 |
Φ36 |
|
Max cut-off length |
mm |
190 |
240 |
360 |
380 |
420 |
|
Speed Range |
pcs/min |
50-90 |
40-70 |
40-60 |
30-55 |
25-45 |
|
P.K.O Stroke |
mm |
40 |
50 |
50 |
50 |
60 |
|
K.O.Stroke |
mm |
170 |
220 |
325 |
320 |
380 |
|
Main slide stroke |
mm |
274 |
346 |
496 |
510 |
580 |
|
Main motor |
kw |
55 |
75 |
75 |
110 |
132 |
|
Cut-off die size |
mm |
Φ75*100L |
Φ75*120L |
Φ75*120L |
Φ99*150L |
Φ118*180L |
|
Punch die size |
mm |
Φ75*185L |
Φ90*215L |
Φ90*215L |
Φ120*270L |
Φ140*300L |
|
Main die size |
mm |
Φ180*200L |
Φ125*240L |
Φ125*345L |
Φ148*355L |
Φ168*420L |
|
Die pitch |
mm |
129 |
140 |
140 |
160 |
180 |
|
Machine dimension (L*"W"*H) |
cm |
650*340*260 |
760*350*300 |
870*350*320 |
1000*460*450 |
1100*490*480 |
|
Lifting reference weight |
Ton |
50 |
75 |
95 |
140 |
200 |
|
Normal bolt size |
mm |
10-16 |
12-20 |
12-20 |
16-27 |
18-36 |
|
Shank length of blank |
mm |
20-160 |
25-210 |
100-310 |
60-310 |
70-350 |

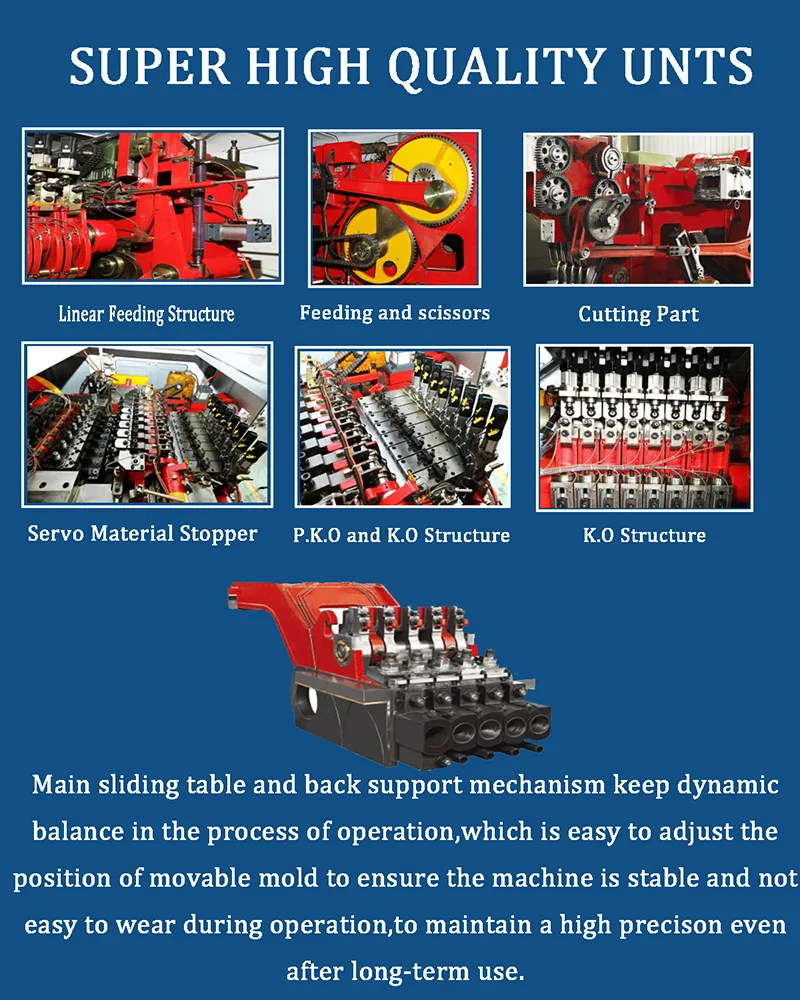

Five forming stations allow metal blanks to be shaped progressively rather than through excessive single-stage displacement. This reduces stress concentration and improves internal fiber alignment.

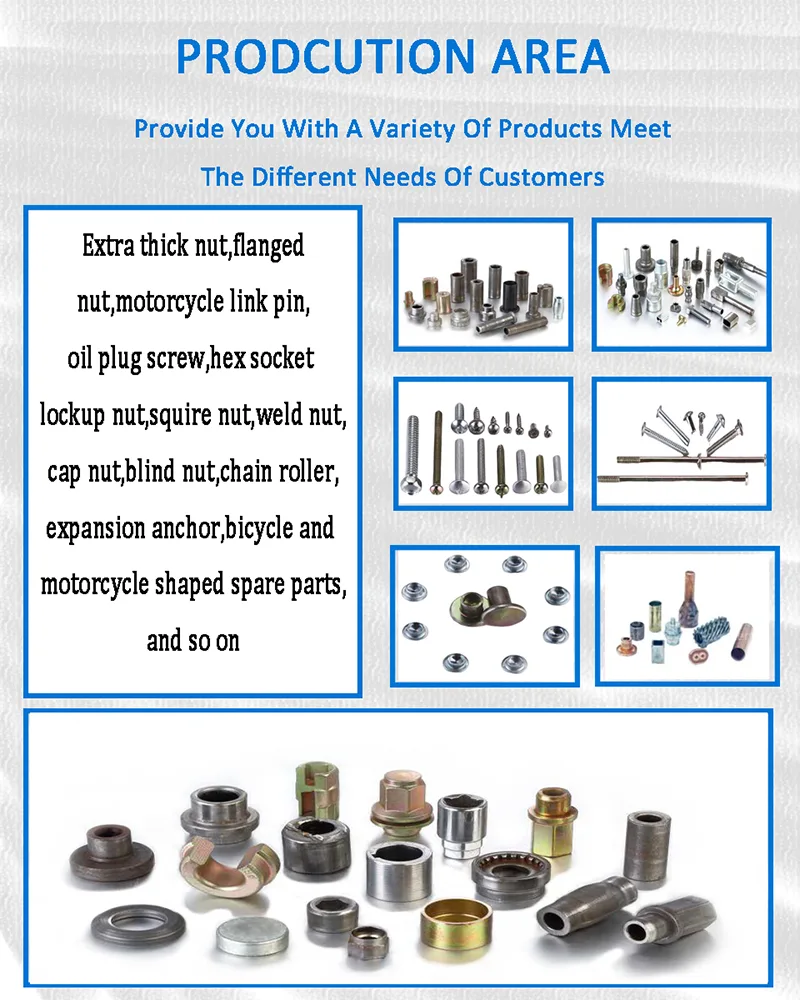

Key forming capabilities include:

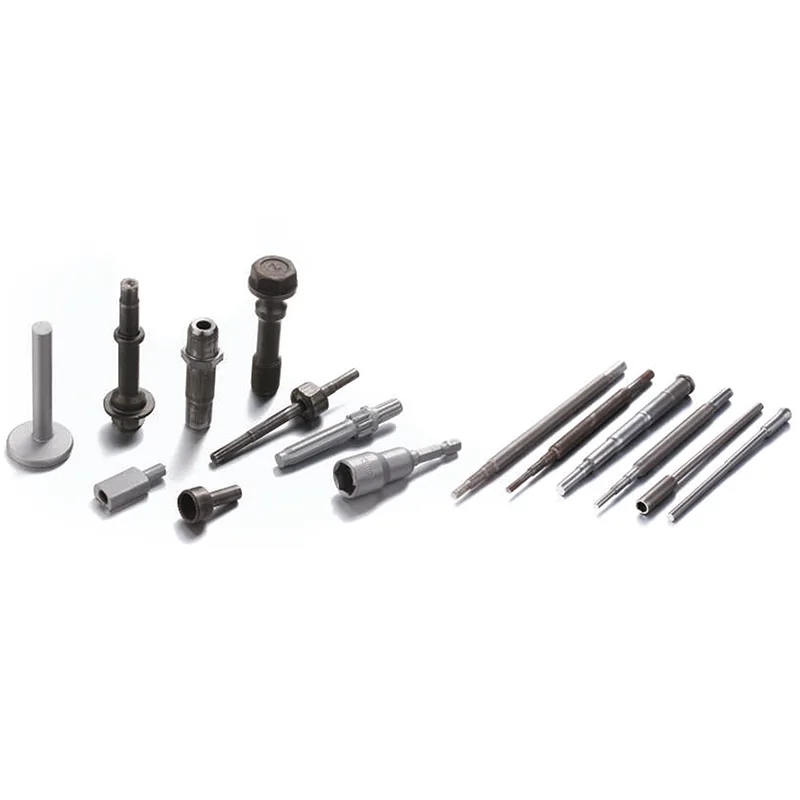

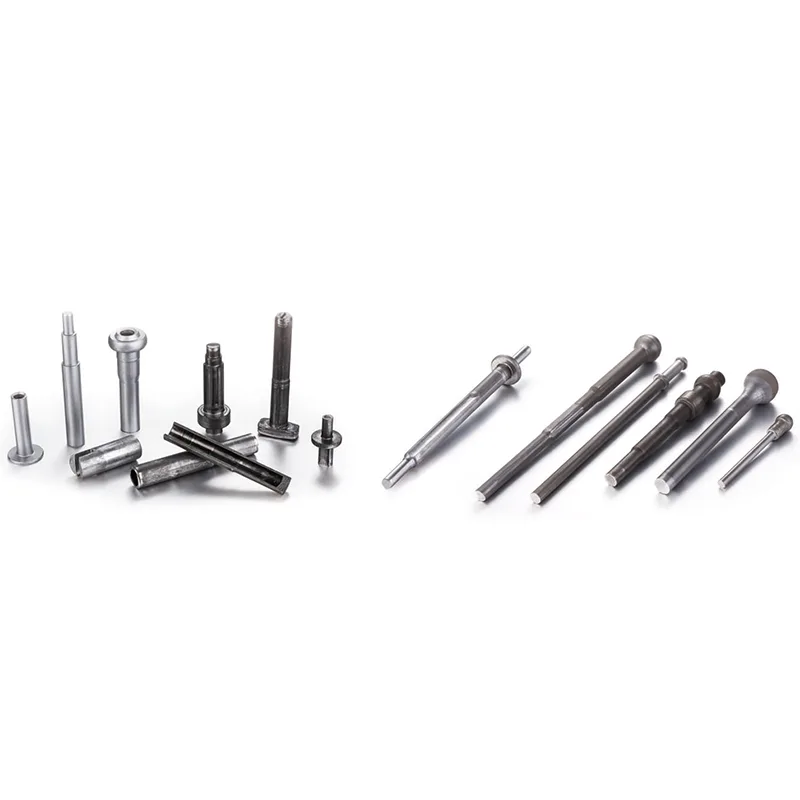

Multi-diameter transitions
Shoulder forming
Partial extrusion features
Stepped shaft geometry
Controlled cavity development
Compared with lower station cold heading machines, this 5-Station Part Cold Heading Machine improves geometry control while maintaining efficient cycle times.

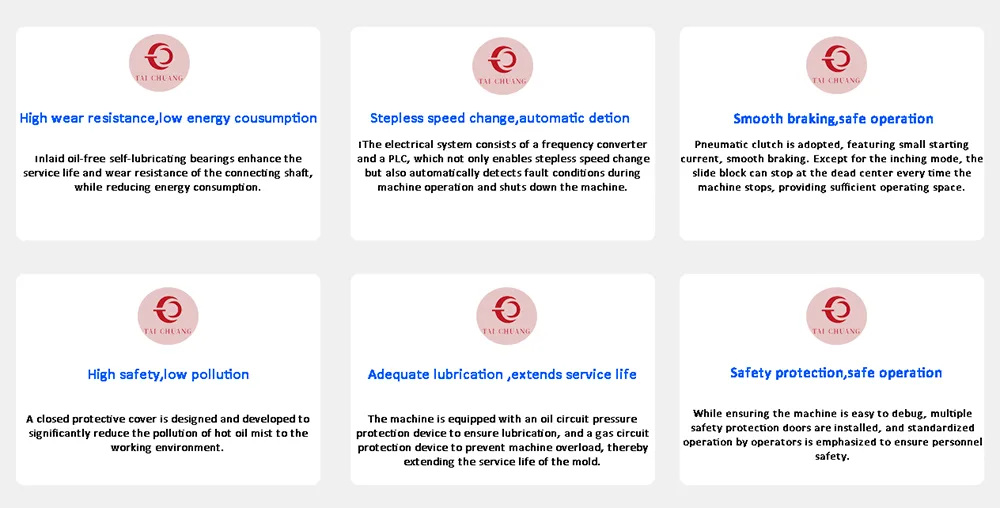

Stable multi-stage deformation control
Improved dimensional consistency
Reduced cracking risk in complex shapes
Balanced tooling load distribution
Suitable for medium-to-high volume manufacturing
This industrial cold heading machine is designed for continuous production lines where reliability and repeatability are critical.
Specialized in nut tapping machines and cold heading equipment
Focused on precision-oriented industrial manufacturing solutions
Experience serving global fastener and metal part manufacturers
Emphasis on stable production performance
Structured machine configuration for export markets
TAICHUANG provides professional support for manufacturers seeking reliable cold heading machine solutions from China.
Q1: What is the advantage of a 5-Station Part Cold Heading Machine?
It allows progressive deformation across five stages, improving dimensional control for complex parts.
Q2: Is this machine suitable for automotive parts production?
Yes, especially for structural and engineered automotive components requiring multi-step forming.
Q3: How does it compare to 3-station machines?
The additional stations improve geometry flexibility and reduce per-stage forming stress.
Q4: Can it support high-volume production?
Yes, it is designed for continuous industrial manufacturing environments.
Q5: Is TAICHUANG a manufacturer or supplier?
TAICHUANG supplies industrial cold heading machines and nut tapping equipment for global markets.
