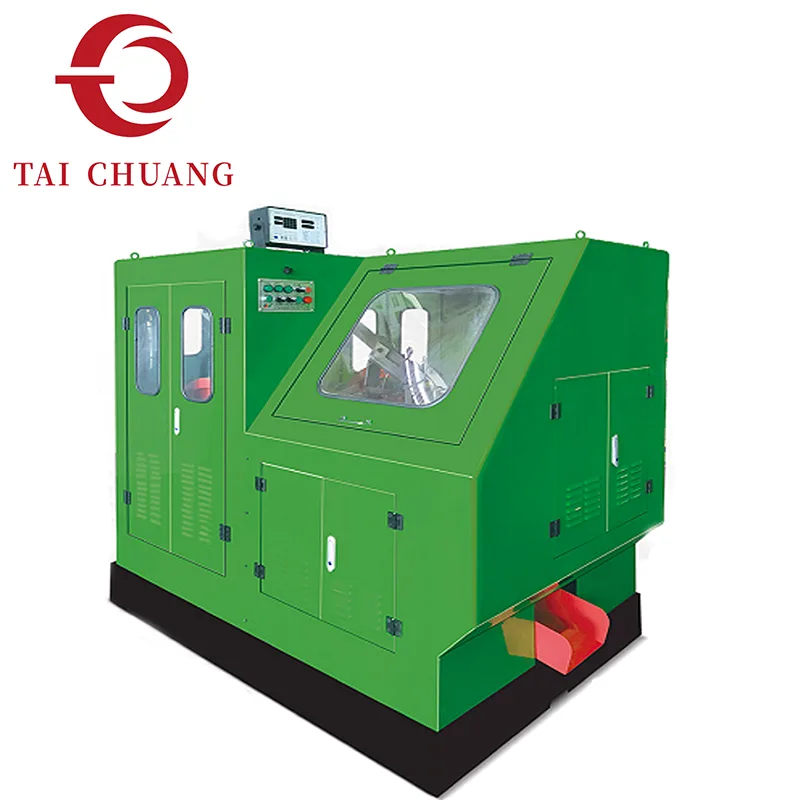

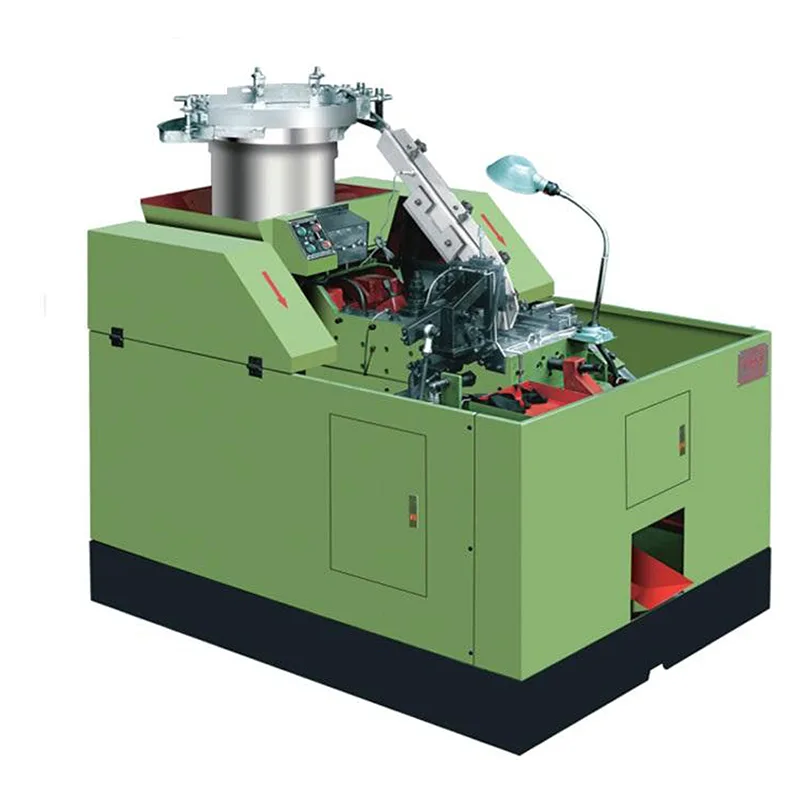

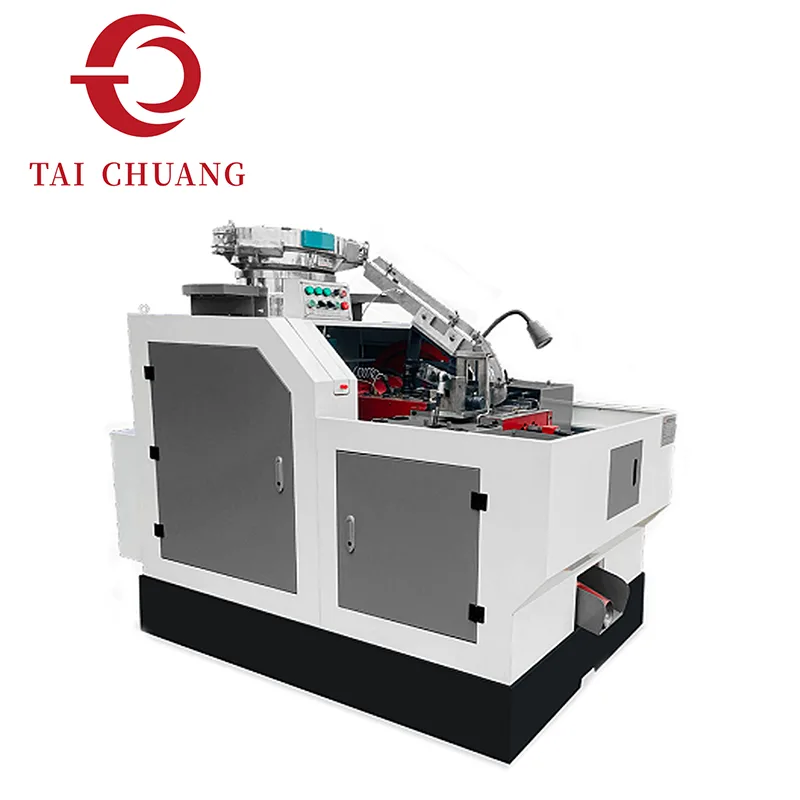

Our Open Close Mould Cold Heading Machine is purpose-built to solve the challenges of forming complex parts that standard fixed-die systems struggle to release efficiently.
With its controlled mould opening mechanism, this machine enables smooth part extraction after forming, even for intricate cavity geometries and multi-step profiles. This design eliminates the need for complex secondary operations, streamlines production, and reduces the risk of part damage during ejection.

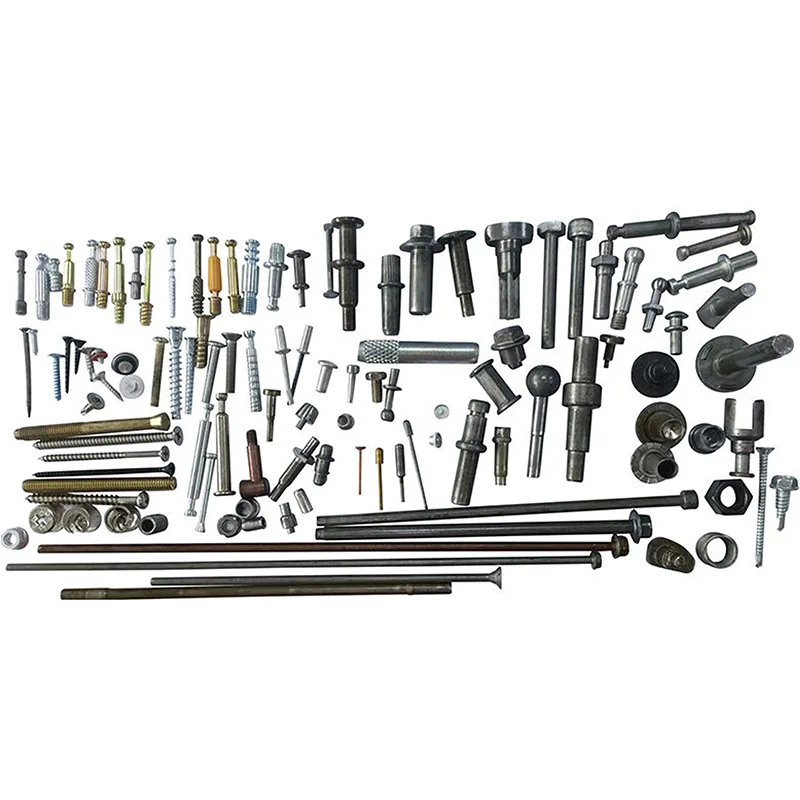

Built on years of engineering experience, this machine is capable of producing multi-step, double-cap, double-headed fasteners, and other precision hardware components. It replaces manual and semi-automatic production with fully mechanical automation, cutting production costs and significantly boosting overall efficiency for hardware and axle part manufacturing.
TAICHUANG supplies this specialized cold heading solution for manufacturers producing engineered metal components that demand reliable, efficient part extraction from complex cold-formed geometries.
|
Model |
Max. Blank Diameter /mm | Max. Blank Length /mm | Capacity /pcs/min | Main Die Diameter /mm | The Initial Punch Die Diameter /mm | The Precise Punch Die Diameter /mm | Main Motor Power /kw | Volume (L*W*H) /m | Weight /kg |
|
TC5-6-70 |
Φ6.0 | 70 | 80-100 | 40×40×50 | Φ35×80 | Φ35×80 | 6-Pole – 3.0 kW | 2.05×1.20×1.65 | 2100 |
|
TC6-8-120 |
Φ8.0 | 120 | 60-70 | 50×50×75 | Φ35×120 | Φ35×120 | 8-Pole – 4.0 kW | 2.60×1.40×1.70 | 3100 |
|
TC6-Infinite |
Φ8.0 | Infinite Length | 35-50 | 50×50×100 | Φ35×120 | Φ35×120 | 8-Pole – 4.0 kW | 2.97×1.46×1.55 | 3900 |
|
TC8-10-200 |
Φ11.0 | 200 | 45-55 | 55×55×150 | Φ45×120 | Φ45×120 | 8-Pole – 7.5 kW | 3.73×1.69×2.02 | 5800 |
|
TC8-Infinite |
Φ11.0 | Infinite Length | 30-40 | 55×55×200 | Φ45×120 | Φ45×120 | 8-Pole – 7.5 kW | 3.30×1.60×1.60 | 6000 |
|
TC10-12-250 |
Φ13.0 | 250 | 30-40 | 70×70×200 | Φ60×180 | Φ55×180 | 8-Pole – 11 kW | 3.60×1.80×1.70 | 8500 |
|
TC10-Infinite |
Φ13.0 | Infinite Length | 30-40 | 70×70×200 | Φ60×180 | Φ55×180 | 8-Pole – 11 kW | 3.60×1.80×1.70 | 8700 |
|
TC16-20-250 |
Φ20.0 | 250 | 25-35 | 90×90×200 | Φ70×180 | Φ60×180 | 8-Pole – 22 kW | 4.25×2.65×2.60 | 14500 |
Our flexible die operation system is engineered to expand the capabilities of cold heading for specialized, complex part geometries.
Key functional features in production:
1. Controlled mold opening and closing cycles for precise, repeatable operation
2. Improved stability during part release, reducing the risk of damage or jams
3. Adaptable die movement to accommodate a wider range of part profiles
4. Support for forming undercuts and internal cavity features that fixed-die systems can’t handle
5. Enhanced overall forming flexibility to tackle more intricate component designs
This Open Close Mould Cold Heading Machine lets you push the limits of what’s possible with cold heading, opening up new production possibilities for engineered metal components.
Improved Tooling Accessibility: The open-close mold structure makes die installation, adjustment, and maintenance far more straightforward than with fixed-die systems, reducing downtime for tool changes.
Reduced Setup Time: Faster mold changeovers let you switch between different part types quickly, cutting setup time and boosting overall production efficiency for mixed-batch runs.
Flexible Production Capability: This machine is ideal for workshops that produce a variety of fasteners and hardware components, as it can adapt to different geometries without major reconfiguration.
Stable Cold Forming Operation: Designed for continuous industrial use, it maintains consistent performance and dimensional accuracy even during long production runs, minimizing scrap and rework.
Experienced supplier of cold heading machines
Focus on precision industrial forming systems
Export-oriented equipment configurations
Designed for complex geometry solutions
Professional industrial production support
TAICHUANG delivers advanced cold heading machine solutions for global industrial manufacturers.
Q1: Is it suitable for custom metal parts?
Yes, especially for specialized engineered components.
Q2: Can it integrate into automated lines?
Yes, it is compatible with industrial production systems.
Q3: Is this machine export-ready?
Yes, it is configured for international industrial markets.
