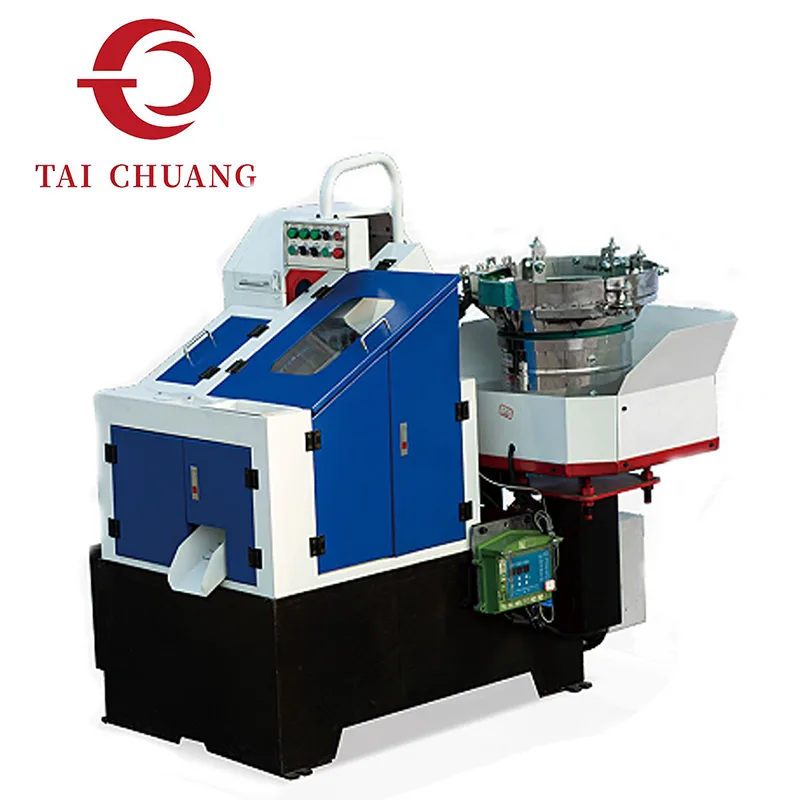

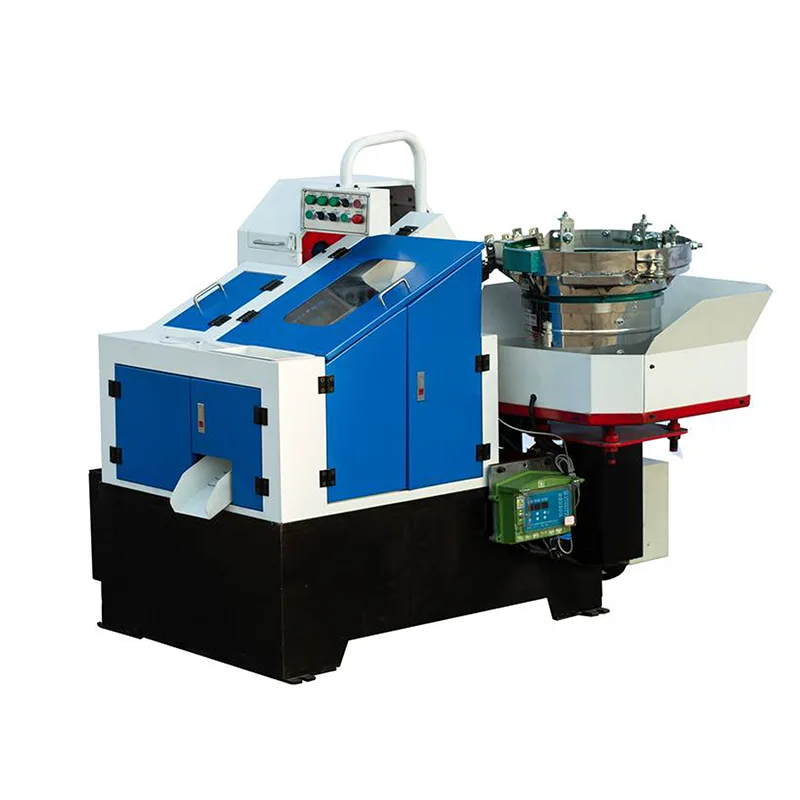

A Vibrator Feeder Type Threading Rolling Machine with Gear Exposed is designed to form external threads through cold rolling while using a vibration system to guide parts into the rolling area in an orderly manner. The vibration feeder helps align fasteners before rolling, supporting smoother workflow and reducing random feeding behavior.

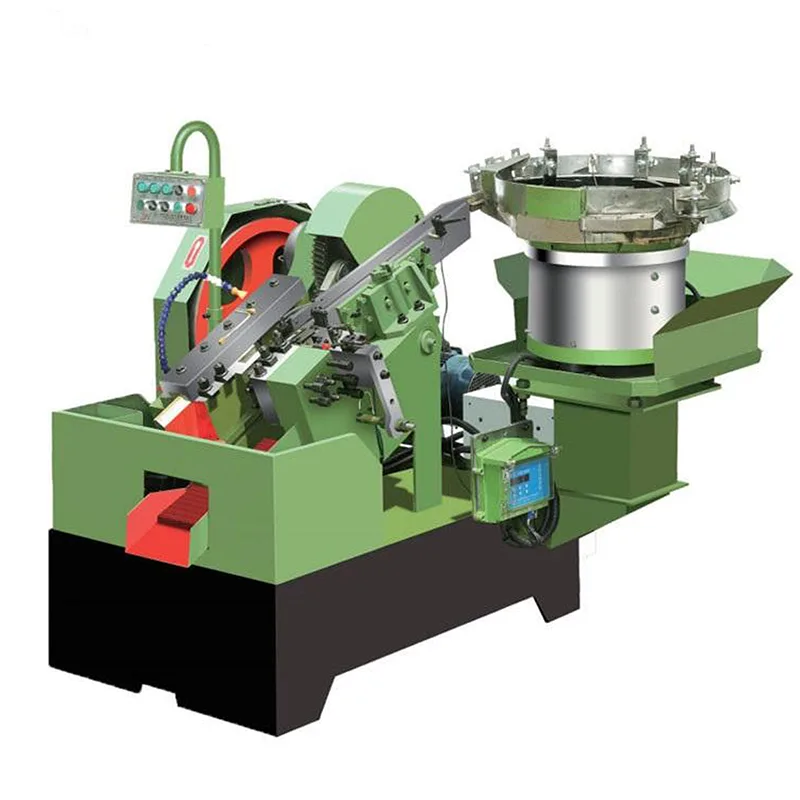

In the gear exposed configuration, the transmission components are openly visible, allowing operators and maintenance personnel to clearly observe motion, engagement, and operating status during production. This structural feature is often valued in workshops where mechanical transparency and routine inspection are important.
| Model | Max.Blank Diameter/mm | Max.Blank Length/mm | Moving Dies StationaryLength/mm | Capacity/pcs/min | Main Motor Power/kw | Volume(L*W*H)/m | Weight/kg | |
| TC3-20Z | 3 | 20 | 55*18*20 | 45*18*20 | 330-380 | 0.75 | 1.30*0.98*1.30 | 250 |
| TC4-25Z | 4 | 25 | 80*20*25 | 65*20*25 | 280-330 | 2.2 | 1.57*1.05*1.50 | 320 |
| TC4-40Z | 5 | 40 | 89*25*40 | 76*25*40 | 260-300 | 2.2 | 1.60*1.44*1.55 | 850 |
| TC5-50Z | 5 | 50 | 105*25*50 | 90*25*50 | 220-260 | 3.0 | 1.67*1.35*1.50 | 950 |
| TC5-65Z | 6 | 65 | 105*25*65 | 90*25*65 | 120-140 | 3.0 | 1.70*1.36*1.50 | 1000 |
| TC6-80Z | 8 | 82 | 125*25*80 | 110*25*80 | 80-100 | 4.0 | 1.75*1.52*1.50 | 1100 |
| TC6-120Z | 8 | 120 | 125*25*120 | 110*25*120 | 80-100 | 4.0 | 1.70*1.60*1.30 | 1200 |
| TC8-80Z | 10 | 80 | 140*30*80 | 125*30*80 | 80-100 | 5.5 | 1.85*1.50*1.20 | 1650 |
| TC8-130Z | 10 | 130 | 140*30*130 | 125*30*130 | 80-100 | 7.5 | 1.85*1.50*1.25 | 1850 |
| TC8-300Z | 8 | 300 | 140*30*300 | 125*30*300 | 40-60 | 7.5 | 2.37*2.15*1.62 | 2100 |
| TC10-100Z | 12 | 100 | 170*30*100 | 150*30*100 | 70-90 | 7.5 | 2.00*1.70*1.35 | 1950 |
| TC12-120Z | 14 | 120 | 210*40*120 | 190*40*120 | 40-50 | 11 | 2.67*1.93*1.60 | 2800 |
| TC16-200Z | 18 | 200 | 260*45*200 | 230*45*200 | 30-40 | 30 | 2.75*2.10*1.65 | 5800 |
Feeding stability plays an important role in thread rolling consistency. Vibration feeding systems are commonly selected to help control part orientation and flow before rolling. When parts enter the rolling area in a more consistent manner, the rolling process itself becomes more predictable.
In practical production environments, vibration feeding helps reduce irregular stops and supports a smoother rhythm, especially when processing standard fasteners with consistent dimensions.

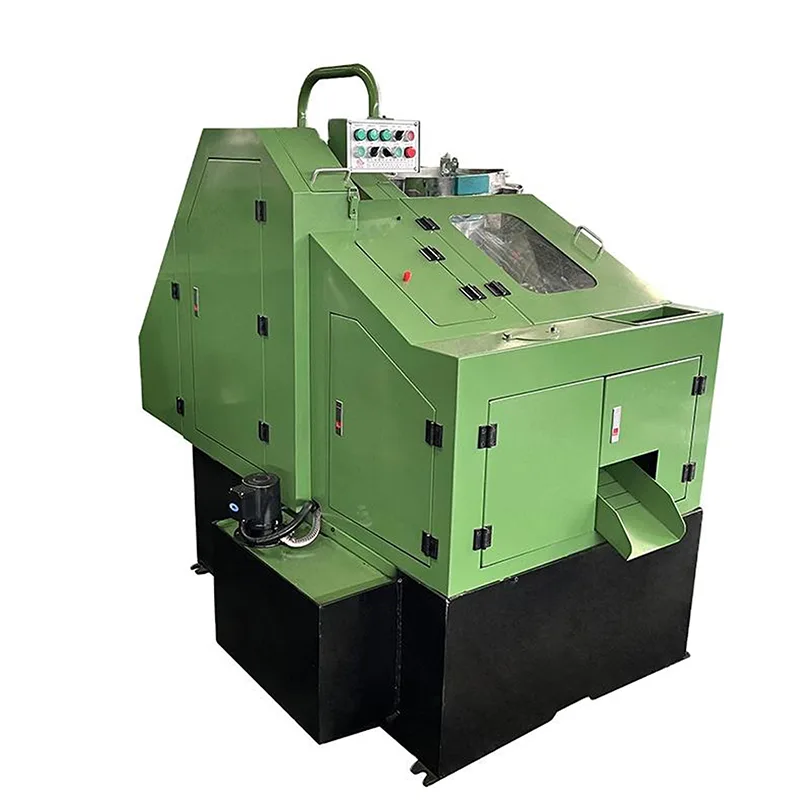

Compared with enclosed transmission designs, the gear exposed configuration emphasizes structural clarity and accessibility. This thread rolling machine is often selected by buyers who prioritize straightforward mechanical layout and ease of observation during daily operation.
The design focuses on stable rolling behavior, repeatable thread quality, and predictable operation. It is intended for applications where frequent parameter changes are not required, and process stability is a primary concern.

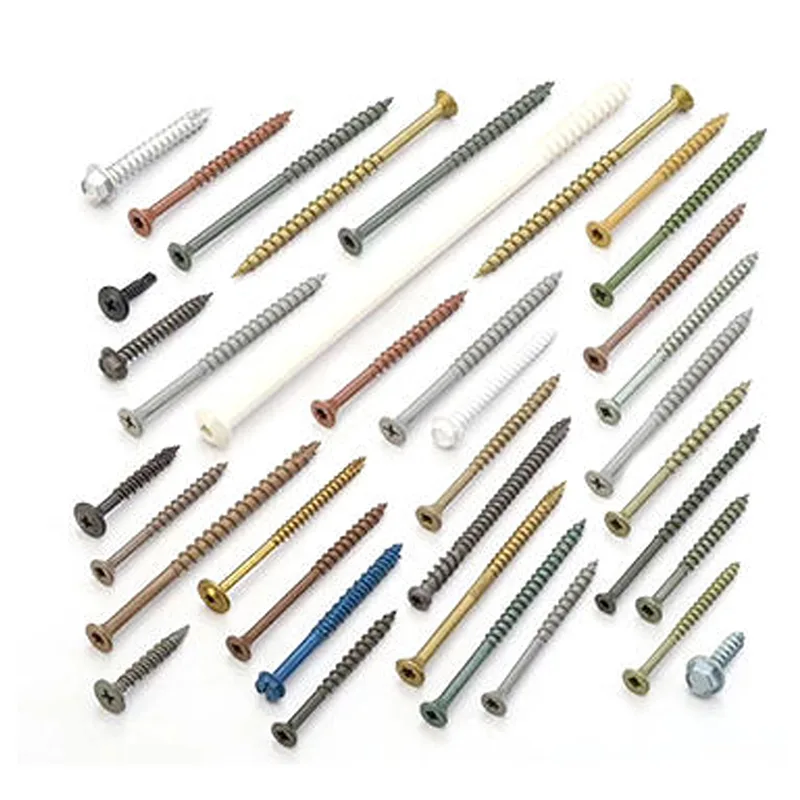

This Vibrator Feeder Type Threading Rolling Machine with Gear Exposed, is commonly used for forming threads on bolts, screws, and similar fasteners applied in construction hardware, mechanical assemblies, automotive components, and general industrial products. Actual application suitability is evaluated based on confirmed drawings, material type, and thread design reviewed during the sourcing process.
To support international delivery, export-standard packaging is applied. Machines are securely fixed and protected to reduce the risk of damage during transportation. Surface protection and clear labeling are used to support safe loading, unloading, and on-site handling.
Proper packaging plays an important role in ensuring that equipment arrives in good condition and is ready for installation.
