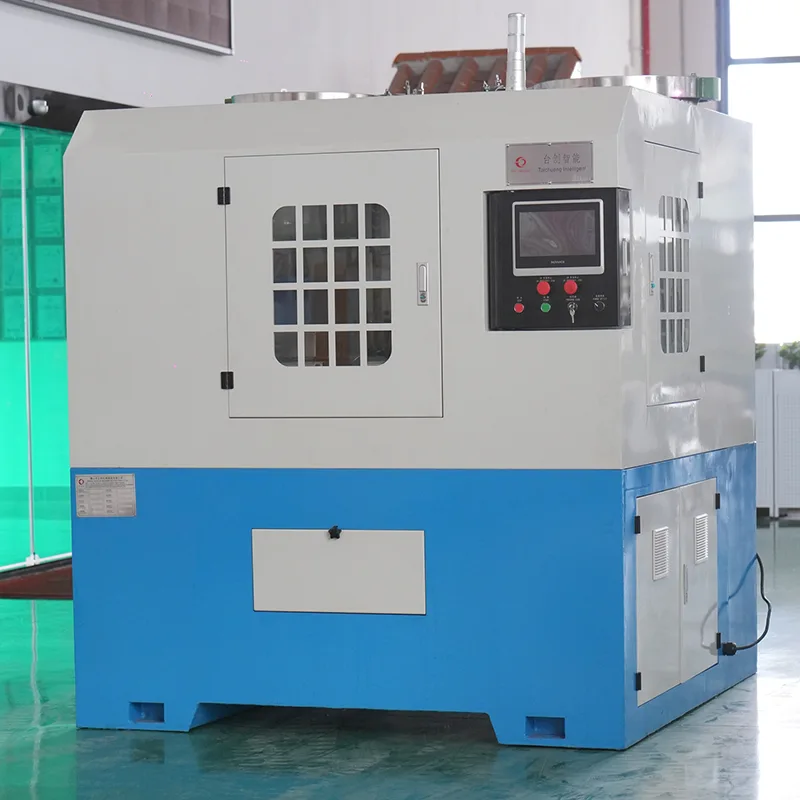

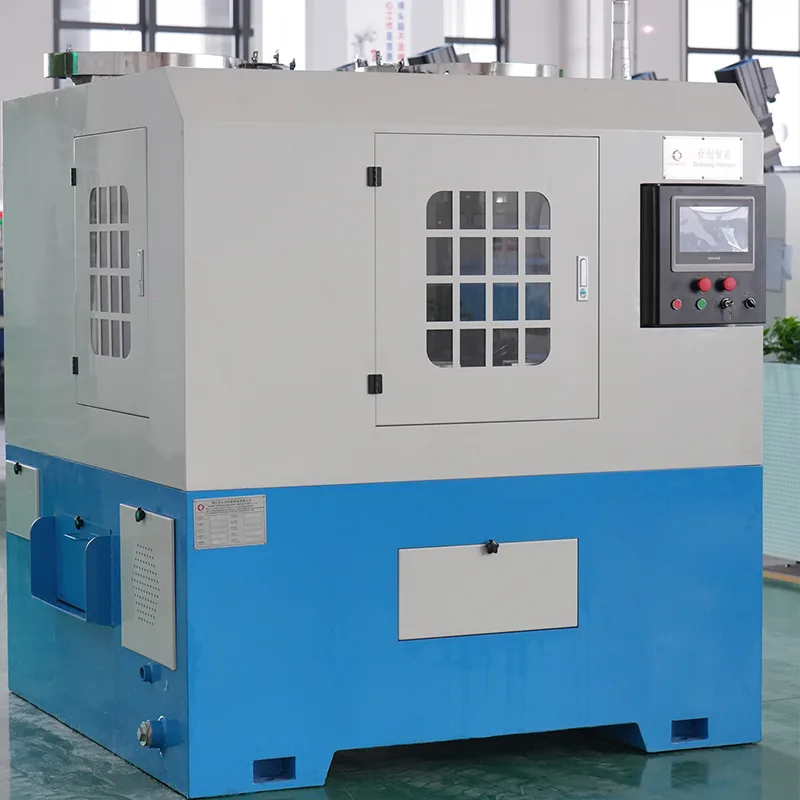

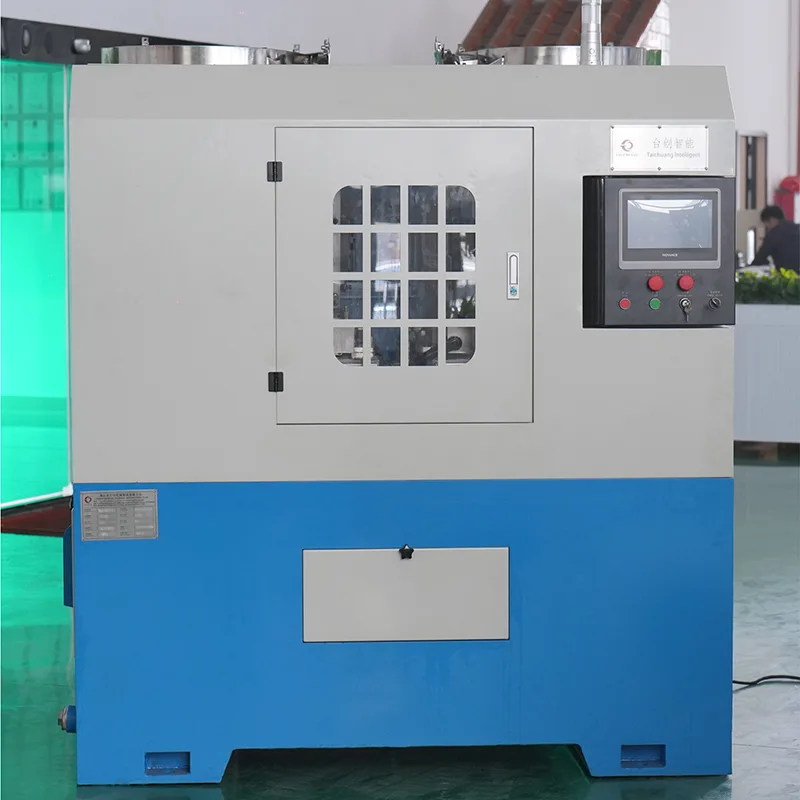

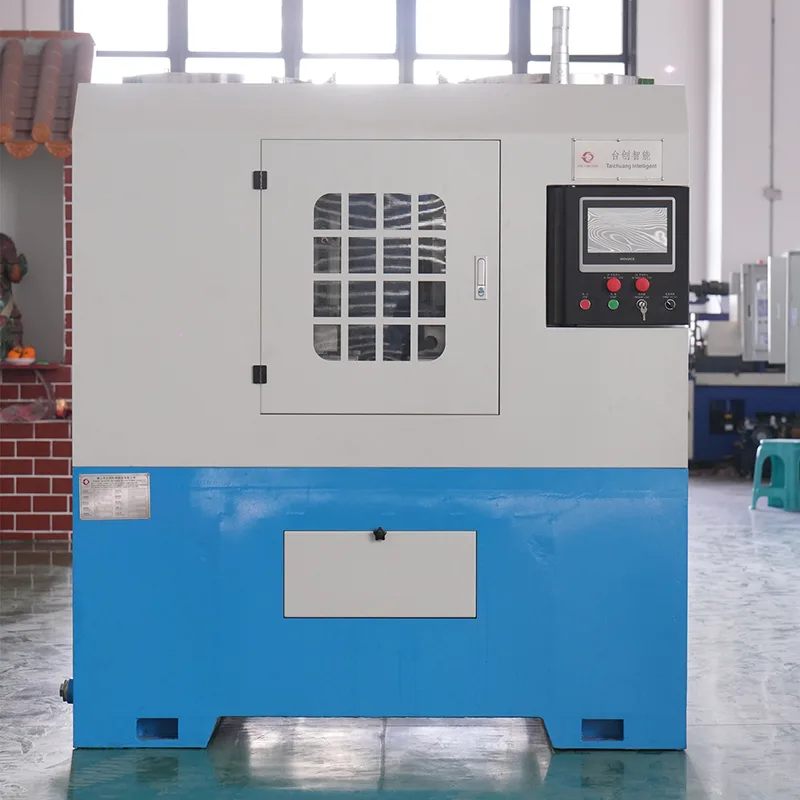

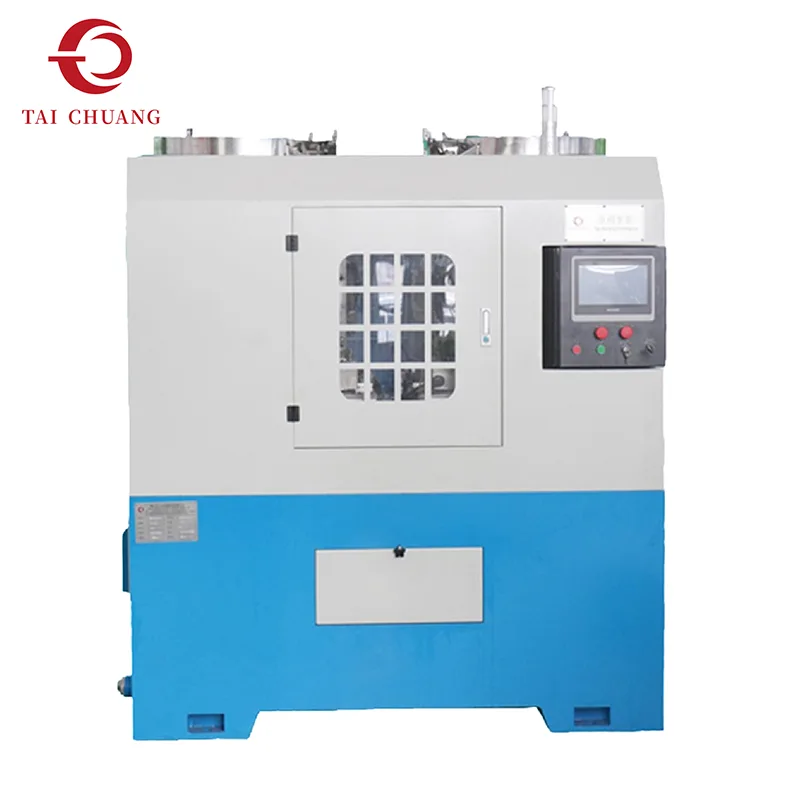

The TCWB-M30TG-2 is a double spindles pass through nut tapping machine developed for manufacturers producing large-size nuts who value stable performance and controlled tapping quality. Instead of focusing on high speed, this model is designed to deliver consistent results during daily factory operation.
In our cooperation with fastener producers, we often see that as nut size increases, tapping stability becomes more important than output speed. This machine was designed based on that real production feedback, offering a balanced solution for reliable long-term use.
|
Product name |
Industrial Pass Through Nut Tapping Machine |
|
Tapping Range |
M16-M30 |
|
Colors available |
Blue color,or as per request |
|
Standards that follow to |
ISO、CE |
|
Fixture mode |
The fixture is customed according to the nut type. |
|
MOQ |
1 |
|
Production lead time |
About 1 month |
|
Warranty time |
1 years for normal use |
|
Payment term |
TT30%deposit,70%balance paid before shipment |
|
FOB loading port |
Nansha, China |
|
Place of origin |
Foshan，China |
TAICHUANG can provide nut tapping machine from M16 to M30 with the specifications below:
| Item | Name | Parameter | Name | Parameters/Brand |
| Casting base | Pallet stroke | 250mm | Main spindle servo motor | 4.4Kw/1500rpm(M16-M22)reducer speed1:4 |
| Feed linear guideway | GHH30CAX660 | Main spindle servo motor | 5.5Kw/1500rpm(M20-M30)reducer speed1:5 | |
| Feed ball screw | 3210X450 | Feed servo motor | 1.3Kw/1500rmp | |
| Baiting track | Baiting angle | 90 degree angle | Touch screen | Inovance |
| Main spindle | Max.processing outer diameter | ∅35 | Main engine | Inovance |
| Max.processing length | Less than nominal thread size ×2 | Circuit-breaker | CHNT | |
| Qty of main spindle | 2 | Circuit-breaker | CHNT | |

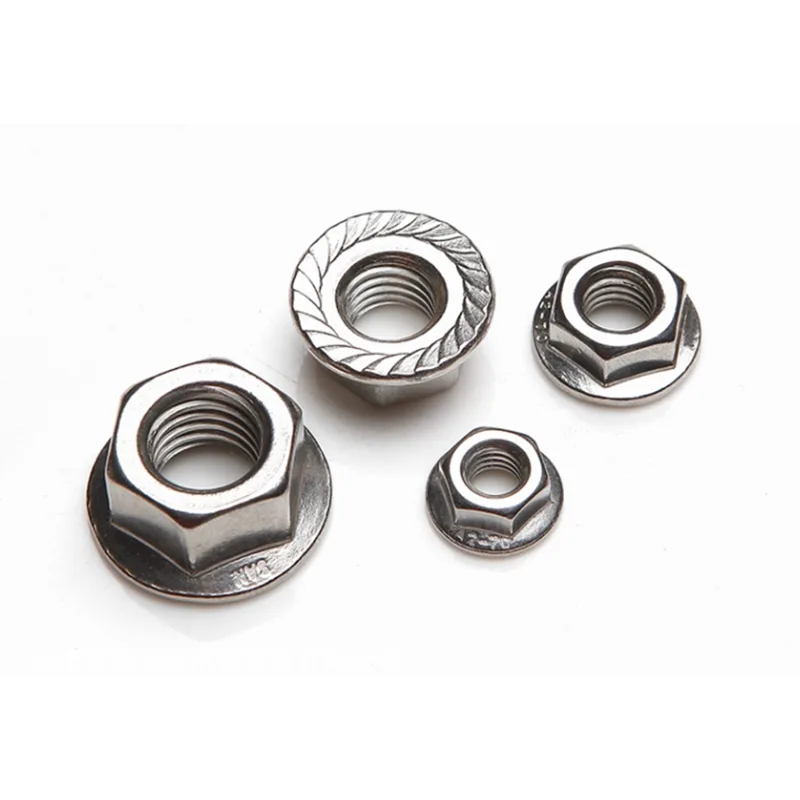

| Fixture mode | Clamp | Round nut,flangle nut,polygonal nut | Thermal overload | CHNT |
| Clamping cylinder | Cylinder | SDA63X25SB | KA | IDCE |
| Cooling device | Cooling pump | 370W | Cylinder sensor | Airtac |
| Double spindles | Productivity per spindle | 8-15pcs/min | Power switch | Siemens |
| Overall Dimensions | 1750×1750×1900mm | Equipment weight | about 3200KG |
From the design stage, we positioned this model as a stability-first tapping solution. The double spindle configuration allows controlled production output, while the pass through structure ensures smooth nut movement throughout the tapping process.
Key design considerations include:
Reduced vibration during tapping
Controlled tapping motion for better thread consistency
Smooth and continuous nut transfer
These details help the machine maintain predictable performance during long production shifts.

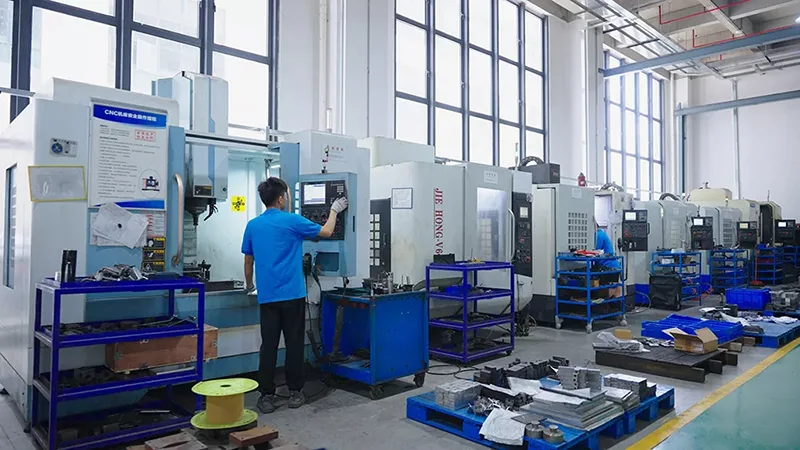

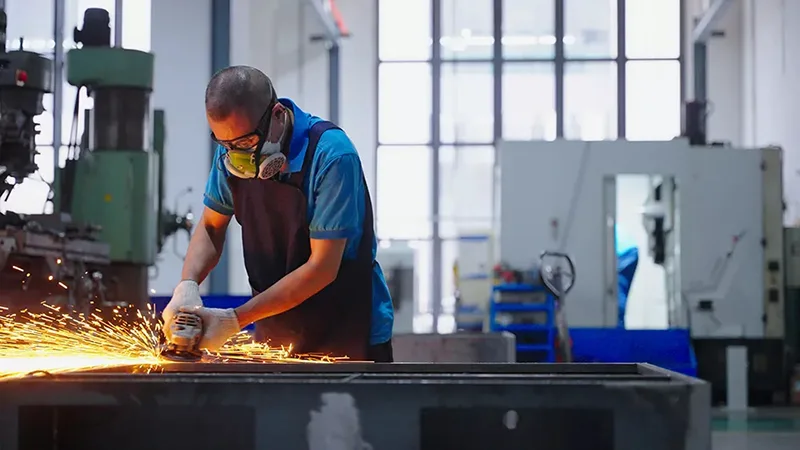

As a manufacturer, TAICHUANG controls the complete production process of this Industrial Pass Through Nut Tapping Machine. From component machining to final assembly, each step follows internal quality standards developed from years of experience in nut tapping equipment.
Before delivery, machines are tested under normal production conditions to confirm smooth operation and stable tapping performance. Our goal is to deliver equipment that integrates smoothly into the customer’s existing production line.
TAICHUANG focuses on providing professional nut tapping machine solutions for industrial thread processing applications.
Reasons customers consider TAICHUANG equipment include:
Specialized experience in nut tapping systems
Equipment solutions tailored for fastener production lines
Export-oriented industrial equipment support
Stable performance in continuous manufacturing environments
Equipment designed for international industrial standards
TAICHUANG introduces pass through nut tapping machine solutions aimed at helping manufacturers improve operational stability and thread processing efficiency.
1. Fully Automatic
2. CNC System Control
3. Full Cover
4. HMI Monitor
5. Single Spindle or Double Spindles for your option
6. Double Servo
7. Vertical Reciprocating
8. Vibrating Bowl Feeder
9. Tap Screw Broken Alarm
10. Lack Material Alarm
11. Defective Parts Automatically Separated
Does the machine support customized solutions?
Yes, customized based on nut type, size, and capacity.
What safety features does the machine have?
Fully enclosed cover, emergency stop.
What industries are your machines used in?
Automotive, aerospace, wind power, construction, fasteners.
