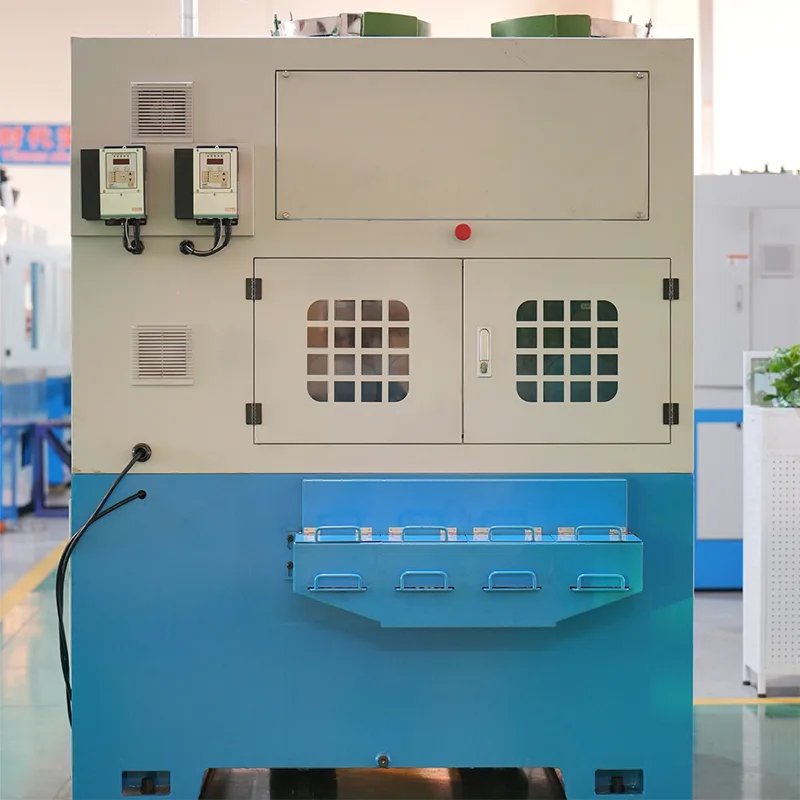

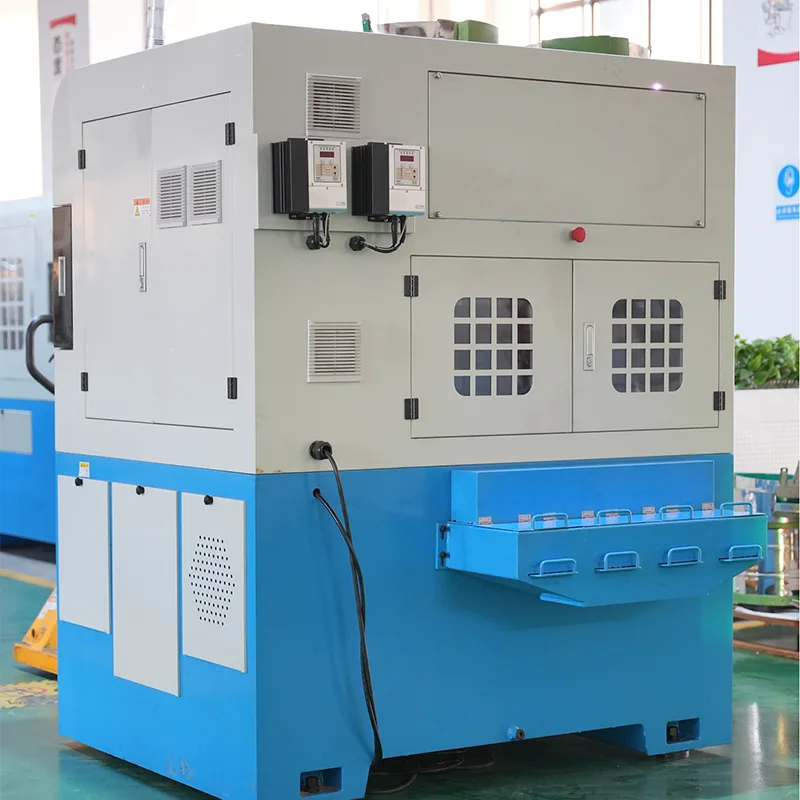

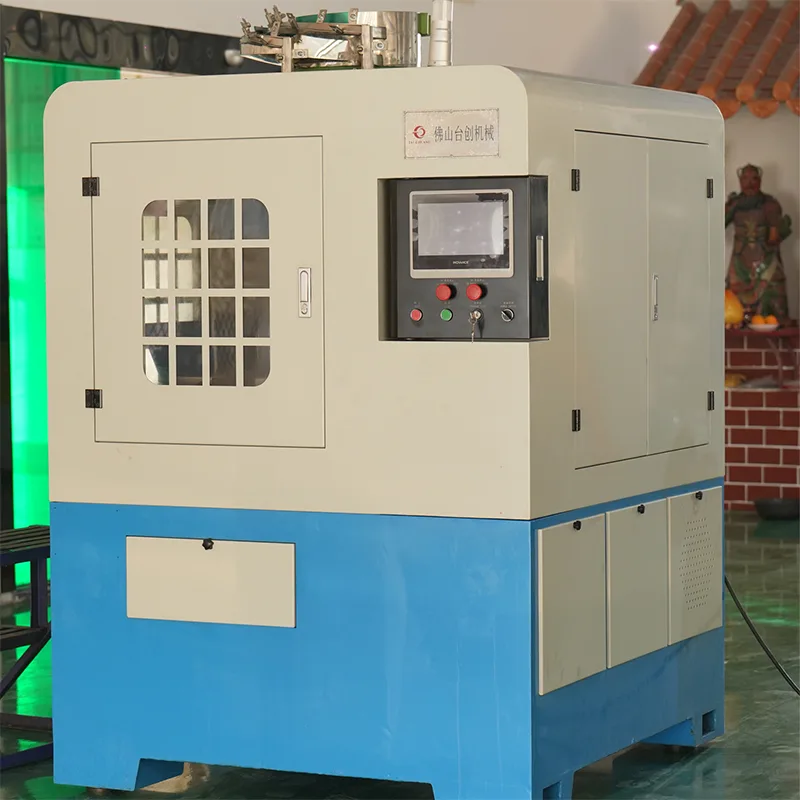

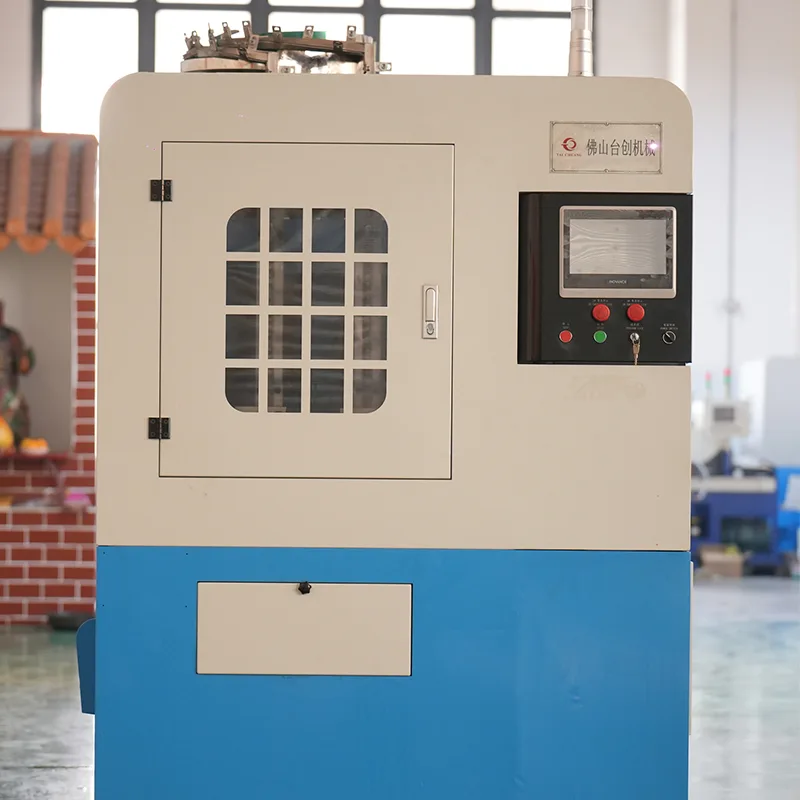

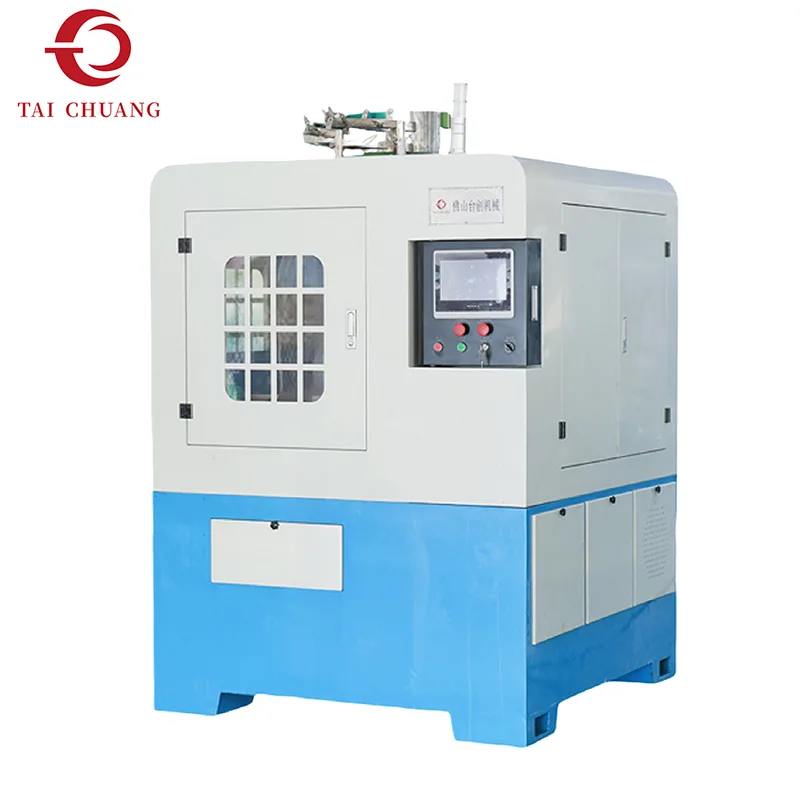

The TCWB-M20TG-2 is a Intelligent Pass Through Nut Tapping Machine designed for manufacturers who focus on output capacity without sacrificing tapping consistency. Compared with double spindle models, this machine is more suitable for customers running large batch orders and standardized nut products.
From our experience, when production volume increases, many factories encounter new challenges: uneven thread quality between stations, frequent adjustments, and rising maintenance costs. We developed this four-spindle configuration to balance productivity and process control in real production environments.
|
Product name |
Intelligent Pass Through Nut Tapping Machine |
|
Tapping Range |
M10-M20 |
|
Colors available |
Blue color,or as per request |
|

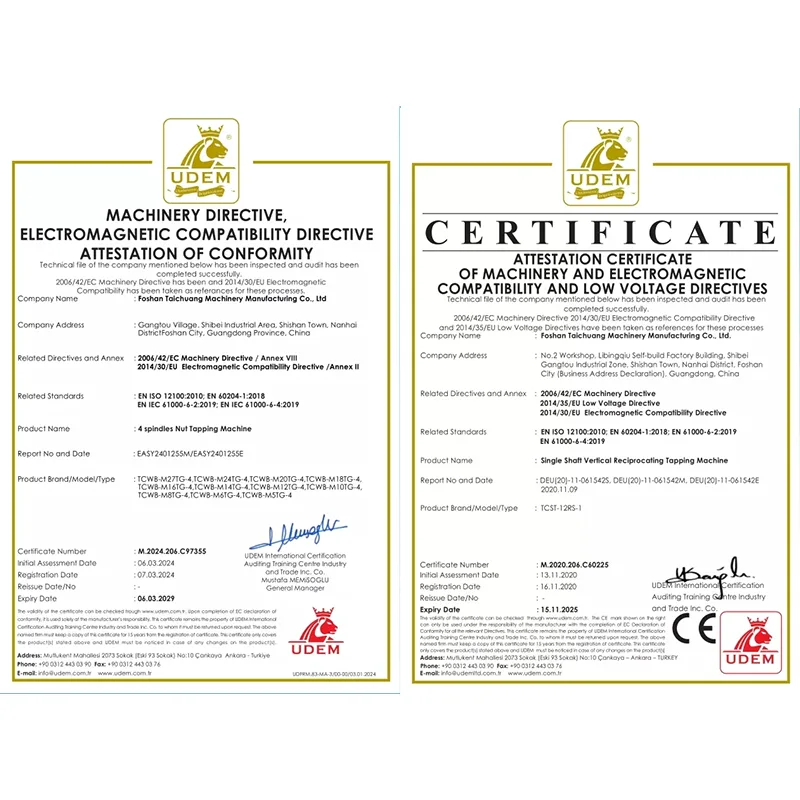

Standards that follow to |
ISO、CE |
|
Fixture mode |
The fixture is customed according to the nut type. |
|
MOQ |
1 |
|
Production lead time |
About 1 month |
|
Warranty time |
1 years for normal use |
|
Payment term |
TT30%deposit,70%balance paid before shipment |
|
FOB loading port |
Nansha, China |
|
Place of origin |
Foshan，China |
TAICHUANG can provide nut tapping machine from M10-M20,with specifications below：
| Item | Name | Parameter | Name | Parameters/Brand |
| Casting base | Pallet stroke | 180mm | Main spindle servo motor | 4.4Kw/1500rpm(M10-M16) |
| Feed linear guideway | GHH25CAX465 | Main spindle servo motor | 5.5Kw/1500rpm(M14-M20) | |
| Feed ball screw | FSC2520K3X342 | Feed servo motor | 0.75Kw/3000rmp | |
| Baiting track | Baiting angle | 90 degree angle | Cooling pump | 370W |
| Main spindle | Max.processing outer diameter | ∅35 | Touch screen | Inovance |
| Max.processing length | than nominal thread size ×2 | Main engine | Inovance | |
| Qty of main spindle | 2 | Circuit-breaker | CHNT | |

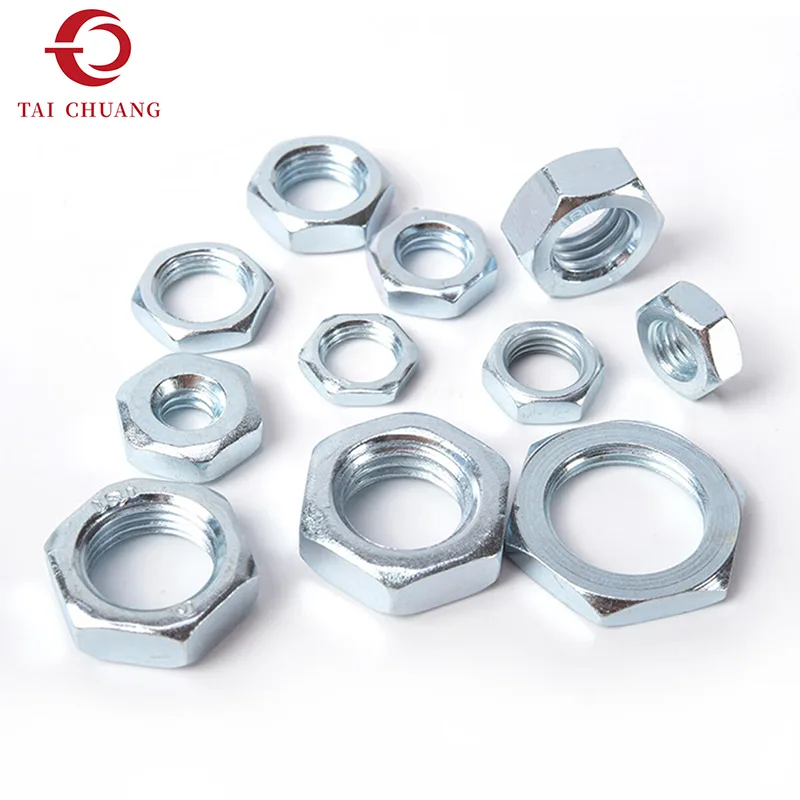

| Fixture mode | Falt push | Square nut,hexagonal nut | Circuit-breaker | CHNT |
| Clamp | Round nut,flangle nut,polygonal nut | Thermal overload | CHNT | |
| Spring jaw | flangenut | KA | IDCE | |
| Clamping cylinder | Cylinder | SDA50X20SB | Cylinder sensor | Airtac |
| Cooling device | Productivity per spindle | 20-30pcs/min | Power switch | Siemens |
| Overall Dimensions | Overall Dimensions | 1380×1420×1850mm | Equipment weight | about2200KG |
In actual factory use, customers often notice improvements in:
Thread consistency across long production runs
More predictable maintenance cycles
For manufacturers producing larger nuts, these benefits translate directly into lower production risk and more reliable delivery schedules.
We manufacture machines to meet international market requirements, making them suitable for export. Our experience working with overseas customers allows us to better understand expectations related to quality, packaging, and delivery.
We focus on practical machine performance, not exaggerated specifications. Customers choose us because we provide reliable equipment, clear communication, and long-term technical support.
What control system does the machine use?
CNC/PLC control system with HMI touch screen.
How do you ensure thread accuracy and consistency?
High-precision spindle, servo control, and torque sensor.
What is the tapping speed？
Tapping speed depends on the machine model.
