As global demand for fasteners continues to rise, manufacturers face increasing pressure to produce a higher volume of parts within existing production space and workforce constraints.
Moving beyond the single-spindle model, multi-axis automatic nut tapping machines enable the simultaneous processing of multiple workpieces, thereby significantly boosting production capacity while maintaining consistent thread precision.
For factories producing millions of nuts annually, multi-spindles technology offers an effective solution to increase output without substantially raising operating costs.

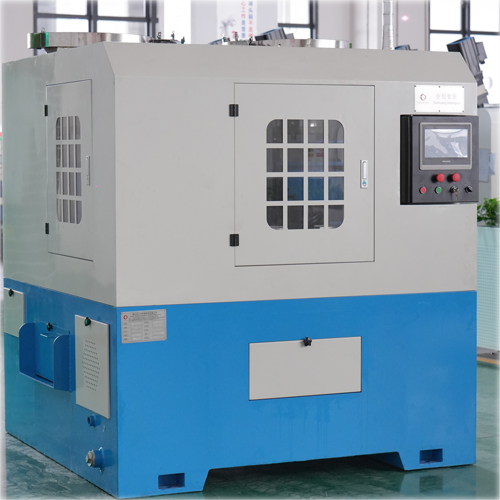

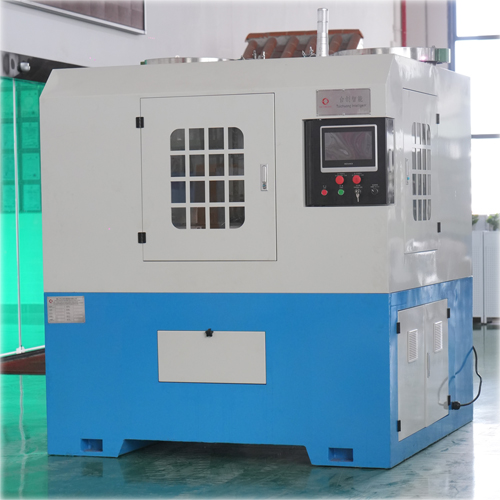

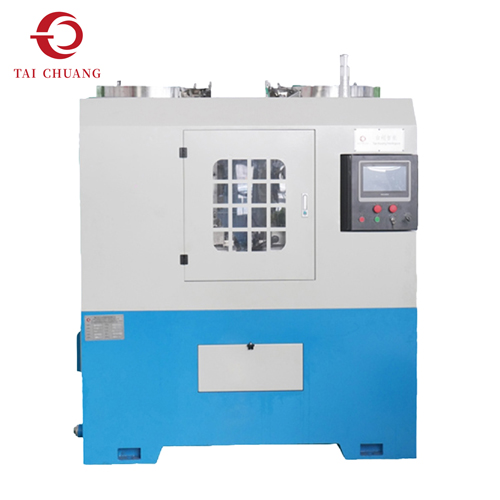

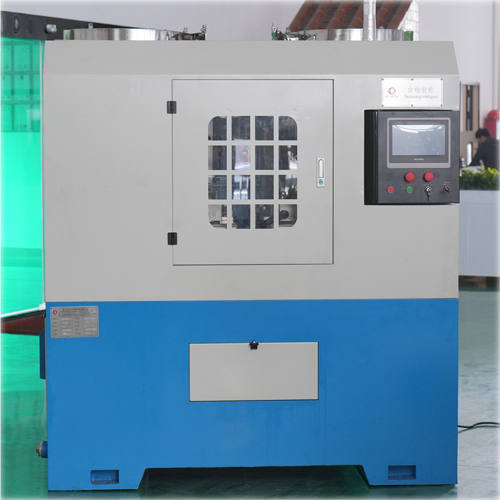

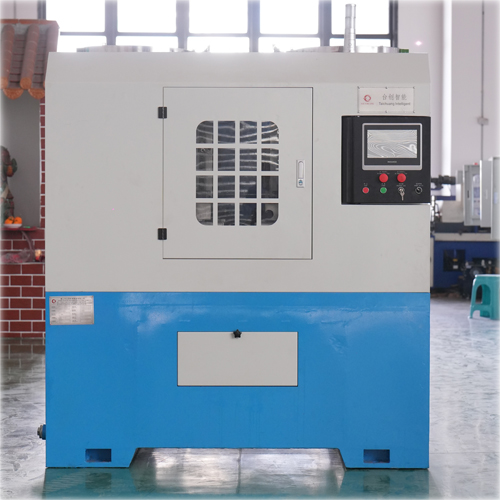

TAICHUANG can provide nut tapping machine from M16-M30,with specifications below：
|
Item |
Name |
Parameter |
Name |
Parameters/Brand |
|
Casting base |
Pallet stroke |
250mm |
Main spindle servo motor |
4.4Kw/1500rpm(M16-M22)reducer speed1:4 |
|
Feed linear guideway |
GHH30CAX660 |
Main spindle servo motor |
5.5Kw/1500rpm(M20-M30)reducer speed1:5 |
|
|
Feed ball screw |
3210X450 |
Feed servo motor |
1.3Kw/1500rmp |
|
|
Baiting track |
Baiting angle |
90 degree angle |
Touch screen |
Inovance |
|
Main spindle |
Max.processing outer diameter |
∅35 |
Main engine |
Inovance |
|
Max.processing length |
Lessthan nominal thread size ×2 |
Circuit-breaker |
CHNT |
|
|
Qty of main spindle |
2 |
Circuit-breaker |
CHNT |
|
|
Fixture mode |
Clamp |
Round nut,flange nut,polygonal nut |
Thermal overload |
CHNT |
|
Clamping cylinder |
Cylinder |
SDA63X25SB |
KA |
IDCE |
|
Cooling device |
Cooling pump |
370W |
Cylinder sensor |
Airtac |
|
Double spindles |
Productivity per spindle |
8-15pcs/min |
Power switch |
Siemens |
|
Overall Dimensions |
1750×1750×1900mm |
Equipment weight |
about3200KG |
The primary advantage of a multi-spindle design is production efficiency.
With multiple tapping heads operating simultaneously, a greater number of workpieces can be completed within each production cycle. Compared to traditional single-spindle equipment, manufacturers can achieve:
Higher hourly output
Greater equipment utilization
Shorter production cycles
Reduced reliance on manual labor
More consistent manufacturing performance
This makes the equipment particularly well-suited for medium-to-large fastener factories utilizing continuous production lines.
Selecting equipment is just one step in establishing a successful fastener factory.
As an experienced Chinese manufacturer of nut tapping machines, TAICHUANG also provides complete fastener production solutions to help customers build efficient and integrated production lines.
Our product range includes:
Nut tapping machines
Thread rolling machines
Bolt thread rolling machines
Cold heading machines
Nut forming machines
Bolt forming machines
Combined drilling and tapping machines
Automatic feeding systems
Customized fastener production equipment
From raw material forming to finished thread processing, we assist clients in creating complete manufacturing solutions tailored to their production goals.
Reliable equipment begins with precision manufacturing and rigorous inspection.
Before shipment, every machine undergoes a comprehensive testing process, including:
Spindle operation checks
Tapping accuracy verification
Feed stability testing
Equipment safety inspections
Pre-delivery trial production runs
As a professional manufacturer of nut tapping machines in China, we are committed to delivering high-quality equipment that is ready for stable production immediately upon installation.
As a professional nut tapping machine China factory, TAICHUANG has supplied equipment to customers across Asia, Europe, the Middle East, North America, and other international markets.
Every machine is manufactured under strict quality control procedures and tested before shipment to ensure reliable performance after installation.
Our export experience enables us to provide professional support throughout the entire purchasing process, from technical consultation to logistics coordination and after-sales service.
Clients choose to partner with us because we offer far more than just standard machinery.
Reasons for choosing TAICHUANG include:
Customized equipment design
Comprehensive fastener production solutions
Experienced engineering and technical support
Reliable manufacturing quality
Responsive after-sales service
Long-term spare parts supply
Extensive international export experience
As a trusted Chinese manufacturer of nut tapping machines, our goal is to help every client boost production efficiency, reduce manufacturing costs, and build a more competitive fastener business.
