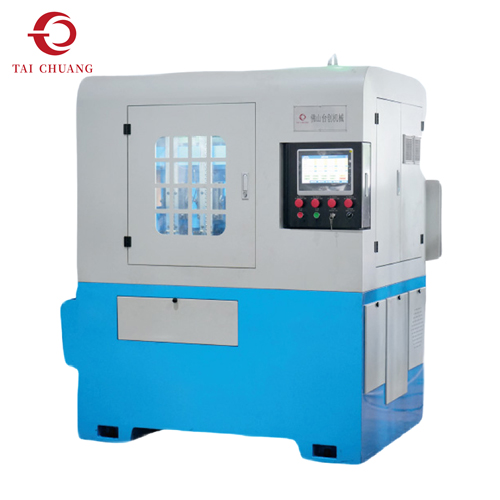

Tapping Machine for Nuts

A tapping machine for nuts is built specifically to machine internal threads in pre-drilled nuts and fastener components. Unlike a general-purpose tapping machine used for individual components, a dedicated nut tapping machine is configured around continuous nut production, automatic feeding and repeatable positioning.

Taichuang supplies automatic nut tapping equipment for manufacturers handling different types of fasteners, including:

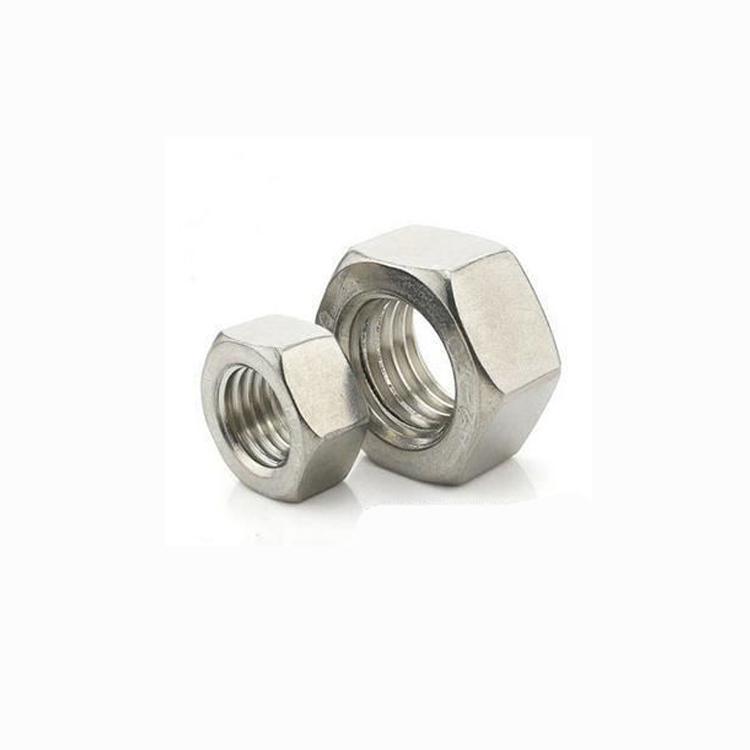

Hex nuts，Hex flange nuts，Weld nuts，Wheel nuts，Rivet nuts，Wing nuts，Cap nuts，Slotted nuts，Special-shaped nuts，

Automotive fastener components

The machine can be matched with different spindle configurations according to nut dimensions, thread specifications, required output and available production space.

Product specifications

TAICHUANG can provide nut tapping machine from M10-M20,with specifications below：

More Than Just an Ordinary Tapping Machine

The term "tapping machine" encompasses a wide range of equipment types. However, for fastener manufacturers, the equipment configuration must align with the specific production characteristics of the nuts being manufactured.

Specialized nut tapping machines typically integrate multiple steps into a single, streamlined production process:

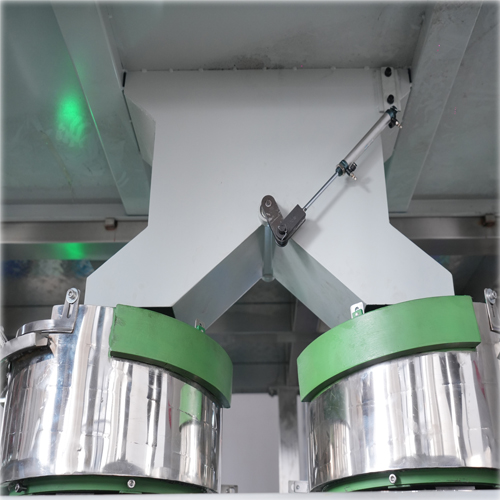

Automatic feeding → Nut positioning → Thread tapping → Quality inspection → Unloading

This layout minimizes manual handling between stages and simplifies the management of tapping operations within a continuous production flow.

For customers specifically looking for nut tapping machines, Taichuang can recommend suitable models based on nut drawings, rather than simply matching equipment based on thread size.

CNC and PLC Control for Enhanced Ease of Operation

The control system is a vital component of modern nut tapping machines. Taichuang equipment utilizes PLC control systems and HMI touch-screen interfaces, enabling operators to easily monitor and adjust key production parameters.

Depending on the specific model, equipment features may include:

 Integrated PLC control

HMI touch-screen operation

Adjustable tapping speed

Servo-controlled motion

Spindle protection

Tap breakage detection

Low-material alarm

Automatic rejection of defective parts

Production parameter adjustment

Automatic shutdown and alarm functions

These features are designed for the demands of daily industrial production, rather than for occasional manual tapping operations.

Thread Quality Control During Tapping

Producing threads quickly is only part of the requirement. The finished internal thread must also meet the customer's dimensional and functional specifications.

A properly configured nut tapping machine can incorporate thread-quality-related control functions such as torque monitoring, tap protection and automatic alarms.

GO and NO-GO gauges can be used for finished-thread inspection according to the customer's quality requirements.

For new projects, customers can also provide:

Nut samples

Taps

GO gauges

NO-GO gauges

Technical drawings

Thread specifications

These materials allow the machine configuration and tapping process to be evaluated against the actual production requirements.
