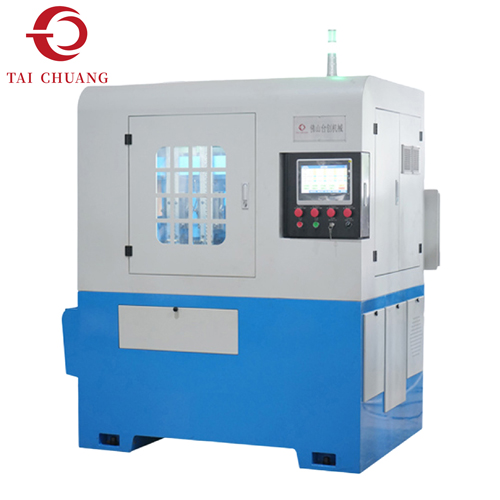

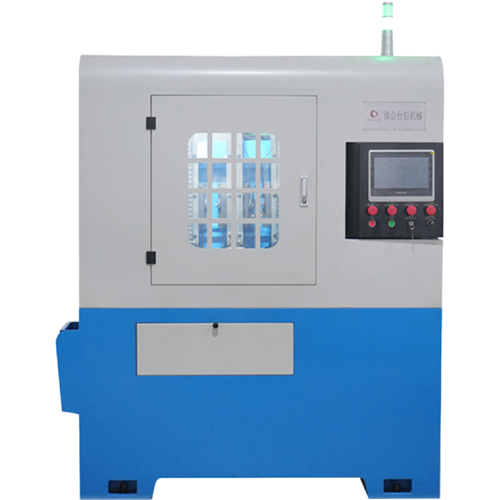

High Output Nut Tapping Machine

Developed for manufacturers aiming to boost nut tapping capacity without adding extra standalone machines, this High Output Nut Tapping Machine features a four spindle setup to enable continuous‑flow production. Nuts are fed into the unit, go through the tapping station, and get discharged once threading is completed.

Ideal for fastener factories with large‑batch nut production and demands for upgraded line efficiency, the M10TG‑4 pass‑through nut tapping machine operates on continuous workpiece movement, differing from conventional reciprocating nut tappers that run separate tapping cycles for each part. It delivers reliable, consistent processing and serves as a practical solution for high‑volume nut manufacturing.

Product specifications

TAICHUANG can provide nut tapping machine from M4-M62,with specifications below：

4-Spindle Nut Tapping Machine Main Features

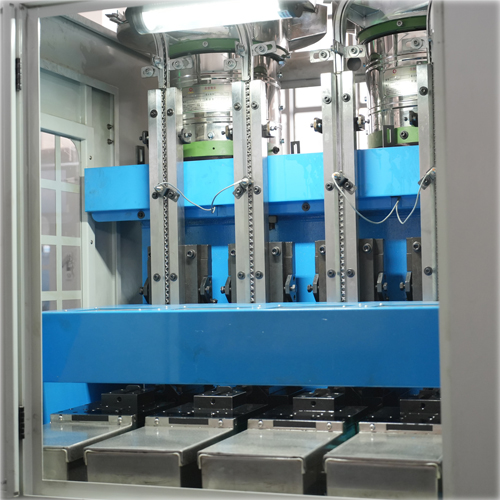

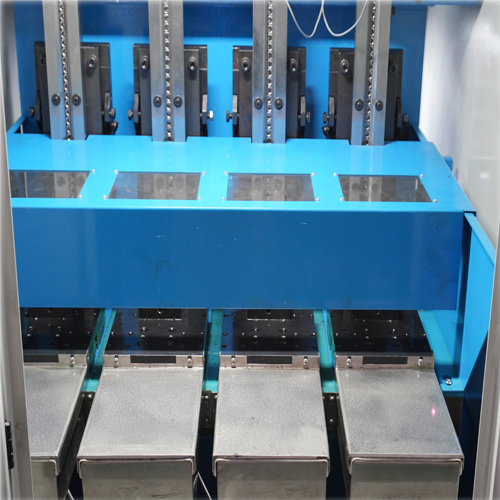

4-spindle tapping configuration

Pass-through nut tapping structure

Designed for high-output production

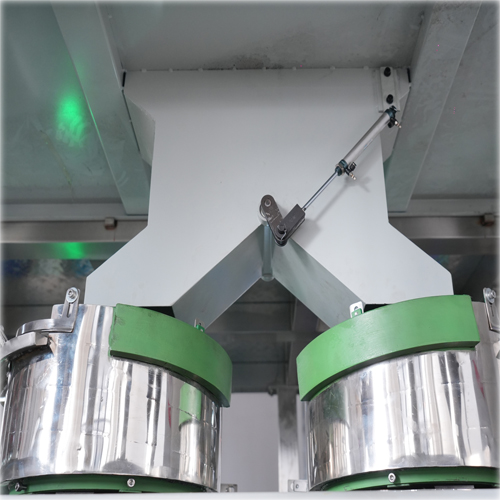

Automatic workpiece feeding

Continuous nut processing

Stable internal thread machining

Suitable for compatible M5-M10 nut applications

Reduced manual loading and unloading

Industrial control system for convenient operation

Safety protection for continuous production

Suitable for fastener manufacturing lines

Why Choose a 4-Spindle Nut Tapping Machine?

A four-spindle configuration provides a higher-output solution for manufacturers whose production requirements have exceeded the capacity of a conventional single-spindle tapping machine.

The M10TG-4 is particularly suitable when customers are looking for:

Higher production capacity
Four tapping spindles provide a production-oriented configuration for continuous nut processing.

Continuous workpiece movement
The pass-through structure helps maintain a smoother material flow through the tapping process.

Less manual intervention
Automatic feeding and discharge reduce repetitive loading and unloading operations.

Consistent thread processing
A controlled tapping process helps maintain repeatable internal thread quality throughout production.

Better production-line integration
The machine can be incorporated into a larger nut manufacturing workflow, including forming, tapping, inspection and packaging processes.

Stable Thread Quality at High Production Output

High production speed is only valuable when thread quality remains consistent.

For fastener manufacturers, variations in thread dimensions, incomplete threads or damaged threads can lead to assembly problems and increased rejection rates. The M10TG-4 is therefore designed to combine high-output production with controlled tapping conditions.

The machine can also be equipped with monitoring and alarm functions according to the selected configuration. These functions help operators identify issues such as tap breakage or material shortage and respond more quickly during production.

For customers with strict thread requirements, TAICHUANG recommends evaluating the actual nut sample or technical drawing before final machine selection.

FAQ

What is the M10TG-4 nut tapping machine?

The M10TG-4 is a 4-spindle pass-through nut tapping machine designed for automatic and continuous internal thread processing of compatible nuts.

Why does the M10TG-4 use four spindles?

The four-spindle configuration is designed for higher production output and continuous nut processing, making it suitable for high-volume fastener manufacturing.

What does pass-through nut tapping mean?

Pass-through nut tapping means the workpieces move continuously through the tapping section rather than being manually positioned and processed one at a time.

Is the M10TG-4 suitable for M10 nuts?

The M10TG-4 is designed around M10-class applications, but the actual suitability depends on the nut dimensions, material, thread specification and other workpiece characteristics. A drawing or sample is recommended for confirmation.

What is the production speed of the M10TG-4?

The actual production output depends on the nut size, material, thread specification, tapping depth, tooling and machine settings. TAICHUANG can evaluate the expected output based on your workpiece.

Can the M10TG-4 process stainless steel nuts?

The machine may be configured for suitable stainless steel applications. Tooling, lubrication and processing parameters should be selected according to the specific stainless steel grade and thread requirements.

How can I get an accurate quotation?

Send us your nut drawing or sample information together with the material, thread specification and required production capacity. TAICHUANG can then recommend the appropriate configuration and provide a quotation.
