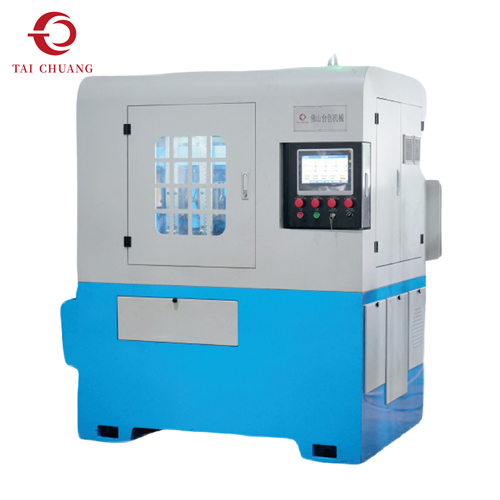

Flange nuts are widely used in industries where secure fastening and vibration resistance are essential. Their integrated flange distributes clamping force more evenly than standard hex nuts, making them a preferred choice for automotive, construction, agricultural machinery, and industrial equipment.Producing these fasteners efficiently requires more than a conventional tapping process. TAICHUANG developed thisFlange Nut Threading Machine to help manufacturers achieve stable internal threads while supporting continuous production with minimal manual intervention.
TAICHUANG can provide nut tapping machine from M10-M20,with specifications below：
|
Item |
Name |
Parameter |
Name |
Parameters/Brand |
|
Casting base |
Pallet stroke |
180mm |
Main spindle servo motor |
4.4Kw/1500rpm(M10-M16) |
|
Feed linear guideway |
GHH25CAX465 |
Main spindle servo motor |
5.5Kw/1500rpm(M14-M20) |
|
|
Feed ball screw |
FSC2520K3X342 |
Feed servo motor |
0.75Kw/3000rmp |
|
|
Baiting track |
Baiting angle |
90/80 degree angle |
Multi-stage pump CRK12-20-2 |
1.5KW |
|
Main spindle |
Max.processing outer diameter |
∅35 |
Touch screen |
Inovance |
|
Max.processing length |
lessthan nominal thread size ×2 |
Main engine |
Inovance |
|
|
Qty of main spindle |
2 |
Circuit-breaker |
CHNT |
|
|
Fixture mode |
Falt push |

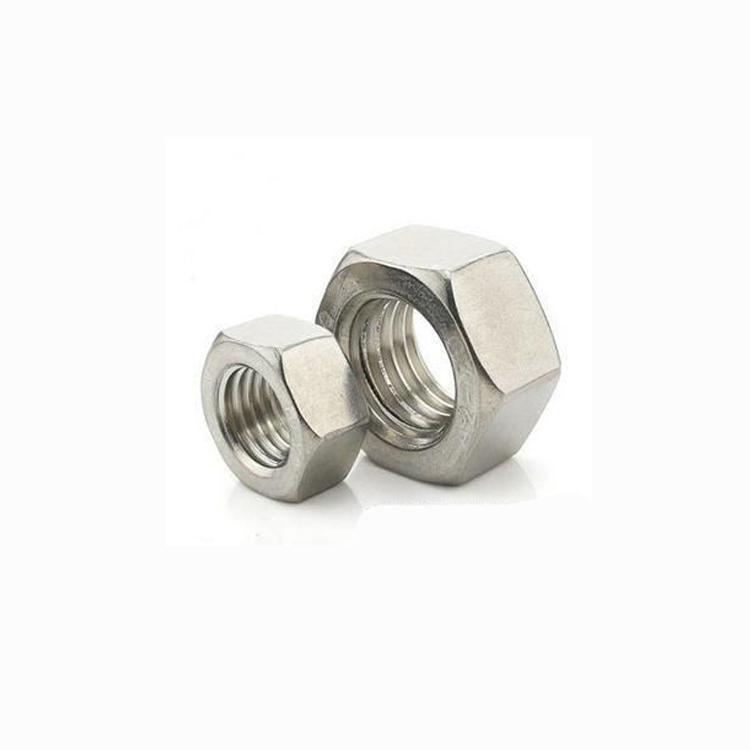

Square nut,hexagonal nut |
Circuit-breaker |
CHNT |
|

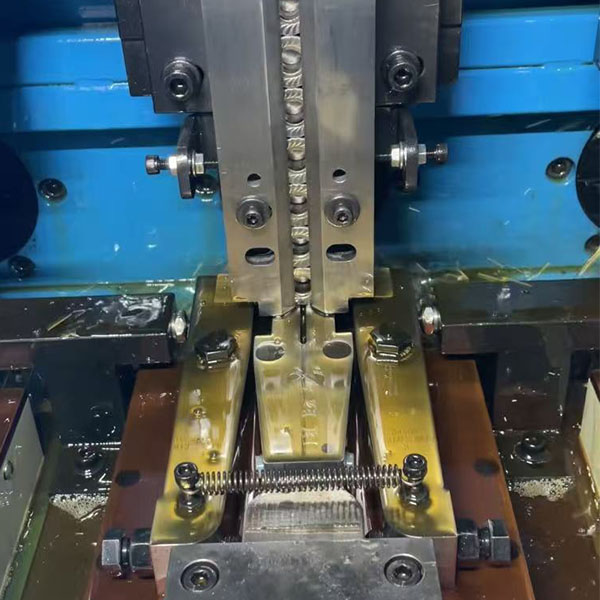

Clamp |
Round nut,flange nut,polygonal nut |
Thermal overload |
CHNT |
|
|
Spring jaw |
flangenut |
KA |
IDCE |
|
|
Clamping cylinder |
Cylinder |
SDA50X20SB |
Cylinder sensor |
Airtac |
|
Cooling device |
Productivity per spindle |
20-30pcs/min |
Power switch |
Siemens |
|
Overall Dimensions |
Overall Dimensions |
1850×1500×1880mm |
Equipment weight |
about3000KG |
Increasing production demands require equipment that can keep pace without sacrificing product quality.
This machine integrates automatic feeding, precision positioning, tapping, and unloading into a seamless process. The system eliminates the need for repeated manual handling to interrupt production, allowing the workpiece to continuously circulate during the tapping cycle, thereby helping factories increase output while maintaining a stable production process.
For companies looking for Chinese-made nut tapping machines, this equipment achieves an excellent balance between production efficiency, reliability, and operational flexibility.

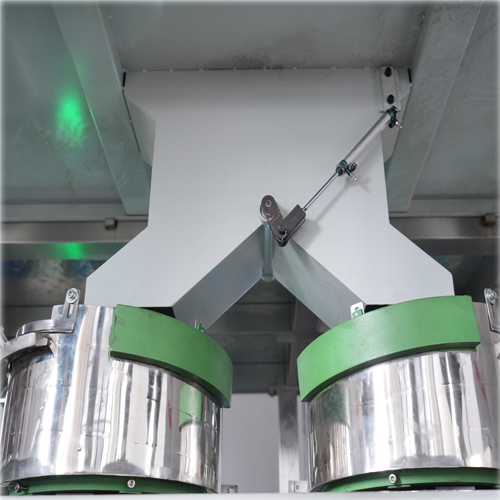

Continuous Material Transfer
The production process is organized to keep flange nuts moving smoothly from feeding to finished discharge, reducing unnecessary waiting time between operations.

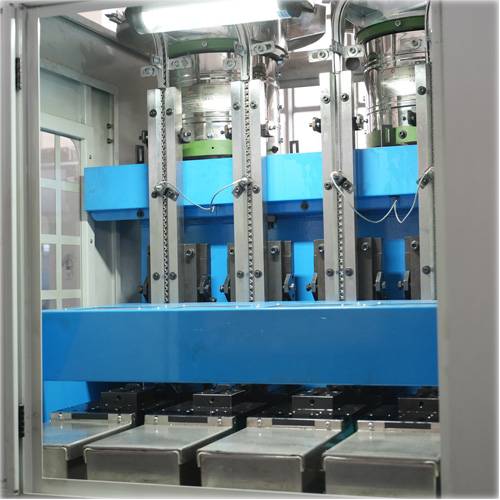

Independent Tool Replacement
Each spindle allows individual tap replacement, making maintenance faster and reducing production interruptions when changing tooling.

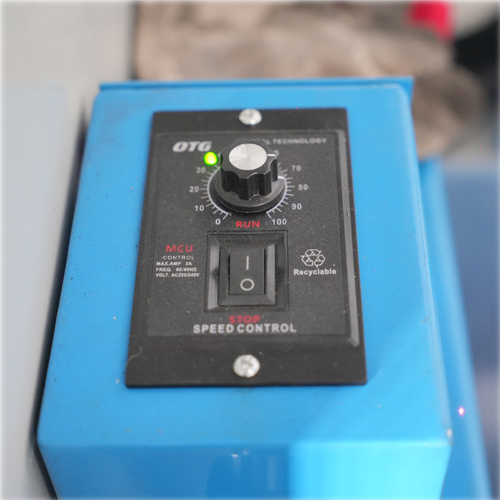

Adjustable Operating Speed
Different materials and thread specifications require different machining conditions. The machine supports flexible speed adjustment, allowing operators to optimize production according to actual manufacturing requirements.
Automatic Protection System
Sensors monitor machine operation in real time. If abnormal conditions occur, the affected spindle stops automatically while the alarm system notifies the operator, helping protect both tooling and equipment.
Adaptable for Various Nut Specifications
The machine can be configured for different flange nut dimensions, thread standards, and production capacities according to customer requirements.
Each production workshop has its own unique operating model.
Some customers prioritize maximum daily output, while others value production flexibility or product consistency.
As an experienced Chinese manufacturer of nut tapping machines, Taichuang works closely with clients to configure equipment based on factors such as:
Product drawings
Material properties
Production targets
Workshop layout
Automation requirements
This customer-centric approach enables manufacturers to invest in equipment that truly aligns with their production needs, eliminating the need to alter production processes simply to accommodate standard equipment configurations.
Purchasing a tapping machine is merely one step in building an efficient production line.
TAICHUANG provides customers with comprehensive support, from equipment selection and technical consultation to installation guidance and after-sales service, helping manufacturers improve production efficiency while ensuring stable thread quality. In addition to nut tapping machines, we also provide matching thread rolling machines, cold heading machines, and complete automation solutions.
As a trusted Chinese manufacturer of nut tapping machines, we are committed to providing practical, reliable, and customized threading solutions for fastener producers worldwide.
