Marble Gantry Processing Center

Precision machining applications often require machine structures that can maintain long-term stability and minimal vibration during high-accuracy processing. The Marble Gantry Processing Center is designed to address these requirements through a gantry-style machining configuration combined with a granite machine base.

Granite, often referred to as marble in industrial machine construction, provides excellent thermal stability and vibration damping properties compared with traditional cast iron structures. By using a granite base, the machine platform can maintain consistent dimensional accuracy even during long machining cycles or temperature fluctuations in the workshop environment.

The gantry structure allows the machining system to maintain high rigidity when processing larger workpieces. With the bridge-style gantry spanning across the machine bed, cutting forces are distributed more evenly throughout the machine frame. This configuration helps reduce structural deformation during heavy milling operations and supports stable tool engagement during precision machining.

The Marble Gantry Processing Center is widely used in industries that require high machining accuracy for medium to large precision components. Through a combination of rigid mechanical design, precise motion control, and stable structural materials, the system provides a reliable platform for demanding CNC machining tasks.

TAICHUANG supplies this gantry machining solution to support manufacturers seeking enhanced structural stability and improved machining precision.

Product Specifications

Structural Design Concept

The machine architecture focuses on combining structural rigidity with vibration suppression to support high-precision machining performance.

Granite Machine Base

The granite base provides natural vibration damping and excellent thermal stability, helping maintain dimensional accuracy during machining.

Gantry Bridge Structure

The gantry bridge moves along the machine bed while supporting the spindle system, ensuring stable tool positioning during machining operations.

High Precision Motion System

Servo-driven linear axes provide smooth and accurate movement, enabling precise positioning during milling and drilling processes.

Reinforced Frame Stability

The machine structure is designed to maintain rigidity during high-load cutting operations.

Advantages of Granite-Based Machine Structures

Superior Vibration Damping

Granite naturally absorbs vibration, improving machining stability.

Thermal Stability

The material maintains dimensional stability even under varying temperature conditions.

Long-Term Precision

Reduced structural deformation helps maintain machining accuracy over extended machine operation.

Improved Surface Finish

Stable cutting conditions contribute to better machining surface quality.

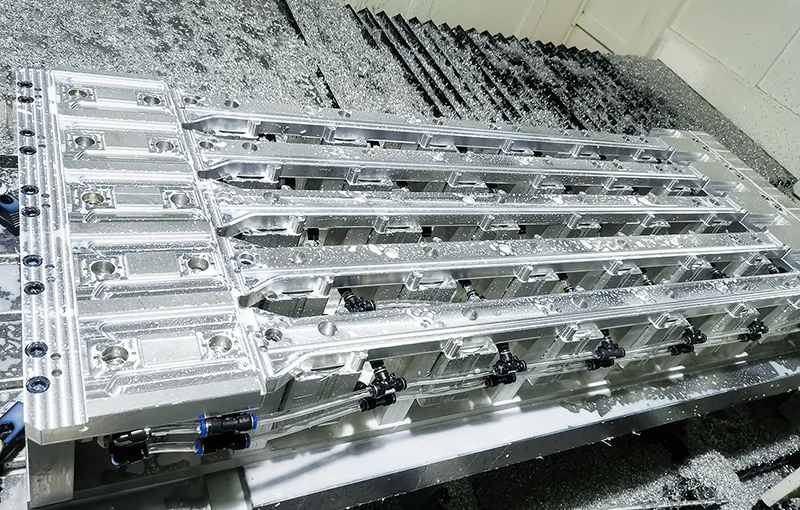

Typical Components Machined

The Marble Gantry Processing Center is suitable for machining various precision components including:

precision machine bases

mold and tooling plates

industrial structural components

precision equipment frames

semiconductor equipment parts

aerospace structural components

These parts often require high machining accuracy and stable structural support during production.

Why Choose TAICHUANG

TAICHUANG supplies machining equipment solutions designed to support precision manufacturing industries. The marble gantry processing centers provided by TAICHUANG are introduced as equipment options for manufacturers seeking stable CNC machining platforms.

Advantages include:

equipment designed for high precision machining

machines suitable for large component processing

solutions supporting vibration-controlled machining environments

equipment serving global industrial manufacturing sectors

TAICHUANG focuses on providing reliable equipment solutions that support advanced manufacturing processes.

FAQ

What is a marble gantry processing center?

A marble gantry processing center is a CNC machining system that uses a granite machine base combined with a gantry-style structure to provide high rigidity and vibration stability during machining.

Why use granite instead of cast iron for the machine base?

Granite offers excellent vibration damping and thermal stability, which can improve machining precision in certain high-accuracy applications.

What types of parts can be machined on this machine?

Typical parts include precision machine bases, tooling plates, industrial equipment frames, and other large precision components.

What industries use granite-based CNC machines?

Industries such as semiconductor equipment manufacturing, aerospace components, precision tooling, and automation equipment often use granite-based machines.

Is the machine suitable for large workpieces?

Yes. The gantry structure allows stable machining of medium to large components.
