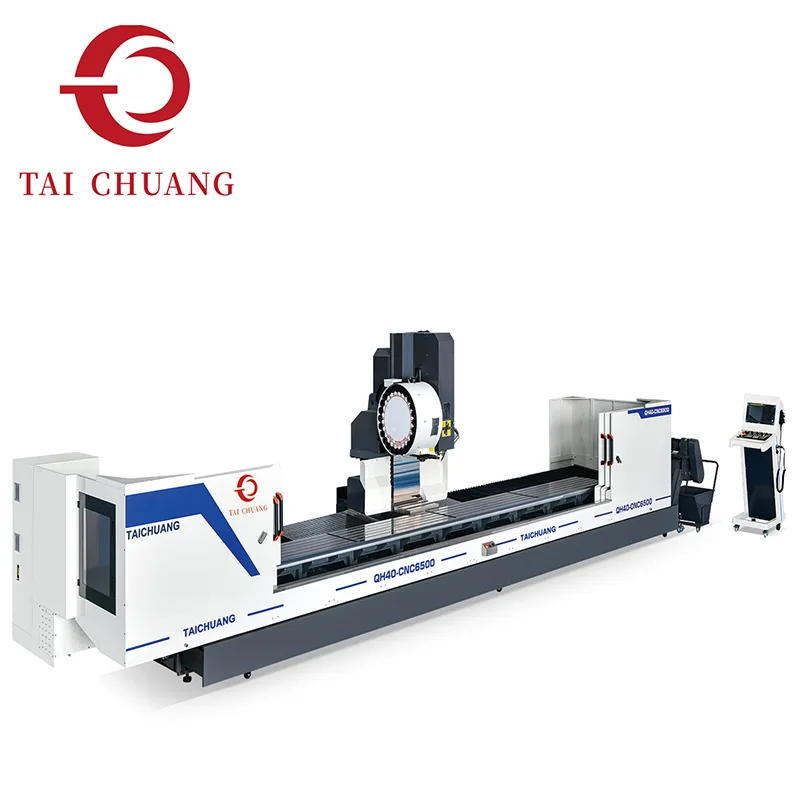

Aluminum profiles are widely used in modern manufacturing, construction systems, and industrial assemblies. Processing these profiles efficiently often requires multiple machining operations such as drilling, slot milling, tapping, and contour cutting. The Profile Compound Machining Center is designed to integrate these operations within a single machine platform, allowing manufacturers to complete complex machining processes with improved efficiency and workflow continuity.
This compound machining system focuses on flexible processing of aluminum extrusion profiles used in industries such as aluminum doors and windows, curtain wall systems, transportation equipment, and industrial framing structures. By combining multiple machining functions into one coordinated system, the machine reduces the need for repeated workpiece repositioning and improves overall machining consistency.

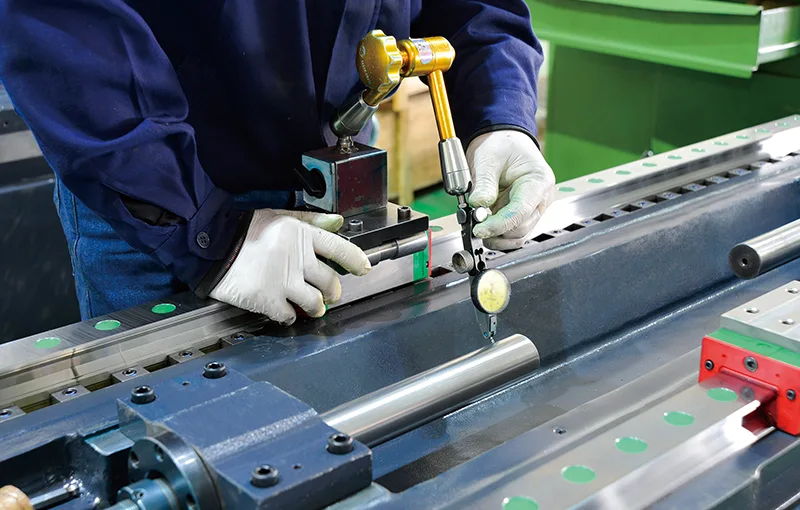

The machine structure is optimized to support long aluminum profiles while maintaining stable machining accuracy. Linear guide systems and precision motion control help ensure smooth axis movement during drilling and milling operations. This allows manufacturers to process aluminum components with reliable dimensional control, even when working with longer structural profiles.
Through integrated machining capability, the Profile Compound Machining Center enables manufacturers to increase production efficiency while maintaining consistent machining quality for aluminum profile components used in various engineering applications.
TAICHUANG supplies this equipment as part of its machining solutions designed to support modern aluminum profile processing requirements.
|
Trip |
||
|
X-axis stroke |
2500-6500mm |
|
|
Travel Y-axis |
500mm |
|
|
Z-axis stroke |
500mm |
700mm |
|
Principal Axis |
||
|
Spindle speed |
12000rpm |
|
|
Spindle taper hole |
BT40Φ120mm |
|
|

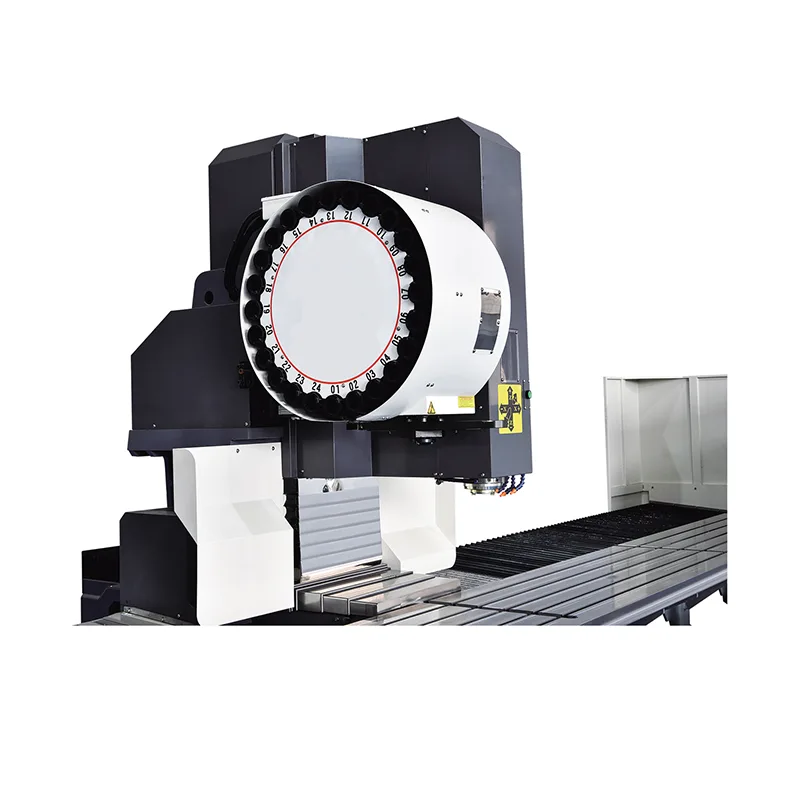

Tool Magazine |
||
|
Tool magazine form |
Disc type |
|
|
Magazine capacity |
24pcs |
|
|
Tool change time |
2sec |
|
|
Moving Speed |
||
|
X-axis movement |
60m/min |
|
|
Y-axis movement |
28m/min |
|
|
Z-axis movement |
28m/min |
|
|
Cutting feed speed X/Y/Z |
15000mm/min |
|
|

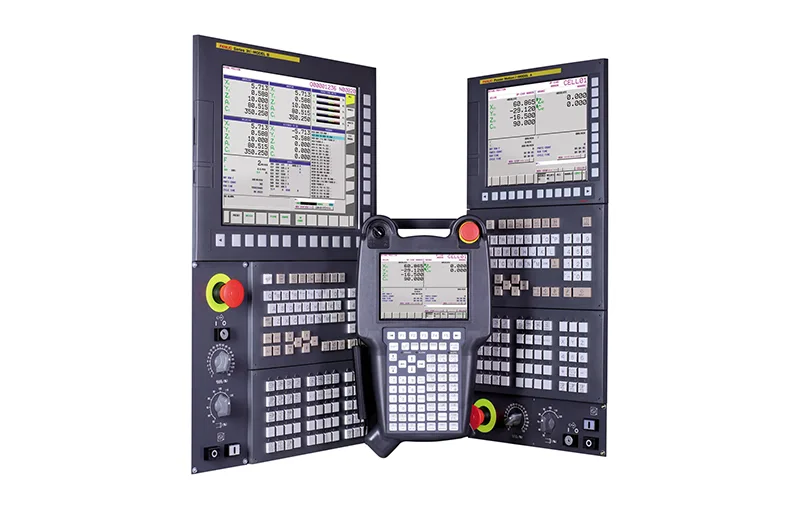

Operation system |
FANUC |
MITSUBISHI |
|
Motor Power |
||
|
Spindle motor |
7.5KW |
7.5KW |
|
X/Y/Z axis motor |
3.0/3.0/3.0KW |
2.0/2.0/3.0KW |
|
Lubrication Cooling System |
||
|
Lubrication System |
Automatic lubrication |
|
|
Cooling system |
Water spray cooling |
|
|

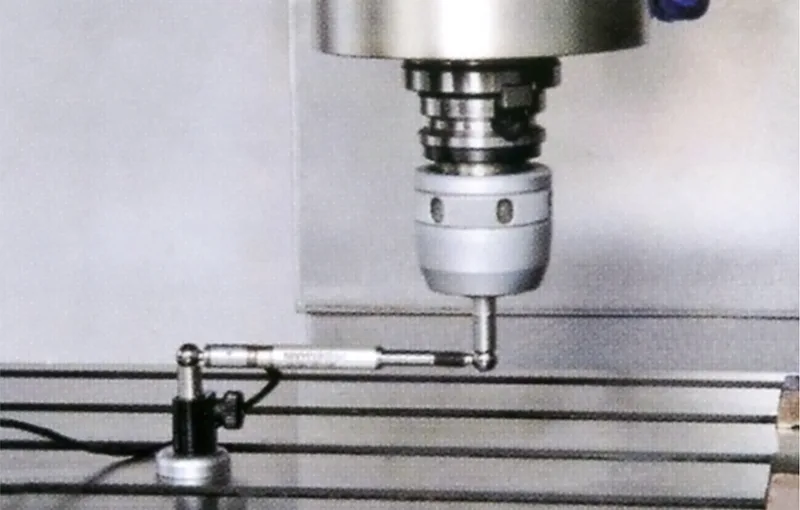

Accuracy |
||
|
X axis positioning accuracy |
0.05mm |
|
|
Y/Z axis positioning accuracy |
0.02mm |
|
|
Repetitive positioning accuracy |
0.01mm |
|
|
Mechanical Specifications |
||
|
Barometric demand |
0.6Mpa-0.9Mpa |
|
|
Height |
2750mm |
|
|
Area covered |
4800*9600*2500mm |
|
|
Weight |
6000KG-10000KG |
|
This Profile Compound Machining Center integrates all core machining functions required for high-efficiency aluminum profile production, delivering one-stop processing for industrial applications.

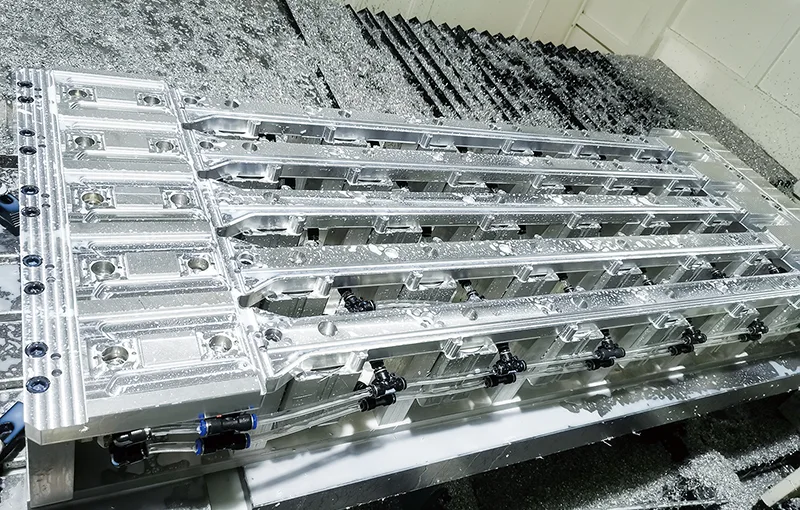

Accurate drilling on all profile surfaces to create assembly holes, mounting holes, and connection points with consistent precision.
Flexible slotting and profile milling for structural joints, mounting tracks, and component interfaces to meet various assembly needs.
Built-in thread forming within one machining cycle, so profiles are ready for direct assembly with bolts and fasteners.
Precision end-face machining ensures clean, accurate finishes for structural connections and modular assembly systems.
Multiple machining operations can be completed within one machine cycle.
Reduced repositioning helps maintain consistent hole locations and machining geometry.
Batch processing of aluminum profiles becomes more streamlined with integrated machining capability.
Different profile designs can be processed with appropriate tooling and programming.
Aluminum profile machining equipment is widely used across several industries where lightweight structural components are required.
Common sectors include:
architectural aluminum systems
aluminum door and window manufacturing
curtain wall construction systems
transportation equipment manufacturing
industrial automation structures
modular aluminum framework systems
These industries require efficient machining of aluminum profiles while maintaining reliable dimensional accuracy.
What is a profile compound machining center used for?
A profile compound machining center is used to perform multiple machining operations such as drilling, milling, slotting, and tapping on aluminum extrusion profiles.
What types of profiles can be processed?
The machine is designed primarily for aluminum extrusion profiles used in doors, windows, curtain walls, and industrial structures.
Why combine multiple machining processes in one machine?
Combining several operations helps reduce handling time, improves machining consistency, and increases production efficiency.
Can this machine process long aluminum profiles?
Yes. The machine structure is designed to support longer profile components commonly used in architectural and industrial applications.
What industries typically use profile machining centers?
Industries such as architectural aluminum systems, curtain wall construction, transportation manufacturing, and industrial framework production commonly use these machines.
TAICHUANG supplies machining equipment solutions designed for modern manufacturing environments. The profile machining centers introduced by TAICHUANG are selected by manufacturers seeking practical equipment solutions for aluminum component processing.
equipment solutions for aluminum profile machining
machines supporting multi-process aluminum fabrication
reliable equipment for industrial production environments
equipment suitable for global manufacturing industries
TAICHUANG focuses on providing machining solutions that help manufacturers improve efficiency and maintain consistent machining performance.
