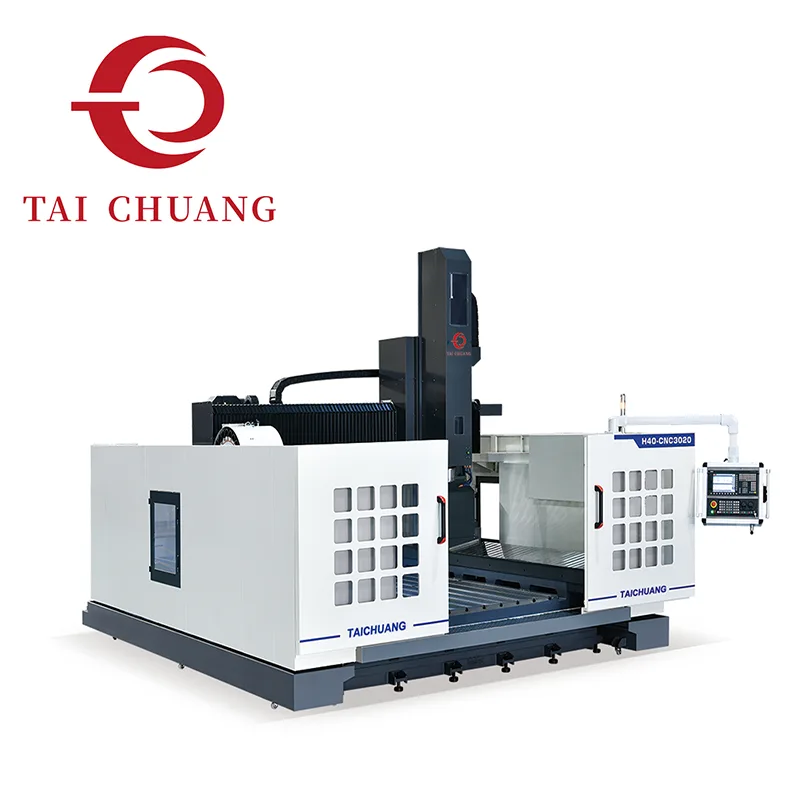

Moving Column Gantry Machining Center

Manufacturing industries that produce large structural components often require machining equipment capable of handling extended workpiece dimensions without compromising precision. The Moving Column Gantry Machining Center is designed to meet these requirements through a machine architecture where the column travels along the machine bed while the worktable remains stationary.

This moving column configuration provides several advantages for large part machining. By allowing the machining column to move across the workpiece, the machine can achieve long travel distances without requiring extremely large moving tables. This helps maintain structural rigidity while enabling the system to process long workpieces commonly found in industrial manufacturing.

The gantry-style structure provides strong mechanical support for the spindle assembly and machining head. Cutting forces are distributed evenly through the bridge frame, helping maintain machining stability during heavy milling operations. This structural design also allows the machine to handle demanding machining tasks involving large metal components.

The Moving Column Gantry Machining Center is particularly suitable for applications involving long plates, structural frames, molds, and industrial machine components. With its extended machining travel and stable mechanical architecture, the system supports efficient processing of large workpieces while maintaining consistent dimensional accuracy.

TAICHUANG introduces this gantry machining solution for manufacturers seeking reliable CNC equipment capable of handling large-scale machining tasks.

Product Specifications

Machine Structure and Working Principle

Moving Column Design

In this configuration, the machining column travels along the machine bed while the workpiece remains stationary. This design allows the machine to process long components without requiring large moving tables.

Gantry Frame Construction

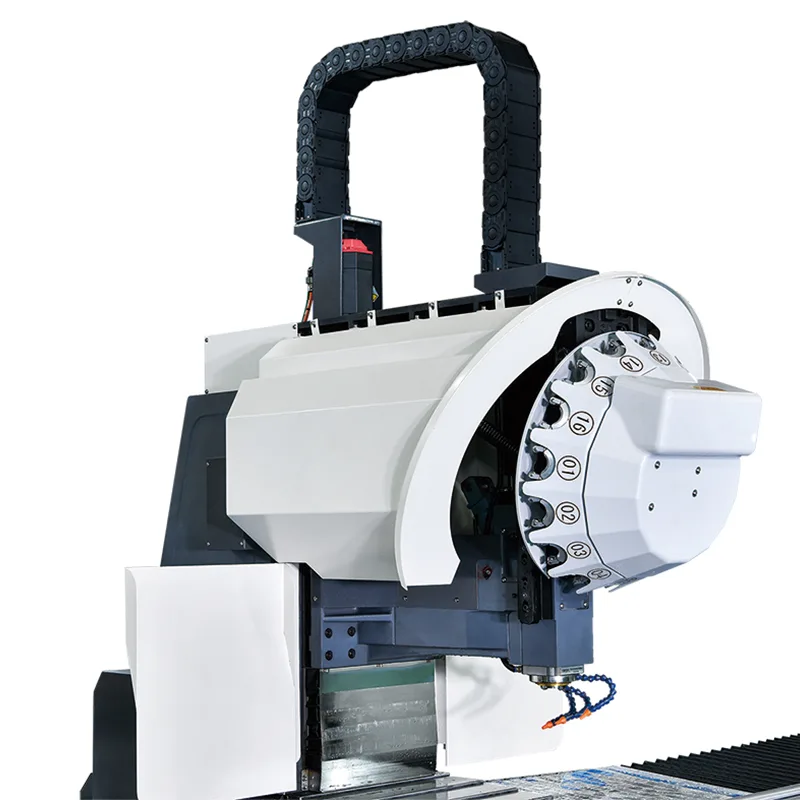

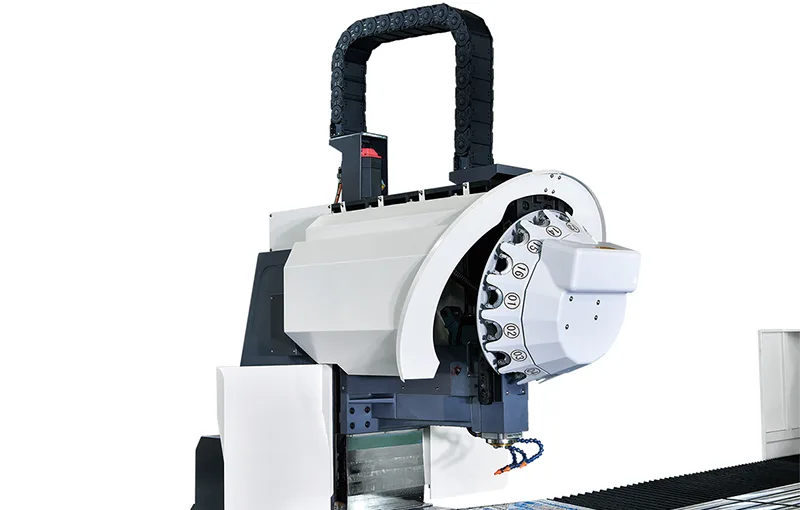

The gantry bridge supports the spindle and machining head, ensuring stable positioning during heavy cutting operations.

Extended Machining Travel

The machine is designed with long-axis travel capability, making it suitable for machining oversized components and structural parts.

Precision Linear Motion System

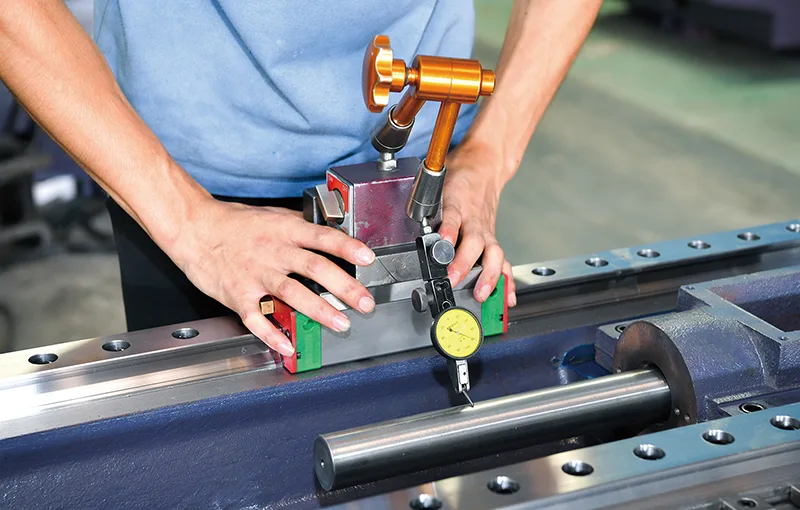

High-precision guideways and servo-driven axes enable accurate positioning during milling and drilling processes.

CNC Machining Capabilities

The Moving Column Gantry Machining Center supports a wide range of machining operations commonly required in industrial manufacturing.

Large Surface Milling

The machine can perform precision milling across large component surfaces.

Deep Hole Drilling

Stable spindle positioning allows accurate drilling across long workpieces.

Contour Machining

Complex contours and part geometries can be machined using CNC-controlled tool paths.

Multi-Surface Machining

Large components can be processed on multiple areas without frequent repositioning.

Advantages for Large Workpiece Machining

Suitable for Long Components

The moving column structure enables machining of long structural parts with extended travel capacity.

High Structural Rigidity

The gantry frame provides strong mechanical support during heavy machining operations.

Stable Machining Performance

Balanced machine structure helps maintain cutting stability during large part processing.

Efficient Production Workflow

The ability to process large parts on a single machine helps simplify production workflows.

Typical Components Machined

The Moving Column Gantry Machining Center is widely used for machining large industrial components such as:

machine frames

large molds and tooling plates

structural steel components

industrial equipment bases

heavy machinery parts

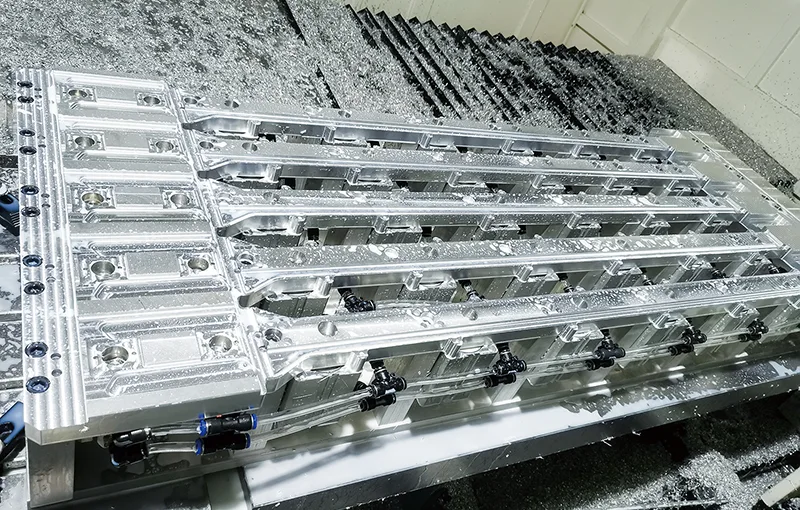

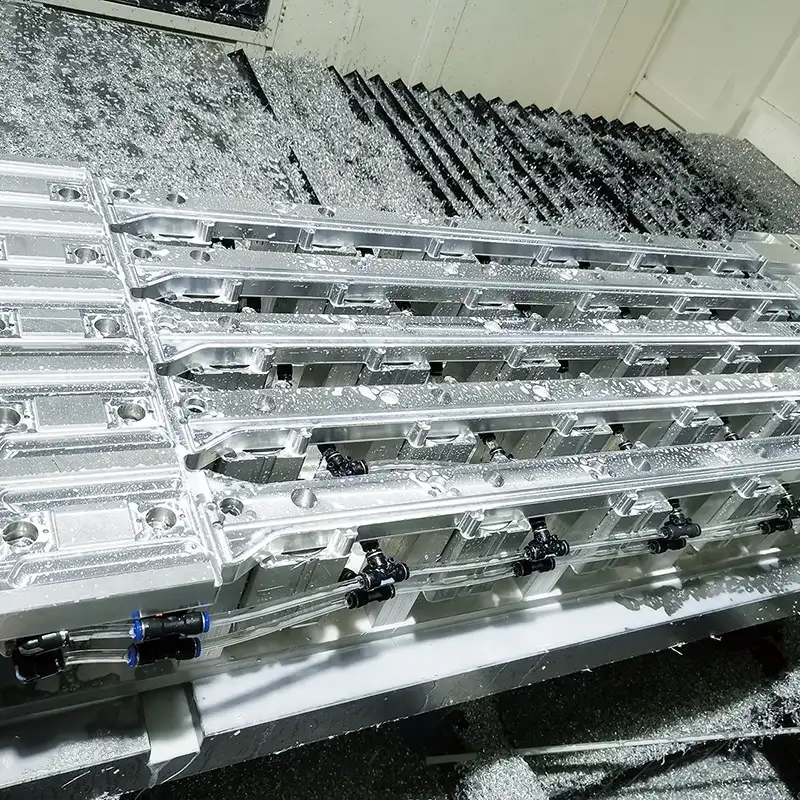

large aluminum plates and panels

These components often require extensive machining travel and stable cutting conditions.

Why Choose TAICHUANG

TAICHUANG provides machining equipment solutions designed for modern industrial manufacturing. The gantry machining centers introduced by TAICHUANG are selected by manufacturers seeking reliable equipment for large component machining.

Advantages include:

equipment solutions for large-scale CNC machining

machines designed for heavy-duty industrial applications

machining systems suitable for large workpiece processing

equipment supporting global manufacturing industries

TAICHUANG focuses on helping manufacturers improve machining efficiency through practical equipment solutions.

FAQ

What is a moving column gantry machining center?

A moving column gantry machining center is a CNC machine where the machining column travels along the machine bed while the workpiece remains stationary.

What advantages does the moving column design offer?

This structure allows long machining travel without requiring extremely large moving tables, improving rigidity and stability.

What types of parts are typically machined on this machine?

Typical parts include large machine frames, molds, structural plates, heavy equipment components, and industrial bases.

Which industries commonly use gantry machining centers?

Industries such as heavy machinery manufacturing, mold production, aerospace, and energy equipment manufacturing frequently use these machines.

Can the machine process large workpieces?

Yes. The moving column structure is specifically designed for machining long or oversized components.
