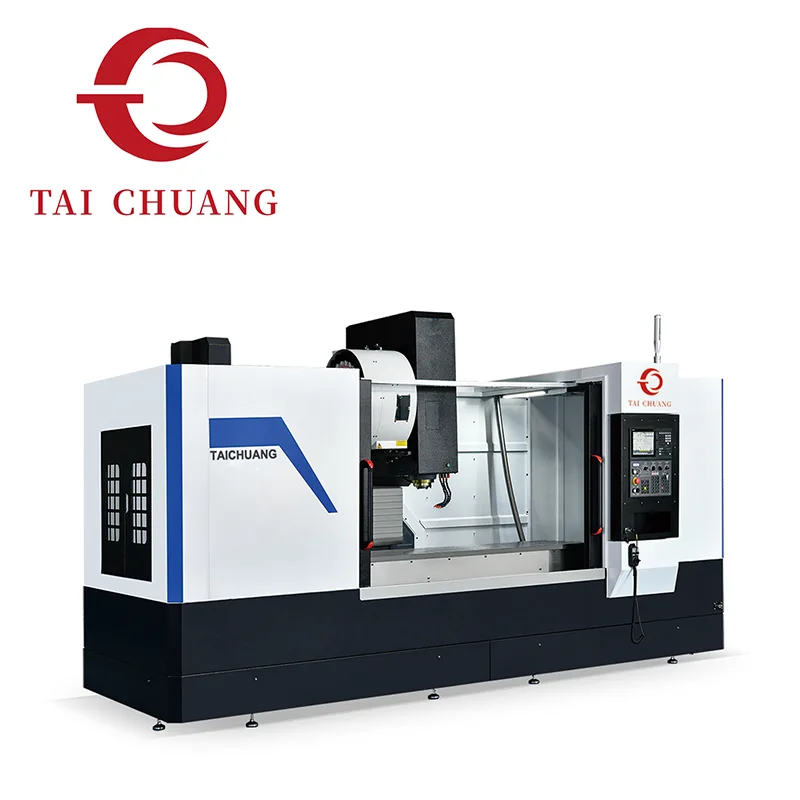

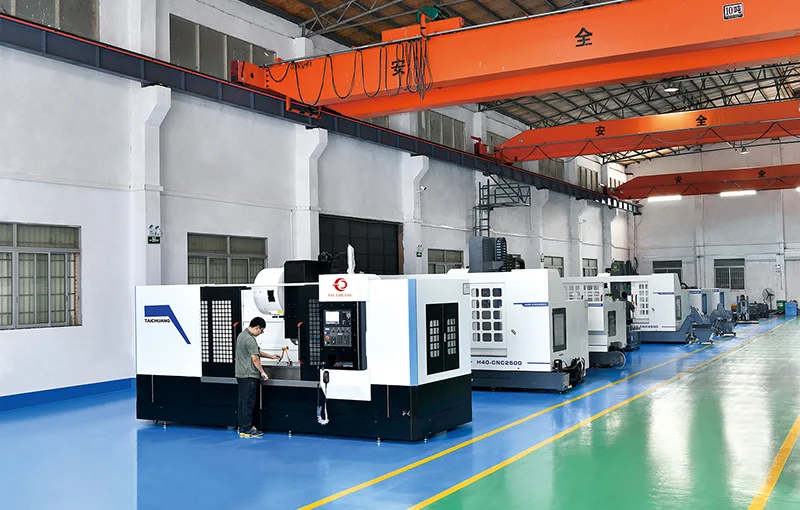

Aluminum extrusion profiles are widely used in modern construction systems, transportation structures, and industrial equipment frameworks. Machining these profiles often requires accurate drilling, milling, and slot processing across multiple surfaces. The Profile Vertical Machining Center is designed to support these operations through a vertical machining configuration optimized for aluminum profile processing.
Unlike horizontal profile processing equipment, a vertical machining structure allows more stable tool engagement and improved chip evacuation during milling operations. This design helps maintain machining precision while supporting efficient processing of aluminum extrusion profiles with different cross-sectional shapes.
The machine is built to accommodate long aluminum profiles while maintaining consistent positioning accuracy throughout the machining cycle. Precision guideways and controlled axis motion ensure stable tool movement during drilling and milling operations. These features help manufacturers achieve reliable hole positioning, slot geometry, and surface quality when processing aluminum structural components.
The Profile Vertical Machining Center is particularly suitable for manufacturers producing aluminum components that require multiple machining operations on different surfaces of the profile. By integrating vertical milling capability with flexible workpiece positioning, the system allows manufacturers to streamline their aluminum profile machining workflow.
TAICHUANG supplies this equipment solution to support efficient and precise aluminum profile processing across a wide range of industrial sectors.
|
Trip |
||
|
X-axis stroke |
2000mm |
2500mm |
|
Travel Y-axis |
600mm |
650mm/700mm |
|
Z-axis stroke |
600mm |
|
|
Principal Axis |
||
|
Spindle speed |
12000rpm |
|
|
Spindle taper hole |
BT40Φ140mm |
|
|

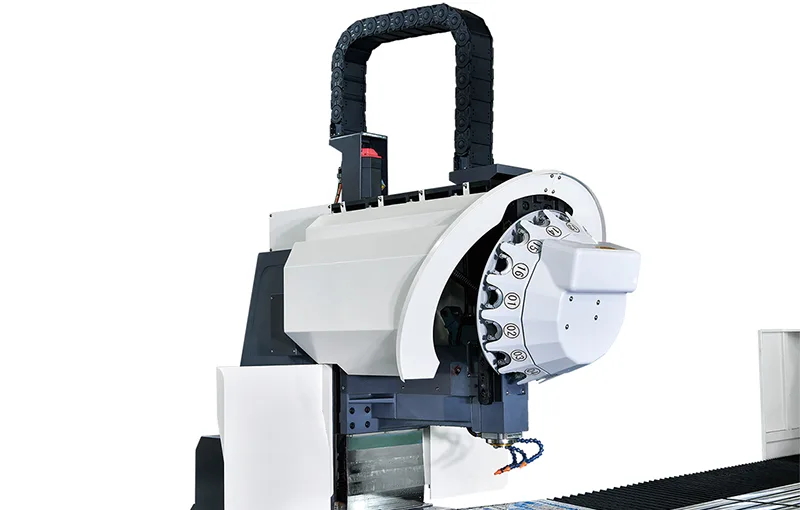

Tool Magazine |
||
|
Tool magazine form |
Disc type |
|
|
Magazine capacity |
24pcs |
|
|
Tool change time |
2sec |
|
|
Moving Speed |
||
|
X-axis movement |
48m/min |
|
|
Y-axis movement |
48m/min |
|
|
Z-axis movement |
48m/min |
|
|
Cutting feed speed X/Y/Z |
15000mm/min |
|
|
Operation system |
FANUC |
MITSUBISHI |
|
Motor Power |
||
|
Spindle motor |
7.5KW/11KW |
7.5KW/11KW |
|
X/Y/Z axis motor |
3.0/3.0/3.0KW |
3.0/3.0/3.0KW |
|
Lubrication Cooling System |
||
|
Lubrication System |
Automatic lubrication |
|
|
Cooling system |
Water spray cooling |
|
|

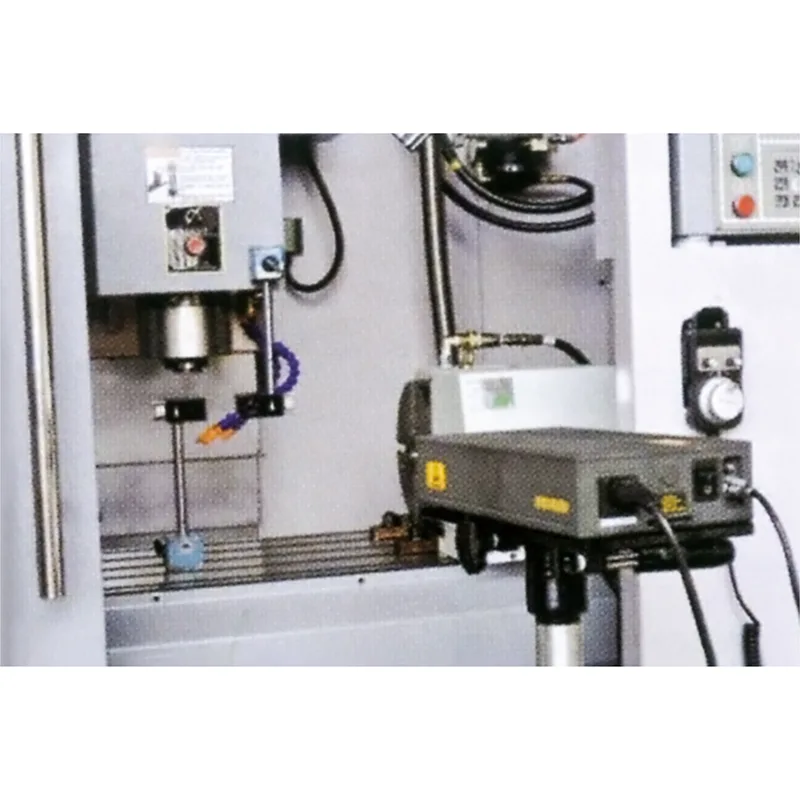

Accuracy |
||
|
X axis positioning accuracy |
0.03mm |
|
|
Y/Z axis positioning accuracy |
0.02mm |
|
|
Repetitive positioning accuracy |
0.01mm |
|
|
Mechanical Specifications |
||
|
Barometric demand |
0.6Mpa-0.9Mpa |
|
|
Height |
3000mm |
|
|
Area covered |
6000*2300mm |
|
|
Weight |
7000KG |
10000KG |
The machine supports several important machining processes required for aluminum extrusion manufacturing.
The machining center performs precision milling operations on aluminum profile surfaces, enabling accurate slot creation and contour shaping.
Drilling operations can be executed at different locations along the aluminum profile, supporting installation holes and structural connections.
Various slot geometries used in aluminum framing systems can be machined efficiently using controlled milling operations.
The vertical configuration allows the machine to process multiple sides of the profile by repositioning or rotating the workpiece.
A vertical spindle orientation provides stable tool engagement during milling operations and supports efficient chip removal when machining aluminum.

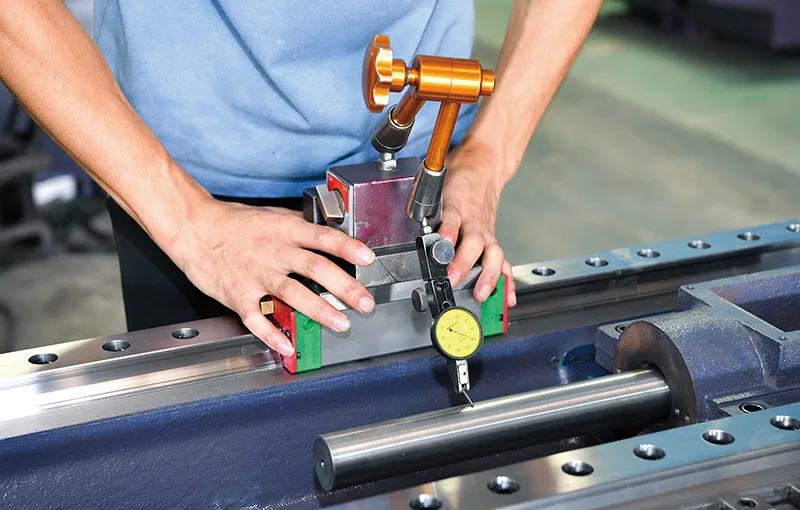

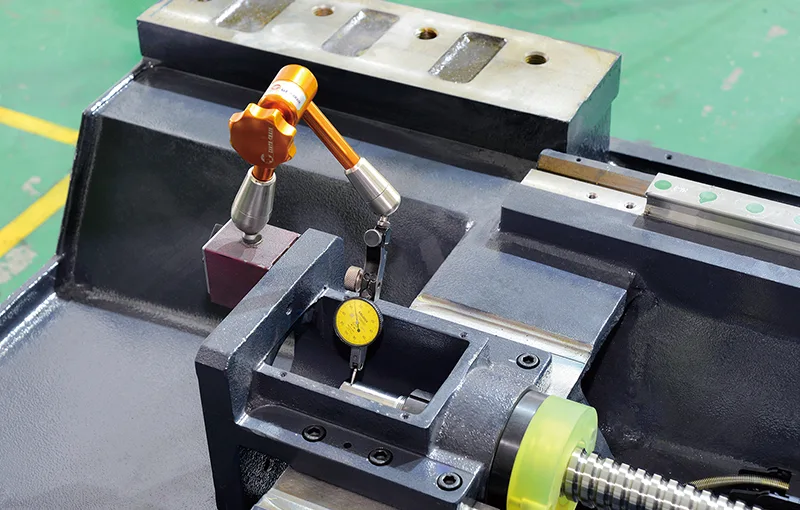

High-accuracy guideways and servo-driven axes help ensure smooth positioning and repeatable machining accuracy.

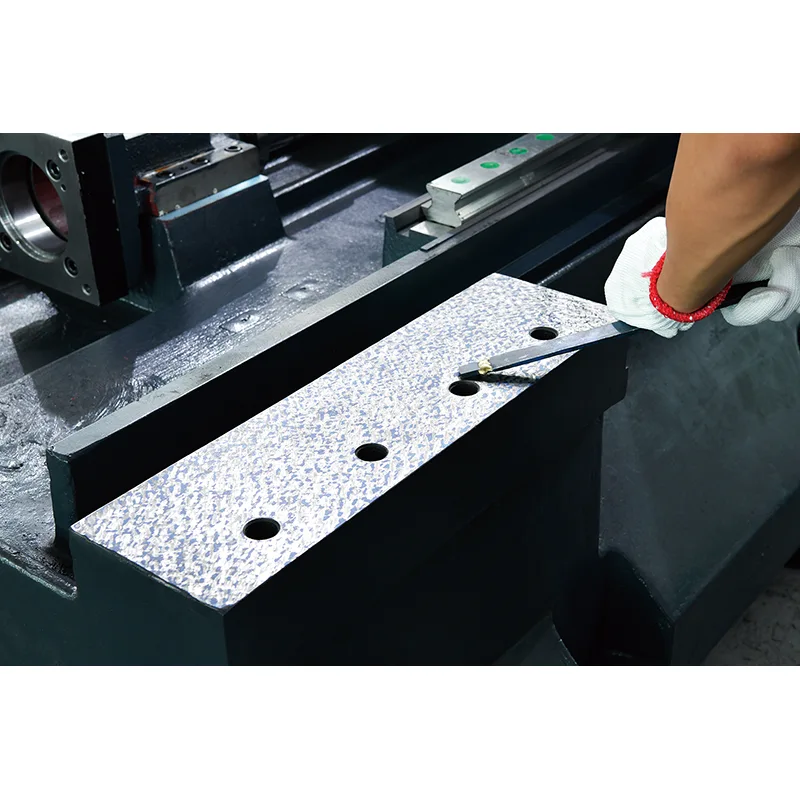

The machine frame is designed to maintain structural stability during high-speed milling and drilling processes.
The machine includes support mechanisms for long aluminum profiles to maintain stable positioning during machining.
The vertical machining configuration helps maintain stable cutting conditions and precise tool positioning.
Controlled milling operations help achieve clean slot edges and smooth surface finishes on aluminum profiles.
Manufacturers can process multiple aluminum components with consistent machining results.
The machine can accommodate various aluminum profile designs used in different industrial applications.
The Profile Vertical Machining Center is commonly used for machining aluminum extrusion components used in structural assemblies and industrial systems.
Typical products include:
aluminum window and door structural profiles
curtain wall support components
industrial aluminum frame elements
aluminum rail and guide structures
transportation aluminum structural parts
modular aluminum assembly components
These parts often require multiple drilling and milling operations before final assembly.
Machining centers designed for aluminum profiles are widely used in industries where lightweight structural components are required.
Major industries include:
architectural aluminum systems
aluminum door and window manufacturing
curtain wall engineering
transportation equipment production
industrial automation framework manufacturing
modular structural system fabrication
Manufacturers in these industries rely on profile machining centers to produce consistent and accurate aluminum components.
TAICHUANG provides equipment solutions that support modern aluminum profile manufacturing. The profile vertical machining centers supplied by TAICHUANG are selected by manufacturers seeking reliable machining equipment for aluminum component processing.
Advantages include:
machining equipment for aluminum extrusion processing
machines supporting precision milling and drilling operations
solutions suitable for batch production environments
equipment designed for global industrial manufacturing applications
TAICHUANG focuses on helping manufacturers improve production efficiency and machining reliability through practical equipment solutions.
What is a profile vertical machining center used for?
A profile vertical machining center is used to perform milling, drilling, and slot processing on aluminum extrusion profiles used in construction and industrial systems.
Why use a vertical machining structure for aluminum profiles?
Vertical spindle configurations provide stable cutting conditions and efficient chip removal when machining aluminum materials.
What industries commonly use profile machining centers?
Industries such as architectural aluminum systems, curtain wall construction, industrial automation structures, and transportation equipment manufacturing commonly use these machines.
Can the machine process long aluminum profiles?
Yes. The machine structure is designed to support long aluminum extrusion profiles while maintaining stable machining accuracy.
What machining operations can be completed on this machine?
Typical operations include drilling, milling, slot cutting, and multi-face profile machining.
