Modern fastener manufacturers are expected to deliver more products in less time. Increasing production capacity is no longer simply about adding more workers or machines—it requires equipment capable of maintaining high output without sacrificing thread quality.

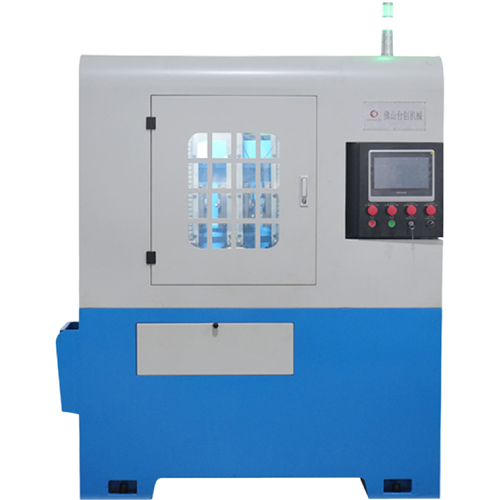

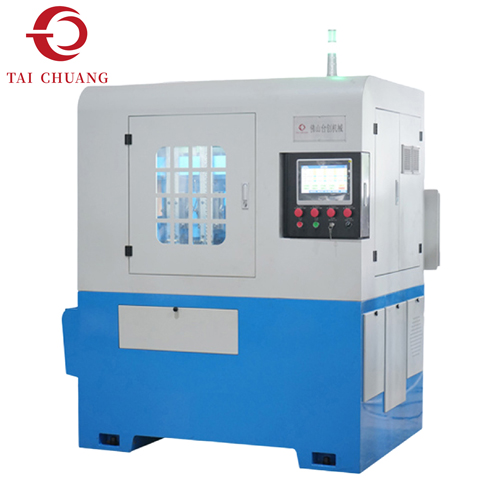

TAICHUANG'sHigh Speed Nut Tapping Machine is developed for continuous nut tapping, allowing manufacturers to achieve faster production cycles while maintaining stable machining performance throughout long operating hours.
From feeding to finished product discharge, every stage is designed to keep production flowing smoothly.
TAICHUANG can provide nut tapping machine from M5-M10,with specifications below：
|
Item |
Name |
Parameter |
Name |
Parameters/Brand |
|
Casting base |
Pallet stroke |
150mm |
Main spindle servo motor |
2.0Kw/3000rpm(M5-M8) |
|
Feed linear guideway |
GHH20CAX410 |
Main spindle servo motor |
2.5Kw/3000rpm(M6-M10) |
|
|
Feed ball screw |
SFNH2020X275 |
Feed servo motor |
0.4Kw/3000rmp |
|
|
Baiting track |
Baiting angle |
90 degree angle |
Multi-stage pump CRK12-20-2 |
1.5KW |
|
Main spindle |
Max.processing outer diameter |
∅25 |
Touch screen |
Inovance |
|
Max.processing length |
less than nominal thread size ×2 |
Main engine |
Inovance |
|
|
Qty of main spindle |
4 |
Circuit-breaker |
CHNT |
|
|
Fixture mode |
Falt push |

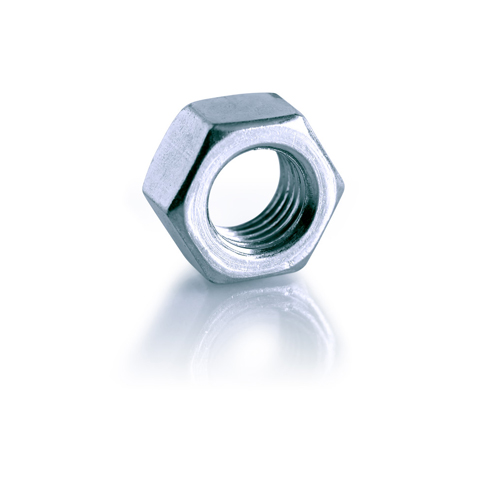

Square nut,hexagonal nut |
Circuit-breaker |
CHNT |
|
Clamp |
round nut,flangle nut,polygonal nut |
Thermal overload |
CHNT |
|
|
Spring jaw |
flange material |
KA |
IDCE |
|
|
Clamping cylinder |
Cylinder |
SDA32X25SB |
Cylinder sensor |
Airtac |
|
4spindles |
Productivity per spindle |
20-30pcs/min |
Power switch |
Siemens |
|
Overall Dimensions |
Overall Dimensions |
1500×1200×1850mm |
Equipment weight |
about 1800KG |
Production requirements often change throughout the day.
Different nut sizes, materials, and thread specifications require different tapping parameters.
Instead of fixed operating speeds, the machine adopts an integrated control system that allows stepless speed adjustment, enabling operators to optimize performance according to each production order.
This flexibility helps manufacturers switch between products more efficiently without complicated machine adjustments.
Quick Tool Change, Less Downtime
Changing taps should never slow down production.

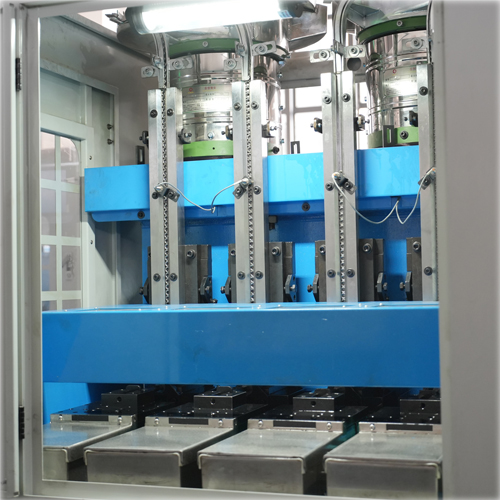

Each spindle supports independent tap replacement, allowing worn tools to be replaced without unnecessary delays.
This practical design reduces changeover time between different nut specifications and helps factories maintain higher equipment utilization throughout the production schedule.
Smooth Feeding for Continuous Operation
Reliable feeding is essential for high-speed production.
The machine combines pneumatic buffering with sensor-controlled positioning to ensure workpieces move steadily through each processing stage.

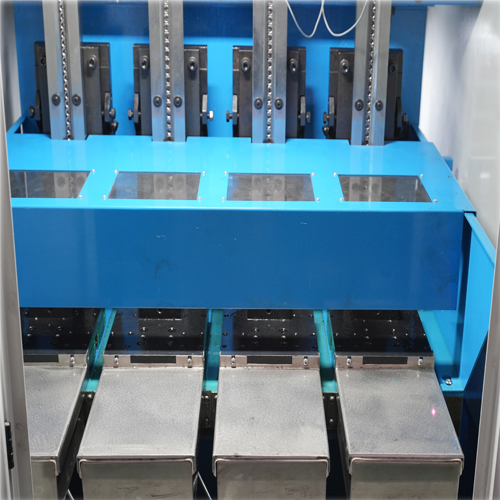

Automatic feeding, accurate positioning, tapping, and discharge are completed in one continuous sequence, reducing manual intervention while improving production consistency.

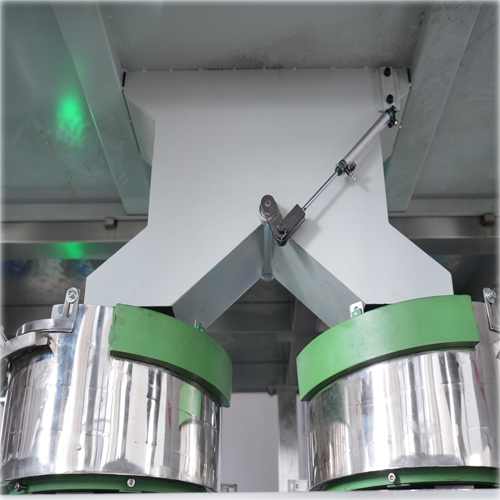

Optional vibratory bowl feeders can be customized for different nut shapes and production requirements.
Each spindle is equipped with an independent monitoring system.
When abnormal operation is detected, the affected spindle stops automatically while an alarm notifies the operator immediately.
This protective design helps minimize tap damage, reduce maintenance costs, and improve overall production reliability.
Automation plays an important role in reducing manufacturing costs.
Once workpieces are loaded into the feeder, the machine automatically completes the entire tapping process.
Because the operation requires minimal manual intervention, a single operator can supervise multiple machines simultaneously.
This not only reduces labor costs but also helps manufacturers improve workshop productivity without increasing workforce requirements.
What makes a high speed nut tapping machine different from a standard tapping machine?
High-speed models are designed for continuous production with faster cycle times, stable feeding, and efficient automatic operation.
Can different nut specifications be processed on the same machine?
Yes. Tooling can be changed quickly, and machine parameters can be adjusted for different nut sizes and thread specifications.
Does the machine support special-shaped nuts?
Yes. Customized feeding systems can be developed according to customer drawings or samples.
How many machines can one operator manage?
Depending on the production layout, one operator can supervise multiple machines at the same time.
Can the machine be integrated into an automated production line?
Yes. The equipment can be connected with upstream and downstream automation systems to create a more efficient manufacturing process.
