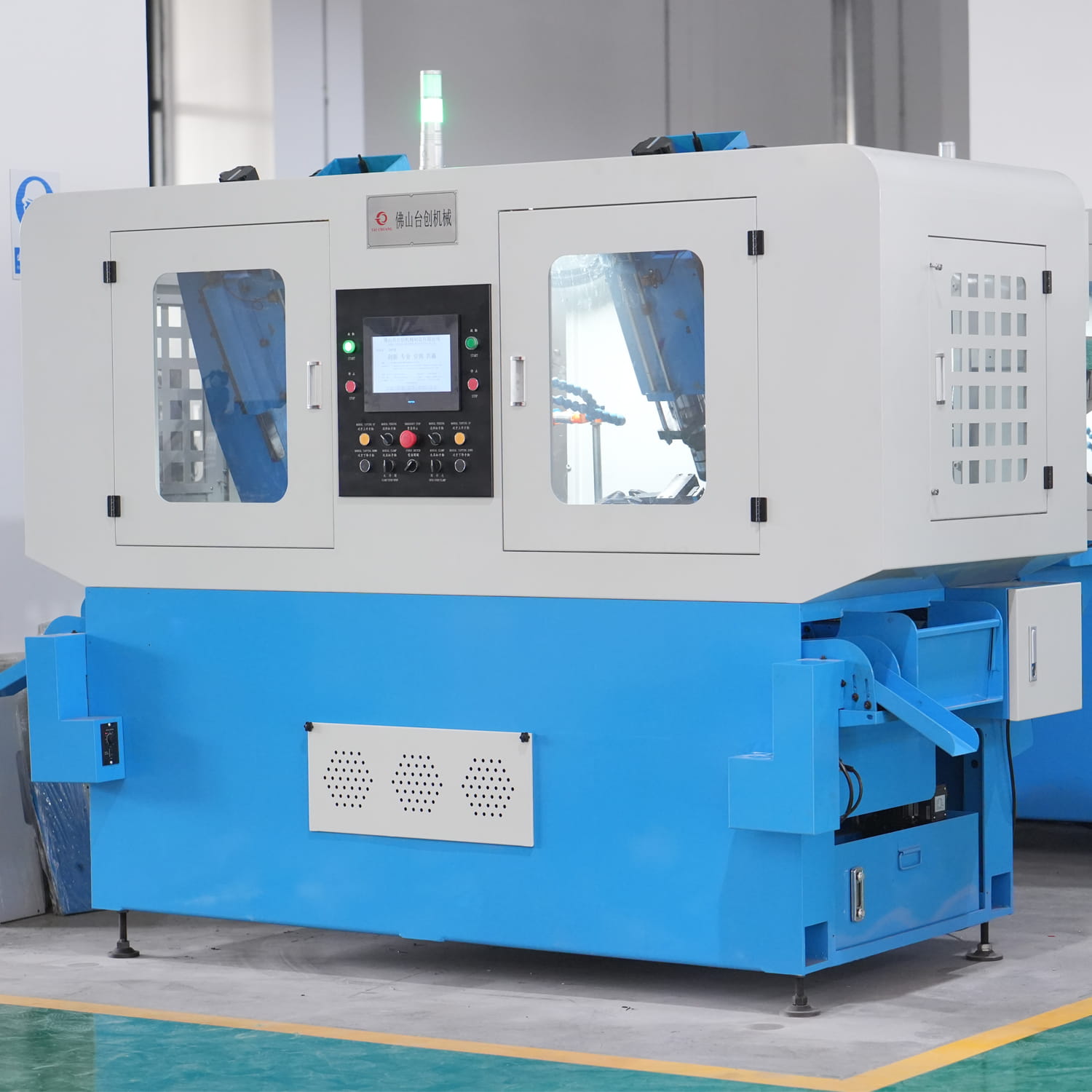

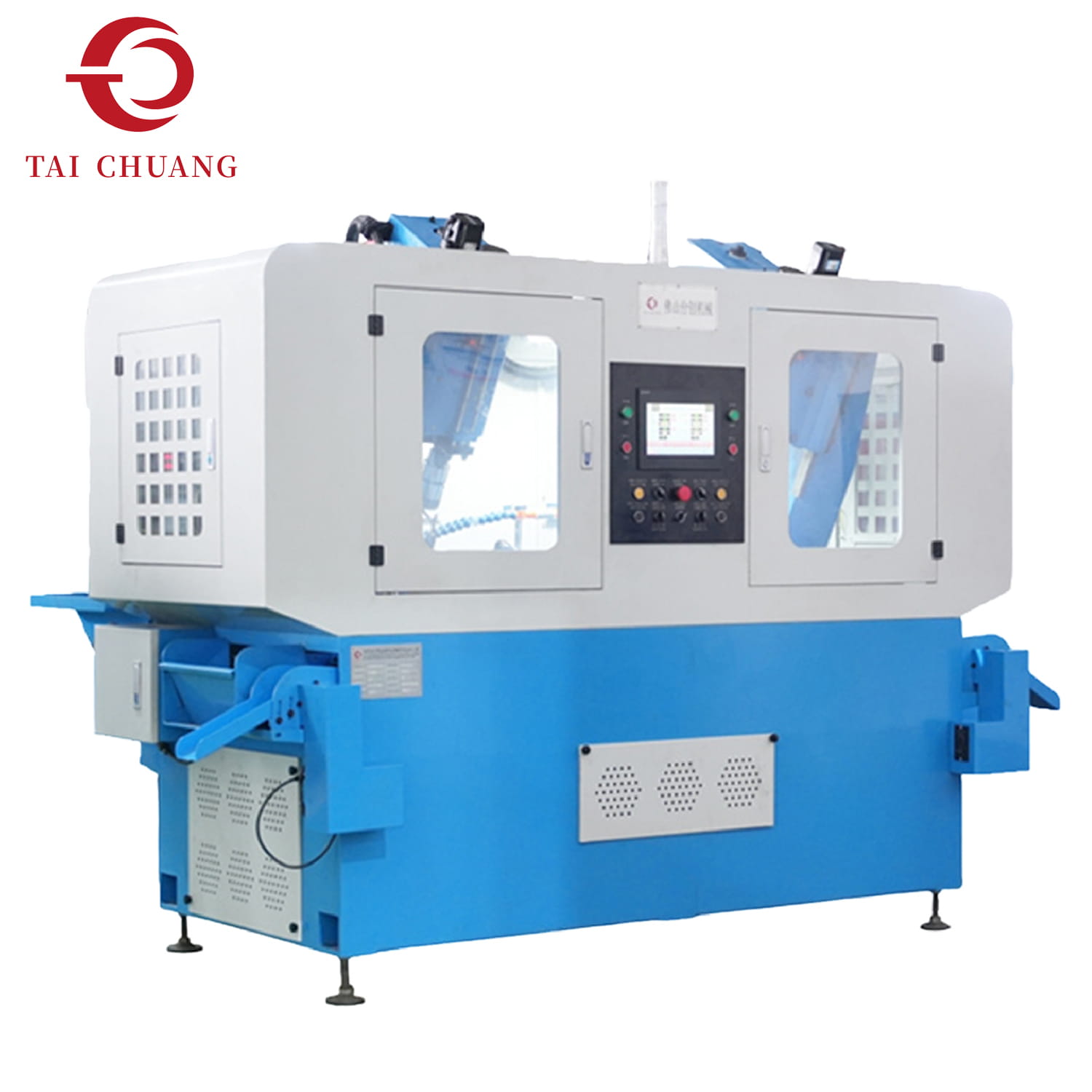

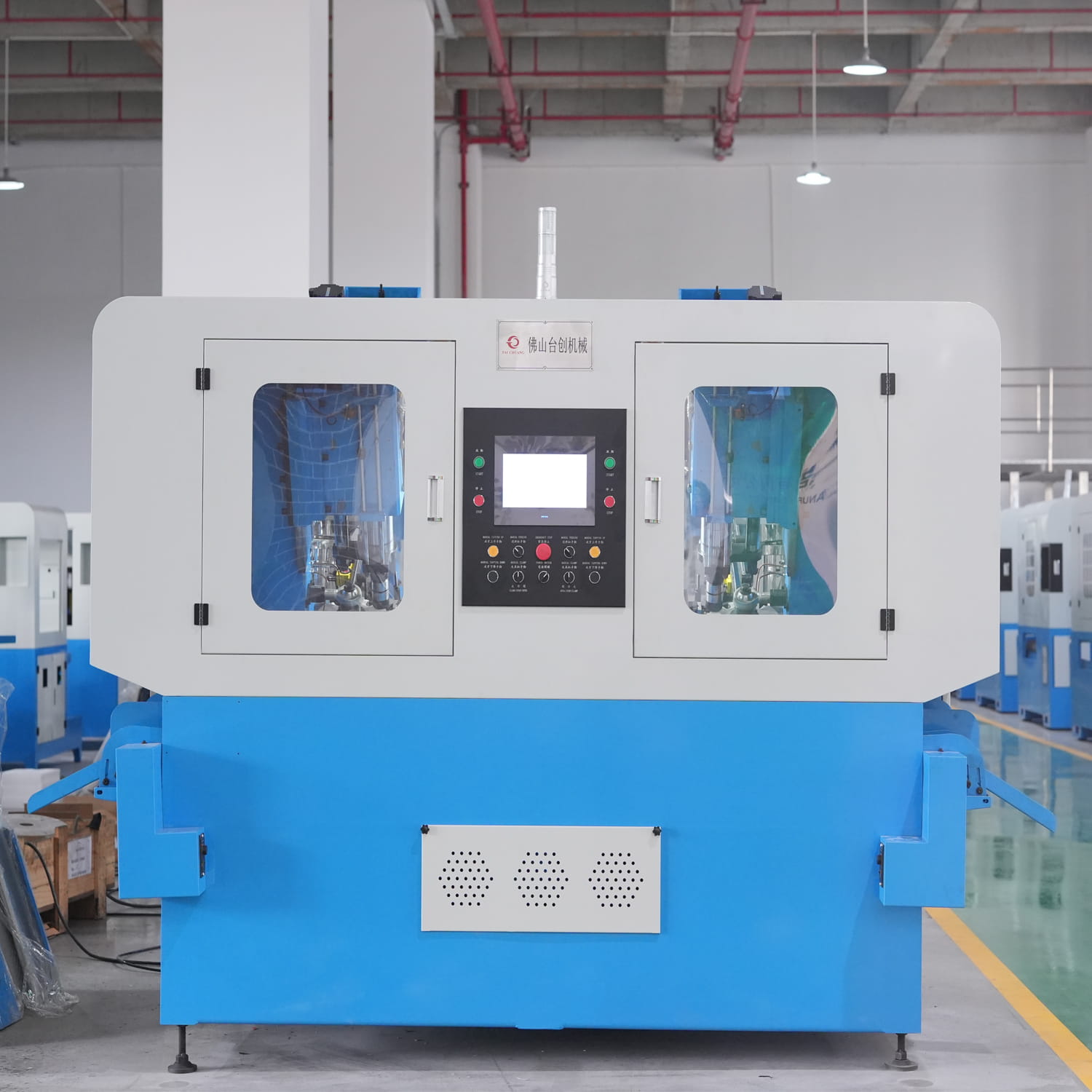

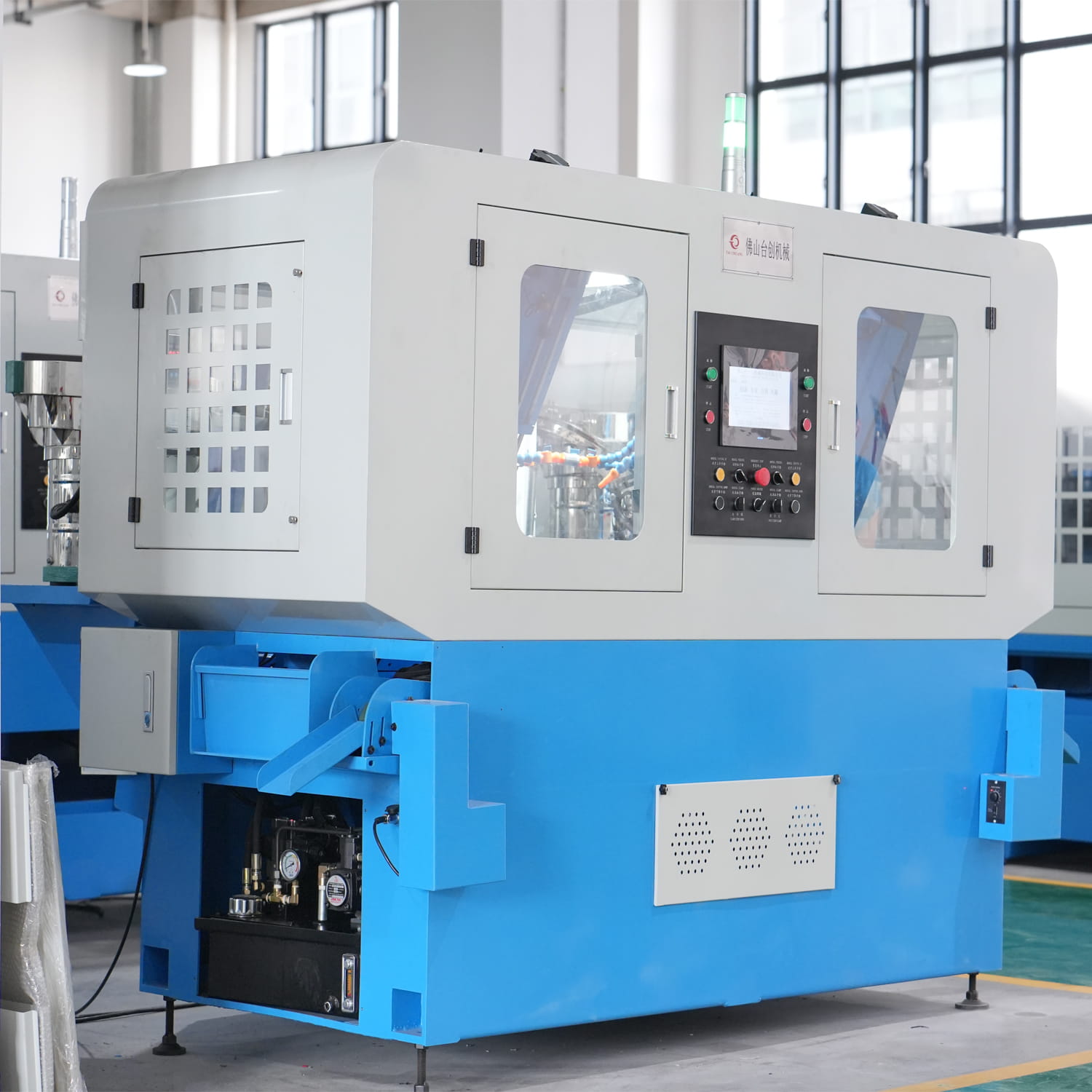

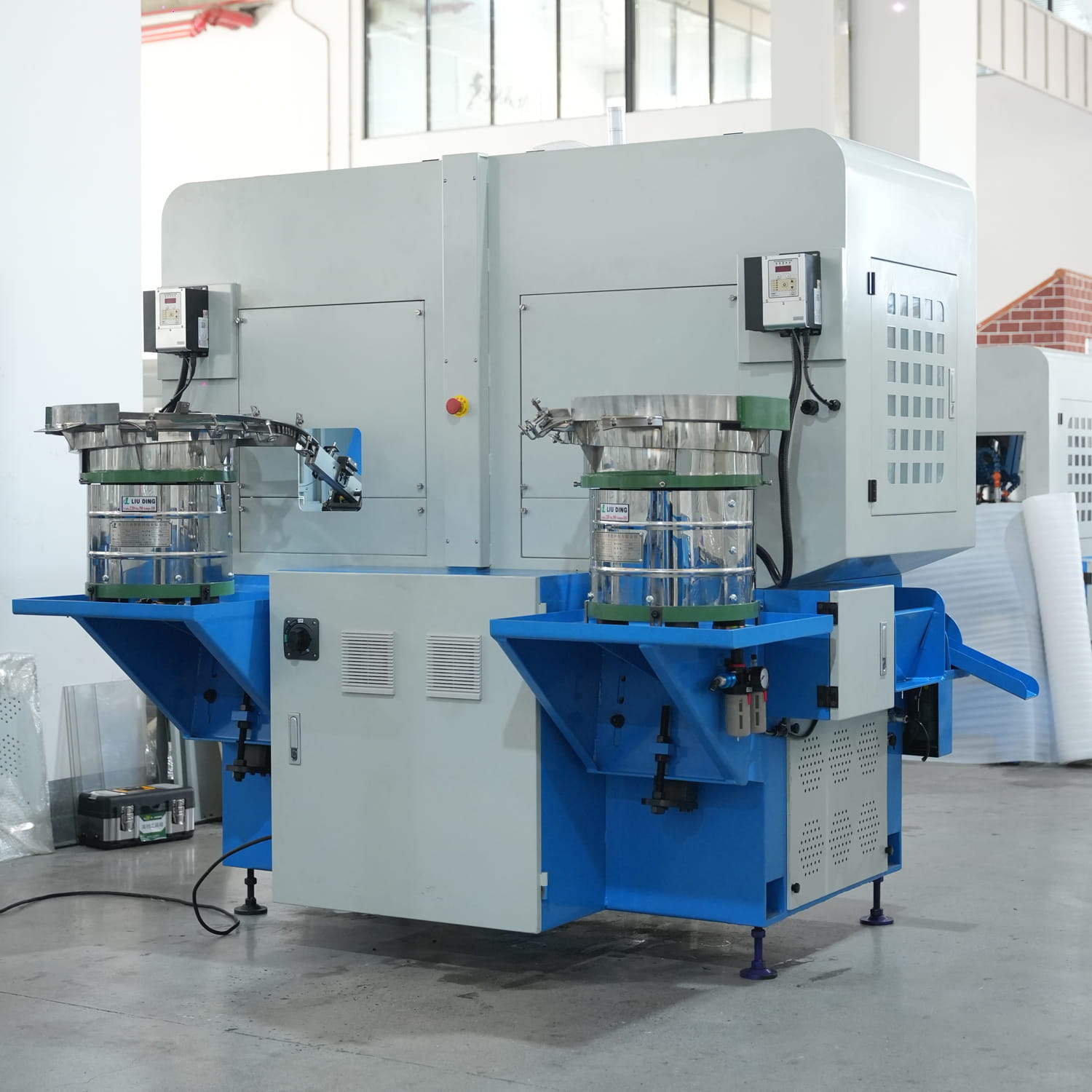

Our automatic nut tapping machine is specially designed for mass threading of hex nuts, flange nuts and other fasteners in hardware factories. As a professional nut tapping machine manufacturer, TAICHUANG focuses on stable operation, high thread precision and low energy consumption.
This tapping equipment supports continuous 24-hour production, easy operation and convenient maintenance, effectively improving processing efficiency and reducing labor costs. Customized models are available to meet different thread specifications and production demands.
Widely popular among fastener manufacturers in India, our machines adopt durable core components to lower failure rates. We provide factory direct pricing, technical guidance and comprehensive after-sales service. Send your workpiece requirements to us for a tailored solution and latest quotation.
|
Item |
Name |
Parameter |
Name |
Parameters/Brand |
|
|
Casting base |
Pallet stroke |
0-270mm |
Main spindle servo motor |
4.4Kw/1500rpm |
M18-M24 Air pressure clamping |
|
Main spindle slide stroke |
0-180mm |
Feed servo motor |
1.8Kw/1500rpm |
||
|
Number of main spindles |
2 |
Reducer |
1:4 |
||
|
Feed ball screw |
SFNUR3205X420 |
Main spindle servo motor |
5.5Kw/1500rps |
M24-M30 Air pressure clamping |
|
|
Cutting track |
Cutting angle |
22 degree angle |
Feed servo motor |
1.8Kw/1500rps |
|
|
Fixture mode |
Turntable fixture |
Max.diameter of turntable:∅270 |
Reducer |
1:4 |
|
|
Feeding cylinder |
Cylinder |
Airtac MA40X175SCA |
Main spindle servo motor |
5.5Kw/1500rps |
M24-M36 Air pressure clamping |
|
Clamping cylinder |
Oil cylinder |
CX-SD80X70B |
Feed servo motor |
1.8Kw/1500rps |
|
|
Productivity per spindle |
5-10pcs/min |
Reducer |
1:5 |
||
|
Board |
Cooling pump motor |
Power:120w-flow:20L/min |
Main spindle servo motor |
7.5Kw/1500rps |
M27-M42 Air pressure clamping |
|
Hydraulic unit motor |
Power:2.2KW-displacement VP20 double pump |
Feed servo motor |
1.8Kw/1500rps |
||
|
Overall Dimensions |
3280×1850×2300mm |
Reducer |
|
||
|
Equipment weight |
About4000kg |
|
Airtac |
||
|
Touch screen |
Inovance/Siemens |
KA |
CHNT |
||
|
Main engine |
Inovance/Siemens |
Power switch |
IDEC |
||
|
Circuit breaker |
CHNT |
|
OMRON |
||
|
Contactor |
CHNT |
Cylinder sensor |
Airtac |
||
Choosing a nut tapping machine is ultimately about matching the equipment to the actual production process.
TAICHUANG focuses on nut tapping and fastener processing equipment, with machine configurations covering reciprocating tapping, vertical tapping, pass-through tapping and multi-spindle tapping applications.
For Southeast Asian customers, communication can be handled in English, and machine recommendations can be made based on actual workpiece information rather than simply selecting a machine by model number.
Send us your nut sample or drawing to check the suitable reciprocating nut tapping machine for your application.
We can evaluate:
· Nut dimensions
· Thread specification
· Material
· Tapping depth
· Required production capacity
· Suitable machine configuration
· Tapping tool requirements
TAICHUANG reciprocating nut tapping machines can be used in a variety of manufacturing industries, including:
Automotive & Motorcycle Parts
For processing threaded nuts used in vehicle components, motorcycle parts and related assemblies.
Fastener Manufacturing
Suitable for manufacturers producing standard and non-standard nuts in medium- and high-volume production.
Machinery Manufacturing
Used for internal thread processing of nuts used in industrial equipment and mechanical assemblies.
Construction Hardware
Suitable for various metal fasteners used in construction and hardware applications.
General Metal Components
Can also be applied to other metal components requiring automatic internal thread processing.
TAICHUANG offers different reciprocating nut tapping machine configurations to match different production requirements.
The appropriate machine can be selected according to:
Thread size: M3, M4, M5, M6, M8, M10, M12M22,M42and other specifications depending on the machine model.
Nut type: Hex nuts, flange nuts, lock nuts and other specially shaped nuts.
Material: Carbon steel, stainless steel and other suitable materials.
Production volume: The machine configuration can be selected according to required daily or hourly output.
Automation level: Automatic feeding, tapping, monitoring and discharge can be integrated into the production process.
For an accurate recommendation, send us yournut drawing, sample photos, thread specification and expected production capacity.
