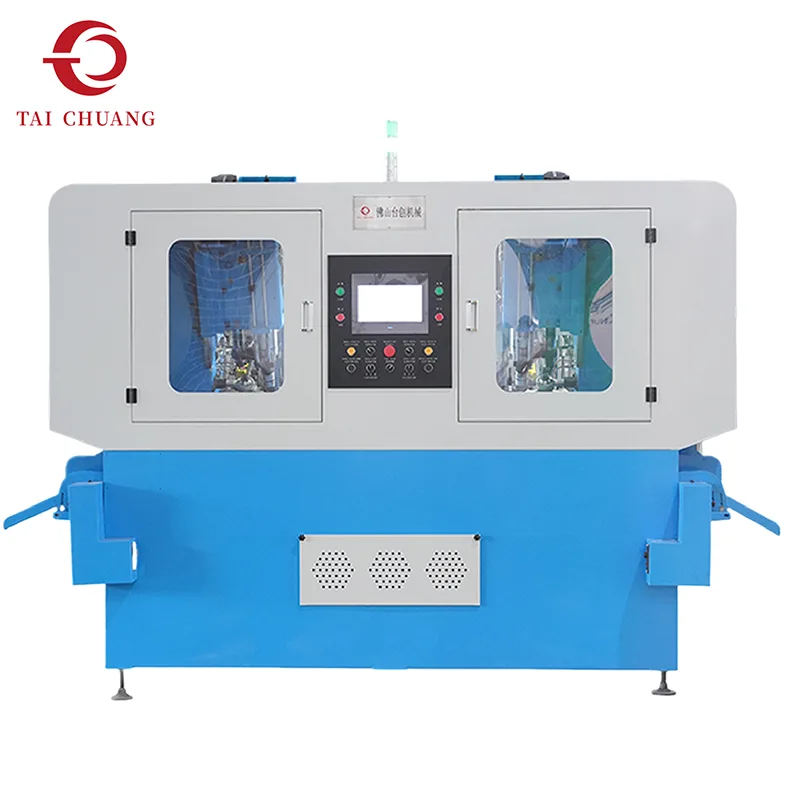

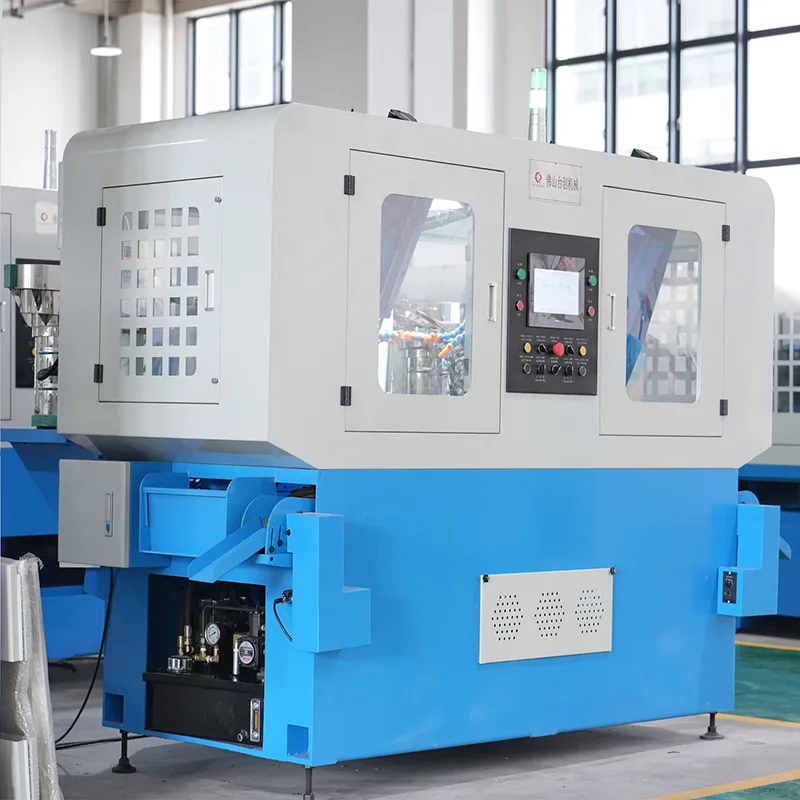

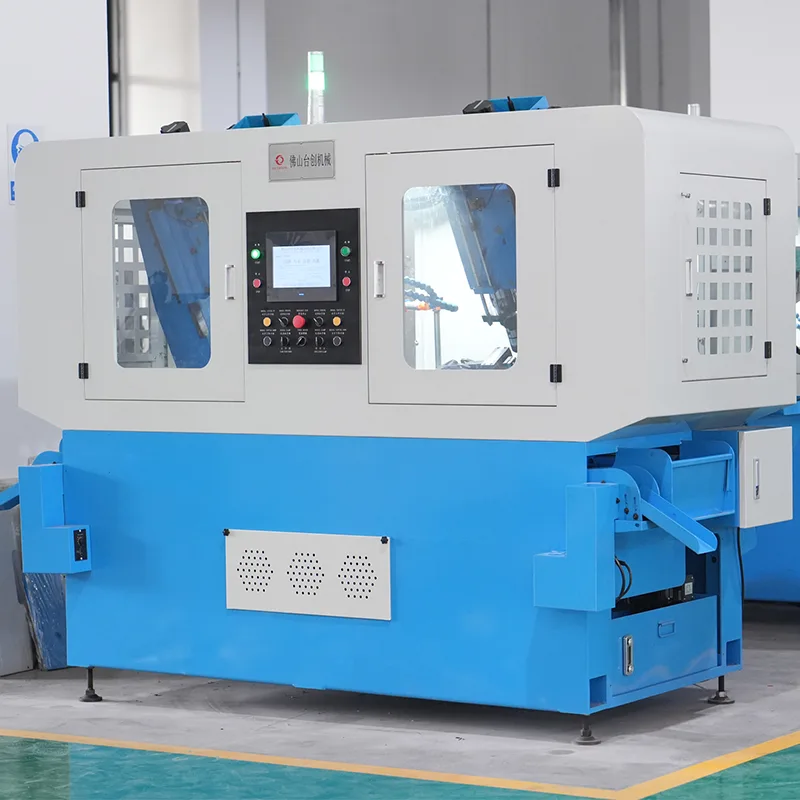

The TCST-22RS-2-SSF is a double spindles vertical reciprocating nut tapping machine developed for medium-size nut production where higher output is required without losing tapping control. It is positioned as an efficiency upgrade from the single spindle 22 series.
Many manufacturers choose this model when order volumes increase but product variety remains stable. The double spindle configuration helps improve productivity while keeping operation and quality management simple.
|
Product name |
Vertical Reciprocating Nut Tapping Machine |
|
Tapping Range |
M12-M22 |
|
Colors available |
Blue color,or as per request |
|
Standards that follow to |
ISO、CE |
|
Fixture mode |
Turntable fixture |
|
MOQ |
1 |
|
Production lead time |
About 1 month |
|
Warranty time |
1 years for normal use |
|
Payment term |
TT30%deposit,70%balance paid before shipment |
|
FOB loading port |
Nansha, China |
|
Place of origin |
Foshan，China |
| Item | Name | Parameter | Name | Parameters/Brand | |
| Casting base | Pallet stroke | 0-180mm | Main spindle servo motor | 4.4Kw/1500rpm | M12-M16 Air pressure clamping |
| Main spindle slide stroke | 0-120mm | Feed servo motor | 0.75Kw/3000rpm | ||
| Number of main spindles | 2 | Main spindle servo motor | 5.5Kw/1500rpm | M16-M22 Hydraulic clamping | |
| Feed ball screw | SFNUR2005X326 | Feed servo motor | 0.75Kw/3000rps | ||
| Cutting track | Cutting angle | 28 degree angle | Touch screen | Inovance/Siemens | |
| Fixture mode | Turntable fixture | Max.diameter of turntable:∅230 | Main engine | Inovance/Siemens | |
| Feeding cylinder | Cylinder | Airtac MA32X100SCA | Circuit-breaker | CHNT | |
| Clamping cylinder | Cylinder | Airtac SDA80X50SB | Contactor | CHNT | |
| Oil cylinder | D32X50SB | Thermal overload | CHNT | ||
| Board | Productivity per spindle | 10-20 pcs/min | KA | CHNT | |
| Cooling pump motor | Power:370w-flow:120L/min | Power switch | IDCE | ||
| Hydraulic unit motor | Power:0.75KW-displacement VP15 | Origin sensor | OMRON | ||
| Overall Dimensions | 2800×1700×1900mm | Cylinder sensor | Airtac | ||
| Equipment weight | About 2250kg |
|
|||
Vertical reciprocating tapping allows precise control over tapping movement. By adding a second spindle, this model increases productivity while preserving the advantages of vertical alignment.
From daily production management, this design helps:
Increase output within limited workshop space
Maintain uniform thread quality between spindles
Reduce operator intervention once properly set

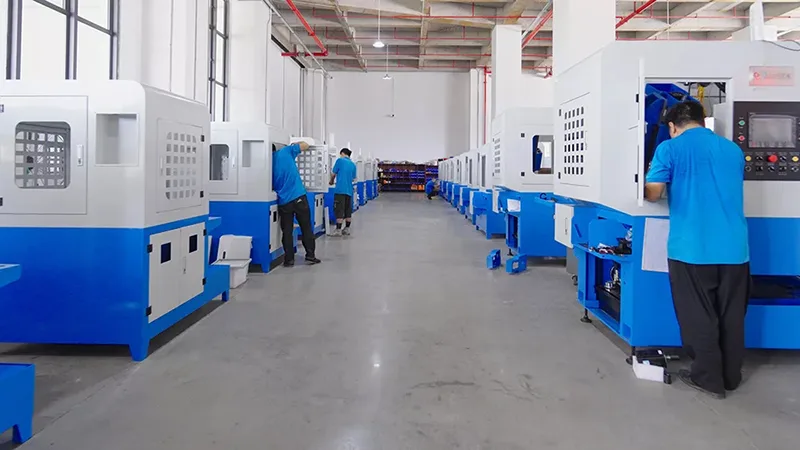

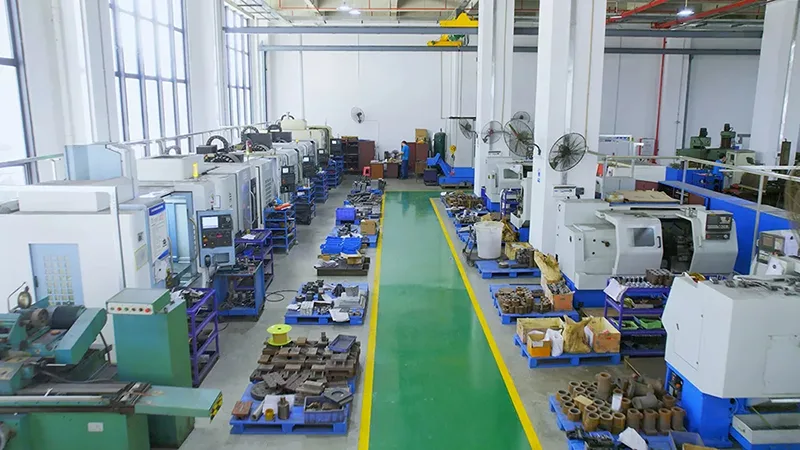

We manufacture this double spindles vertical reciprocating nut tapping machine in our own factory. Assembly focuses on spindle alignment, motion accuracy, and smooth reciprocating behavior.
Before shipment, each machine is tested to ensure stable operation and consistent tapping quality under normal production conditions.
Our nut tapping machines are widely used in:
Automotive fasteners and components
Industrial hardware and standard fasteners
Machinery and equipment parts
Metal processing factories requiring internal threading
Customers choose our machines for applications where thread consistency and process stability are more important than short-term speed.
We provide operation guidance and pack each unit in reinforced plywood packaging suitable for international shipping.
1. Fully Automatic
2. CNC System Control
3. Full Cover
4. HMI Monitor
5. Single Spindle or Double Spindles for your option
6. Double Servo
7. Vertical Reciprocating
8. Vibrating Bowl Feeder
9. Tap Screw Broken Alarm
10. Lack Material Alarm
11. Defective Parts Automatically Separated
Are you a manufacturer or trading company?
We are a professional nut tapping machine manufacturer with our own R&D and production facilities.
What after-sales service do you offer?
Yes, we offer full and good service for all our clients. We will always be there for you, if you have any questions.
Do you support customization?
We can customize it according to your requirements.
