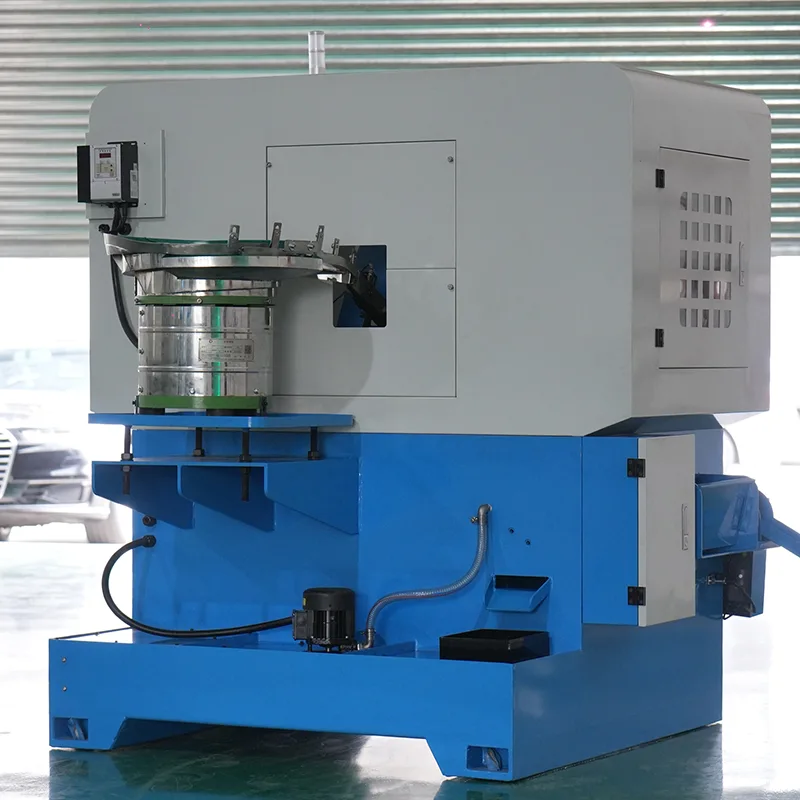

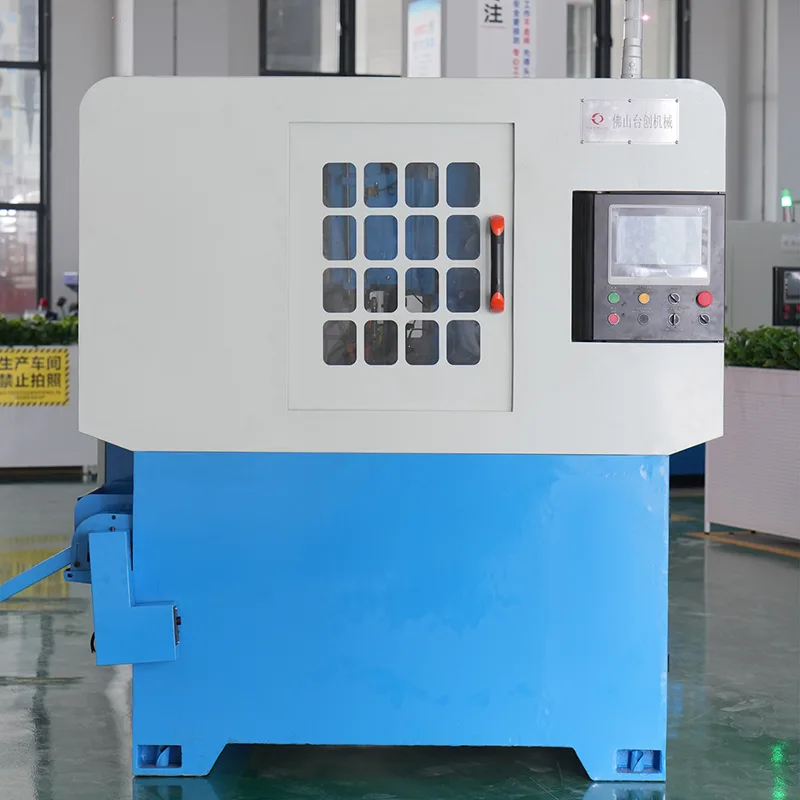

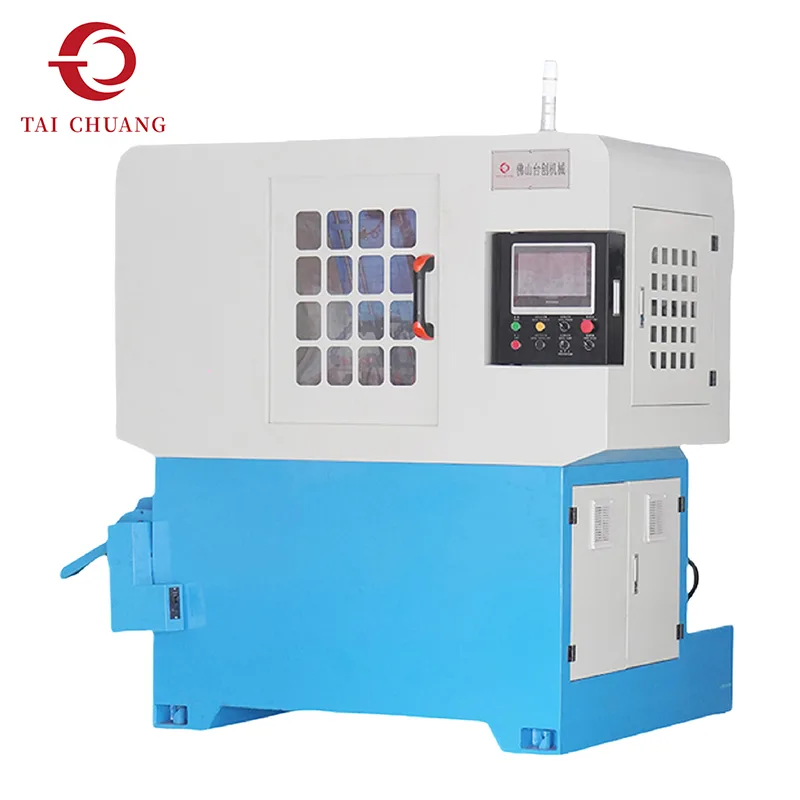

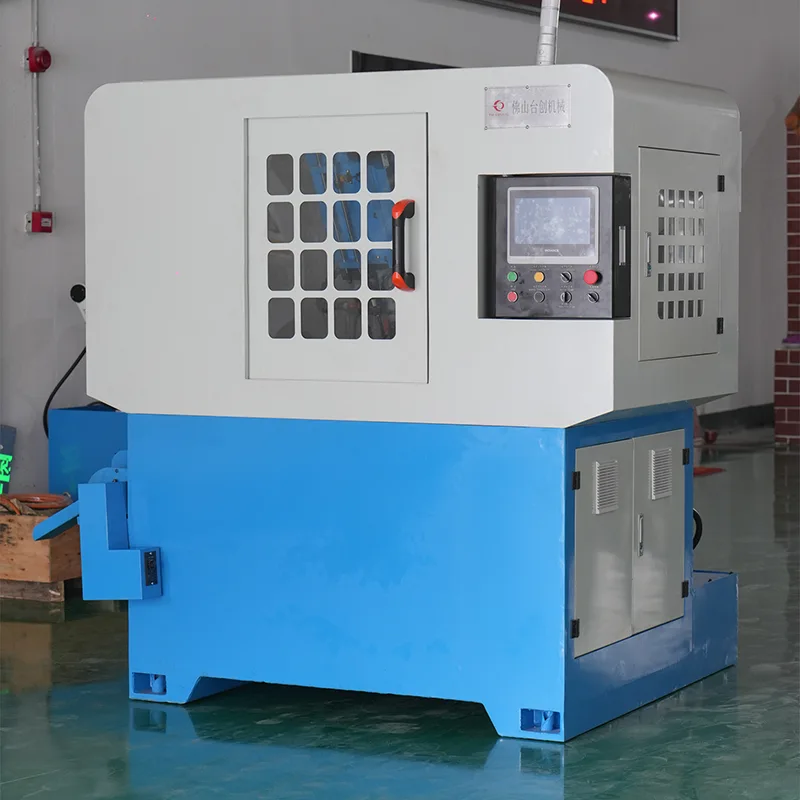

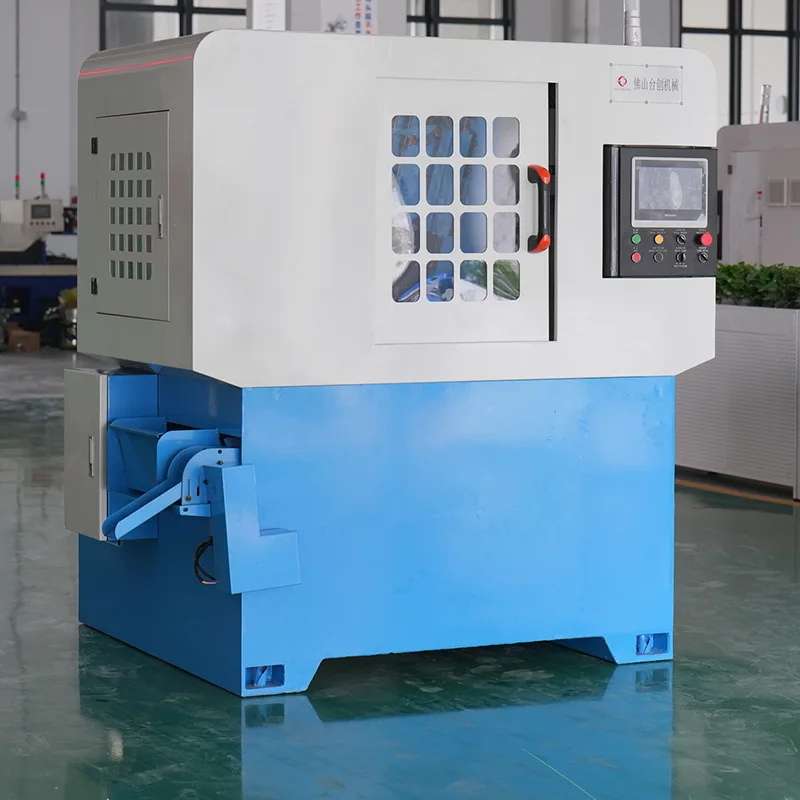

The TCST-22RS-1-SSF is a Servo Motor Vertical Reciprocating Nut Tapping Machine designed for medium-size nut production. Compared with smaller models, this machine offers increased tapping capacity while maintaining controlled and predictable operation.
Many manufacturers select this model when moving from smaller nut sizes to medium-size products, as it provides a smooth transition without overcomplicating the production process.
|
Product name |
Servo Motor Vertical Reciprocating Nut Tapping Machine |
|
Tapping Range |
M12-M22 |
|
Colors available |
Blue color,or as per request |
|
Standards that follow to |
ISO、CE |
|
Fixture mode |
Turntable fixture |
|
MOQ |
1 |
|
Production lead time |
About 1 month |
|
Warranty time |
1 years for normal use |
|
Payment term |
TT30%deposit,70%balance paid before shipment |
|
FOB loading port |
Nansha, China |
|
Place of origin |
Foshan，China |
| Item | Name | Parameter | Name | Parameters/Brand | |
| Casting base | Pallet stroke | 0-180mm | Main spindle servo motor | 4.4Kw/1500rpm | M12-M16 Air pressure clamping |
| Main spindle slide stroke | 0-120mm | Feed servo motor | 0.75Kw/3000rpm | ||
| Number of main spindles | 1 | Main spindle servo motor | 5.5Kw/1500rpm | M16-M22 Hydraulic clamping | |
| Feed ball screw | SFNUR2005X326 | Feed servo motor | 0.75Kw/3000rps | ||
| Cutting track | Cutting angle | 28 degree angle | Touch screen | Inovance/Siemens | |
| Fixture mode | Turntable fixture | Max.diameter of turntable:∅230 | Main engine | Inovance/Siemens | |
| Feeding cylinder | Cylinder | Airtac MA32X100SCA | Circuit-breaker | CHNT | |
| Clamping cylinder | Cylinder | Airtac SDA80X50SB | Contactor | CHNT | |
| Oil cylinder | D32X50SB | Thermal overload | CHNT | ||
| Board | Productivity per spindle | 10-20 pcs/min | KA | CHNT | |
| Cooling pump motor | Power:120w-flow:20L/min | Power switch | IDCE | ||
| Hydraulic unit motor | Power:0.75KW-displacement VP15 | Origin sensor | OMRON | ||
| Overall Dimensions | 1950×1700×1900mm | Cylinder sensor | Airtac | ||
| Equipment weight | About 1500kg |
|
|||
Quality assurance is a core part of our manufacturing process. TAICHUANG operates under a strict internal quality management system, covering machining, assembly, inspection, and final testing.
We are proud to confirm that:

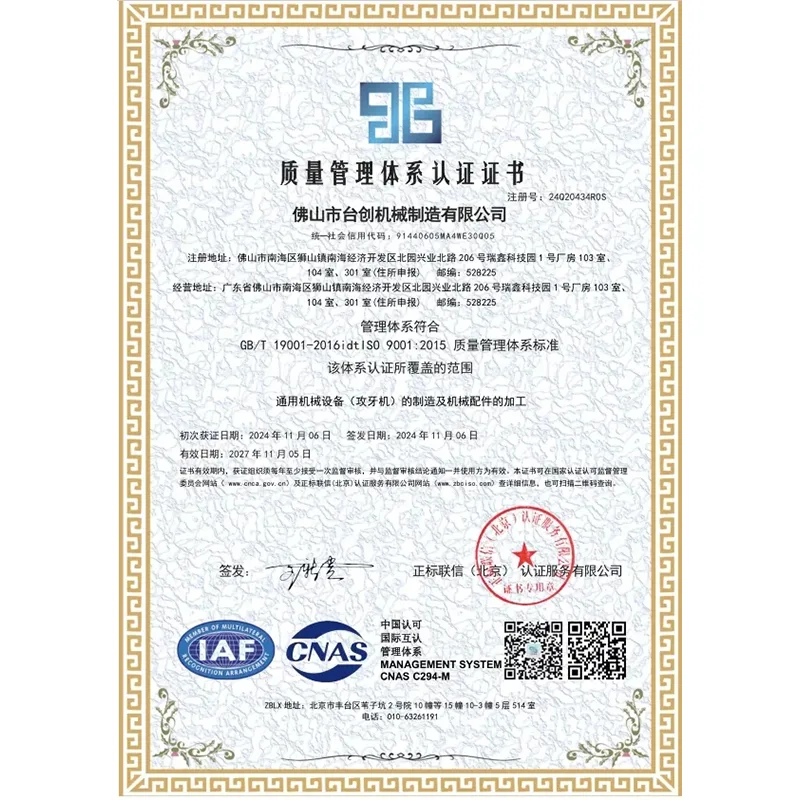

Our factory operates under ISO quality management standards

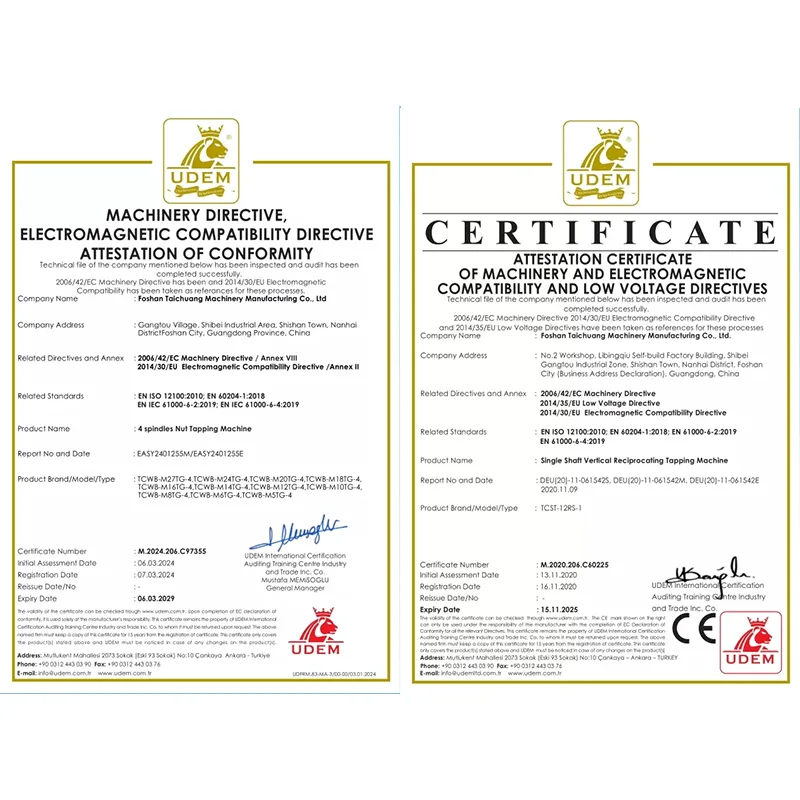

Our machines comply with CE certification requirements for export markets
Each machine is tested before delivery to ensure stable operation
These certifications help our customers meet internal compliance standards and simplify machine approval in international markets.
We provide operation support and pack each machine in export-grade plywood cases to ensure safe delivery to overseas customers.
Servo Motor Vertical Reciprocating Nut Tapping Machine is commonly used in industries requiring reliable nut threading operations.
Typical applications include:

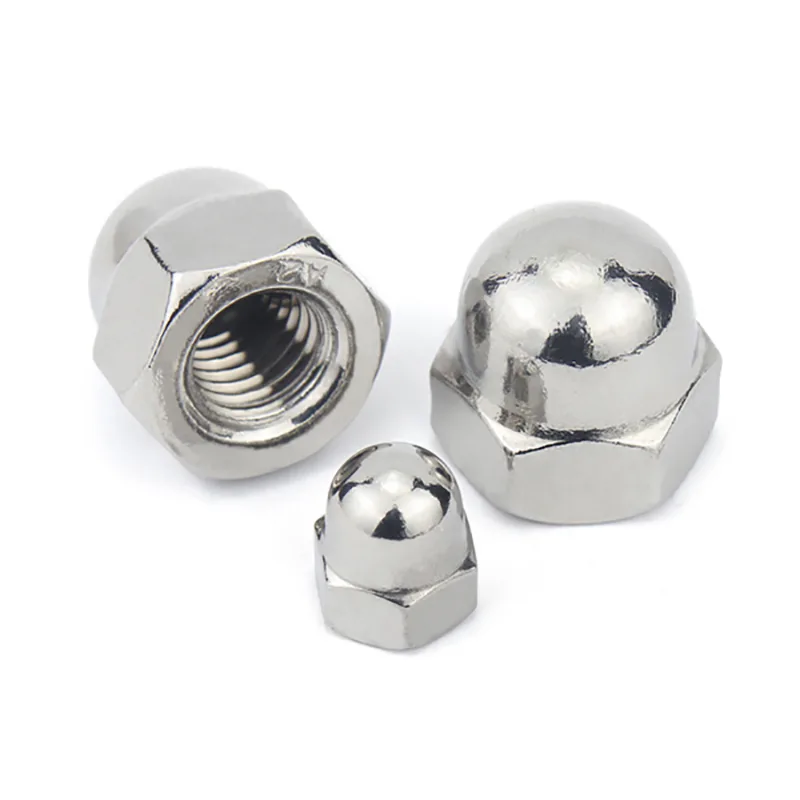

Hex nut production
Automotive fastener manufacturing
Construction hardware production
Mechanical fastening components
Industrial hardware processing
The machine supports continuous nut tapping machine operations where controlled tapping cycles and consistent thread quality are required.
TAICHUANG supplies nut tapping machine systems designed to support modern fastener production environments. The equipment range focuses on stable tapping performance, efficient production workflows, and reliable thread forming results.By introducing servo motor vertical reciprocating nut tapping machine solutions, TAICHUANG provides manufacturers with equipment options that support controlled tapping motion and consistent thread quality in fastener production processes.
1. Fully Automatic
2. CNC System Control
3. Full Cover
4. HMI Monitor
5. Single Spindle or Double Spindles for your option
6. Double Servo
7. Vertical Reciprocating
8. Vibrating Bowl Feeder
9. Tap Screw Broken Alarm
10. Lack Material Alarm
11. Defective Parts Automatically Separated
Can one operator manage multiple machines?
Yes. Fully automatic operation allows one operator to manage several machines at the same time.
How do you pack the equipment?
We pack the equipment in plywood cases.
Which certificate do you have for your equipment?
CE certified, ISO quality management system.
