In today's fastener industry, productivity is important—but consistency is what keeps customers coming back.
A nut with poor thread quality can lead to assembly problems, product recalls, and unnecessary production costs. That's why many manufacturers place greater value on equipment that delivers repeatable results throughout every production shift.

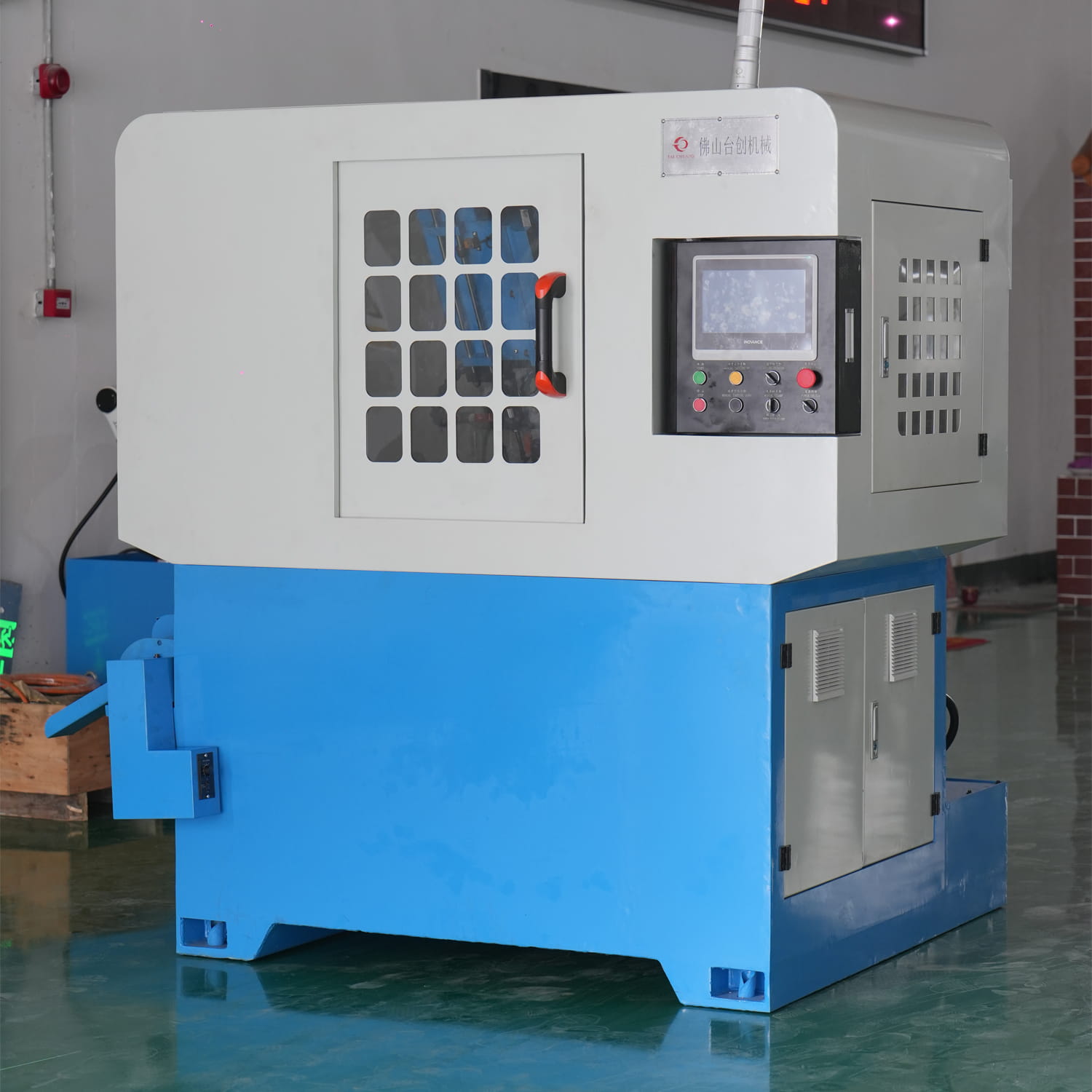

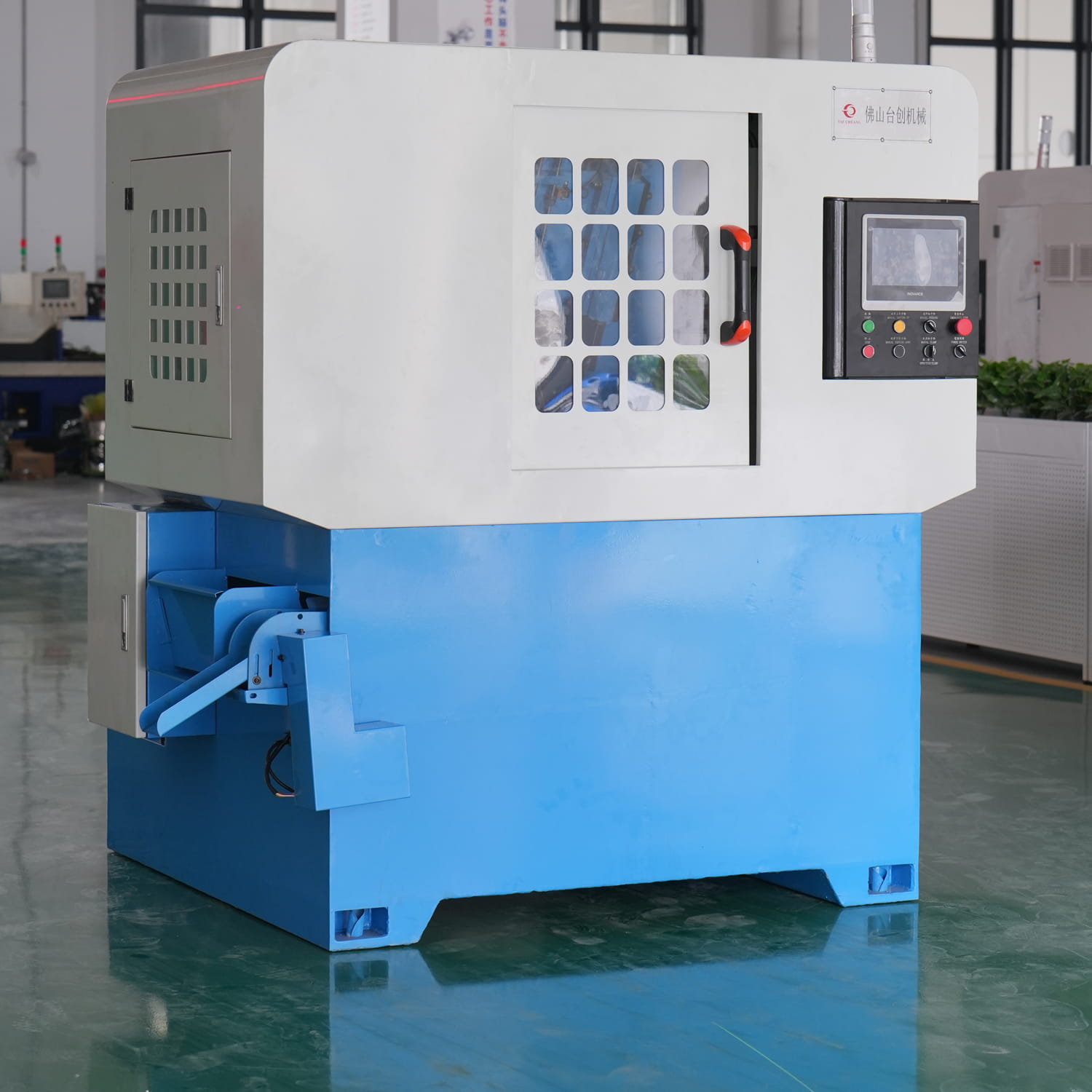

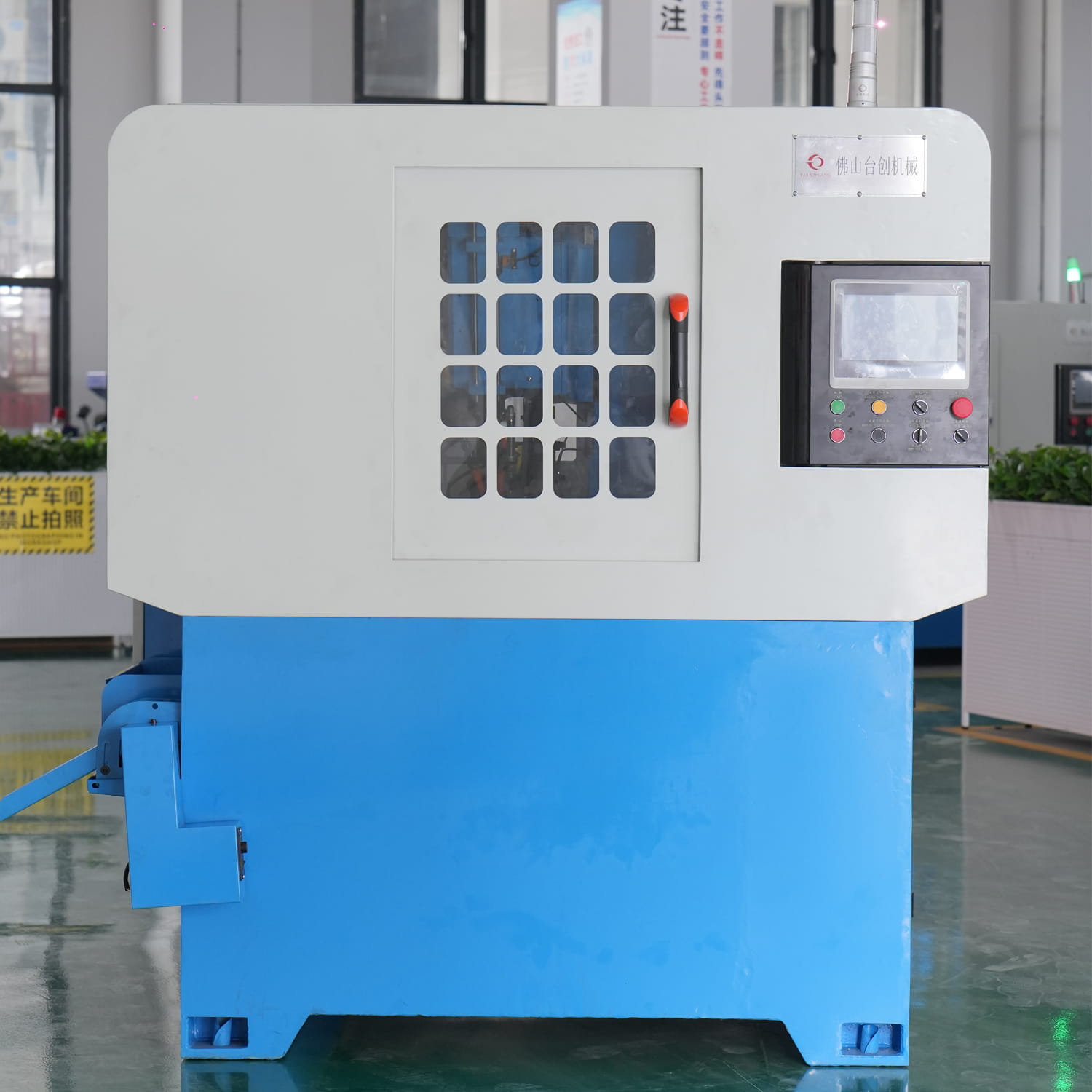

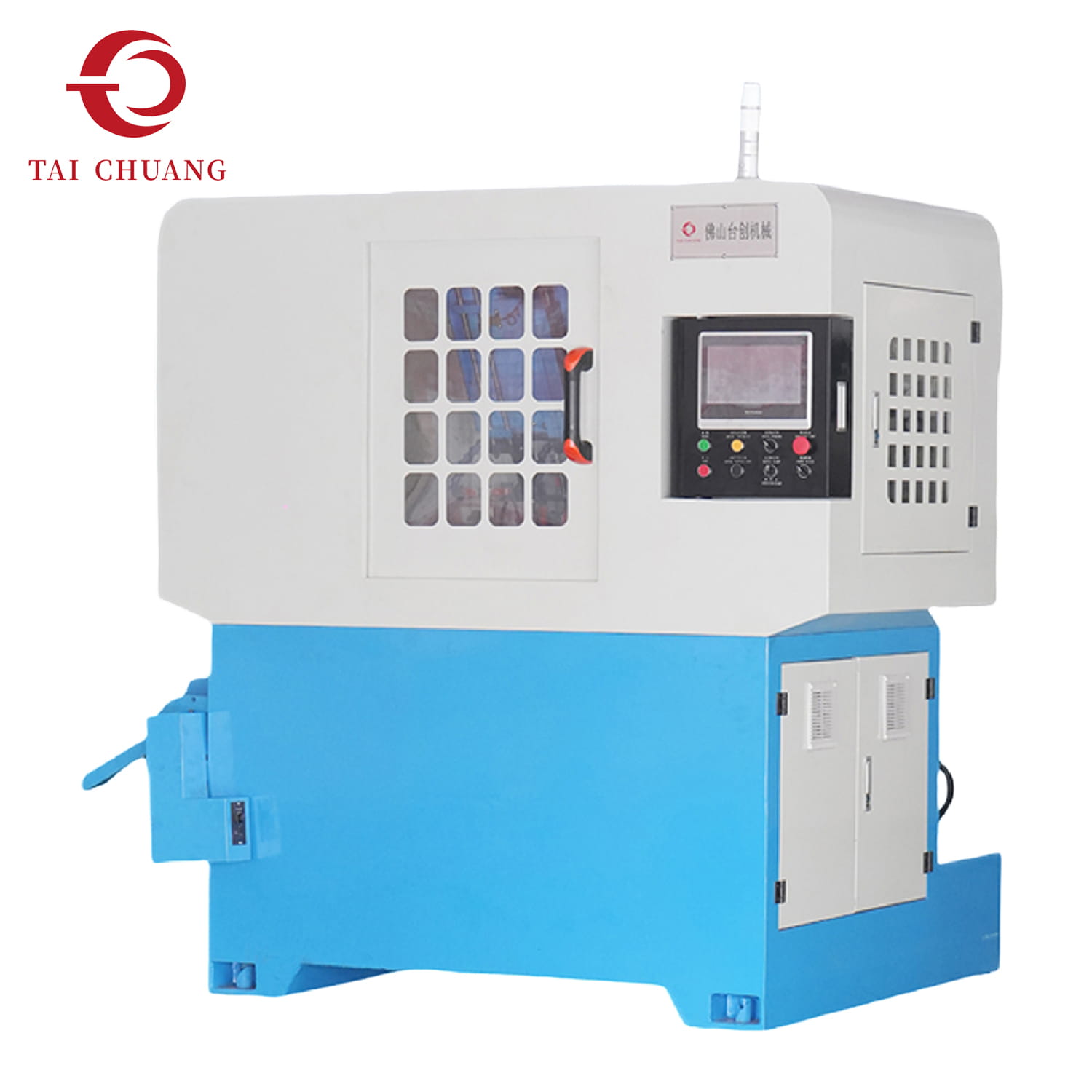

The High Quality Nut Tapping Machine from TAICHUANG is developed with this principle in mind. Every stage of the threading process is designed to produce clean, uniform internal threads while supporting stable operation over extended production periods.
|
Item |
Name |
Parameter |
Name |
Parameters/Brand |
|
|
Casting base |
Pallet stroke |
0-180mm |
Main spindle servo motor |
4.4Kw/1500rpm |
M12-M16 Air pressure clamping |
|
Main spindle slide stroke |
0-120mm |
Feed servo motor |
0.75Kw/3000rpm |
||
|
Number of main spindles |
1 |
Main spindle servo motor |
5.5Kw/1500rpm |
M16-M22 Hydraulic clamping |
|
|
Feed ball screw |
SFNUR2005X326 |
Feed servo motor |
0.75Kw/3000rps |
||
|
Cutting track |
Cutting angle |
28 degree angle |
Touch screen |
Inovance/Siemens |
|
|
Fixture mode |
Turntable fixture |
Max.diameter of turntable:∅230 |
Main engine |
Inovance/Siemens |
|
|
Feeding cylinder |
Cylinder |
Airtac MA32X100SCA |
Circuit-breaker |
CHNT |
|
|
Clamping cylinder |
Cylinder |
Airtac SDA80X50SB |
Contactor |
CHNT |
|
|
Oil cylinder |
D32X50SB |
Thermal overload |
CHNT |
||
|
Board |
Productivity per spindle |
10-20 pcs/min |
KA |
CHNT |
|
|
Cooling pump motor |
Power:120w-flow:20L/min |
Power switch |
IDCE |
||
|
Hydraulic unit motor |
Power:0.75KW-displacementVP15 |
Origin sensor |
OMRON |
||
|
Overall Dimensions |
1950×1700×1900mm |
Cylinder sensor |
Airtac |
||
|
|
Equipment weight |
About1500kg |
|
|
|
Stable Thread Formation
Accurate spindle movement and controlled tapping action help produce smooth, consistent internal threads across different production batches.
Automatic Production Workflow

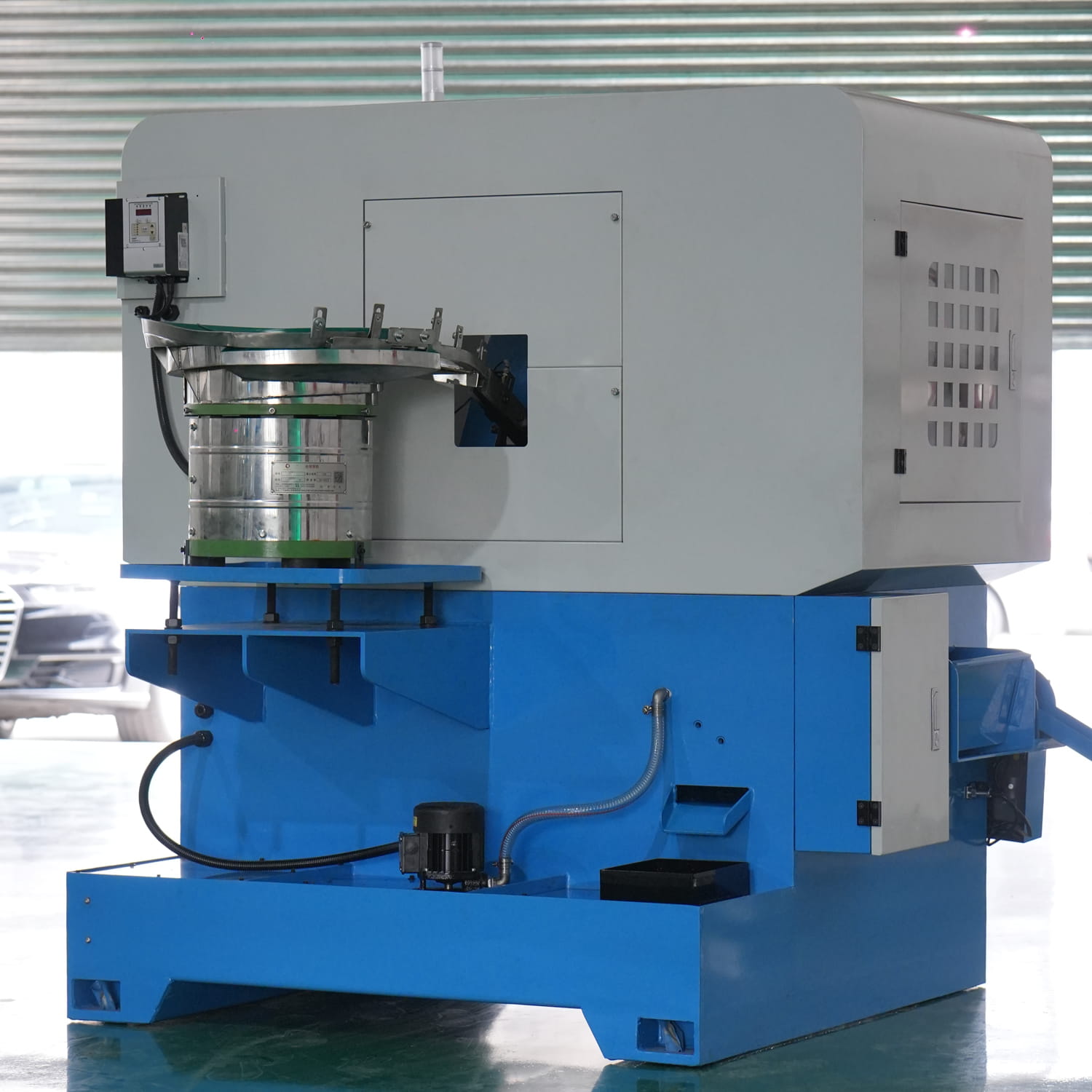

Automatic feeding, positioning, tapping, and discharge are integrated into one continuous process, helping reduce manual operation while improving production efficiency.
Easy Adaptation to Different Products
Machine settings can be adjusted according to nut dimensions, materials, and thread specifications, allowing manufacturers to process multiple products on one production line.
Designed for Continuous Factory Operation
The machine is suitable for long production shifts where stable performance and reliable operation are essential for maintaining delivery schedules.
Purchasing equipment is only one part of improving production.
Taichuang also supports customers with complete fastener manufacturing solutions, helping simplify equipment sourcing and production planning.
Our product portfolio includes:
Automatic Nut Tapping Machines
Thread Rolling Machines
Cold Heading Machines
Nut Forming Machines
Bolt Forming Machines
Rotary Drilling & Tapping Machines
Intelligent Feeding and Automation Systems
Whether you need a single machine or a complete fastener production line, our engineering team can recommend a solution that fits your manufacturing goals.
Many of our customers return because they are looking for stable partnerships, not just competitive prices.
They value:
Customized machine configurations
Consistent manufacturing quality
Professional engineering support
Complete fastener production solutions
Responsive after-sales service
International export experience
Choosing a High Quality Nut Tapping Machine means investing in equipment that supports reliable production today and sustainable business growth in the future.
How do you ensure the quality of each nut tapping machine?
Every machine undergoes assembly inspection, operational testing, and trial tapping before shipment to verify stable performance.
Can the machine be customized for our nut specifications?
Yes. We can customize tapping capacity, feeding systems, spindle configuration, voltage, and other features according to your production requirements.
Do you provide complete fastener production equipment?
Yes. In addition to nut tapping machines, we also supply thread rolling machines, cold heading machines, nut formers, and other equipment for complete fastener manufacturing lines.
What materials can the machine process?
The machine can be configured for carbon steel, stainless steel, alloy steel, and other commonly used fastener materials.
What support is available after installation?
We provide technical consultation, commissioning guidance, spare parts support, and ongoing after-sales service to help customers maintain stable production.
