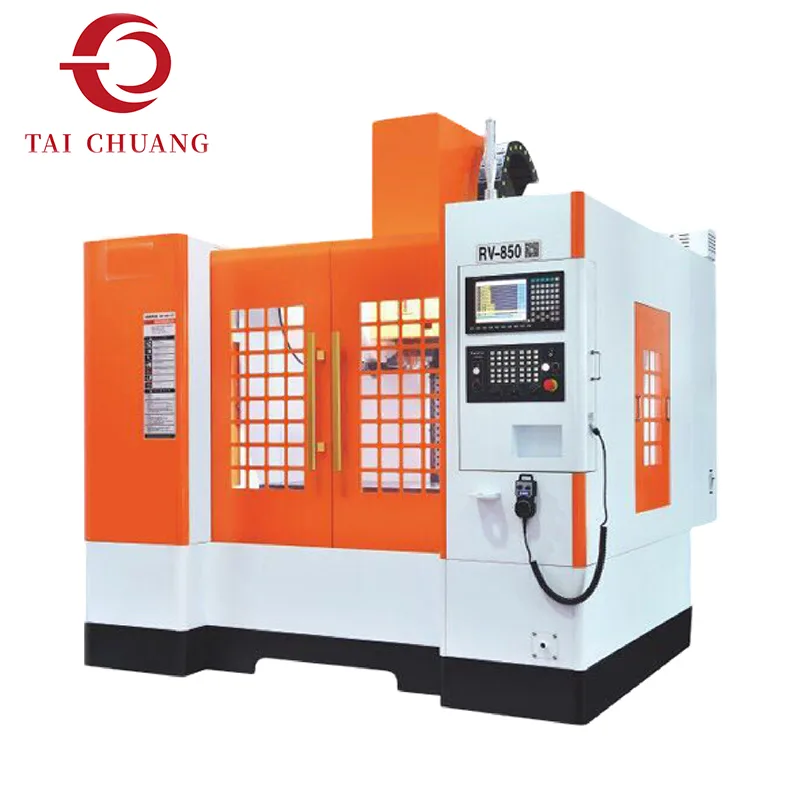

Vertical Machining Center

Elevate your manufacturing precision with TAICHUANG's reliable CNC machining solutions. Our Vertical Machining Center—built for precision milling, drilling, and tapping of metal components—combines a vertical spindle configuration with advanced CNC controls to deliver consistent accuracy and efficient production for critical mechanical parts in today’s industrial landscape. We are a good choice to be your manufacturer and supplier, just contact us!

Send Inquiry

Product Description

The Vertical Machining Center (VMC) is one of the most widely used CNC machines in modern manufacturing industries. Designed with a vertically oriented spindle and a movable worktable, the machine provides a versatile platform for a wide range of machining operations including milling, drilling, tapping, and contour processing.

The vertical spindle configuration allows cutting tools to approach the workpiece from above, providing excellent visibility for operators and efficient chip removal during machining. This structure is particularly suitable for machining flat surfaces, slots, holes, and complex contours on metal components.

Equipped with CNC control technology, the machine can perform multiple machining operations automatically based on programmed tool paths. Automatic tool changers allow different cutting tools to be used within a single machining cycle, reducing manual intervention and improving overall production efficiency.

The Vertical Machining Center is designed to support stable machining performance across a wide range of materials including steel, aluminum, stainless steel, and other engineering metals. Its balanced machine structure and precision motion system help maintain consistent machining accuracy during both small batch and large-scale production.

TAICHUANG provides vertical machining centers as part of its machining equipment solutions for manufacturers seeking reliable CNC machines for precision component production.

Product Specifications

Model	RV850	RV9	RV966	RV1165	RV1170	RV1380	RV1580
Travel
X - axis travel	800 mm	900 mm	900 mm	1100 mm	1100 mm	1300 mm	1500 mm
Y - axis travel	500 mm	600 mm	650 mm	650 mm	700 mm	800 mm	800 mm
Headstock Z - axis travel	500 mm	600 mm	600 mm	600 mm	700 mm	800 mm	800 mm
Distance from spindle nose to working table	100 - 600 mm	150 - 750 mm	100 - 700 mm	100 - 700 mm	150 - 850 mm	150 - 950 mm	150 - 950 mm
Distance from spindle center to column	570 mm	690 mm	720 mm	720 mm	700 mm	760 mm	900 mm
Worktable
Worktable size	1000*550 mm	1100*600 mm	1100*650 mm	1100*650 mm	1200*700 mm	1400*900 mm	1600*800 mm
Maximum load	800 kg	850 kg	800 kg	800 kg	900 kg	1100 kg	1400 kg
Number of T - slots	5	6	4	4	7	7	7
T - slot size	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm
Spindle
Spindle speed (standard)	10000 r.p.m	10000 r.p.m	10000 r.p.m	10000 r.p.m	10000 r.p.m	10000 r.p.m	10000 r.p.m
Spindle speed (optional)	8000 - 15000 r.p.m	10000 - 15000 r.p.m	8000 - 15000 r.p.m	8000 - 15000 r.p.m	10000 - 15000 r.p.m	10000 - 15000 r.p.m	10000 - 15000 r.p.m
Spindle power	7.5/11 kw	11/15 kw	7.5/11 kw	7.5/11 kw	11/15 kw	11/15 kw	11/15 kw
Spindle taper	BT40	BT40	BT40	BT40	BT40	BT40	BT50
Feed
X/Y axis rapid feed	36000 mm/min	36000 mm/min	36000 mm/min	36000 mm/min	36000 mm/min	36000 mm/min	36000 mm/min
Z - axis rapid feed	36000 mm/min	36000 mm/min	36000 mm/min	36000 mm/min	36000 mm/min	36000 mm/min	36000 mm/min
Cutting feed per axis	1 - 10000 mm/min	1 - 10000 mm/min	1 - 10000 mm/min	1 - 10000 mm/min	1 - 10000 mm/min	1 - 10000 mm/min	1 - 10000 mm/min
Others
Three - axis motor power	3.93.95.9 kw	3.93.95.9 kw	3.93.95.9 kw	3.93.95.9 kw	4.94.94.9 kw	2.42.43.9kw	5.95.95.9kw

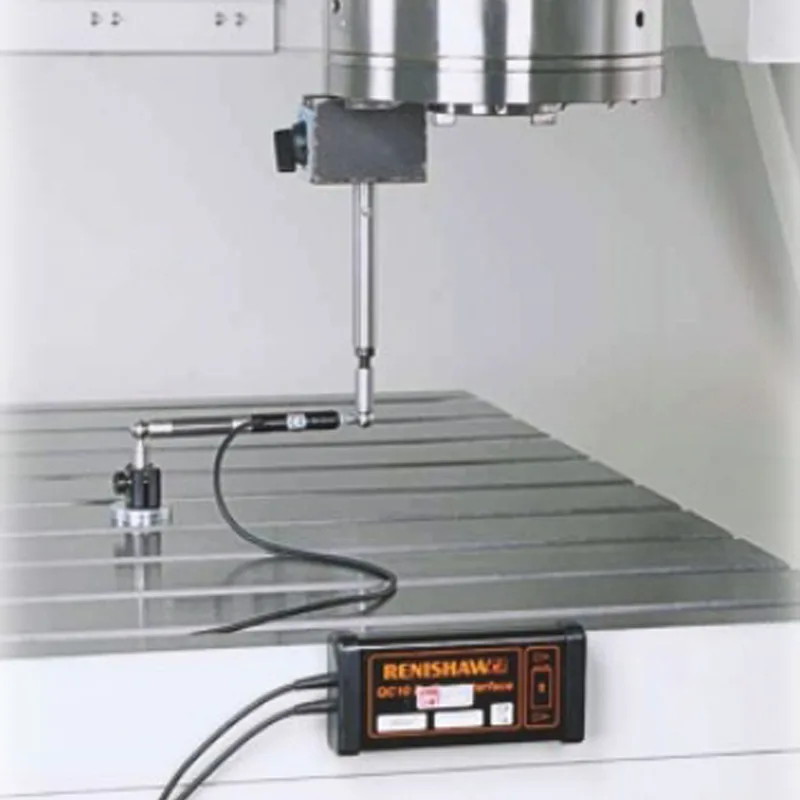

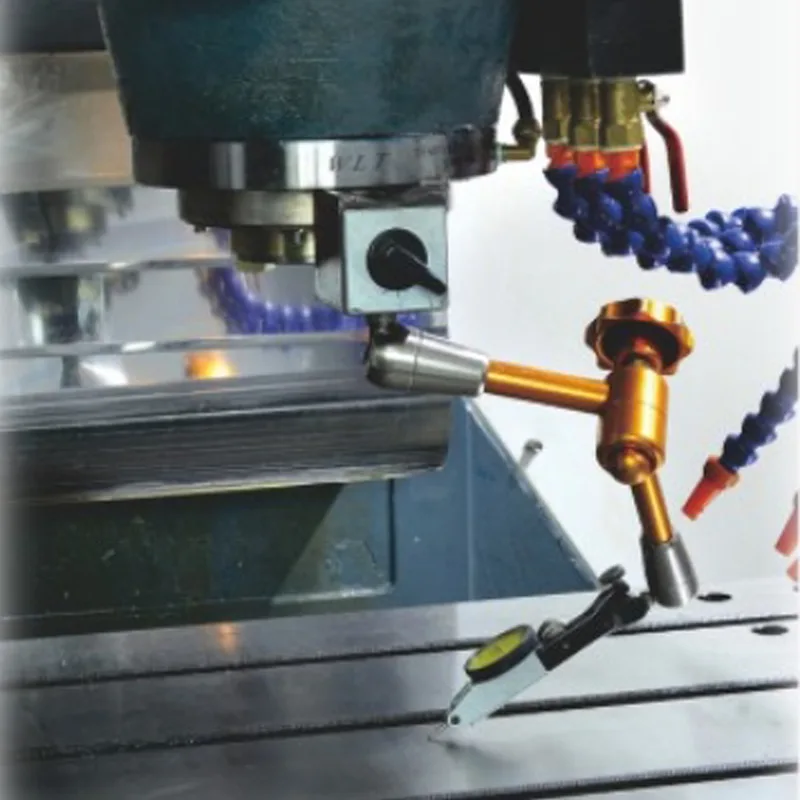

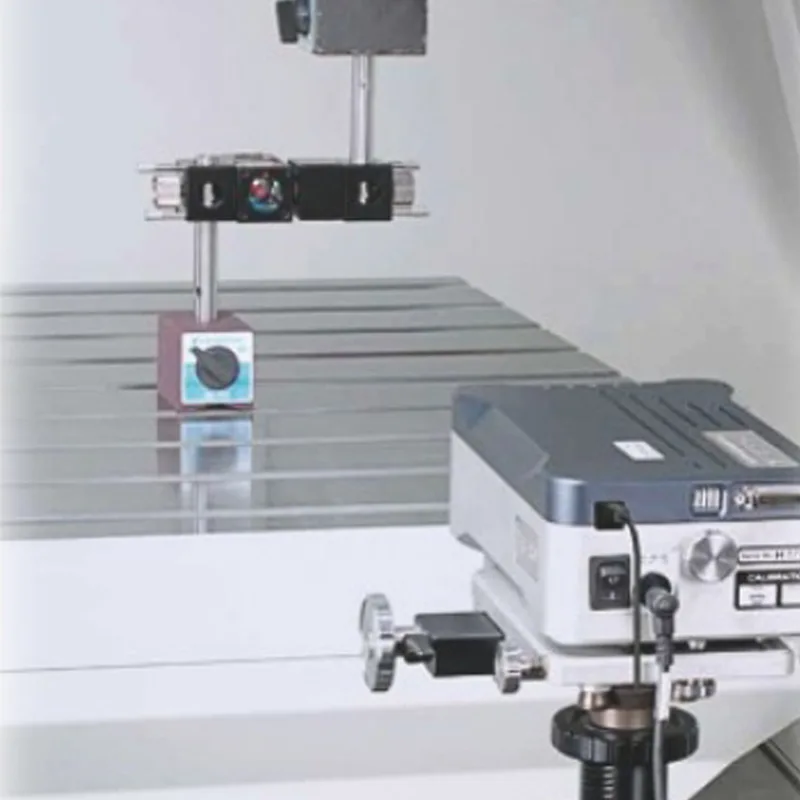

Positioning accuracy	±0.005/300 mm	±0.005/300 mm	±0.005/300 mm	±0.005/300 mm	±0.005/300 mm	±0.005/300 mm	±0.005/300 mm
Repeatability accuracy	±0.003/300 mm	±0.003/300 mm	±0.003/300 mm	±0.003/300 mm	±0.003/300 mm	±0.003/300 mm	±0.003/300 mm
Controller	1	1	1	1	1	1	1
Cutting fluid pressure	28HP	28 HP	28 HP	28 HP	28 HP	28 HP	28 HP
Air pressure requirement	8kva	8kva	8kva	8kva	8kva	8kva	8kva
Electrical specification	6 - 7 bar	6 - 7 bar	6 - 7 bar	6 - 7 bar	6 - 7 bar	6 - 7 bar	6 - 7 bar
Machine weight	5000kg	5000kg	5600kg	5900kg	11000kg	12000kg	14000kg
Machine dimensions	250023002500 mm	250024002650 mm	260028002500 mm	280026002600 mm	356031502850 mm	380030503100 mm	465033003200 mm

Main Machining Functions

The Vertical Machining Center supports a variety of machining operations required for industrial component manufacturing.

Precision Milling

The machine can perform accurate milling operations to create flat surfaces, slots, and complex geometries on metal parts.

Drilling Operations

High-precision drilling enables the creation of accurately positioned holes for mechanical assembly.

Tapping and Threading

Thread tapping operations can be completed automatically within the machining cycle.

Contour and Surface Machining

CNC-controlled tool paths allow the machine to produce complex shapes and contours.

Machine Structure Features

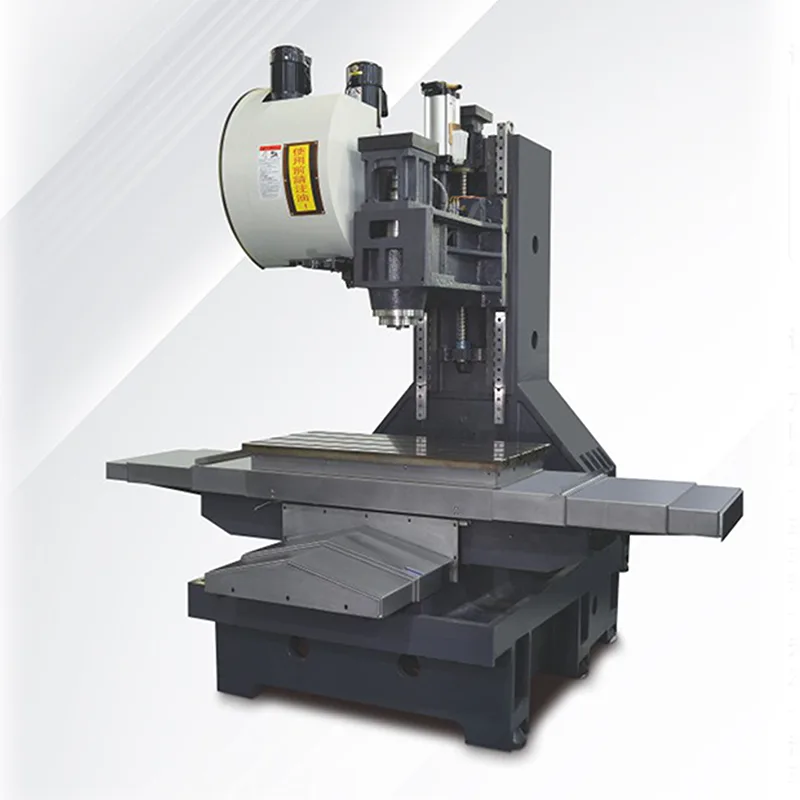

Vertical Spindle Configuration

The vertical spindle arrangement allows direct cutting access to the workpiece, supporting efficient milling and drilling operations.

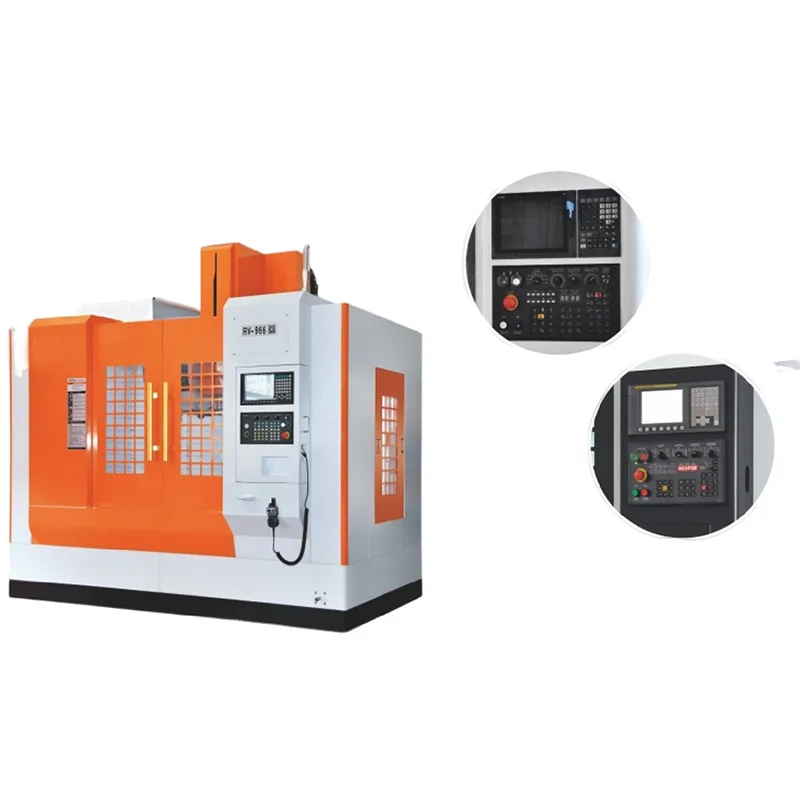

CNC Control System

Advanced CNC control allows precise programming of machining paths and automated operation.

Automatic Tool Changer

The tool changer system enables quick switching between multiple tools during machining.

Precision Linear Guideways

High-accuracy guideways ensure smooth axis movement and reliable positioning accuracy.

Production Advantages

Versatile Machining Capability

The machine can perform several machining processes within one setup.

Improved Production Efficiency

Automatic tool changes and CNC programming reduce manual operation time.

Consistent Machining Accuracy

Precision motion control helps maintain dimensional stability during production.

Flexible Part Processing

The machine can process a wide range of metal components used in different industries.

Scope of Application

Precision parts processing industry: CNC drilling and milling processing of steel parts, aluminum parts, prototype models, etc.

Eyewear industry: Processing of accessories such as steel parts, copper electrodes, inner grooves of metal frame and plastic frame eyeglass frames, light outer shapes, and carved patterns.

Watch industry and jewelry industry (pendants, rings, bracelets, etc.): Processing such as glass positions, pressing positions, thread holes, curved surfaces, arc-surface drilling, stone inlaying, and character carving.

Why Choose TAICHUANG

TAICHUANG supplies industrial machining equipment designed to support modern manufacturing processes. The vertical machining centers introduced by TAICHUANG are selected by manufacturers seeking efficient CNC machining solutions.

Advantages include:

machining equipment for precision metal component production

machines suitable for milling, drilling, and tapping operations

CNC machining solutions for various industrial applications

equipment serving global manufacturing industries

TAICHUANG focuses on providing reliable machining equipment that helps manufacturers improve productivity and machining accuracy.

FAQ

What is a vertical machining center used for?

A vertical machining center is used for CNC milling, drilling, tapping, and contour machining of metal components.

What materials can be machined on a VMC?

Common materials include aluminum, carbon steel, stainless steel, brass, and other engineering metals.

What is the advantage of a vertical machining center?

Vertical machining centers offer good visibility, efficient chip removal, and versatile machining capability for many types of mechanical parts.

Which industries commonly use VMC machines?

Industries such as automotive manufacturing, machinery production, mold manufacturing, and industrial equipment manufacturing widely use VMC machines.

Can a vertical machining center perform multiple operations?

Yes. A VMC can perform milling, drilling, tapping, and contour machining within a single CNC machining program.
