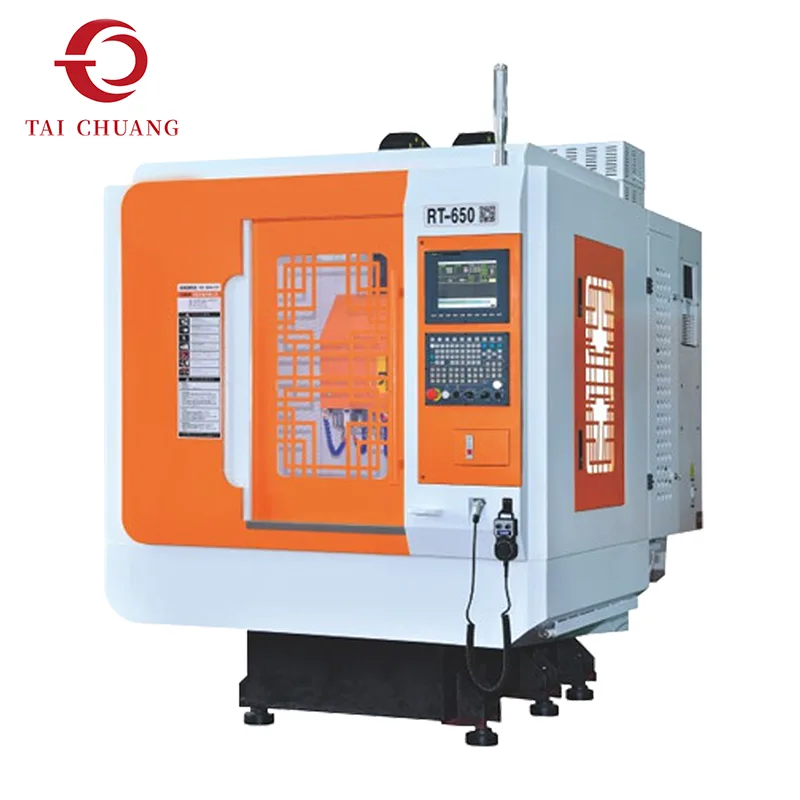

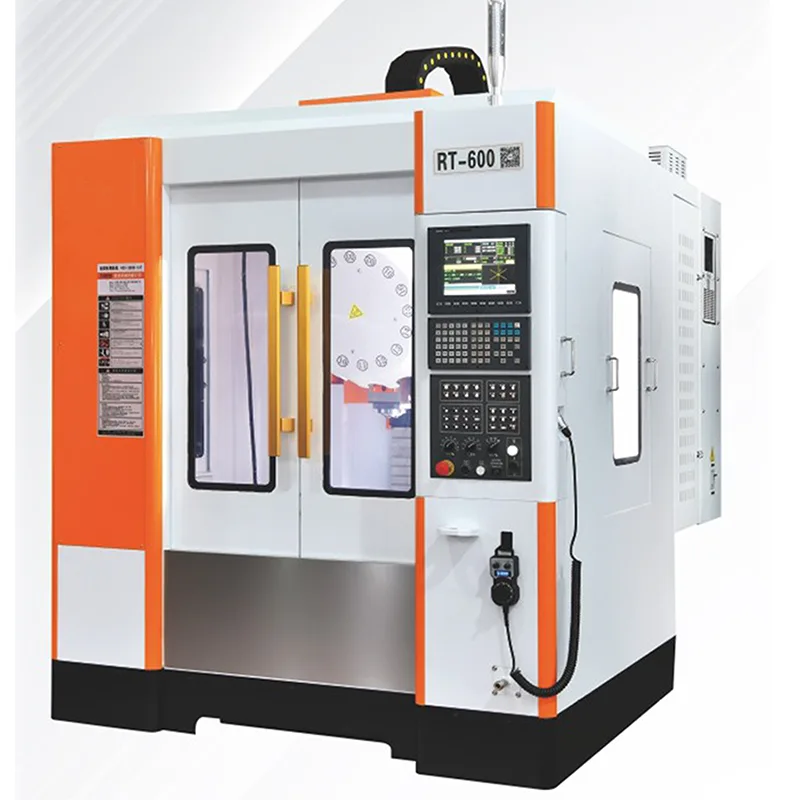

High Speed Drilling and Tapping Machining Center

In modern manufacturing industries, many mechanical components require multiple drilled and threaded holes as part of their assembly design. When production volumes are high, manufacturers often need specialized machining equipment capable of performing drilling and tapping operations quickly while maintaining consistent accuracy. The High Speed Drilling and Tapping Machining Center is designed to meet these requirements.

This machining center integrates high-speed spindle technology with rapid axis motion to significantly improve machining efficiency. Compared with conventional machining centers, drilling and tapping centers are optimized for operations involving frequent tool changes and repeated hole machining processes. The machine is capable of executing drilling, rigid tapping, and light milling within a single machining cycle.

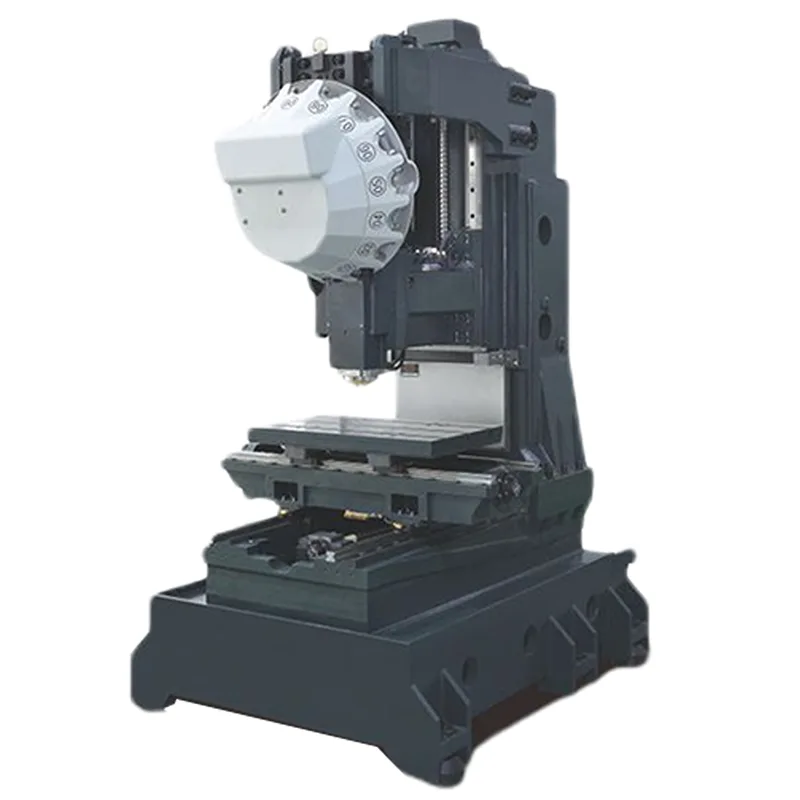

The structure of the machine is designed to support stable operation at high spindle speeds. Precision guideways and servo-driven feed systems ensure smooth motion control, allowing the machine to maintain accurate positioning during high-speed production. Automatic tool changers further enhance efficiency by enabling quick switching between drilling tools and tapping tools during machining operations.

The High Speed Drilling and Tapping Machining Center is widely used in production environments where efficiency and repeatability are critical. Manufacturers producing mechanical parts with numerous threaded holes often rely on this type of equipment to increase throughput and reduce cycle time.

TAICHUANG introduces this drilling and tapping machining solution for industrial manufacturers seeking reliable equipment for high-efficiency metal component processing.

Product Specifications

Key Machining Functions

The High Speed Drilling and Tapping Machining Center integrates several machining processes commonly required in mechanical part production.

High Speed Drilling

The machine supports rapid drilling operations across metal workpieces, enabling efficient creation of precise hole patterns.

Rigid Tapping

Threading operations can be completed through rigid tapping functions that ensure accurate thread formation and consistent quality.

Light Milling Operations

In addition to drilling and tapping, the machine can perform light milling operations such as slot cutting and surface finishing.

Automatic Tool Changing

An automatic tool changer allows quick switching between different tools during machining cycles, improving productivity.

Production Advantages

Faster Machining Cycles

High spindle speed and rapid axis movement help reduce cycle time for drilling and tapping operations.

Improved Production Efficiency

The High Speed Drilling and Tapping Machining Center is particularly suitable for batch production of parts requiring numerous holes and threaded features.

Consistent Thread Quality

Rigid tapping functions help maintain accurate thread geometry across large production batches.

Flexible Part Processing

The machine can process various metal components requiring drilling, tapping, and light milling operations.

Scope of Application

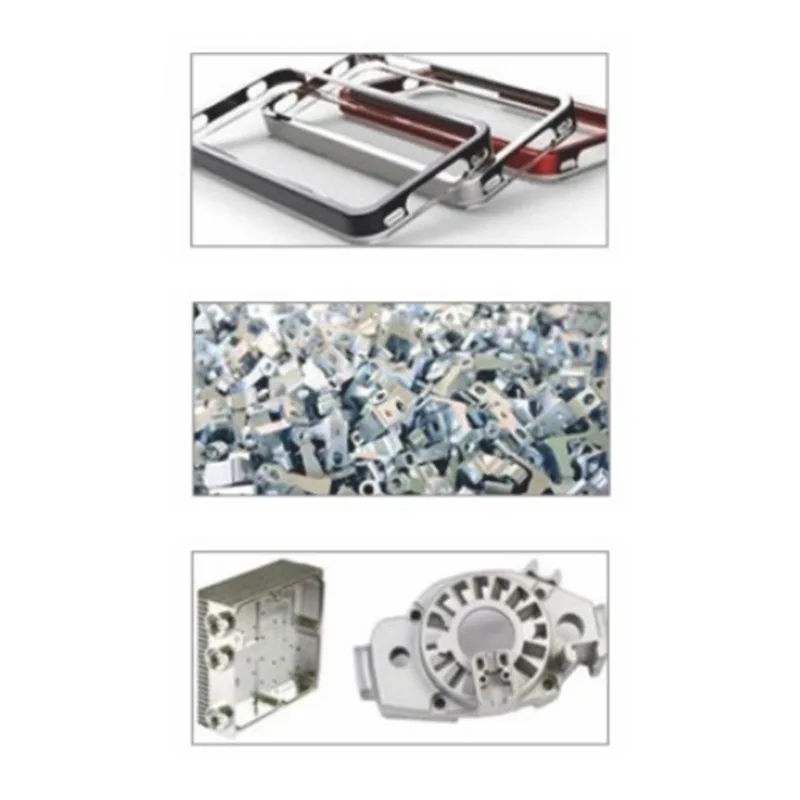

Applied to the processing of small and medium-sized plate parts, disc parts, and shell parts in industries such as 3C (PC, mobile phone, communication), auto parts, small mold manufacturing, and medical care.

After one-time clamping of parts, multiple processes such as milling, boring, drilling, and tapping can be completed. It is particularly suitable for small-batch and single-piece processing.

Main Configurations

Control systems from Mitsubishi (Japan), Fanuc (Japan), Syntec (China), or Siemens (Germany).

Spindle motors from Mitsubishi (Japan), Fanuc (Japan), or Siemens (Germany).

Three-axis motors and drives from Mitsubishi (Japan), Fanuc (Japan), or Siemens (Germany).

Spindles from well-known Taiwanese brands. Linear guides from HIWIN (Taiwan), PMI (Taiwan), THK (Japan), or (Rexroth, Germany).

Ball screws from HIWIN (Taiwan), PMI (Taiwan), THK (Japan), or (Rexroth, Germany).

Three axes adopt NSK bearings (Japan).

FAQ

What is a drilling and tapping machining center used for?

A drilling and tapping machining center is designed to perform high-speed drilling and thread tapping operations on metal components.

How is it different from a conventional machining center?

Drilling and tapping machines are optimized for rapid hole processing and frequent tool changes, making them more efficient for parts with many threaded holes.

What materials can be processed?

Typical materials include aluminum, carbon steel, stainless steel, and other commonly used engineering metals.

Which industries commonly use drilling and tapping machining centers?

Industries such as automotive manufacturing, electronics equipment production, and industrial machinery manufacturing frequently use these machines.

Can the machine perform milling operations?

Yes. In addition to drilling and tapping, light milling operations can also be performed depending on tooling configuration.
