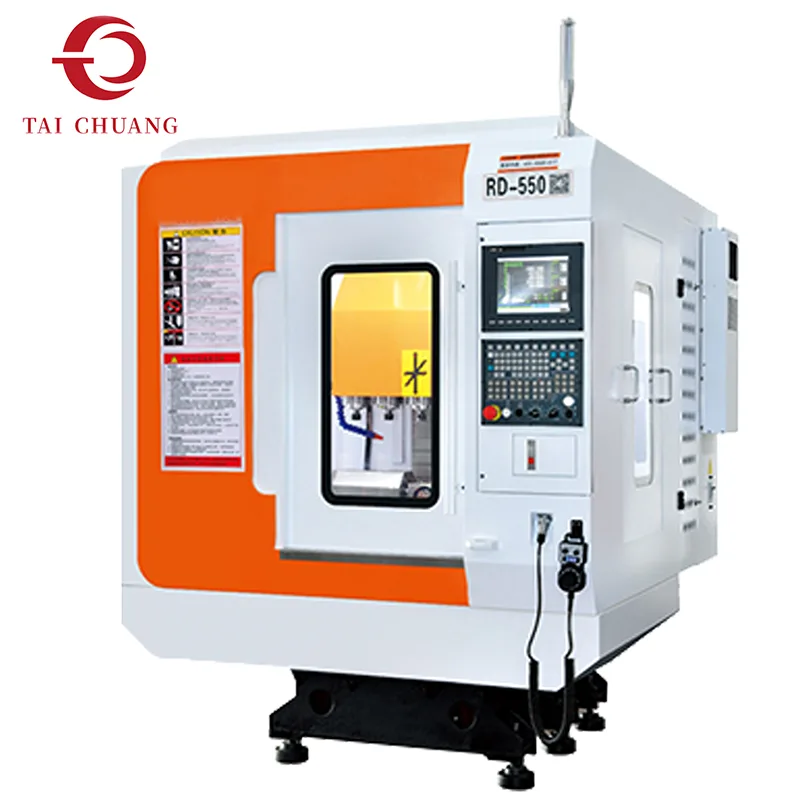

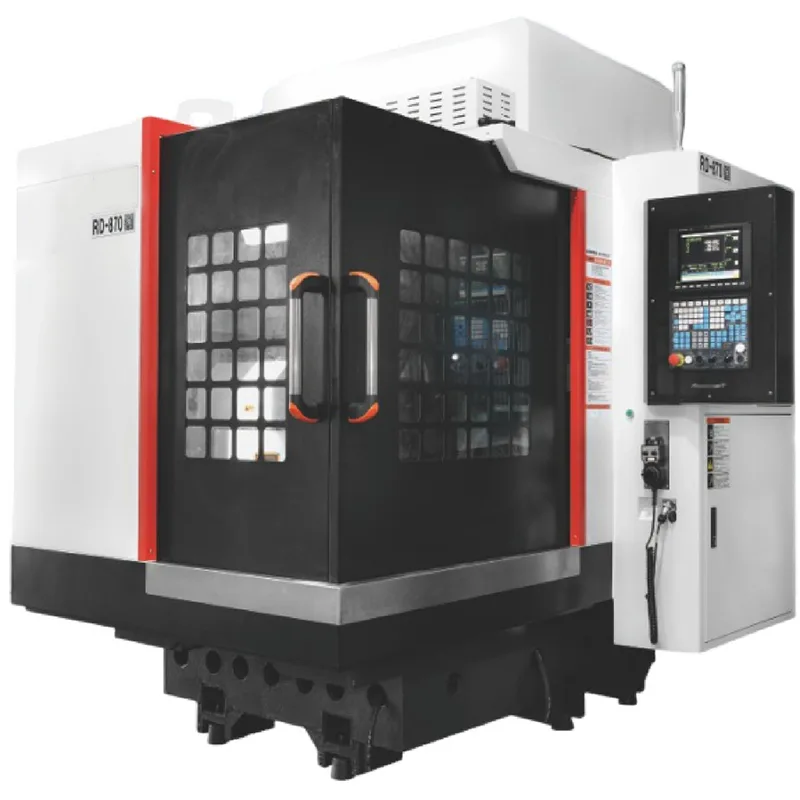

Engraving and Milling Machining Center

Manufacturing industries that require fine surface details and precise micro-machining often rely on specialized equipment designed for engraving and high-speed milling operations. The Engraving and Milling Machining Center is developed to perform these processes efficiently while maintaining high positioning accuracy and excellent surface quality.

Unlike heavy-duty machining centers designed for large cutting loads, engraving and milling machines focus on precision and high spindle speed. The machine is equipped with a high-speed spindle system that allows detailed cutting operations on small features and intricate patterns. This capability makes the machine suitable for producing precision components and molds where surface finish and dimensional accuracy are critical.

The machine structure is designed to maintain rigidity while supporting smooth high-speed axis movement. Precision linear guideways and servo-driven motion systems allow accurate tool positioning during engraving and milling operations. These features help reduce machining vibration and ensure stable cutting performance during detailed machining tasks.

The Engraving and Milling Machining Center can perform a variety of machining operations including precision engraving, contour milling, micro-slot cutting, and surface finishing. By combining these capabilities within a single CNC system, manufacturers can achieve efficient production of complex parts requiring fine machining details.

TAICHUANG supplies this engraving and milling machining solution for manufacturers seeking reliable equipment for precision component manufacturing.

Product Specifications

Equipment Description

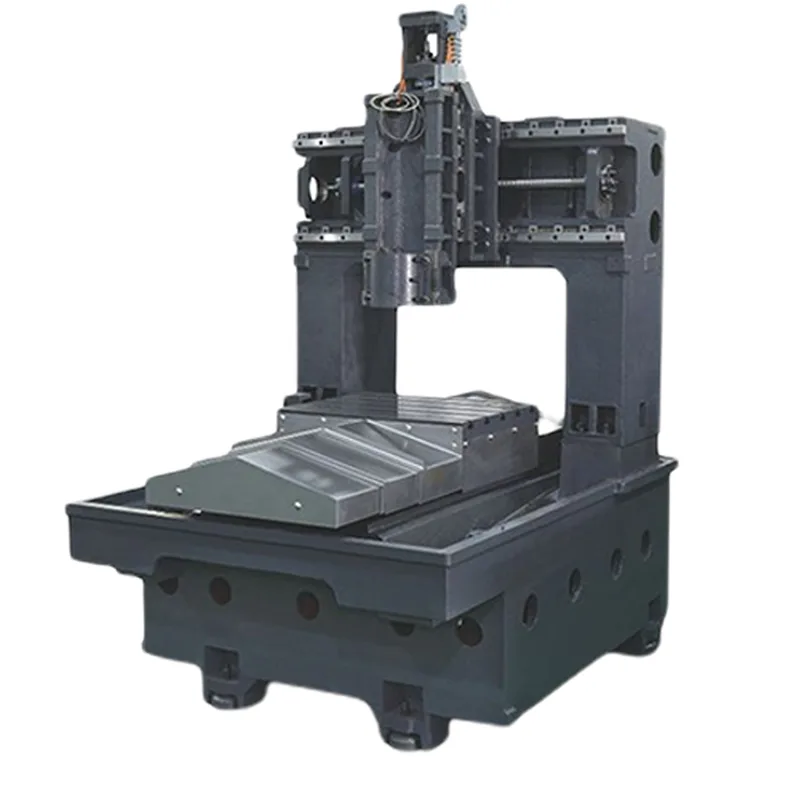

The Engraving and Milling Machining Center adopts the unique integrated technology of crossbeam and bed, with a gantry-type high-rigidity structure.

It ensures long-term high precision and service life of the machinery, and has strong earthquake resistance.

The three axes adopt imported high-precision linear guides and ball screws, which are wear-resistant, have a low friction coefficient, and feature high positioning accuracy, flexibility, and smooth movement. Japanese NSK bearings and imported couplings are used.

The high-speed, high-torque, and high-precision electric spindle can meet the requirements of high-speed machining and ensure precision; it can realize high-speed milling of small precision molds and parts, with high machining accuracy, low vibration, and low noise.

The control system adopts Taiwan Syntec and LNC high-speed CNC systems, which are easy to learn and use.

The drive system adopts Japanese Yaskawa and Yamazaki Mazak AC servo drive systems, which run smoothly, have excellent acceleration performance, low noise, and high control precision.

Five - Head High - Speed Engraving and Milling Machine

High-speed electric spindle with 24,000 - 48,000 rpm. Perfect combination of high rotation speed and high movement speed.

Three axes adopt linear guides, featuring fast speed and high precision.

The first choice for mold, electrode, and batch part processing, with high cost-effectiveness.

Compatible with the electrostatic oil mist purifier.

A perfect combination of high rotation speed and high movement speed

Enlarged base and column, stable and reliable.

Fully enclosed outer cover with an exhaust system to reduce oil mist generated during high-speed machining.

Equipped with a high-speed and high-precision spindle, ensuring high machining precision and good finish.

Matched with a high-speed spindle oil cooler to ensure that the spindle characteristics are not lost due to heat.

Three axes adopt linear guides, with fast speed and high precision.

FAQ

What is an engraving and milling machining center used for?

An engraving and milling machining center is used for high-precision engraving, micro milling, and detailed surface machining of metal and non-metal materials.

What makes this machine different from a standard machining center?

Engraving and milling machines are designed for high-speed, light cutting operations and fine machining tasks requiring high surface quality.

What materials can be processed on this machine?

Common materials include aluminum, copper, brass, stainless steel, plastics, and other engineering materials.

Which industries commonly use engraving and milling machining centers?

Industries such as mold manufacturing, electronics production, precision mechanics, and decorative metal processing frequently use these machines.

Can the machine perform complex CNC machining?

Yes. CNC control allows the machine to execute complex tool paths for detailed engraving and contour milling operations.
