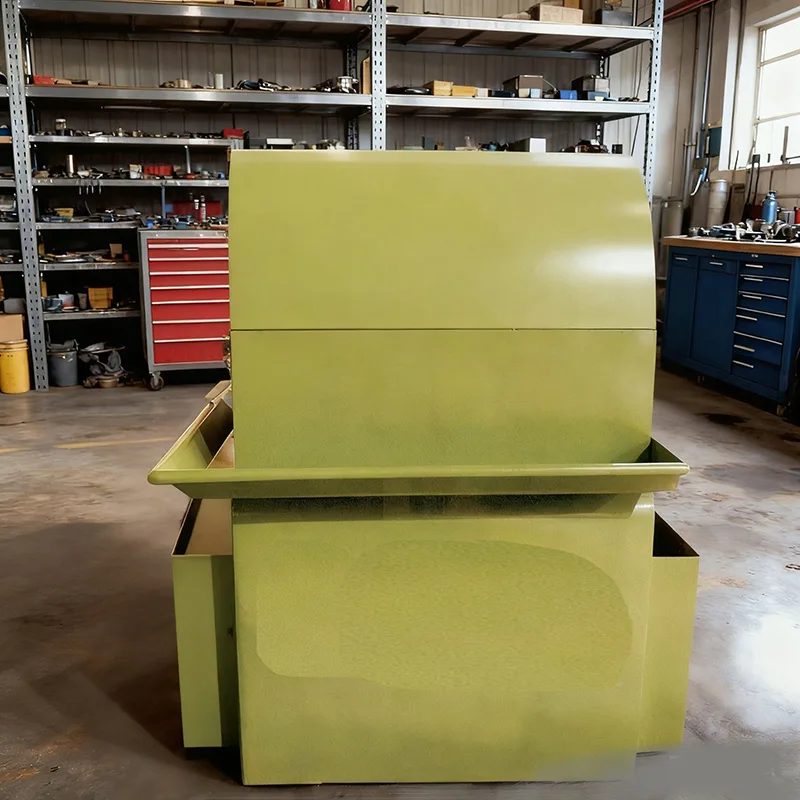

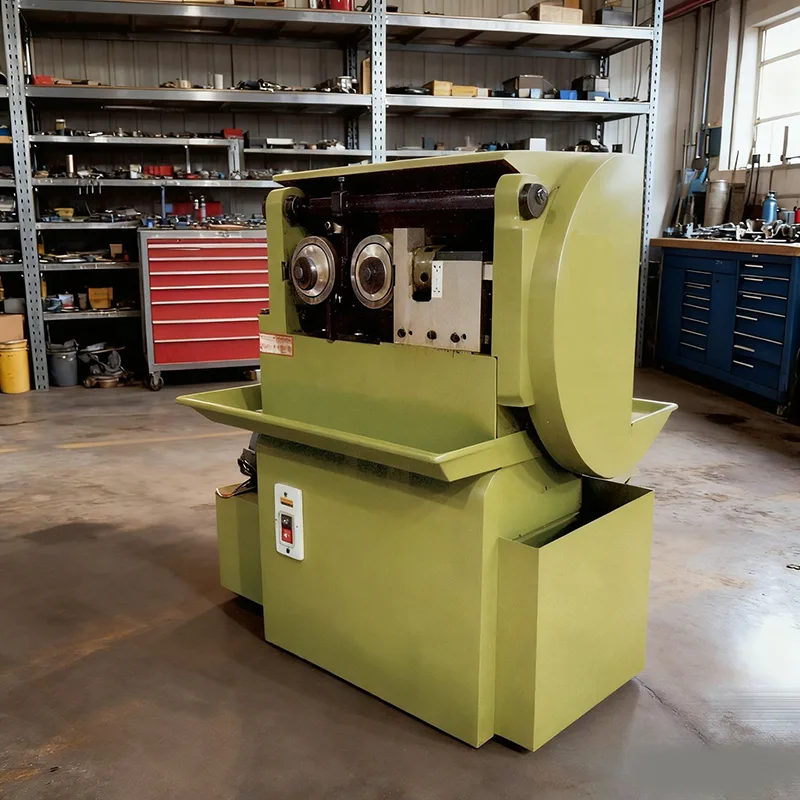

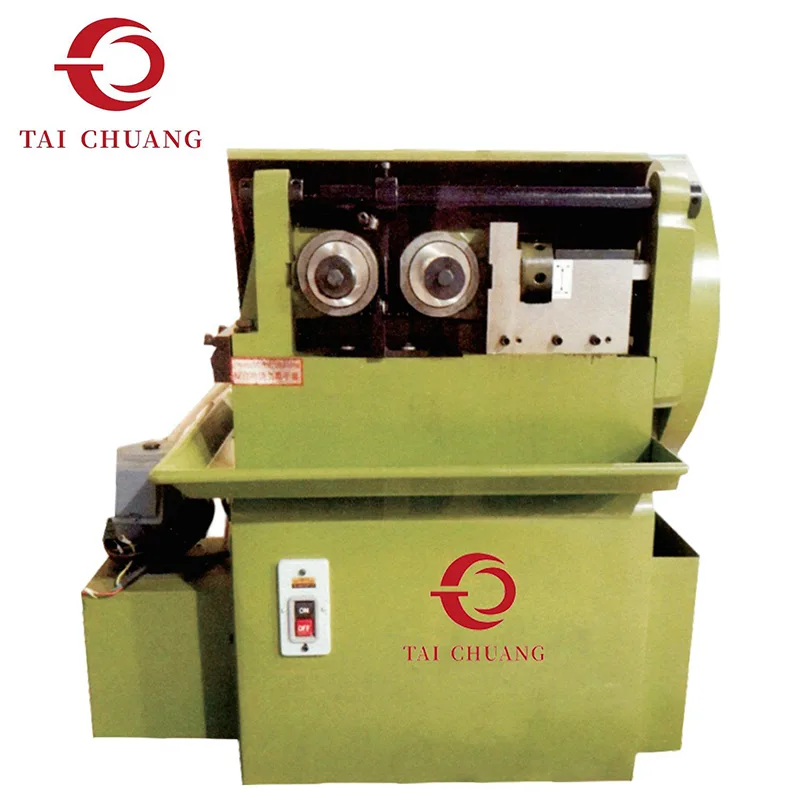

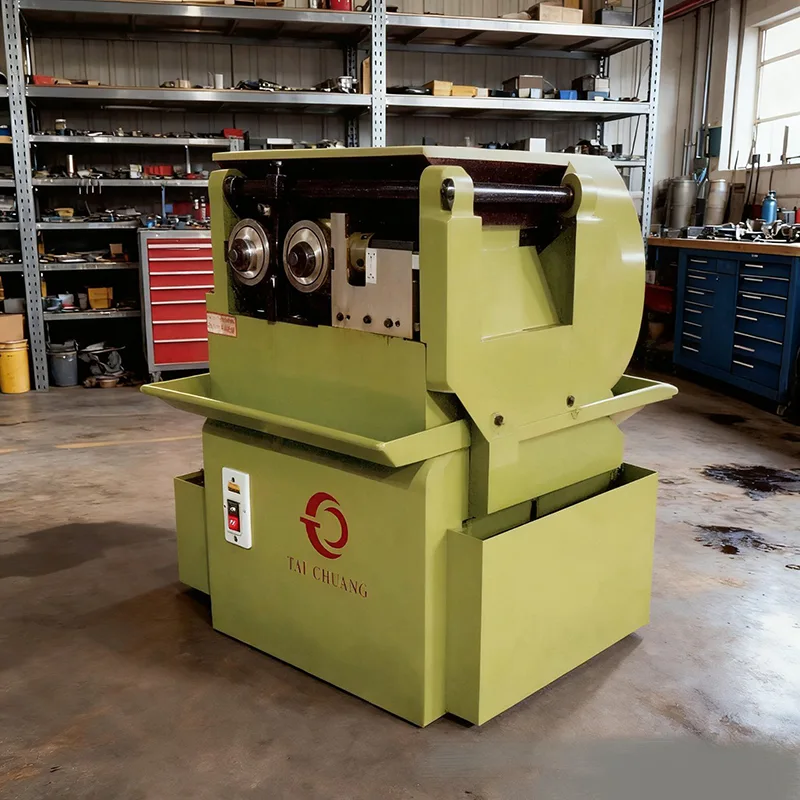

The Eccentric Type Round Bar Thread Rolling Machine is designed for high-efficiency external thread forming using a mechanical eccentric structure. Compared with hydraulic systems, this type emphasizes simplicity, fast cycle time, and cost efficiency, making it a practical choice for standard thread applications.
At TAICHUANG, we position this machine as a reliable production tool for stable, repeatable output, especially suitable for customers who prioritize productivity and ease of maintenance.
|
Item |
SH-3T |
|
Rolling dia. |
2-12mm |
|
Pitch |
0.4-1.75P |
|
Rolling length |
15-30mm |
|
Mainspindle motor |
1HP |
|
Coolant pump motor |
1/8HP |
|
Rolling spindle dia. |
50.5mm |
|
Rolling dies dia. |
100mm |
|
Rolling dies thickness |
15-30mm |
|
Distance between spindle centers |
90-115mm |
|
Rev,speed of rolling dies |
30R.P.M |
|
Processingcapacity |
20-30pcs/min |
|
Hyd.feeding pressure. |
3Tons |
|
Ht.fromfable surface fo cenfer of rolling |
85mm |
|
Net weight/Gross weight |
250kg/350kg |
|
Machine size (LxWxH)m/m |
800x600x730mm |
|
Measurement (LxWxH)m/m |
940x700x910mm |
The eccentric rolling mechanism offers several practical advantages in real production:
Mechanical-driven rolling with stable force transmission
Fast forming cycle for higher output
Simple structure, easy to understand and operate
Lower maintenance requirements compared to complex systems
This makes the machine ideal for workshops and factories looking for consistent performance without unnecessary complexity.
Compared with similar equipment on the market, our Eccentric Type Round Bar Thread Rolling Machine is:
More stable rolling consistency
Better component matching
Practical design refined through customer use
Reliable long-term operation
We recommend this machine when cost-effectiveness and productivity are key decision factors.
Is this machine suitable for beginners?
Yes. The structure is simple and easy to operate with basic training.
Can it be customized?
Limited customization is available depending on thread size and production needs.
