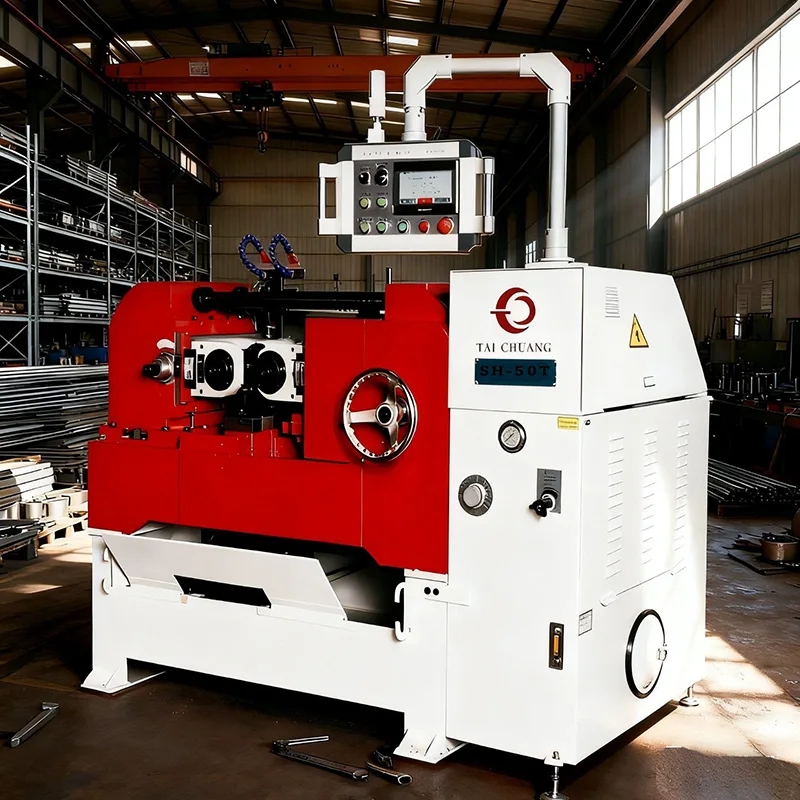

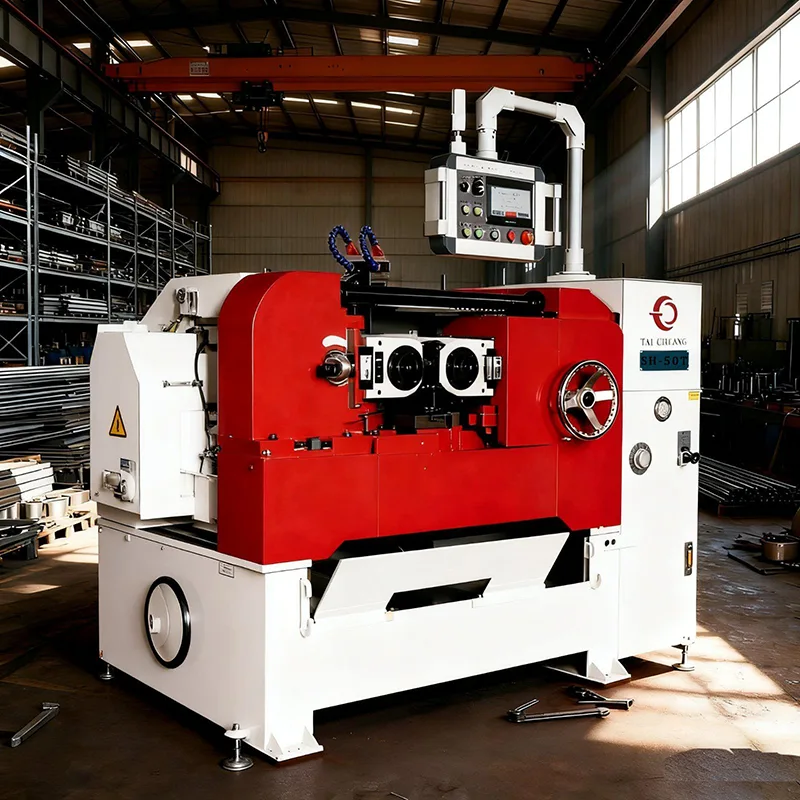

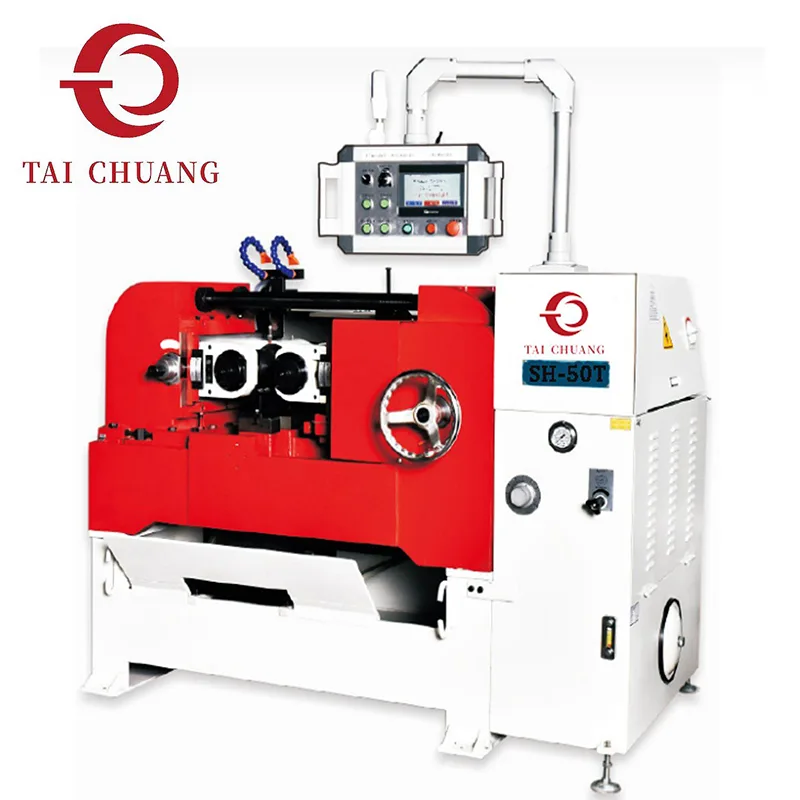

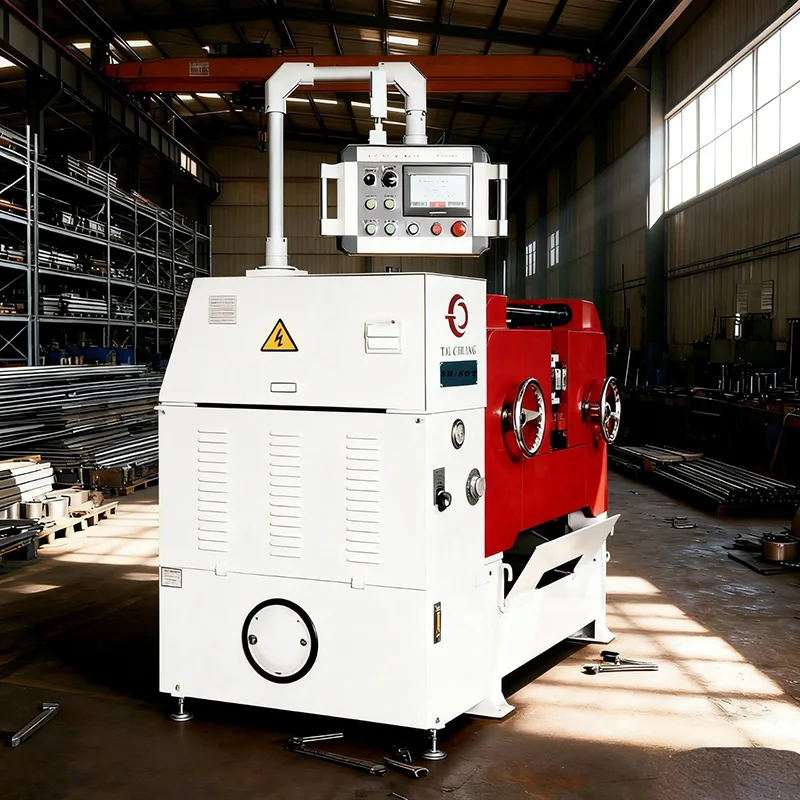

Our High Precision Hydraulic Round Bar Thread Rolling Machine is designed to produce external threads on metal round bars through cold rolling, rather than cutting. Thread rolling preserves material strength, improves surface finish, and ensures precise dimensional consistency. This machine is ideal for companies needing reliable, high-precision thread forming for demanding applications.
We focus on precision, repeatability, and durability to ensure consistent output even in continuous production environments.
|
Item |
Name |
SH-80T |
SH-50T |
SH-35T |
SH-20T |
SH-12.5T |
SH-5T |
|
Range of thread |
Max.diameter |
Φ100mm |
Φ70 mm |
Φ70 mm |
Φ60mm |
Φ60mm |
Φ50mm |
|
Min.diameter |
Φ10mm |
Φ6mm |
Φ6mm |
Φ4mm |
Φ3mm |
Φ1.6mm |
|
|
Pitch |
0.6-10mm |
0.6-6.3mm |
0.6-6.3mm |
0.6-4mm |
0.6-2.5mm |
0.25-2mm |
|
|
Range of length(in feed) |
5-300mm |
5-200mm |
5-170mm |
5-150mm |
5-70mm |
5-50mm |
|
|
Range of length(thru feed) |
Free |
Free |
Free |
Free |
Free |
Free |
|
|
Speed Range |
|
5-40R.P.M |
0-65 R.P.M |
0-65 R.P.M |
0-65 R.P.M |
0-65 R.P.M |
0-100 R.P.M |
|
Thread rolling Dies |
Max.diameter |
Φ250-270mm |
Φ198 mm |
Φ198 mm |
Φ178mm |
Φ150mm |
Φ100-118mm |
|
Bore diameter |
Φ110mm |
Φ85 mm |
Φ85 mm |
Φ54mm |
Φ54mm |
Φ50.5mm |
|
|
Width range |
50-260mm |
50-200mm |
50-170mm |
50-150mm |
70mm |
50mm |
|
|
Key way |
25mm |
18mm |
18mm |
12mm |
12mm |
8mm |
|
|
Dies spindle |
Max.diameter |
360mm |
220mm |
220mm |
190mm |
160mm |
151mm |
|
Min.diameter |
210mm |
150mm |
150mm |
130mm |
115mm |
90mm |
|
|
Max rolling pressure |
80Tons |
50Tons |
35Tons |
20Tons |
12.5Tons |
5Tons |
|
|
Main power |
30HP(22.5kw) |
20HP(15kw) |
15HP(1.25kw) |
10HP(7.5kw) |
7.5HP(5.6kw) |
3HP(2.2kw) |
|
|
Hydraulic power |
10HP(7.5kw) |
7.5HP(5.6kw) |
5HP(3.75kw) |
5HP(2.2kw) |
3HP(2.2kw) |
2HP(1.5kw) |
|
|
|
Coolant power |
1/2HP(0.375kw) |
1/4HP(0.18kw) |
1/4HP(0.18kw) |
1/4HP(0.18kw) |
1/8HP |
1/8HP |
|
|
Height from Floor to Spindle center |
1015mm |
1000mm |
1000mm |
1000mm |
820mm |
743mm |
|
|
Floor Speace Required(LxWxH)m/m |
2900*2400*1710mm |
1740*1840*2300mm |
1740*1840*2300mm |
1660*1550*1700mm |
1130*1361*1300mm |
1150*1150*1300mm |
|
Weight |
Net weight |
8500kgs |
4000kgs |
3500kgs |
2250kgs |
1600kgs |
1200kgs |
|
Gross weight |
9100kgs |
4500kgs |
3600kgs |
2500kgs |
1850kgs |
1450kgs |
TAICHUANG High Precision Hydraulic Round Bar Thread Rolling Machine is widely used in many industries with high requirements for thread strength and accuracy. We have accumulated rich application experience and stable customer cases in global markets.
In the automotive industry, it processes high-strength engine bolts, transmission shafts, chassis connectors and wheel bolts. The cold-rolled thread has higher tensile force and longer service life, fully meeting automotive safety standards.
As a professional brand supplier, TAICHUANG attaches great importance to product quality and safety performance. All our high precision hydraulic round bar thread rolling machines comply with international safety standards and quality management systems.
We provide complete certification documents, including CE certification, material inspection reports, hydraulic system test reports, factory test records and operation manuals. Before delivery, each machine will go through no less than 8 hours of continuous trial operation, thread precision testing, pressure stability testing and noise testing to ensure that customers receive qualified and ready-to-use equipment.
We use professional export packaging to protect the machine in long-distance transportation. The whole machine is covered with moisture-proof film, fixed with solid wooden box to avoid collision and damage.For sea transportation, we can cooperate with your designated freight forwarder or arrange reliable logistics channels for you. We will complete the production, testing and packaging within the agreed delivery time, and provide packing list, commercial invoice, bill of lading and other customs declaration documents to help you clear customs smoothly.
