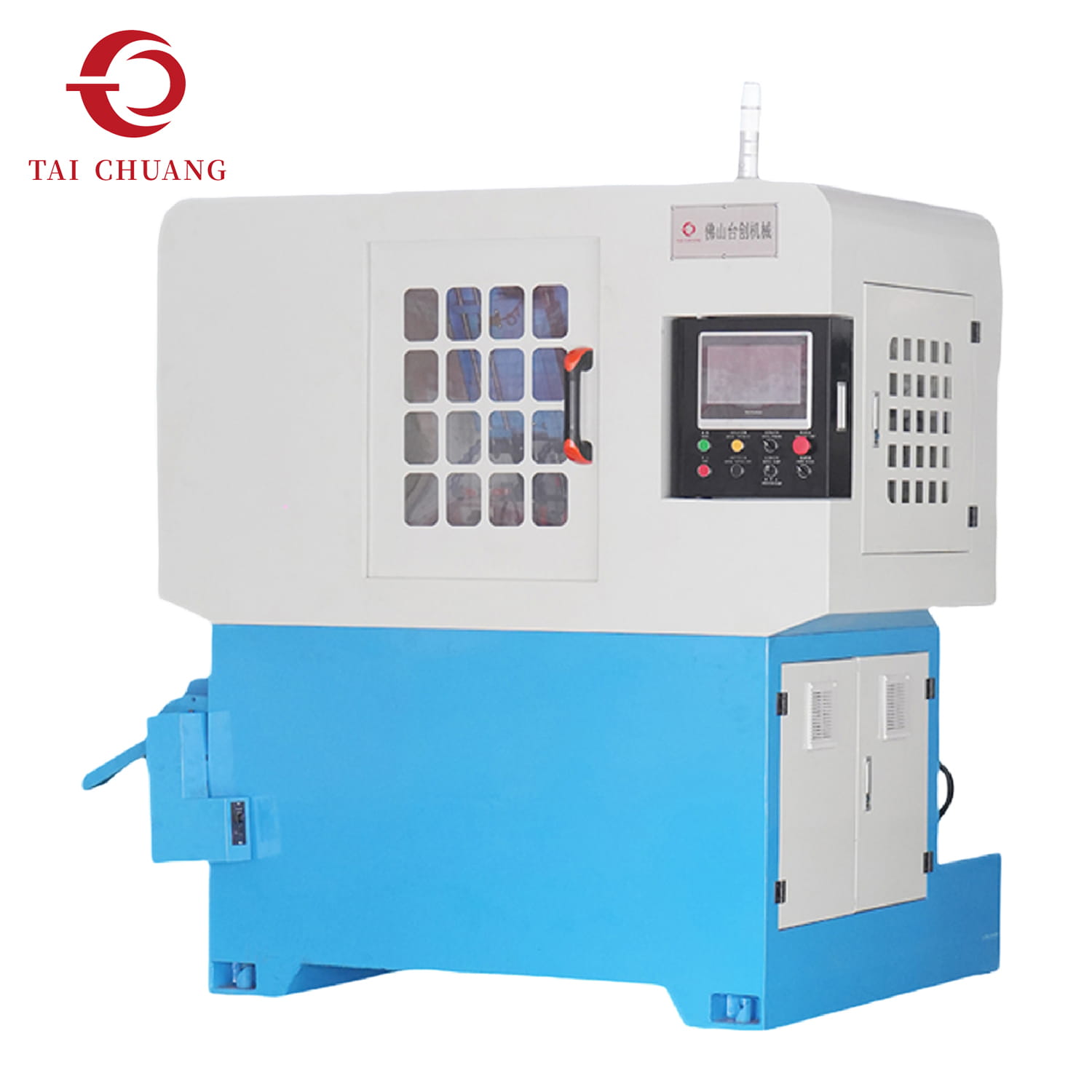

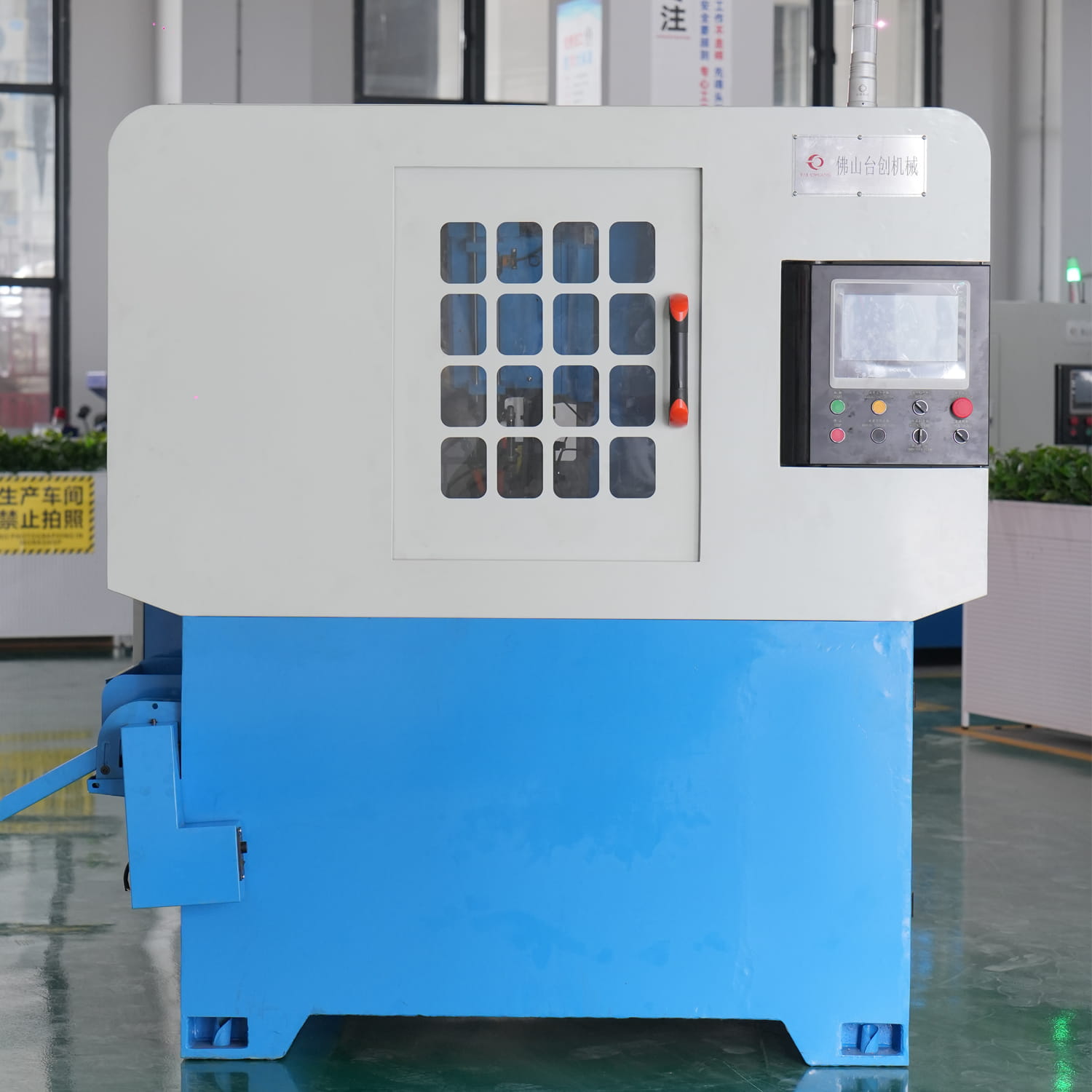

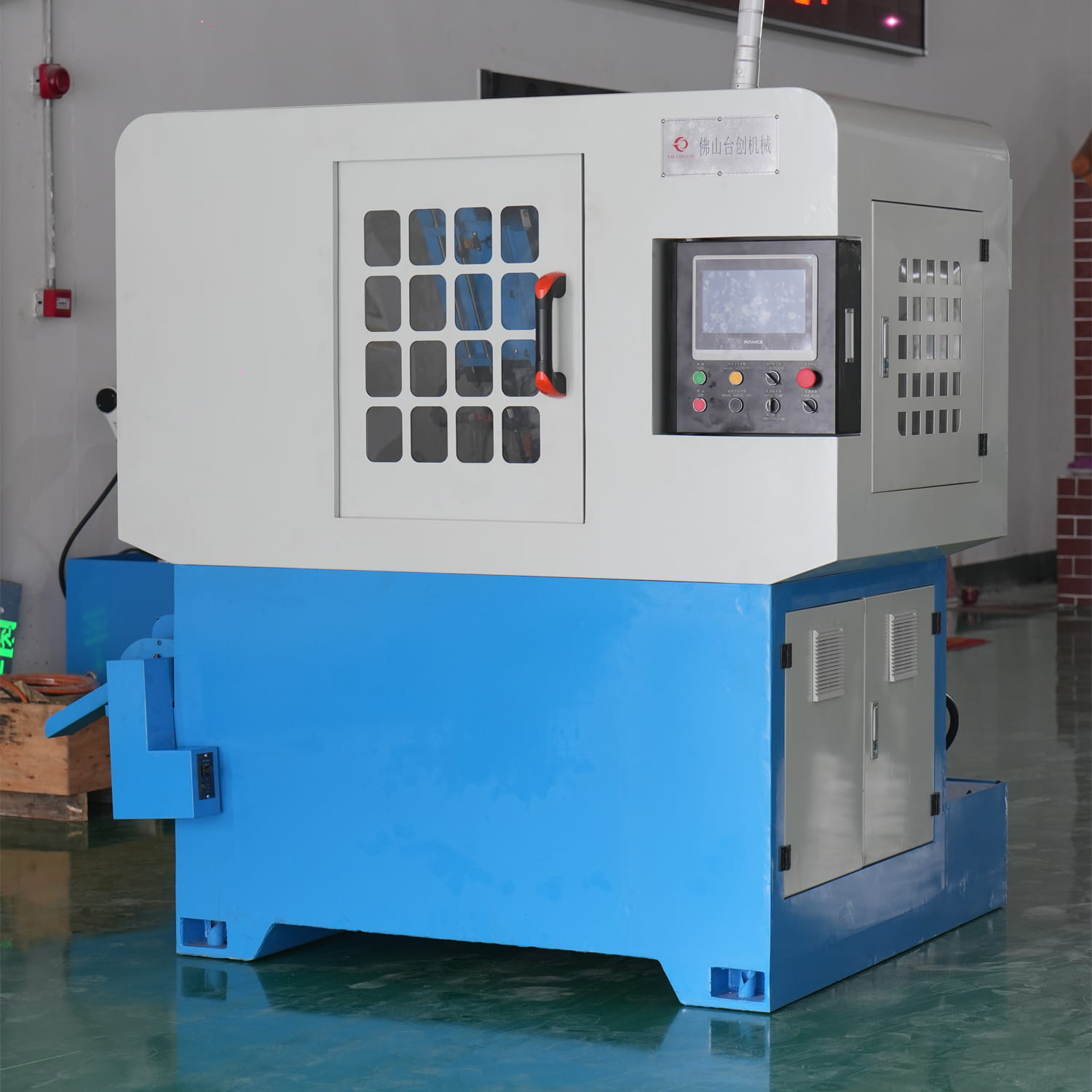

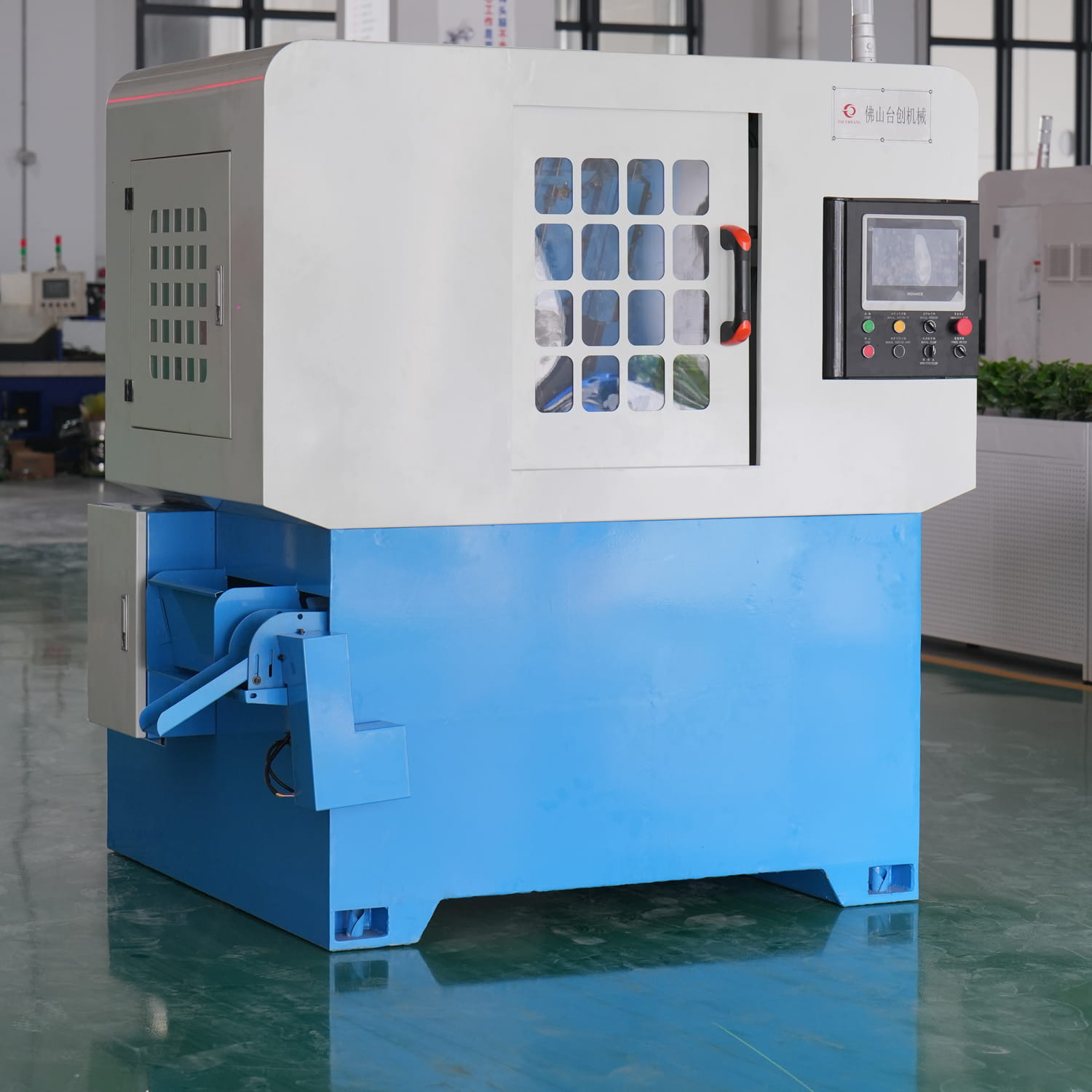

Automatic Tapping Machine for Special Connectors

Not all threaded parts are regular hexagonal. Some connectors have protrusions, shoulders, flanges, extended bodies, grooves, or other features that make automated processing more complicated.

For such parts, the challenge extends beyond the actual internal threading process. The equipment must also ensure that each part is fed in the correct orientation, held securely during tapping, and removed after processing—all without interfering with the subsequent production cycle.

Automatic tapping machines designed for special connectors can effectively meet these production needs—they adjust the equipment layout according to the specific characteristics of the workpiece, rather than forcing all parts to conform to a uniform standard configuration.

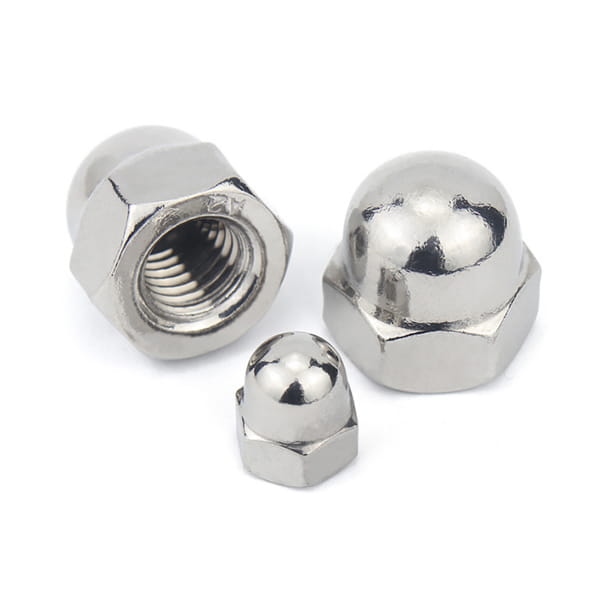

Taichuang provides nut tapping equipment for various fastener applications, covering customized nut connectors and other parts that require internal thread machining.

Product specifications

Flexible Production for Custom Orders

Special connector manufacturers may receive orders in several dimensions, materials or thread specifications. The production setup needs to balance automation with the time required for changing workpieces and tooling.

Depending on the machine model and project, useful features may include:

PLC-based control

HMI touchscreen operation

Adjustable tapping parameters

Replaceable workpiece guides or fixtures

Accessible tap replacement

Automatic feeding and discharge

Machine abnormality alarms

Tap breakage detection

Material shortage alarms

Selecting the Right Machine Structure

Special connectors may be processed on different types of tapping equipment, depending on the production cycle and workpiece handling requirements.

Reciprocating tapping machine

This arrangement may suit applications where the workpiece is positioned for a tapping cycle and then moved away for the next operation. It can be considered when the component geometry or process sequence requires this type of handling.

Pass-through tapping machine

A pass-through arrangement may suit components that can be delivered and positioned continuously through the tapping area. The feeding and workpiece geometry must support stable movement.

Multi-spindle tapping machine

Double-spindle or four-spindle configurations can be considered when production volume justifies multiple tapping stations and the components can be processed reliably with the selected arrangement.

The best solution is not necessarily the machine with the most spindles. Feeding stability, tapping cycle, tool access and changeover requirements all affect the result.

FAQ

Can an automatic tapping machine process irregularly shaped connectors?

It may be possible if the workpiece can be fed, positioned and held reliably. The external shape and internal thread location should be reviewed, and sample testing is recommended for unusual parts.

Can the machine tap internal threads at different depths?

The machine configuration and tapping cycle must support the specified thread depth. Provide the component drawing so the required tapping movement and tooling can be evaluated.

What if our connector cannot be oriented in a vibratory bowl feeder?

 The feeding method should be assessed according to the part's shape and behavior. A modified bowl, guide track, fixture or alternative feeding arrangement may be considered after testing.

Can the machine handle small batches of different connector types?

This depends on the changeover requirements and the degree of customization in the feeding system. For multi-specification production, tool access, fixture changes and parameter adjustment should be considered during machine selection.

Can you test our connector samples?

Yes. Samples, drawings, taps and thread gauges can be provided for evaluation where available. Testing can help assess feeding, positioning and internal thread quality before the machine configuration is finalized.

How is the production capacity determined?

Capacity depends on the tapping cycle, thread depth, material, feeding performance, spindle quantity and the time needed for handling and inspection. A realistic estimate should be based on the actual component rather than spindle speed alone.

Develop an Automatic Tapping Solution for Your Special Connectors

A special connector often needs more than a standard tapping cycle. The feeding method, workpiece orientation, positioning fixture and internal thread requirements must work together as one process.

Taichuang can evaluate your connector drawings and samples to identify a suitable Automatic Tapping Machine for Special Connectors, including the appropriate tapping structure, feeding arrangement and level of automation.

Send us your part drawing or sample, thread specification, material and target output to discuss a solution for your application.
