Tapping Machine for Threaded Connectors

Threaded fasteners are widely used for connecting, fixing, or assembling mechanical parts. Many of these components rely on internal threads to connect with bolts, screws, studs, or other threaded assemblies, and the precision and consistency of the threads directly affect assembly performance.Tapping machines for threaded fasteners are specifically designed to cut internal threads in nuts and similar fasteners. Unlike manual tapping, automatic tapping systems enable the automated loading, positioning, and processing of workpieces, thereby establishing a more efficient and streamlined production workflow.Taichuang provides nut tapping equipment suitable for various internal thread applications, covering a wide range of products from standard nuts to irregularly shaped connectors. Equipment selection is based on factors such as workpiece drawings, thread specifications, material, tapping depth, and required production capacity.

Product specifications

One Machine for the Internal Threading Process

For a threaded connector, the internal thread must match the mating component. Thread diameter, pitch, depth and tolerance are therefore important when selecting a tapping machine.

A suitable automatic tapping process generally includes workpiece feeding, positioning, tap engagement, thread machining and finished-part discharge. The arrangement can be adapted to the connector's shape and production requirements.

The main purpose is not simply to rotate a tap. It is to establish a repeatable process that can handle the workpiece consistently throughout production.

When evaluating athreaded connector tapping machine, important considerations include:

Internal thread specification and pitch

Required thread depth

Connector material and hardness

Pre-machined hole diameter

Workpiece height and outside dimensions

Feeding orientation and positioning

Required output per hour

Inspection method for finished threads

These details help determine the suitable machine structure, spindle configuration and operating parameters.

Designed for Nuts and Threaded Connectors

Not every threaded connector has the same external shape. A standard hex nut can behave very differently from a long coupling nut, a flange nut or a component with an irregular profile.

The feeding system must present each workpiece in the correct orientation before tapping begins. If the connector is difficult to orient, the feeding arrangement may need to be adjusted or customized.

Hexagonal Connectors

Hex nuts and hex-shaped threaded components are common in mechanical assemblies. Their regular external geometry can make automatic orientation practical when the dimensions and feeding conditions are suitable.

Flange Connectors

Flange nuts have an extended bearing surface that changes their overall profile. The feeding and positioning system needs to accommodate the flange without compromising stable delivery to the tapping position.

Welded Threaded Connectors

Weld nuts and similar components are used to provide threaded attachment points in assemblies. Their projections or special external features should be considered when selecting the feeding method.

Long and Special-Shaped Connectors

Long coupling nuts, sleeves and other non-standard parts may require a different feeding track, fixture or positioning arrangement. For these applications, testing actual samples is useful before confirming the machine configuration.

Automatic Tapping Machine for Consistent Production

Manual tapping can be practical for small quantities, but repetitive handling becomes less efficient as production volume increases. An automatic tapping machine reduces the need to load and remove each component by hand.

Depending on the selected model, the production arrangement may include:

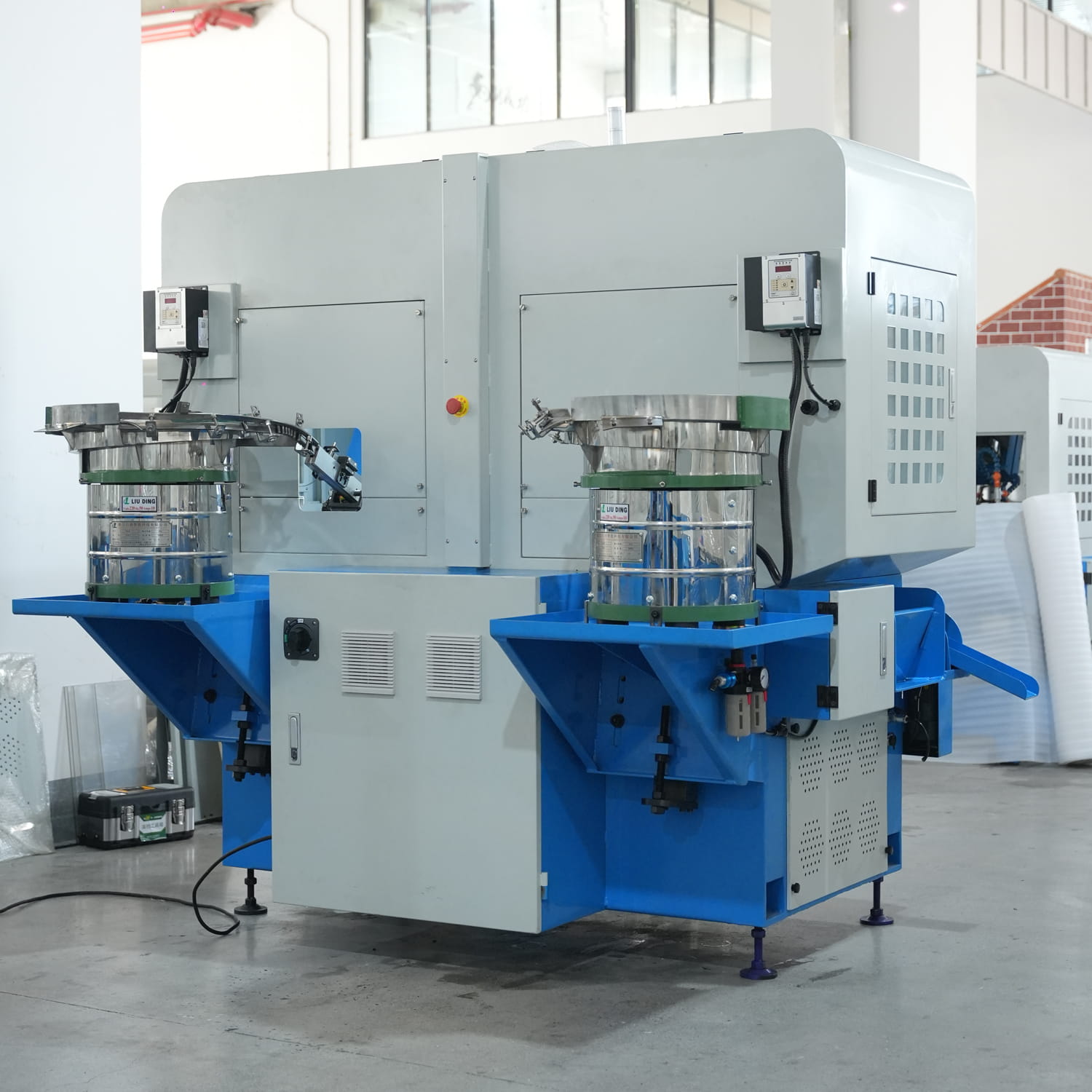

Automatic vibratory feeding

Workpiece orientation and positioning

Controlled tapping movement

Adjustable tapping speed

Automatic discharge

PLC integrated control

HMI touchscreen operation

Tap breakage and abnormal-condition alarms

Material shortage detection

 For manufacturers processing large batches of threaded connectors, automation can help reduce repetitive labor and maintain a more consistent production routine.
