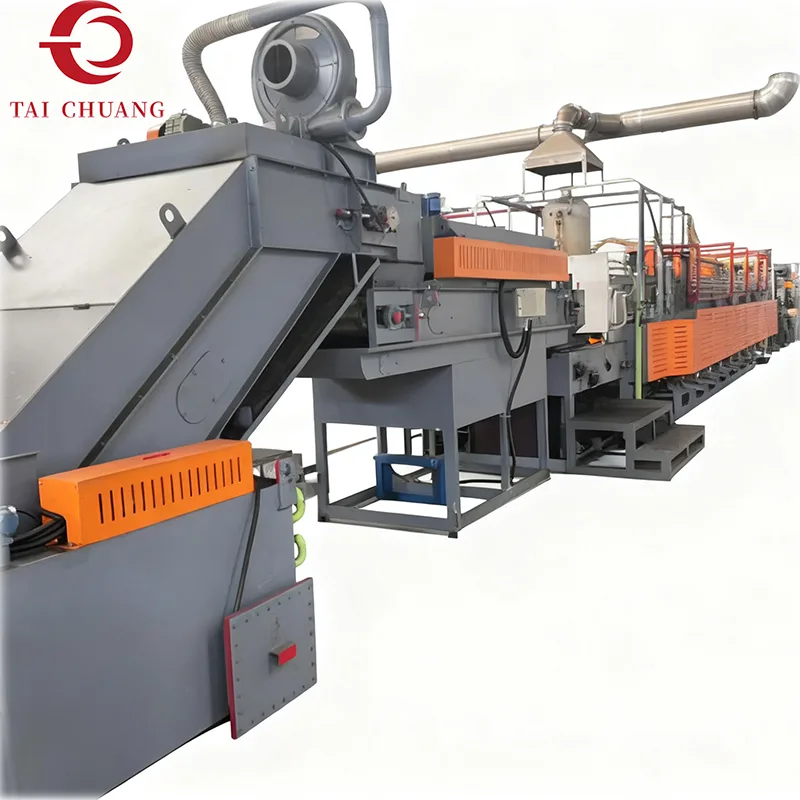

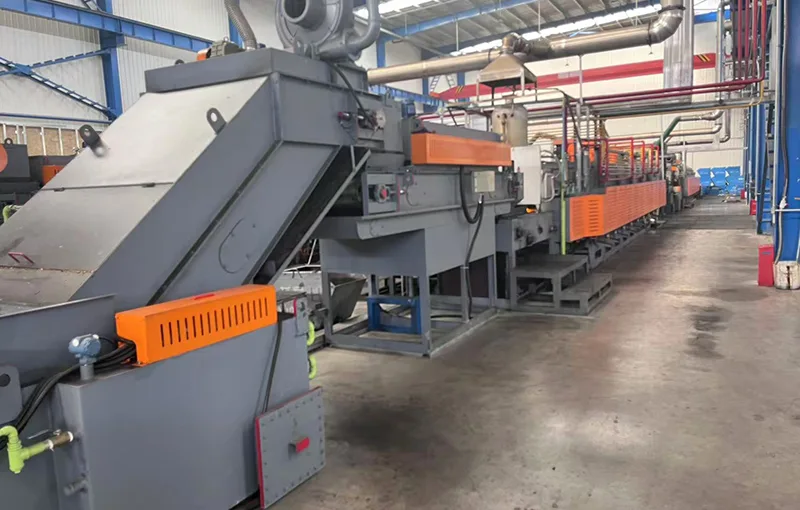

Heat treatment is a critical process in metal manufacturing that improves the mechanical properties of components such as hardness, strength, and durability. The Mesh Belt Furnace is designed to perform continuous heat treatment for small and medium-sized metal parts using a conveyor mesh belt system.
In this type of furnace, metal components are transported through different heating zones on a moving mesh belt. The controlled thermal environment allows parts to undergo processes such as annealing, quenching, tempering, or carburizing depending on the production requirements. Continuous movement through the furnace ensures uniform heat distribution and consistent processing results.
The mesh belt conveyor allows components to be evenly distributed and transported smoothly through the heating chamber. This design is particularly suitable for processing large quantities of small metal parts that require consistent heat treatment conditions.
The Mesh Belt Furnace is widely used in fastener manufacturing, automotive component production, and metal hardware processing. By enabling continuous operation, the furnace helps manufacturers improve production efficiency while maintaining stable heat treatment quality.
TAICHUANG supplies mesh belt heat treatment furnaces as part of its industrial thermal processing equipment solutions.
|
Model |
Power (kw) |
Total power (kw) |
Working Temp. |
Working Dimension (mm) |
Length of Working Area (mm) |
Capacity (kg/s) |
|
RB - 805 - A |
80 |
160 - 180 |
950 |
400320080 |
23000 |
hardening 150, carburizing 60 |
|
RB - 805 - 1 |
120 |
220 - 250 |
950 |
500470080 |
25000 |
hardening 300, carburizing 150 |
|
RB - 805 - 2 |
220 |
400 |
950 |
600600080 |
38000 |
hardening 450, carburizing 220 |
|
RB - 805 - 3 |
240 |
450 |
950 |
800600080 |
38000 |
hardening 150, carburizing 60 |
|
RB - 805 - 4 |
300 |
480 |
950 |
1000600080 |
37000 |
hardening 700, carburizing 350 |
|
RB - 805 - 5 |
460 |
800 |
950 |
10001000080 |
51000 |
hardening 1300, carburizing 7500 |
|
RB - 805 - 6 |
950 |
1800 |
950 |
12001350080 |
60000 |
hardening 2500, carburizing 1350 |
The Mesh Belt Furnace performs heat treatment through a continuous conveyor-based system.
Metal parts are placed onto the mesh belt conveyor at the furnace entrance.
Components move through a controlled heating chamber where temperature is precisely maintained according to the required heat treatment process.
Parts remain at specific temperatures for a controlled period to achieve desired material properties.
After heating, components move into cooling zones where temperature gradually decreases.
Finished components exit the furnace ready for further processing or inspection.
A durable metal mesh belt transports components continuously through the furnace chamber.
The furnace includes multiple heating zones to maintain precise temperature control.
The conveyor-based system allows uninterrupted heat treatment processing.
The furnace is designed for long-term operation in manufacturing environments.
The Mesh Belt Furnace is commonly used to heat treat small metal components produced in large quantities.
Typical parts include:
bolts and screws
nuts and fasteners
springs
small automotive parts
hardware components
metal mechanical parts
These parts require controlled heat treatment to achieve the desired mechanical strength and durability.
Continuous mesh belt furnaces are widely used in manufacturing industries requiring high-volume heat treatment.
Typical industries include:
fastener manufacturing
automotive parts production
hardware manufacturing
metal component processing
industrial equipment manufacturing
Manufacturers in these industries rely on mesh belt furnaces to improve product strength and reliability through controlled heat treatment processes.
TAICHUANG provides industrial equipment solutions designed to support modern manufacturing processes. The mesh belt furnaces supplied by TAICHUANG help manufacturers achieve stable heat treatment performance in large-scale production environments.
industrial heat treatment equipment solutions
continuous furnace systems for metal components
equipment suitable for fastener and hardware manufacturing
solutions serving global industrial markets
What is a mesh belt furnace?
A mesh belt furnace is a continuous heat treatment furnace that uses a metal mesh conveyor belt to transport parts through heating and cooling zones.
What processes can be performed in a mesh belt furnace?
Common heat treatment processes include annealing, tempering, carburizing, and quenching depending on the furnace configuration.
What types of parts are suitable for mesh belt furnaces?
Mesh belt furnaces are ideal for small metal parts such as fasteners, springs, and hardware components.
What industries commonly use mesh belt furnaces?
Industries such as fastener manufacturing, automotive component production, and hardware manufacturing widely use mesh belt furnaces.
What is the advantage of a continuous heat treatment furnace?
Continuous furnaces allow large quantities of parts to be processed efficiently with consistent heat treatment quality.
