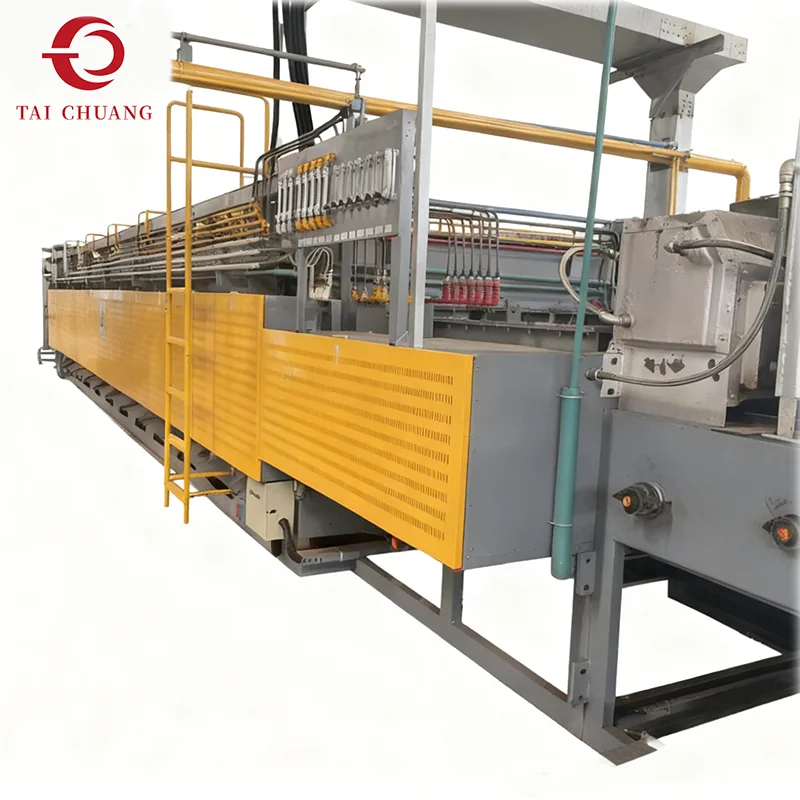

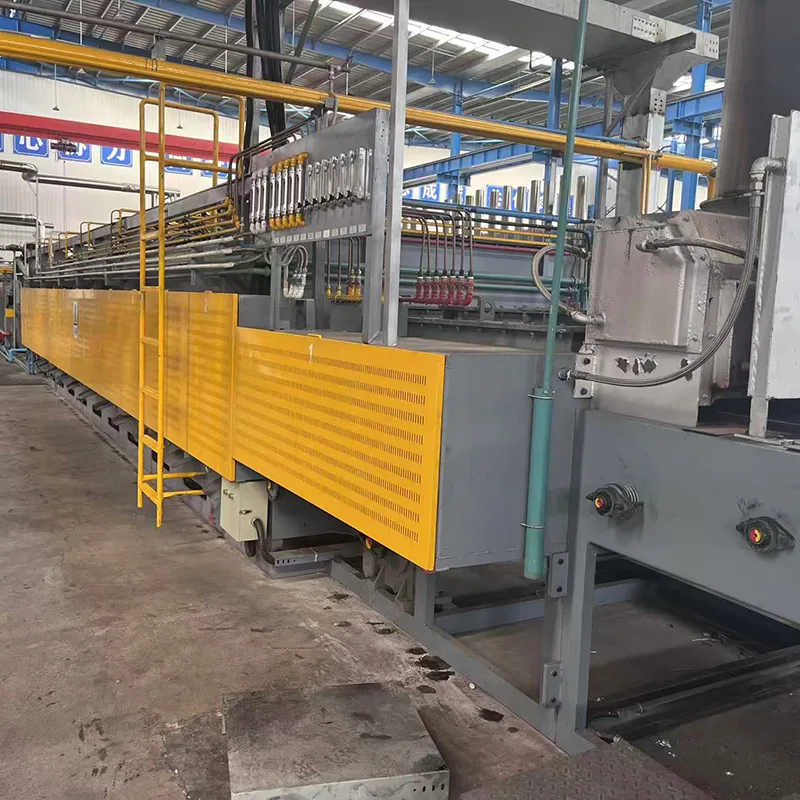

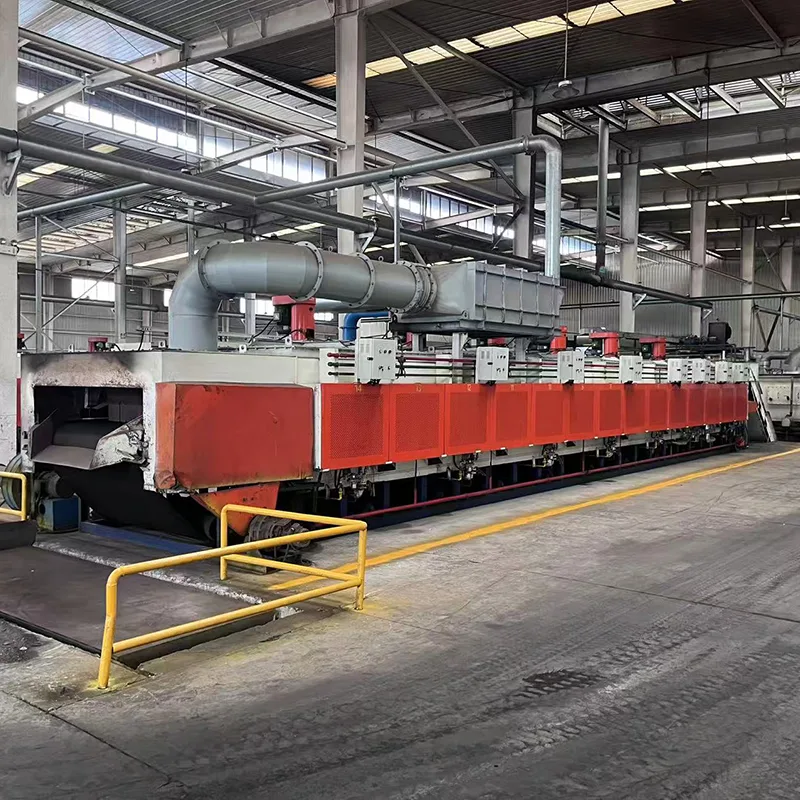

Modern metal manufacturing industries require efficient heat treatment systems capable of handling large production volumes while maintaining consistent material properties. The Continuous Mesh Belt Furnace is developed to provide uninterrupted thermal processing of metal components through a conveyor-based heat treatment system.
In this furnace configuration, components are loaded onto a moving mesh belt that transports them through a sequence of temperature-controlled chambers. Each zone of the furnace performs a specific stage of the heat treatment cycle, such as heating, soaking, and cooling. The continuous movement of the conveyor ensures uniform exposure to temperature conditions, resulting in stable mechanical properties across processed components.
Continuous mesh belt furnaces are particularly suitable for manufacturers producing large quantities of small to medium-sized metal parts. The conveyor system allows components to be processed without interruption, significantly improving production efficiency compared with traditional batch furnaces.
The furnace can be configured to perform various heat treatment processes including annealing, tempering, carburizing, and other controlled atmosphere treatments depending on the application. Accurate temperature control and stable conveyor movement help ensure consistent processing quality across production batches.
TAICHUANG supplies this systems to support industrial heat treatment operations for fastener production, automotive parts manufacturing, and metal component processing.
|
Model |
Power (kw) |
Total power (kw) |
Working Temp. |
Working Dimension (mm) |
Length of Working Area (mm) |
Capacity (kg/s) |
|
RB - 805 - A |
80 |
160 - 180 |
950 |
400320080 |
23000 |
hardening 150, carburizing 60 |
|
RB - 805 - 1 |
120 |
220 - 250 |
950 |
500470080 |
25000 |
hardening 300, carburizing 150 |
|
RB - 805 - 2 |
220 |
400 |
950 |
600600080 |
38000 |
hardening 450, carburizing 220 |
|
RB - 805 - 3 |
240 |
450 |
950 |
800600080 |
38000 |
hardening 150, carburizing 60 |
|
RB - 805 - 4 |
300 |
480 |
950 |
1000600080 |
37000 |
hardening 700, carburizing 350 |
|
RB - 805 - 5 |
460 |
800 |
950 |
10001000080 |
51000 |
hardening 1300, carburizing 7500 |
|
RB - 805 - 6 |
950 |
1800 |
950 |
12001350080 |
60000 |
hardening 2500, carburizing 1350 |

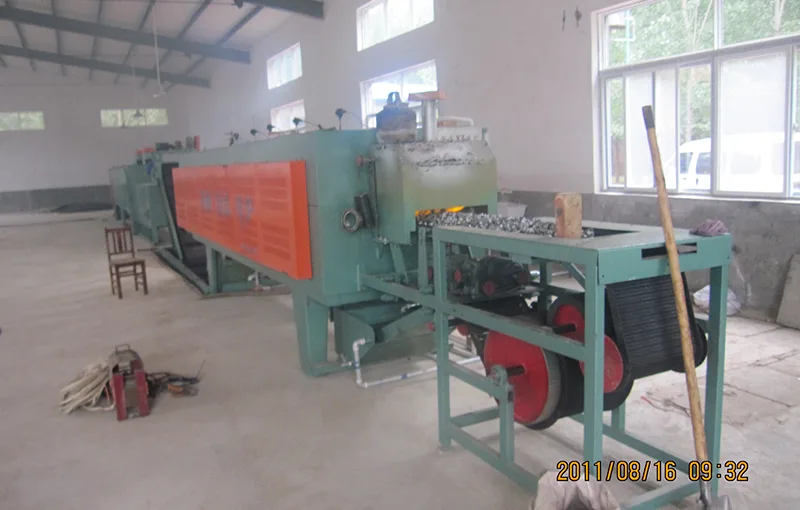

The Continuous Mesh Belt Furnace operates through a conveyor-driven process that allows components to pass through different thermal zones.
Metal components are placed onto the mesh belt conveyor at the furnace entrance.
Parts are gradually heated to prepare them for the main heat treatment process.
The furnace maintains controlled high temperatures where components undergo the required heat treatment cycle.

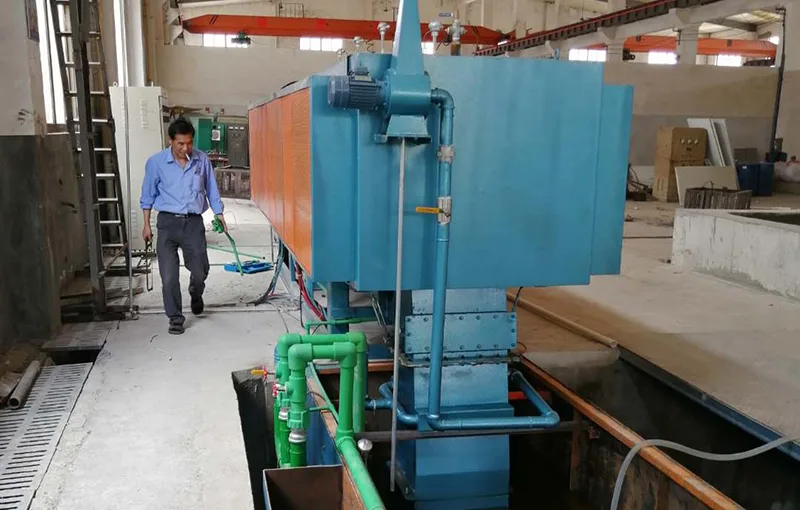

After the heating stage, parts pass through cooling zones where the temperature is reduced under controlled conditions.
Heat-treated parts exit the furnace ready for further processing or quality inspection.
The mesh belt system enables uninterrupted movement of components through the furnace.
Different heating zones allow precise control of the heat treatment process.
The furnace chamber maintains consistent temperature distribution for uniform processing.
The equipment is designed for long-term continuous operation in manufacturing facilities.
What is a continuous mesh belt furnace?
A continuous mesh belt furnace is a heat treatment system that uses a moving mesh conveyor to transport parts through heating and cooling zones.
What types of heat treatment can be performed?
Processes such as annealing, tempering, carburizing, and controlled atmosphere heat treatment can be performed depending on furnace configuration.
What types of parts are suitable for continuous mesh belt furnaces?
Small and medium-sized metal components such as fasteners, springs, and hardware parts are commonly processed in these furnaces.
What industries use continuous heat treatment furnaces?
Industries such as fastener manufacturing, automotive component production, and metal hardware manufacturing widely use these systems.
