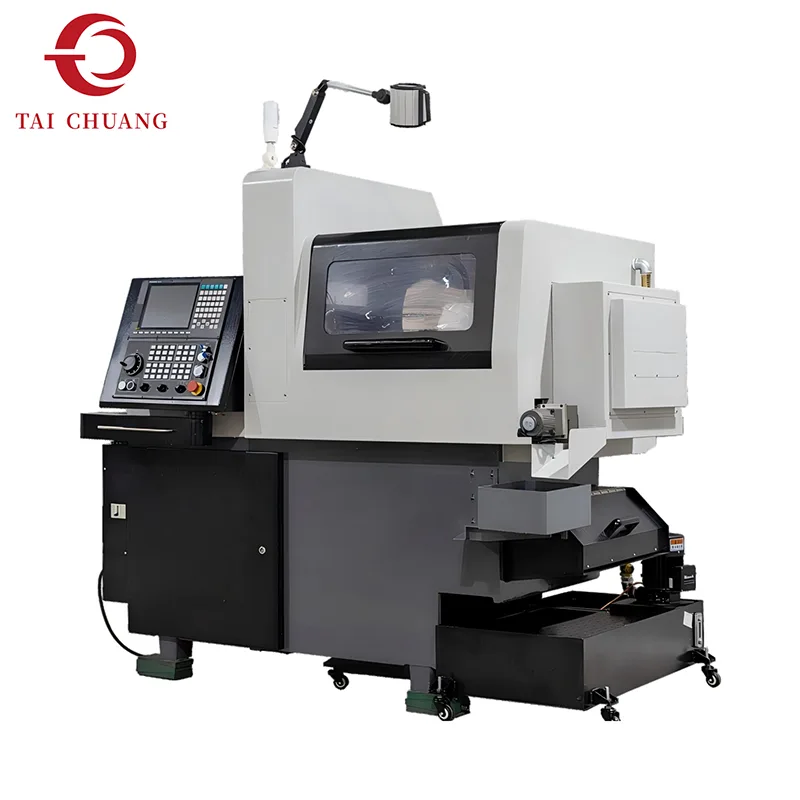

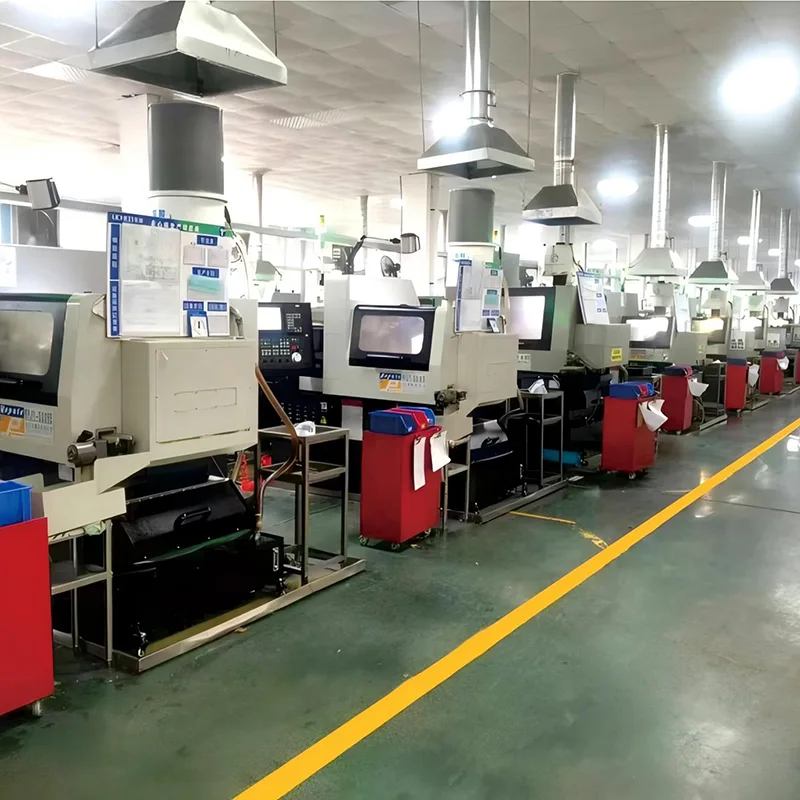

High-precision component manufacturing often requires machining equipment capable of handling complex geometries while maintaining excellent dimensional stability. The 5 Axis Swiss Type Lathe addresses these requirements through a combination of sliding headstock architecture and advanced multi-axis motion control.
Unlike conventional turning centers, Swiss type lathes support the workpiece close to the cutting zone using a guide bushing. This design significantly improves rigidity during machining, especially when processing long and slender parts. As a result, vibration and deflection are minimized, allowing higher precision and improved surface finish.
The integration of five controlled axes enables multiple machining operations to be performed during a single production cycle. Turning, cross drilling, slot milling, and thread cutting can be completed sequentially without removing the workpiece from the machine. This capability helps reduce secondary operations and increases production efficiency.
TAICHUANG provides this Swiss type lathe solution for manufacturers engaged in precision component production, particularly where small diameters and tight tolerances are critical.
| Item | RPC-Ⅰ-205 | RPC-Ⅰ-205A | RPC-Ⅰ-205B | |
| Travel and Hole Diameter | Max Working Speed of Main/Sub-Spindle(rpm) | 8000/8000 | 8000/8000 | 8000/8000 |
| Max Swivel Diameter of Main/Sub-Spindle(mm) | Φ20/Φ20 | Φ20/Φ20 | Φ20/Φ20 | |
| Minimum Divsion Number | Continuous Indexing | Continuous Indexing | Continuous Indexing | |
| Main/Sub-Spindle Hole Diameter(mm) | Φ22/Φ22 | Φ22/Φ22 | Φ22/Φ22 | |
| Main Spindle | OD Turning Tool Specifications and Quantity | |||
| OD Turning Tool Quantity(pcs) | 5 Turning Tool | 5 Turning Tool | 12 Turning Tool | |
| OD Turning Tool Shark Size(mm) | 12×12 | 12×12 | 12×12 | |
| End Face Fixed Tool Quantity(pcs) | 4×Φ20 Round hole(ER11) | 2×Φ20 Round hole(ER11) | / | |
| Max Drilling Diameter(mm) | Φ9 | Φ9 | / | |
| Max Tapping Diameter(mm) | M8 | M8 | / | |
| End Face Power-driven Tool Quantity(pcs) | / | ER11×3 | / | |
| Max Drilling Diameter(mm) | / | Φ5 | / | |
| Max Tapping Diameter(mm) | / | M4 | / | |
| Max Speed(rpm) | / | 5000 | / | |
| Cross Power-driven(Live)Tool Quantity(pcs) | ER11×2 add ER16×2 | ER11×2 add ER16×2 | / | |
| Max Drilling Diameter(mm) | Φ9 | Φ9 | / | |
| Max Tapping Diameter(mm) | M8 | M8 | / | |
| Max Speed(rpm) | 5000 | 5000 | / | |
| Max Saw Blade Milling Diameter(Cross face)(mm) | Φ32/Φ68 | Φ32/Φ68 | / | |
| Guide Bushing Mode/Non-Guide Bushing Mode | ||||
| Sub-Spindle | End Face Power-driven Tool Quantity(pcs) | 6×Φ20Round hole(ER11) | 6×Φ20Round hole(ER11) | 6×Φ20Round hole(ER11) |
| Max Drilling Diameter(mm) | Φ9 | Φ9 | Φ9 | |
| Max Tapping Diameter(mm) | M8 | M8 | M8 | |
| End Face Power-driven Tool Quantity(pcs) | / | / | / | |
| Max Drilling Diameter(mm) | / | / | / | |
| Max Tapping Diameter(mm) | / | / | / | |
| Max Speed(rpm) | / | / | / | |
| Cross Power-driven(Live)Tool Quantity(pcs) | / | / | / | |
| Max Drilling Diameter(mm) | / | / | / | |
| Max Tapping Diameter(mm) | / | / | / | |
| Max Speed(rpm) | / | / | / | |
| Other Parameters | Other Parameters | |||
| Main/Sub-Spindle Motor(kw) | 2.2/2.2 | 2.2/2.2 | 2.2/2.2 | |
| Main Spindle Cross Power-driven Tool Motor(kw) | 1 | 1 | / | |
| Main Spindle End Face Power-driven Tool Motor (kw) | / | / | ||
| 0.4 | ||||
| Sub-Spindle Cross Power-driven Tool Motor(kw) | 1 | 1 | / | |
| Servo Motors(X1,Z1,Y1,X2,Z2)(kw) | X1/Y1/Z1/X2/Z2:1 | X1/Y1/Z1/X2/Z2:1 | X1/Y1/Z1/X2/Z2:1 | |
| Servo Motor(Y2)(kw) | / | / | / | |
| Lubrication Pumb Motor(kw) | 0.1 | 0.1 | 0.1 | |
| Coolant Pump Motor(kw) | 0.35 | 0.35 | 0.35 | |
| Rapid Feed Speed(Factory Setting)(m/min) | X1/Y1/Z1/X2/Z2/Y2:25 | X1/Y1/Z1/X2/Z2/Y2:25 | X1/Y1/Z1/X2/Z2/Y2:25 | |
| Coolant Tank Capacity(L) | 200 | 200 | 200 | |
| Lubrication Unit Capacity(L) | 3 | 3 | 3 | |
| Center Height(mm) | 1050 | 1050 | 1050 | |
| Dimensions(Length×Width×Height)(mm)(Packaging Dimensions add 200) | 2310×1880×1800 | 2100×1200×1700 | 2310×1880×1800 | |
| Machine Weight(kg) | 2500 | 2500 | 2500 | |
| Machine Power(kw) | 11 | 11.5 | 10 | |

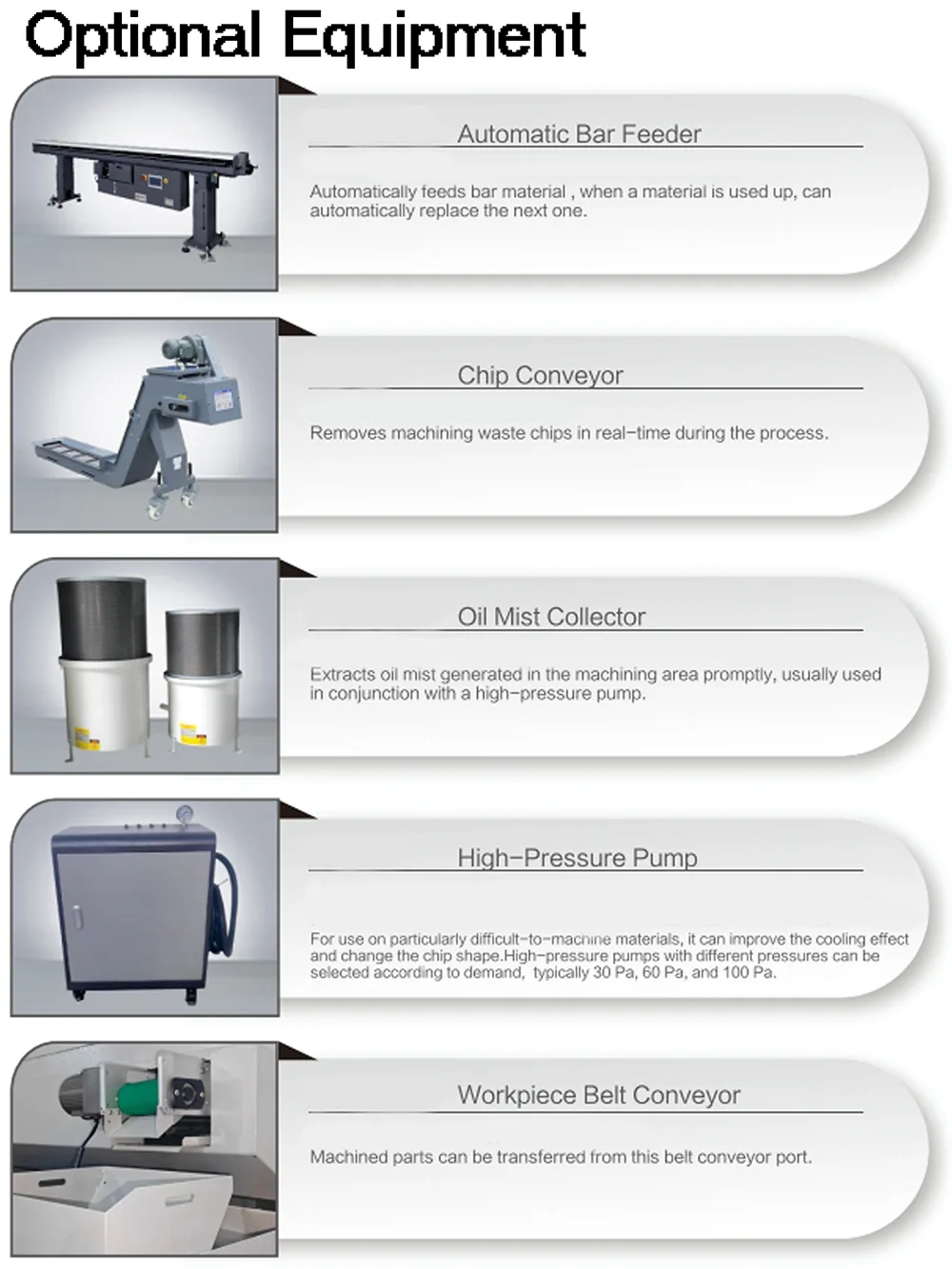

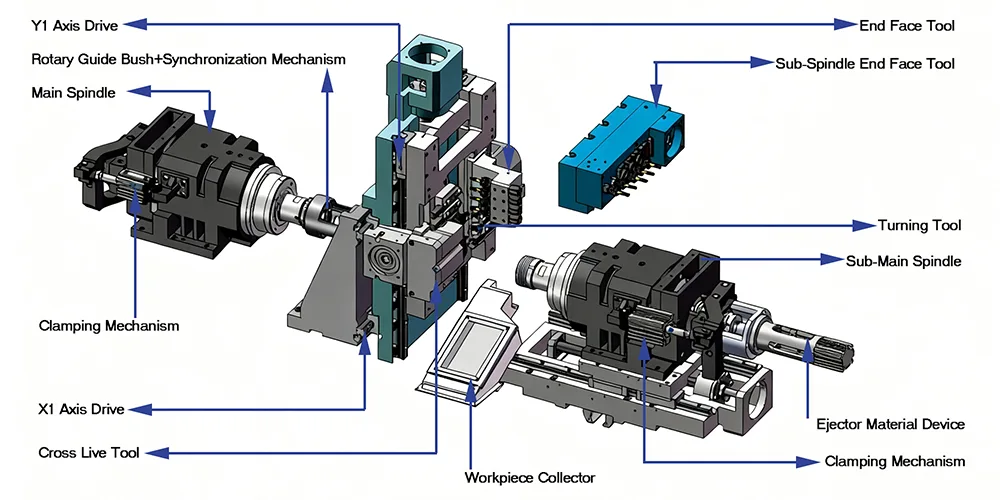

Five-axis motion control allows complex part geometries to be processed efficiently within one machine cycle.

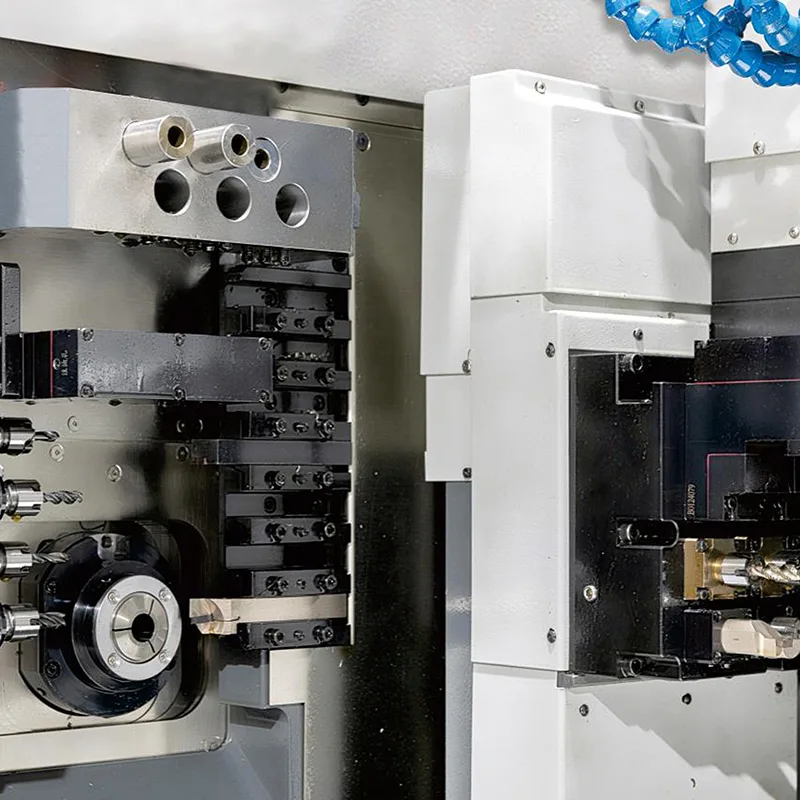

The workpiece moves axially while being supported by a guide bushing, ensuring high rigidity for slender components.
Multiple machining processes can be completed without transferring the workpiece to additional machines.
Optimized for machining small diameter components requiring tight dimensional control.
Guide bushing support helps maintain rigidity when processing long and thin parts.
Multi-axis functionality allows complex components to be completed in fewer setups.
Stable cutting conditions contribute to improved surface finish and dimensional consistency.
Combining multiple machining steps into a single process helps reduce overall production time.

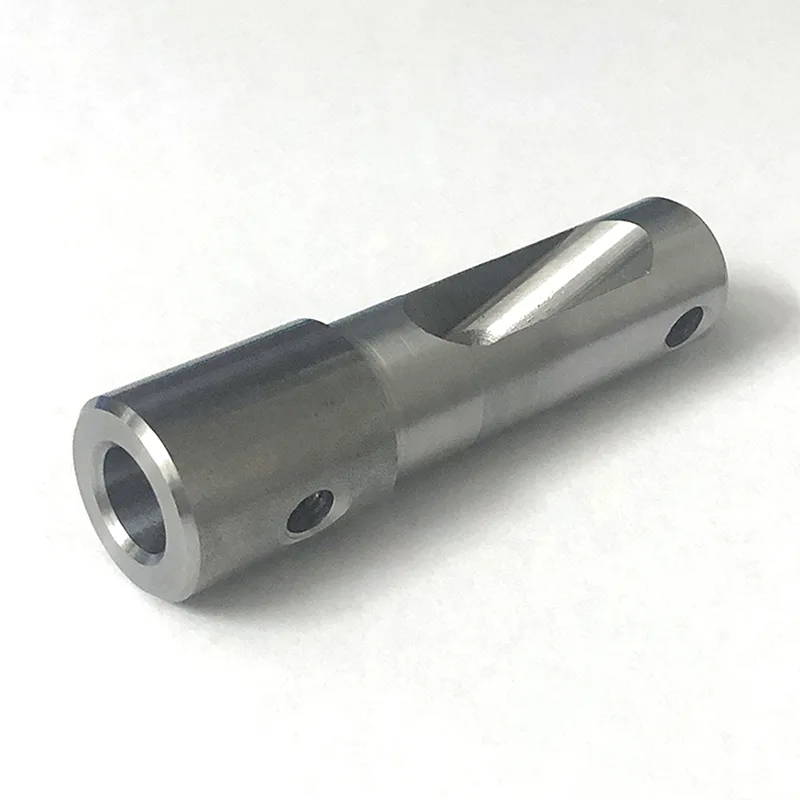

The 5 Axis Swiss Type Lathe is commonly used for manufacturing precision components such as:
medical instrument parts
electronic connectors
precision shafts
miniature fasteners
aerospace components
automotive sensor parts

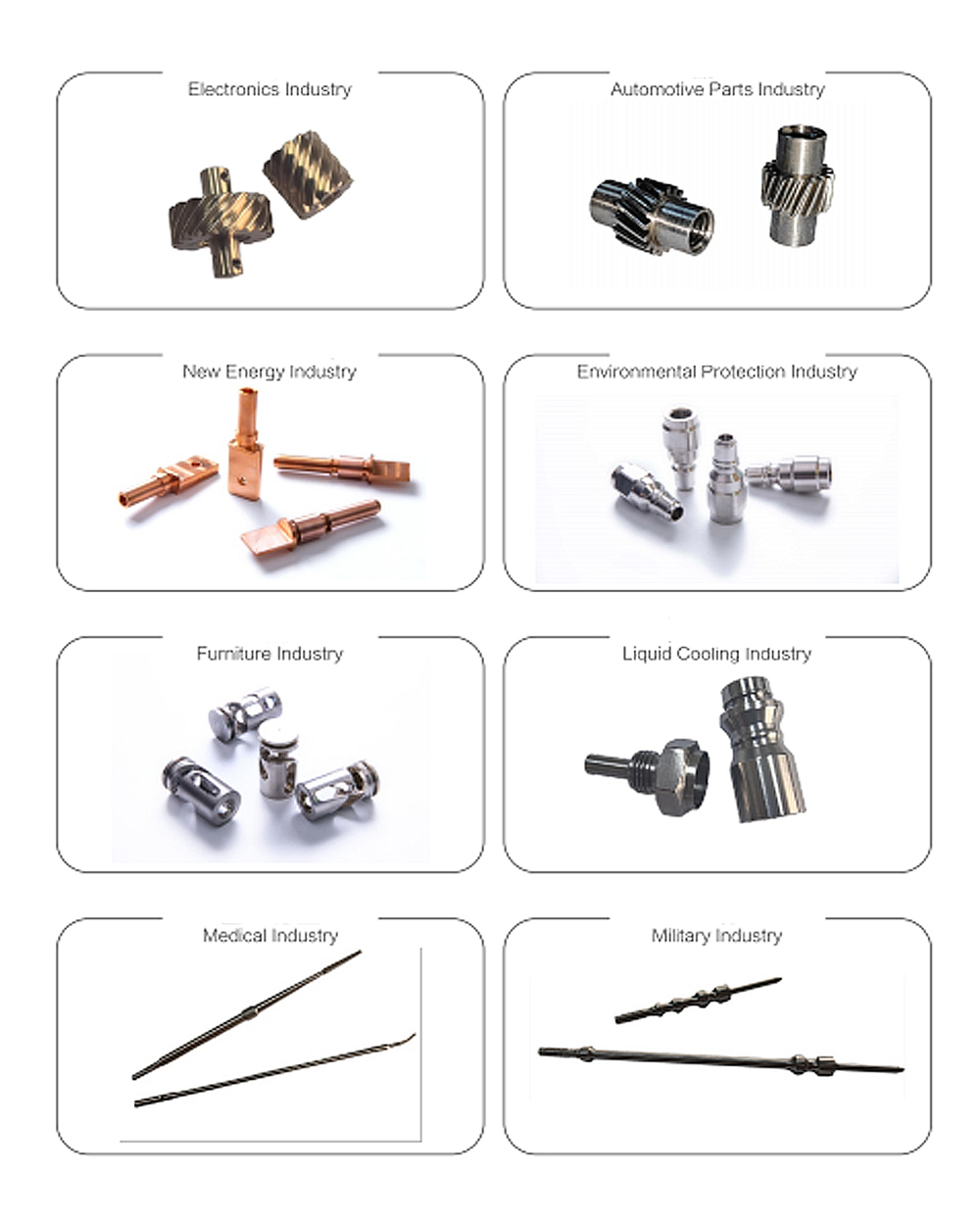

Industries that frequently use Swiss type machining include:
medical device manufacturing
aerospace component production
electronics and semiconductor equipment
precision instrumentation
automotive systems
Q1: What distinguishes a Swiss type lathe from a conventional CNC lathe?
A Swiss type lathe uses a sliding headstock and guide bushing to support the workpiece close to the cutting area. This improves stability when machining long, slender parts.
Q2: What types of materials can be processed on this machine?
Common materials include stainless steel, carbon steel, aluminum alloys, brass, titanium, and various engineering metals used in precision components.
Q3: Why choose a 5-axis Swiss type lathe?
Five-axis capability allows more complex machining operations to be performed in a single setup, improving productivity and reducing part handling.
Q4: Is the machine suitable for mass production?
Yes. Swiss type lathes are widely used for high-volume manufacturing of small precision components.
