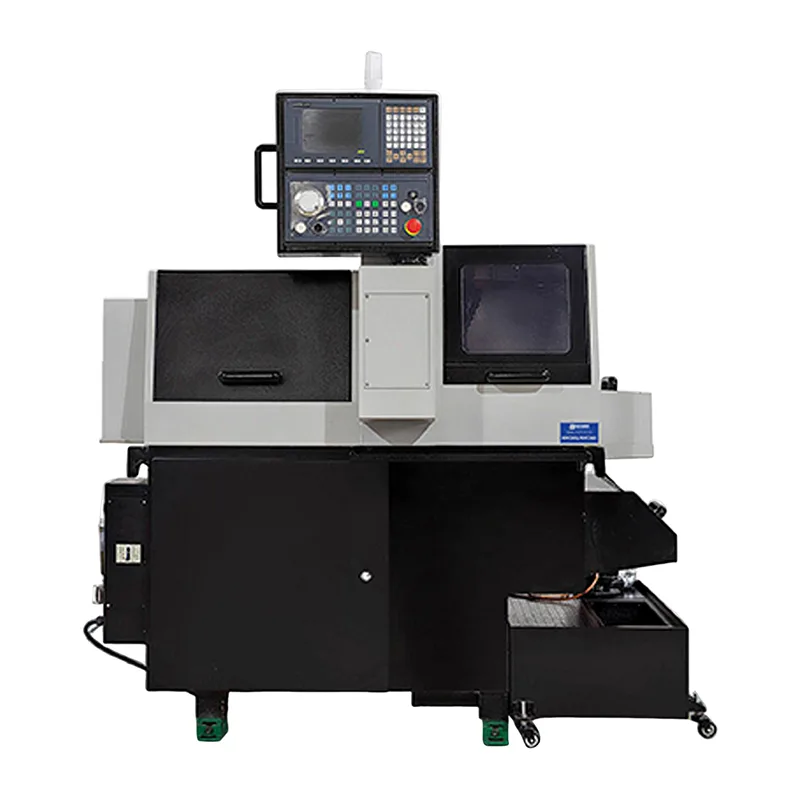

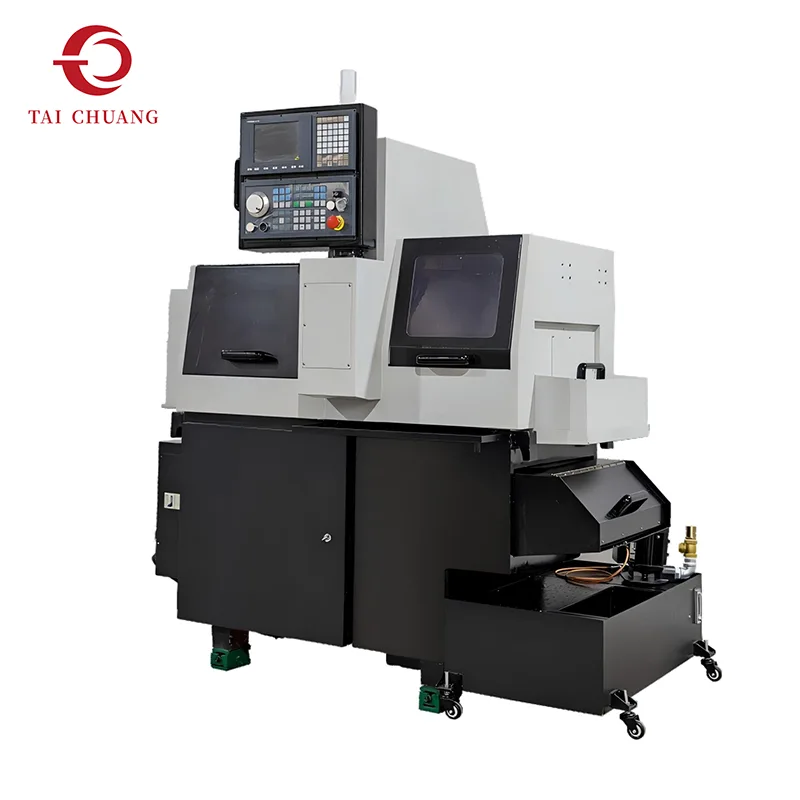

Precision turning of small-diameter components requires stable material support and accurate tool positioning. The 3 Axis Swiss Type Lathe is designed to provide a practical and efficient solution for manufacturers producing precision cylindrical parts in continuous production environments.
Unlike more complex multi-axis machining systems, this configuration focuses on essential turning operations supported by Swiss-type sliding headstock technology. The guide bushing system keeps the workpiece firmly supported close to the cutting area, reducing vibration and helping maintain machining stability even when processing long, slender components.
The three-axis control structure provides reliable motion coordination for standard turning operations including facing, external turning, grooving, drilling, and basic threading. This design allows manufacturers to achieve consistent machining quality while maintaining a relatively straightforward machine structure that is easier to operate and maintain.
Because of its balanced combination of precision and simplicity, the 3 Axis Swiss Type Lathe is often selected by manufacturers who prioritize stable output and predictable machining results over complex multi-axis machining requirements.
TAICHUANG supplies this Swiss type lathe solution to support efficient production of small precision components across a wide range of industrial sectors.

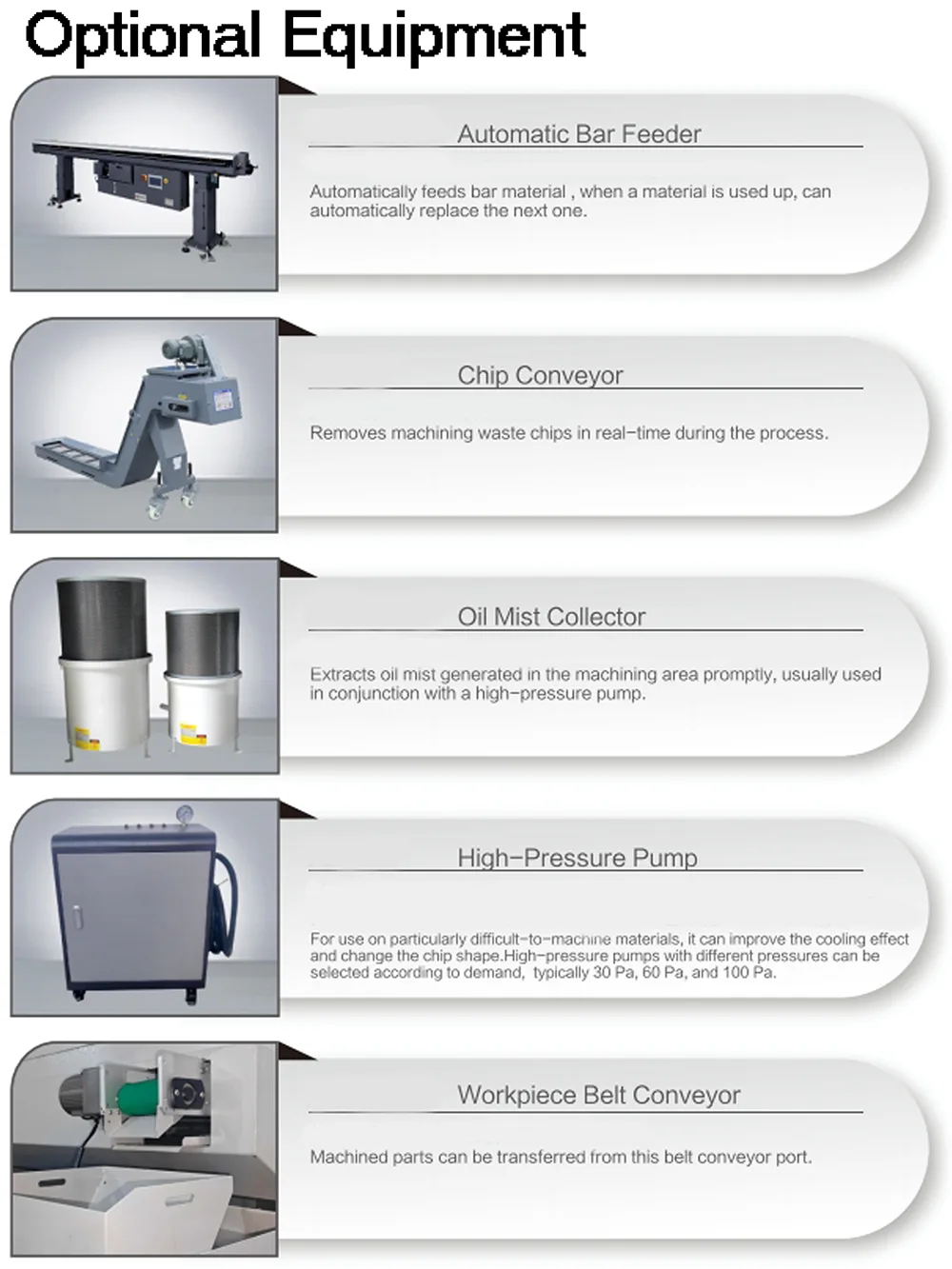

| Item | RPC-263 | RPC-263A | RPC-263B | |
| Travel and Hole Diameter | Max Working Speed of Main/Sub-Spindle(rpm) | 8000/* | 8000/* | 8000/* |
| Max Swivel Diameter of Main/Sub-Spindle(mm) | Φ20/* | Φ20/* | Φ20/* | |
| Minimum Divsion Number | Continuous Indexing | Continuous Indexing | Continuous Indexing | |
| Main/Sub-Spindle Hole Diameter(mm) | Φ22/* | Φ22/* | Φ22/* | |
| Main Spindle | OD Turning Tool Specifications and Quantity | |||
| OD Turning Tool Quantity(pcs) | 5 Turning Tool | 5 Turning Tool | 12 Turning Tool | |
| OD Turning Tool Shark Size(mm) | 12×12 | 12×12 | 12×12 | |
| End Face Fixed Tool Quantity(pcs) | 4×Φ20 Round hole(ER11) | 2×Φ20 Round hole(ER11) | / | |
| Max Drilling Diameter(mm) | Φ9 | Φ9 | / | |
| Max Tapping Diameter(mm) | M8 | M8 | / | |
| End Face Power-driven Tool Quantity(pcs) | / | ER11×3 | / | |
| Max Drilling Diameter(mm) | / | Φ5 | / | |
| Max Tapping Diameter(mm) | / | M4 | / | |
| Max Speed(rpm) | / | 5000 | / | |
| Cross Power-driven(Live)Tool Quantity(pcs) | ER11×2 add ER16×2 | ER11×2 add ER16×2 | / | |
| Max Drilling Diameter(mm) | Φ9 | Φ9 | / | |
| Max Tapping Diameter(mm) | M8 | M8 | / | |
| Max Speed(rpm) | 5000 | 5000 | / | |
| Max Saw Blade Milling Diameter(Cross face)(mm) | Φ32/Φ68 | Φ32/Φ68 | / | |
| Guide Bushing Mode/Non-Guide Bushing Mode | ||||
| Sub-Spindle | End Face Power-driven Tool Quantity(pcs) | / | / | / |
| Max Drilling Diameter(mm) | / | / | / | |
| Max Tapping Diameter(mm) | / | / | / | |
| End Face Power-driven Tool Quantity(pcs) | / | / | / | |
| Max Drilling Diameter(mm) | / | / | / | |
| Max Tapping Diameter(mm) | / | / | / | |
| Max Speed(rpm) | / | / | / | |
| Cross Power-driven(Live)Tool Quantity(pcs) | / | / | / | |
| Max Drilling Diameter(mm) | / | / | / | |
| Max Tapping Diameter(mm) | / | / | / | |
| Max Speed(rpm) | / | / | / | |
| Other Parameters | Other Parameters | |||
| Main/Sub-Spindle Motor(kw) | 2.2/* | 2.2/* | 2.2/* | |
| Main Spindle Cross Power-driven Tool Motor(kw) | 1 | 1 | 1 | |
| Main Spindle End Face Power-driven Tool Motor (kw) | / | / | ||
| 0.4 | ||||
| Sub-Spindle Cross Power-driven Tool Motor(kw) | / | / | / | |
| Servo Motors(X1,Z1,Y1,X2,Z2)(kw) | X1/Y1/Z1:1 | X1/Y1/Z1:1 | X1/Y1/Z1:1 | |
| Servo Motor(Y2)(kw) | / | / | / | |
| Lubrication Pumb Motor(kw) | 0.1 | 0.1 | 0.1 | |
| Coolant Pump Motor(kw) | 0.35 | 0.35 | 0.35 | |
| Rapid Feed Speed(Factory Setting)(m/min) | X1/Y1/Z1:25 | X1/Y1/Z1:25 | X1/Y1/Z1:25 | |
| Coolant Tank Capacity(L) | 130 | 130 | 130 | |
| Lubrication Unit Capacity(L) | 3 | 3 | 3 | |
| Center Height(mm) | 1050 | 1050 | 1050 | |
| Dimensions(Length×Width×Height)(mm)(Packaging Dimensions add 200) | 1750×1080×1800 | 1750×1080×1800 | 1750×1080×1800 | |
| Machine Weight(kg) | 1500 | 1500 | 1500 | |
| Machine Power(kw) | 7 | 7.5 | 6 | |

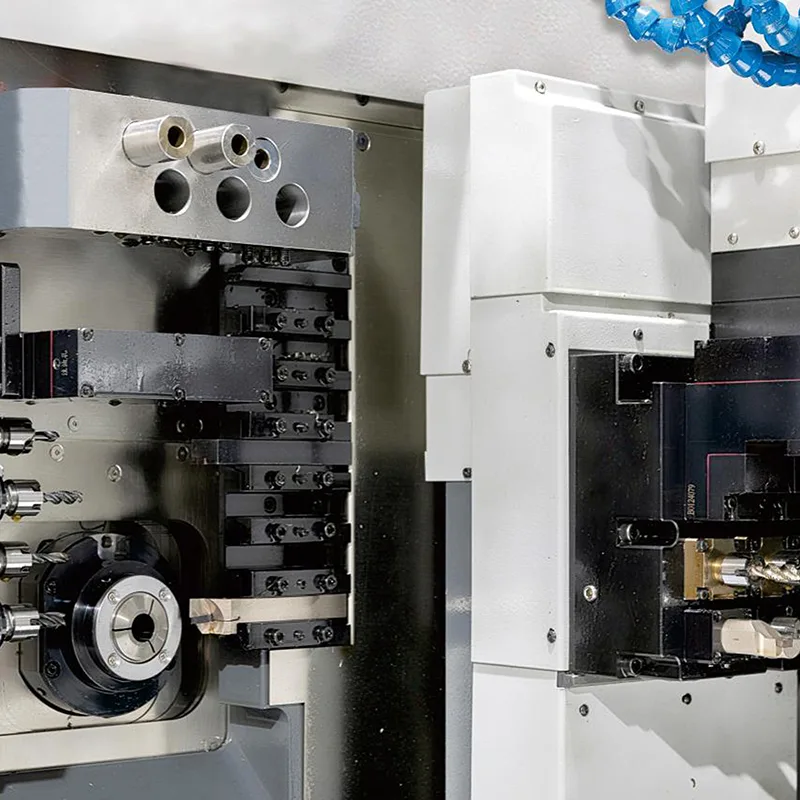

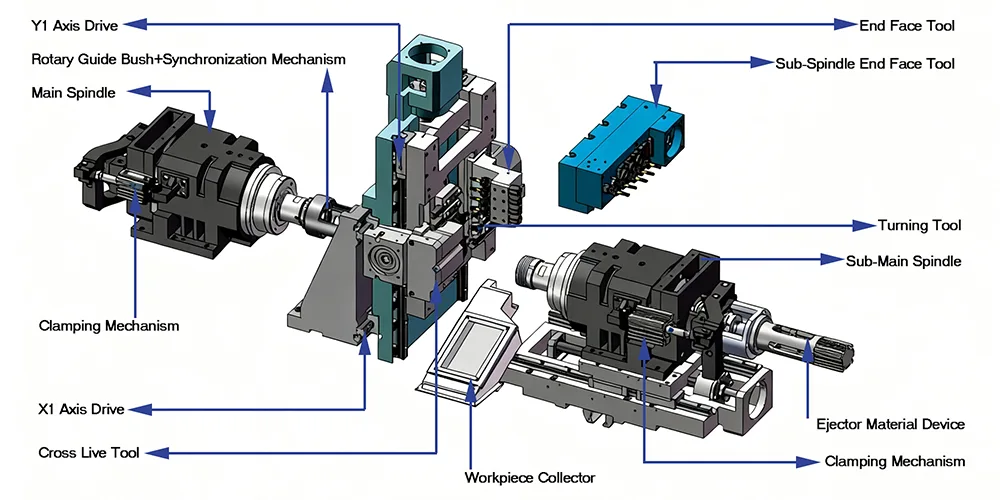

Swiss machining technology uses a moving headstock design that feeds the workpiece through a guide bushing during cutting. This arrangement greatly improves rigidity when machining small and slender parts.
The machine operates with coordinated motion across three controlled axes, allowing precise tool positioning for standard turning and drilling operations.
Compared with higher-axis Swiss machines, the three-axis configuration maintains a simpler mechanical structure and a more compact footprint.
The guide bushing supports the workpiece very close to the cutting tool, helping maintain consistent cutting conditions and dimensional accuracy.
The machine is optimized for stable machining of small cylindrical parts where consistent dimensions are required.
Swiss type lathes are widely used for long production runs due to their stable machining characteristics.
The streamlined axis configuration helps reduce programming complexity compared with higher-axis Swiss systems.
For many standard precision components, a three-axis Swiss type lathe provides sufficient machining capability while maintaining controlled equipment investment.

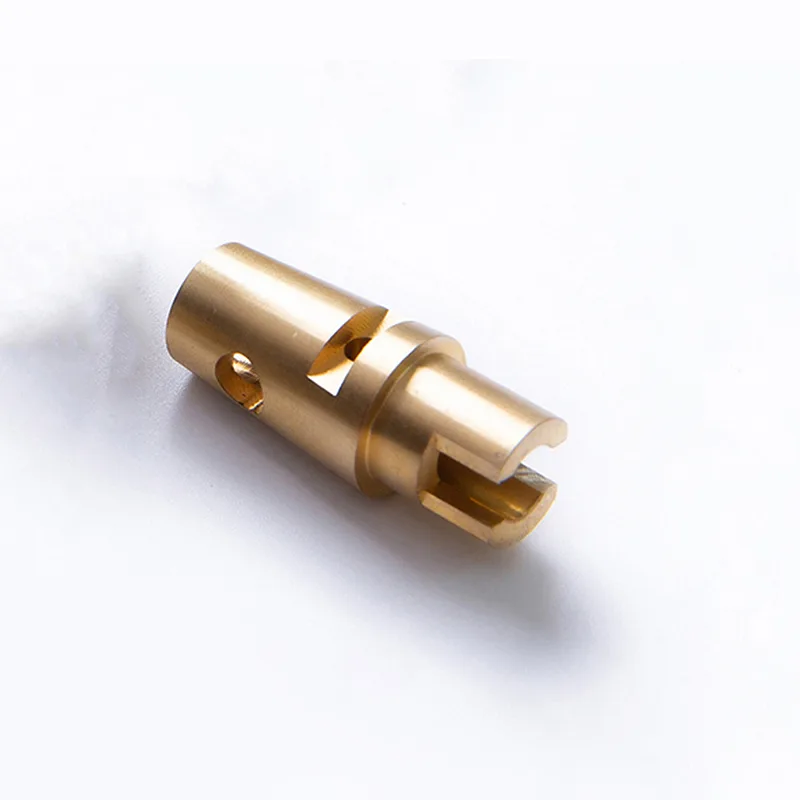

The 3 Axis Swiss Type Lathe is commonly used for manufacturing small precision parts that primarily require turning operations.
Typical components include:
precision pins
small shafts
electronic connector parts
miniature fasteners
instrumentation components
medical device small parts
These parts often require stable machining accuracy across large production batches.

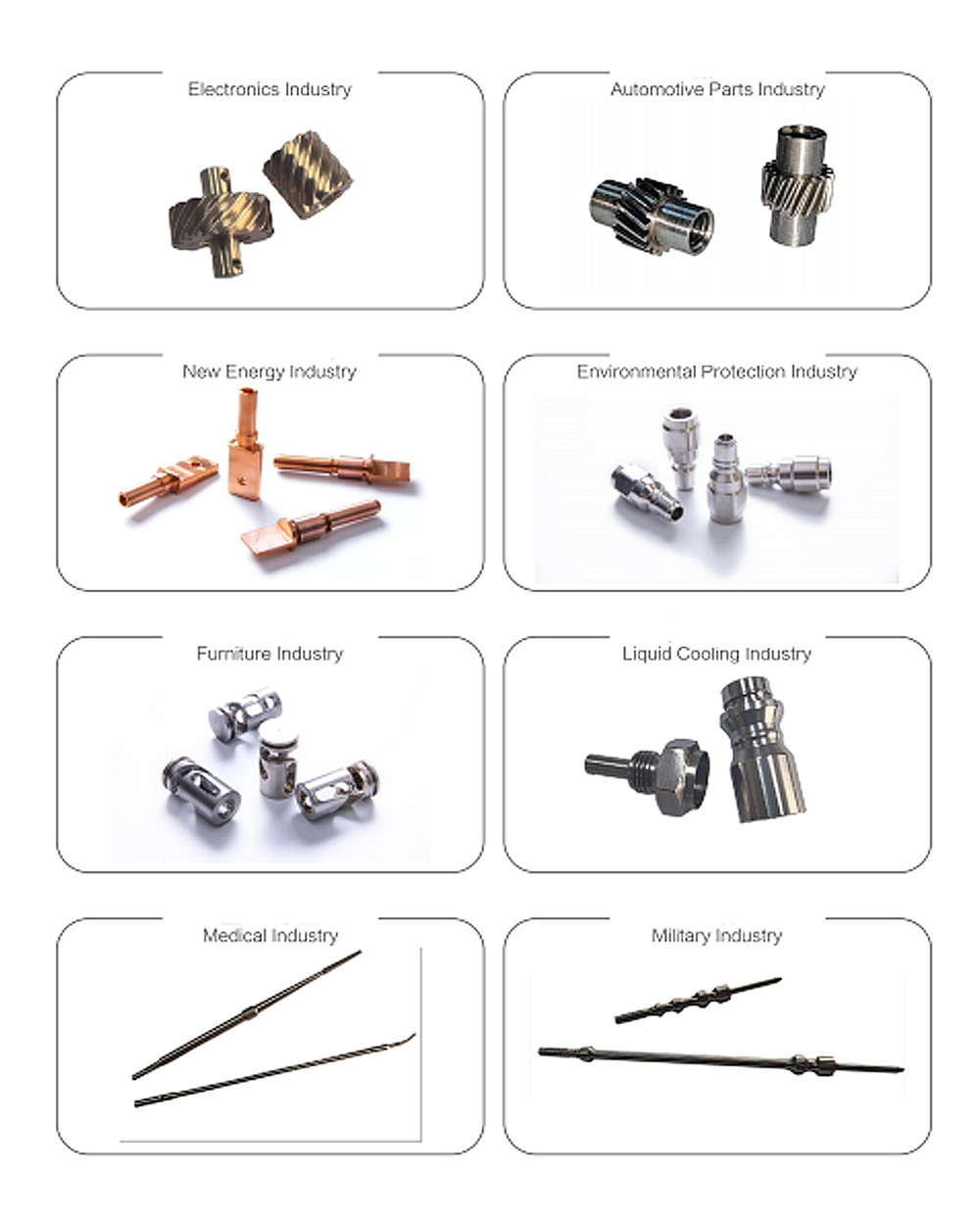

Swiss machining technology is widely used in industries that require consistent production of small high-precision components.
Common sectors include:
medical equipment manufacturing
electronics and connectors
automotive precision components
aerospace instrumentation
industrial automation parts
Manufacturers in these industries value Swiss machining for its ability to maintain precision during long production runs.

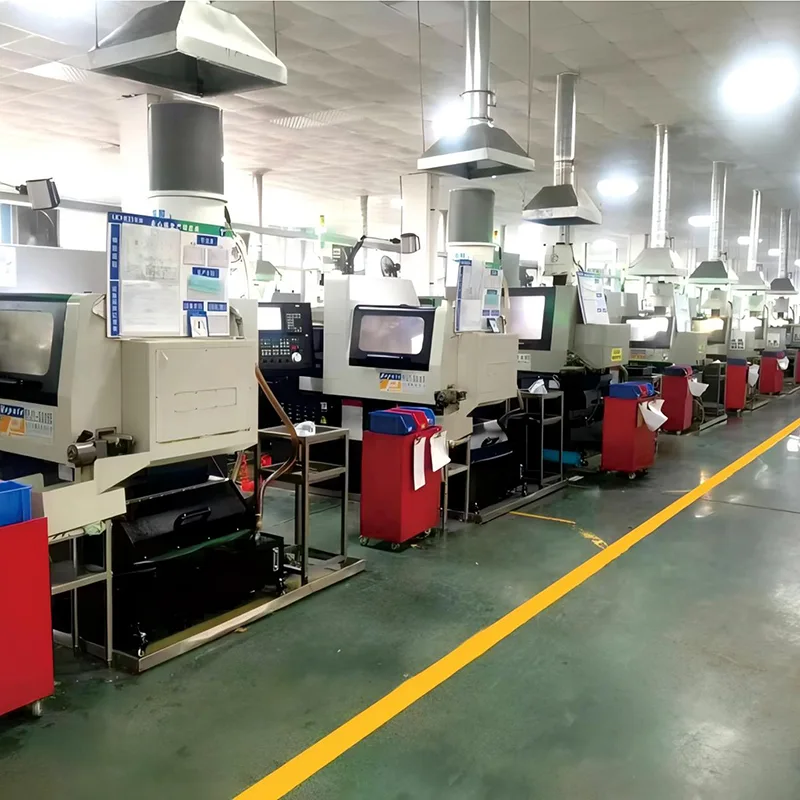

TAICHUANG provides industrial equipment solutions designed to support precision manufacturing needs. 3 Axis Swiss Type Lathes supplied by TAICHUANG are selected by manufacturers seeking reliable machining platforms for small-part production.
professional equipment supply for precision industries
machining solutions for small-diameter components
machines suitable for stable batch production
industrial equipment serving global manufacturing markets
TAICHUANG focuses on supporting efficient and reliable precision machining processes through practical equipment solutions.
What is a 3 axis Swiss type lathe mainly used for?
A three-axis Swiss type lathe is primarily used for turning small precision parts that require stable machining and consistent dimensional accuracy.
How is Swiss machining different from conventional turning?
Swiss machining uses a sliding headstock and guide bushing to support the workpiece very close to the cutting tool, improving stability when machining slender parts.
Is a 3 axis Swiss type lathe suitable for complex parts?
This configuration is best suited for parts that mainly require turning operations. More complex parts may require additional axes.
What materials can be machined on this machine?
Swiss type lathes can process a wide range of materials including stainless steel, carbon steel, brass, aluminum, and titanium alloys.
Why do manufacturers choose Swiss type lathes for small parts?
Swiss machining technology provides excellent stability and precision when producing small components in high volumes.
