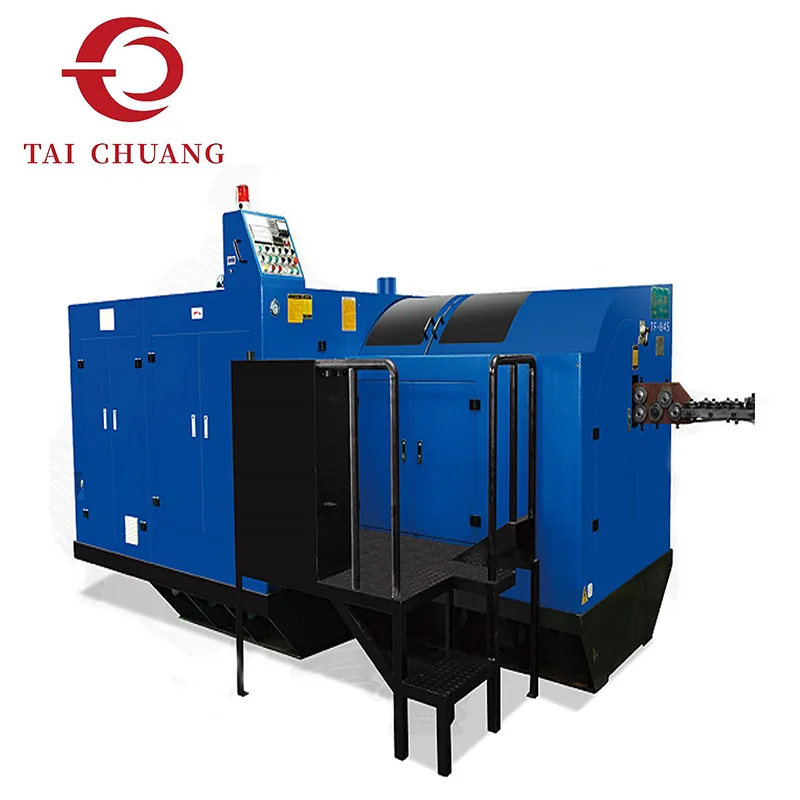

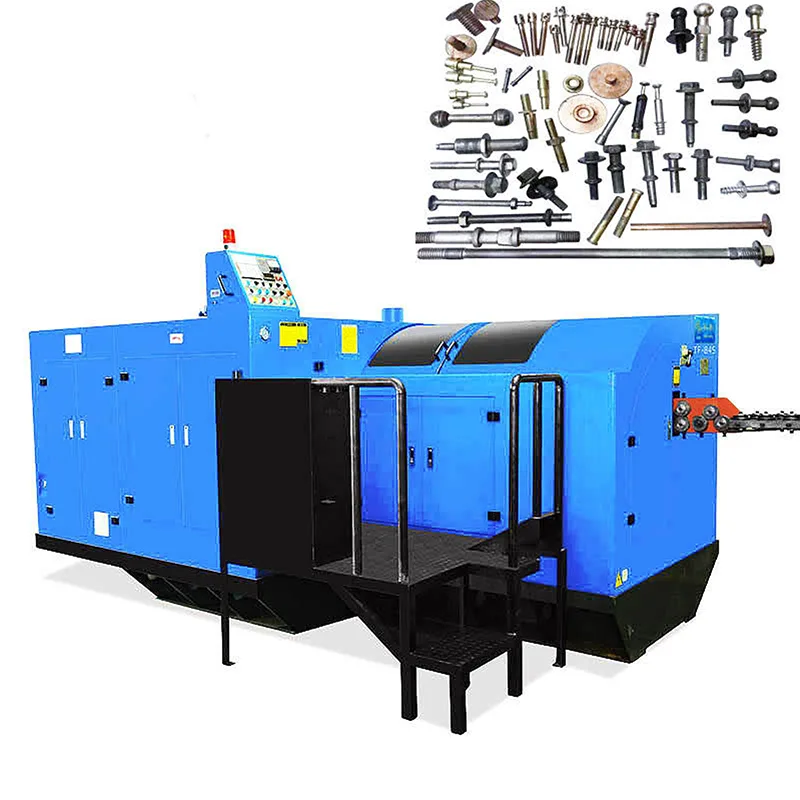

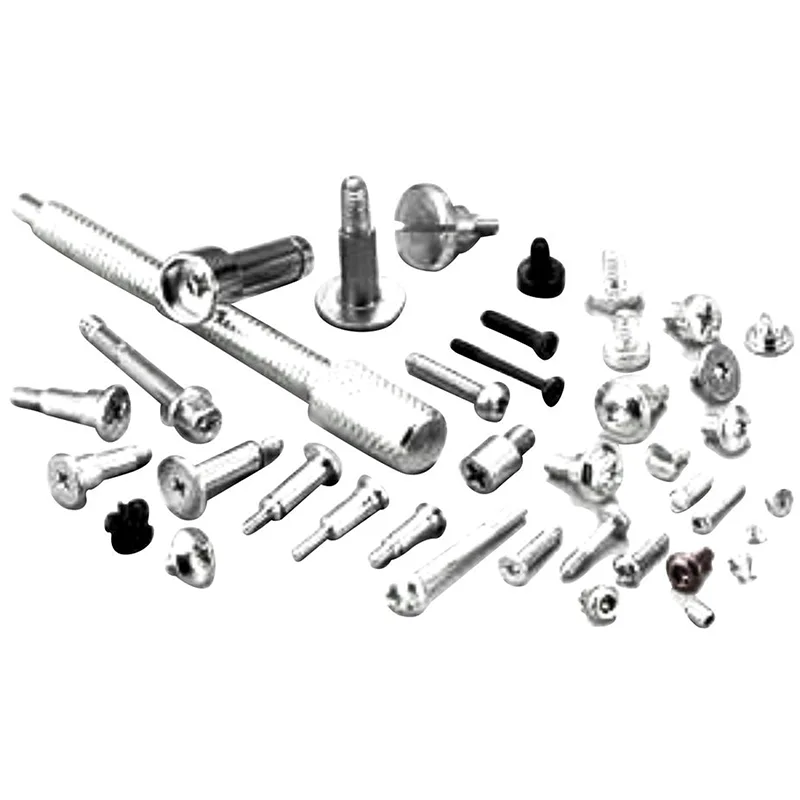

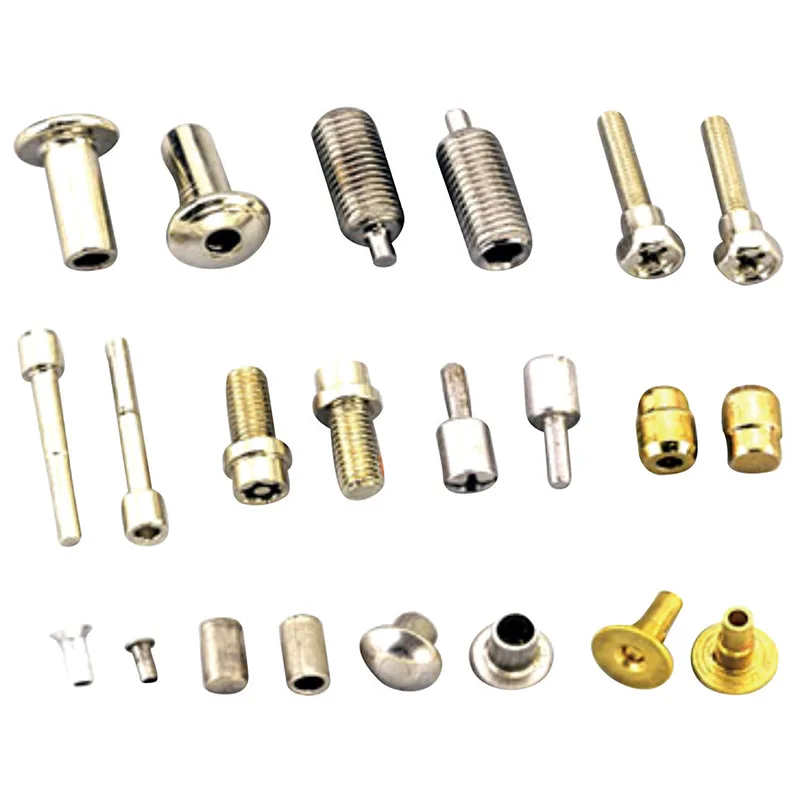

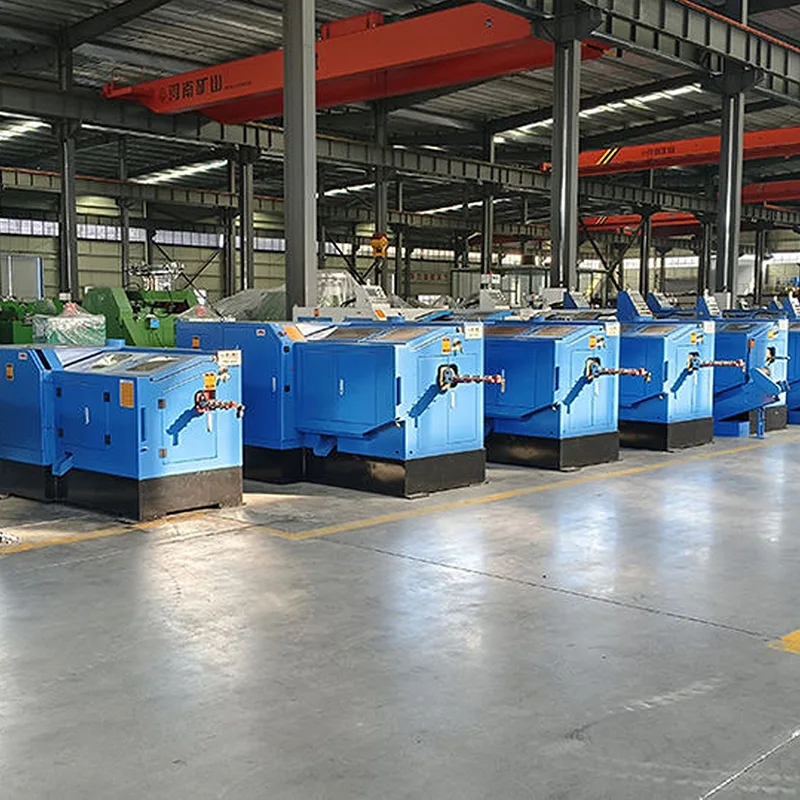

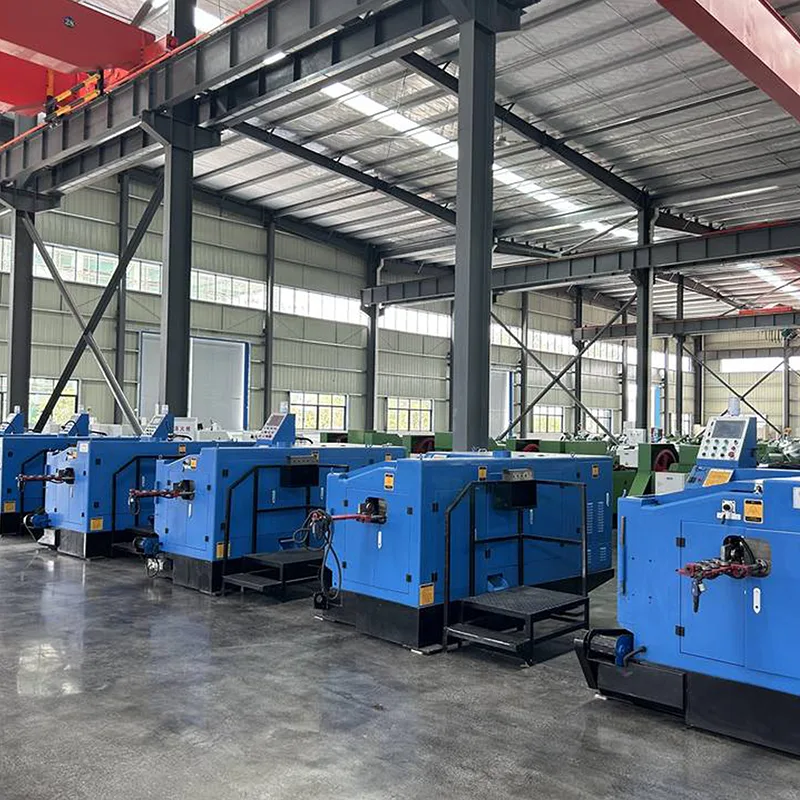

TAICHUANG, as a reliable factory, has different types of multi-station cold forging machines, these machine series are mainly used for multi-step or difficult fasteners. These machine series are designed according to the structure of Taiwan Machinery. The machine is mainly made of materials imported from Taiwan, which has the characteristics of wear resistance, good performance and stable production.
As a cold heading machine solution, this configuration supports controlled material flow, stable head shaping, and improved surface consistency. It is often evaluated for automotive, mechanical, and engineered fastening systems.TAICHUANG presents high precision bolt formers for customers prioritizing quality consistency and process control.
|
Model |
Stations Quantity/No |
Max.Blank Diemeter/mm |
Max.Blank Length/mm |
Cut-off Length/mm |
Capacity/pcs/min |
Main Die Diameter/mm |
Punch Die Diameter/mm |
Dimension of Line Die/mm |
Cut-off Die Diameter/mm |
|
TBF-52S |
2 |
Φ5 |
55 |
70 |
100-250 |
Φ46*100*2 |
Φ31*100*2 |
Φ19*32 |
Φ22*10 |
|
TBF-52 Enlarged |
2 |
Φ5 |
55 |
70 |
100-250 |
Φ46*80*2 |
Φ31*100*2 |
Φ19*32 |
Φ22*10 |
|
TBF-53S |
3 |
Φ6 |
55 |
70 |
100-250 |
Φ46*100*3 |
Φ31*100*3 |
Φ19*32 |
Φ22*10 |
|
TBF-53 Enlarged |
3 |
Φ6 |
55 |
70 |
100-250 |
Φ46*80*3 |
Φ31*100*3 |
Φ19*32 |
Φ22*10 |
|
TBF-54 Enlarged |
4 |
Φ6 |
55 |
70 |
100-250 |
Φ46*80*4 |
Φ31*100*4 |
Φ19*32 |
Φ22*10 |
|
TBF-63S |
3 |
Φ8 |
65 |
90 |
100-250 |
Φ50*85*3 |
Φ40*90*3 |
Φ30*45 |
Φ32*14 |
|
TBF-64S |
4 |
Φ8 |
65 |
90 |
100-250 |
Φ50*85*4 |
Φ40*90*4 |
Φ30*45 |
Φ32*14 |
|
TBF-83S |
3 |
Φ10 |
75 |
100 |
100-200 |
Φ60*108*3 |
Φ45*115*3 |
Φ30*55 |
Φ32*20 |
|
TBF-84S |
4 |
Φ10 |
75 |
100 |
100-200 |
Φ60*108*4 |
Φ45*115*4 |
Φ30*55 |
Φ32*20 |
|
TBF-103S |
3 |
Φ12 |
105 |
140 |
100-180 |
75*135*3 |
Φ53*115*3 |
Φ45*70 |
Φ48*20 |
|
TBF-104S |
4 |
Φ12 |
105 |
140 |
100-180 |
Φ75*135*4 |
Φ53*115*4 |
Φ45*70 |
Φ48*20 |
|
Model |
Stroke/mm |
Back-up trip/mm |
Top out before/mm |
Main Motor Power/kw |
Volume(L*W*H)/m |
Weight/kg |
|
TBF-52S |
110 |
75 |
20 |
Level 8 - 5.5kw |
2.40*1.15*1.20 |
2400 |
|
TBF-52 Enlarged |
100 |
75 |
20 |
Level 8 - 5.5kw |
2.80*1.20*1.30 |
3000 |
|
TBF-53S |
100 |
75 |
20 |
Level 8 - 7.5kw |
2.40*1.20*1.20 |
2500 |
|
TBF-53 Enlarged |
100 |
75 |
20 |
Level 8 - 7.5kw |
2.80*1.25*1.30 |
3300 |
|
TBF-54 Enlarged |
100 |
75 |
20 |
Level 8 - 7.5kw |
2.80*1.33*1.30 |
3500 |
|
TBF-63S |
110 |
80 |
20 |
Level 6 - 11kw |
2.90*1.80*1.50 |
6000 |
|
TBF-64S |
110 |
80 |
20 |
Level 6 - 15kw |
2.90*1.90*1.55 |
7200 |
|
TBF-83S |
150 |
105 |
25 |
Level 6 - 18.5kw |
4.00*2.50*1.80 |
11300 |
|
TBF-84S |
150 |
105 |
25 |
Level 6 - 22kw |
4.00*2.60*1.80 |
13500 |
|
TBF-103S |
180 |
130 |
25 |
Level 6 - 22kw |
4.70*3.30*1.90 |
15800 |
|
TBF-104S |
180 |
130 |
25 |
Level 6 - 22kw |
4.70*3.30*1.90 |
17500 |
Improved dimensional repeatability
Stable forming alignment
Reduced variation between parts
Suitable for tight-tolerance fasteners
Q1: What makes a bolt former “high precision”?
It focuses on tighter forming control, tooling alignment, and consistency rather than speed alone.
Q2: Is the High Precision Bolt Former suitable for standard bolts?
Yes, but it is mainly selected when higher accuracy is required.
