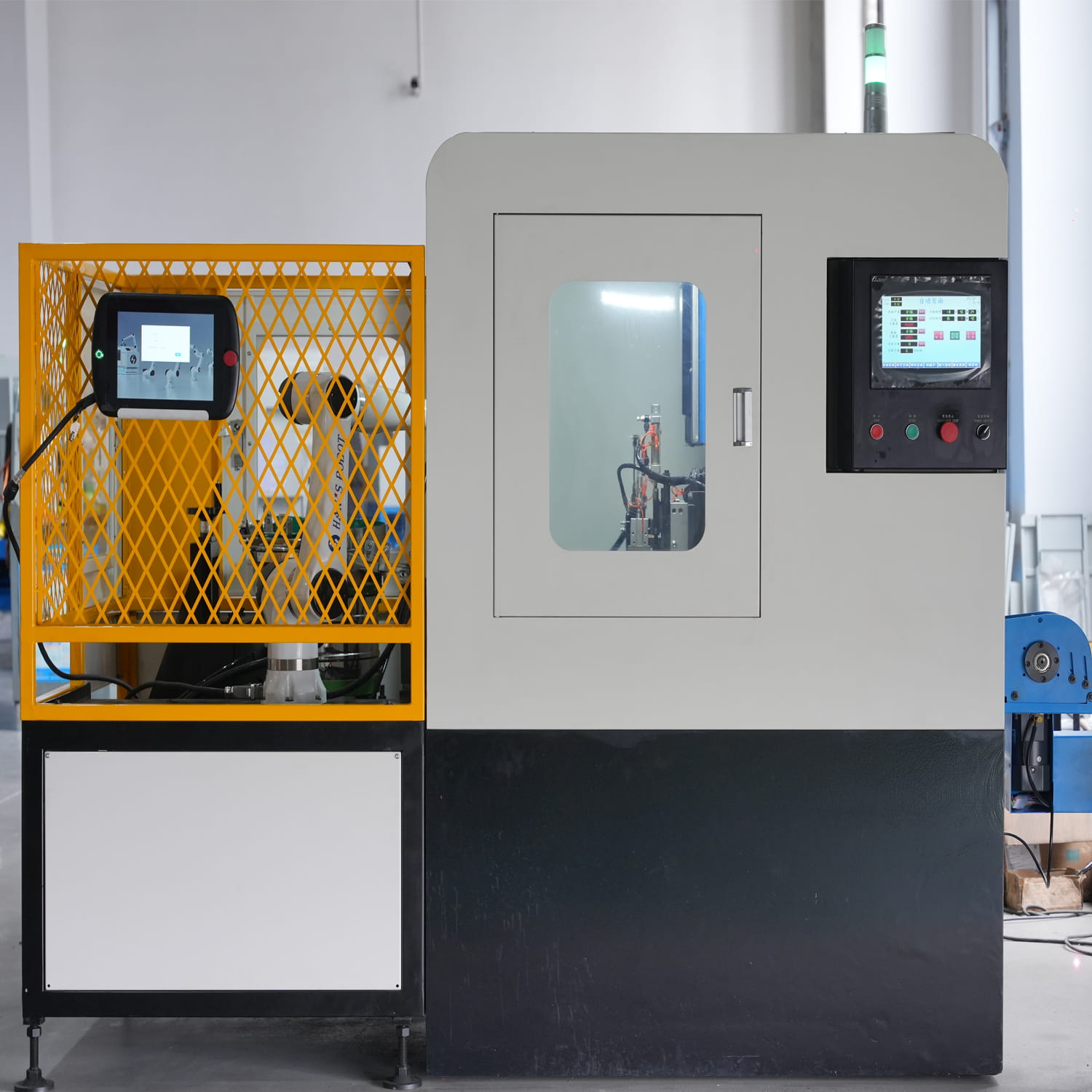

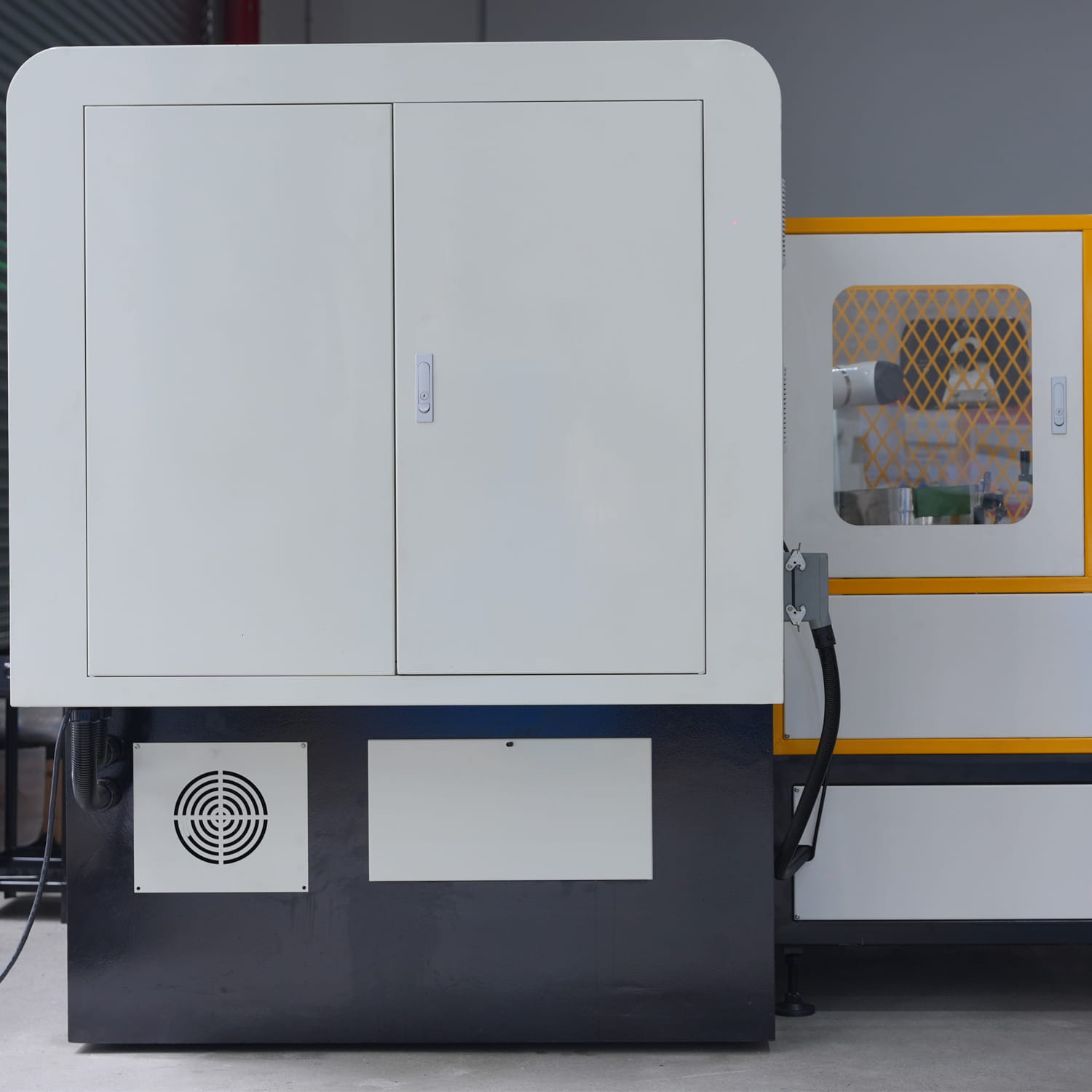

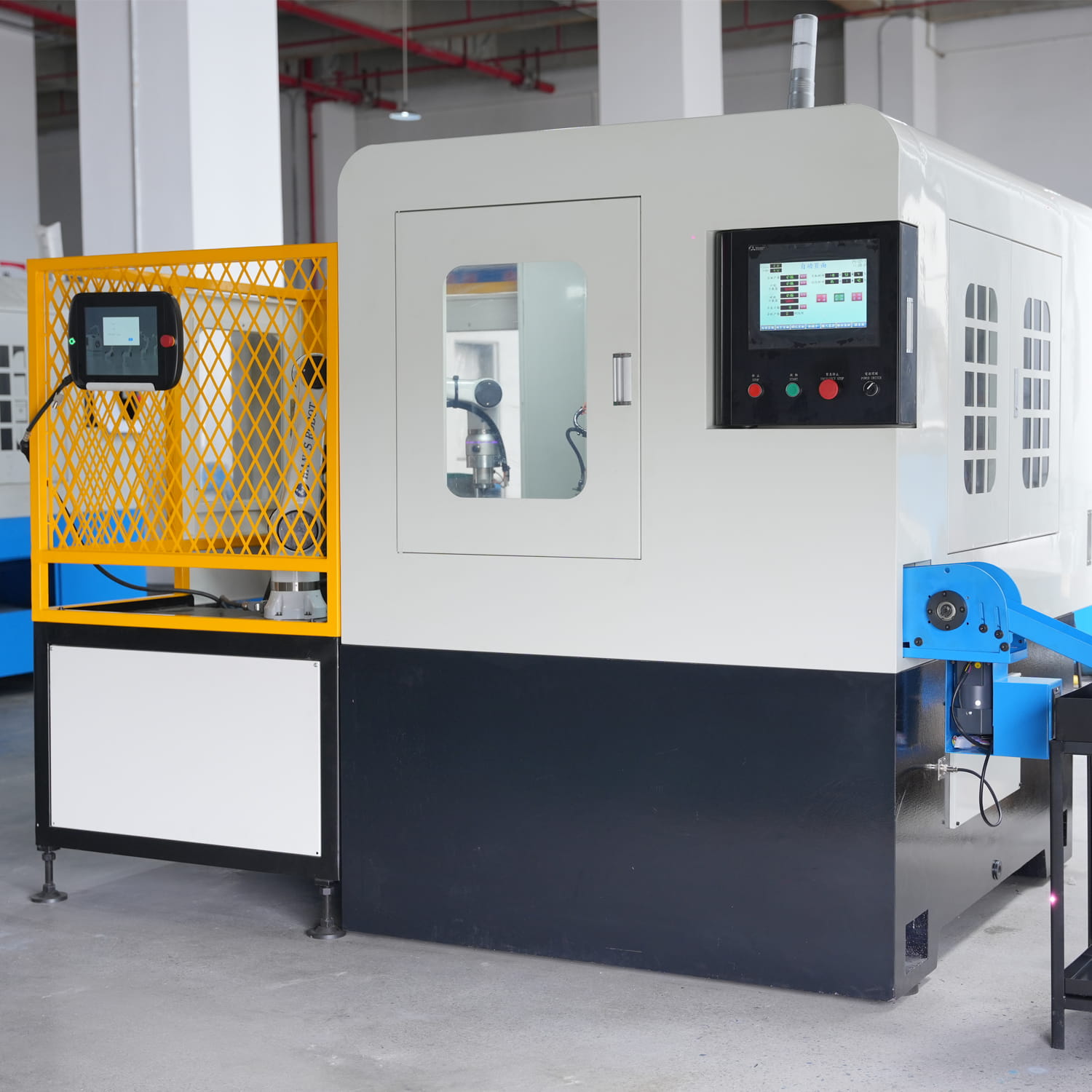

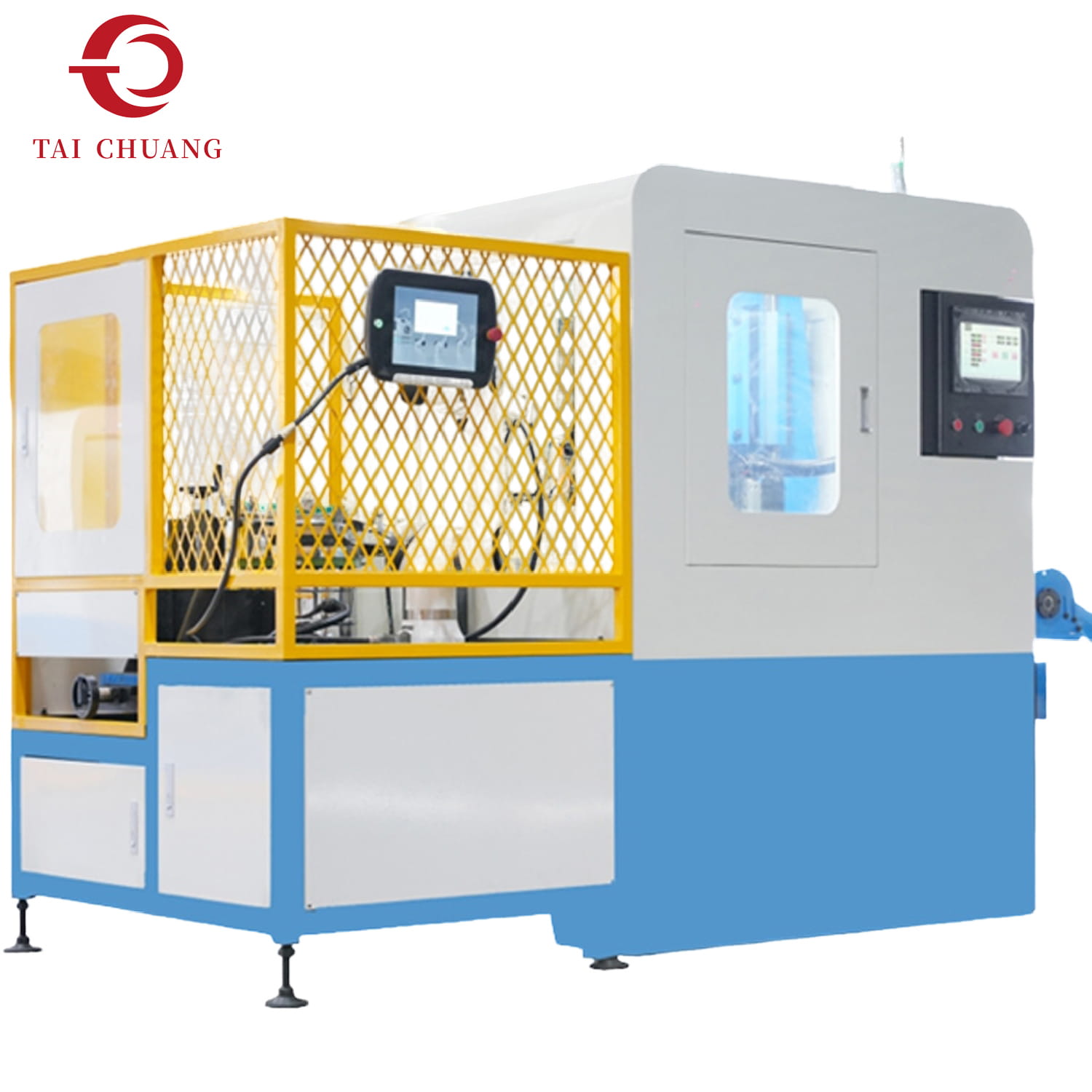

Custom Rotary Drill and Tap Machine

Many production lines struggle when drilling and tapping different hole types across multiple components. Changing tools or switching machines increases downtime, reduces productivity, and increases errors.

TAICHUANG designed the Custom Rotary Drill & Tap Machine to solve exactly that:

· Drill and tap in a single setup

· Handle multiple hole sizes and component types

· Reduce manual changeovers

Our machine is perfect for factories needingcustomized threading solutions without compromising speed or precision.

Product specifications

Item	Name	Parameter	Name	Parameters/Brand
Tapping head	Slide stroke	0-180mm	Main spindle servo motor	1.3KW/1500rpm	M4-M8 Air pressure clamping
	Main spindle slide stroke	0-120mm	Feed servo motor	0.75KW/3000rpm
	Qty of main spindle	1	Touch screen	Inovance/Siemens
	Feed ball screw	SFNUR2005X326	Main engine	Inovance/Siemens
Baiting track	baiting angle	Mechanical unloading	Circuit breaker	CHNT

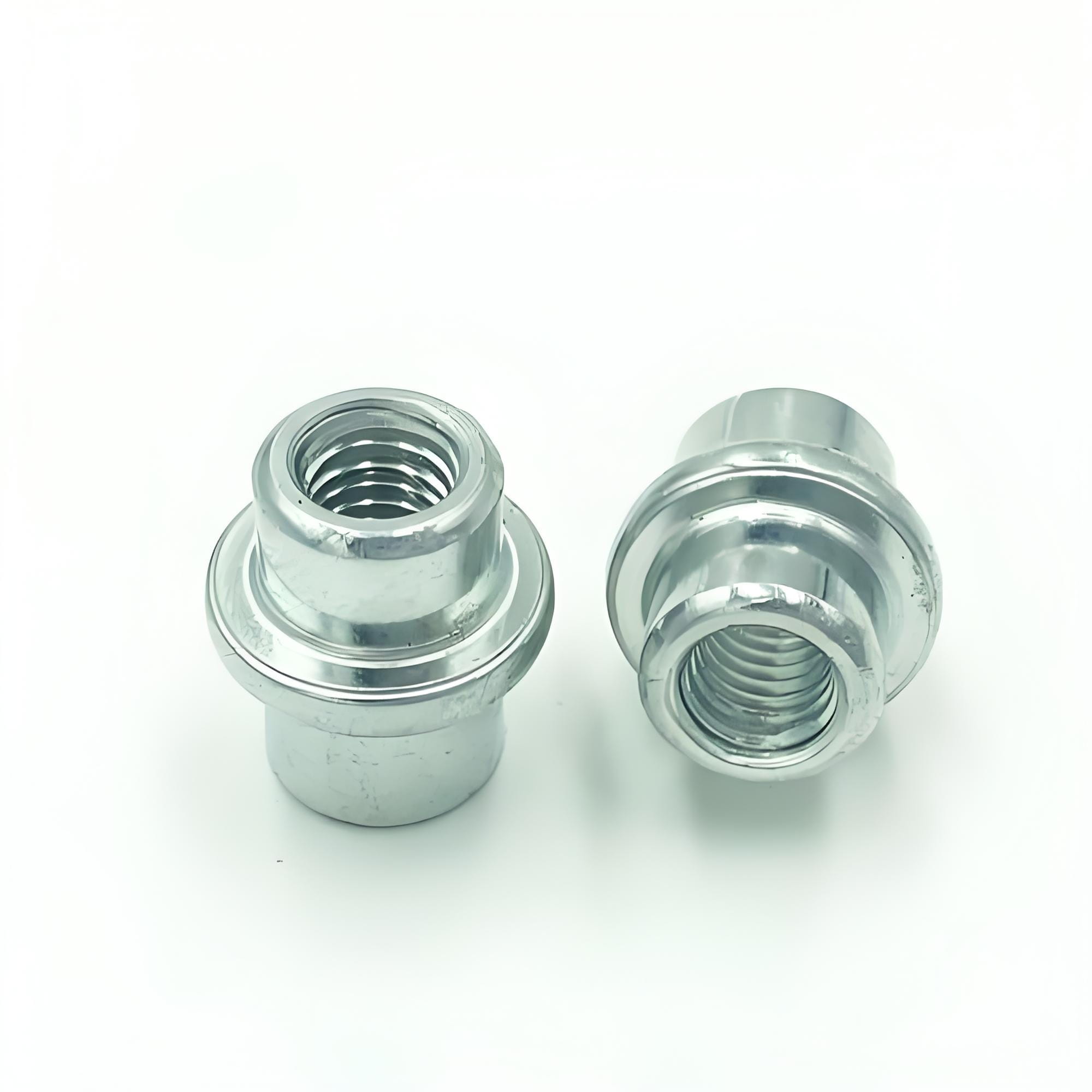

Fixture mode	Clamp	Four-cornered nut,six-cornered nut	Contactor	CHNT
Clamping cylinder	Collet	JAS-15	Thermal overload	CHNT
	Productivity per spindle	5-10pcs/min	KA	CHNT
	Cooling pump motor	Power:370-flow:120L/min	Power switch	IDCE
	Hydraulic unit motor	Power:0.75KW-displacement VP15	Origin sensor	OMRON
Board	Overall Dimensions	1400×1800×1900mm	Cylinder sensor	Airtac
	Equipment weight	about 4000KG



Real Factory Benefits

One Machine, Multiple Functions

By combining drilling and tapping into a rotary setup, manufacturers eliminate multiple machines and improve floor space utilization.

Flexible Component Handling

Rotary fixture design allows processing parts of various shapes and sizes without repeated setup.

Precision at High Speed

Each spindle is carefully aligned and controlled to ensure accurate thread depth and hole quality across all production batches.

Reduced Human Error

Integrated automation reduces operator intervention, minimizing mistakes and material waste.

How It Works

· Rotary Indexing Table: Allows sequential drilling and tapping on multiple parts automatically.

· Customizable Tooling: Supports different drill bits and tap sizes, quickly interchangeable.

· PLC-Controlled Operation: Programmable workflow for precision drilling and tapping.

· Safety and Monitoring: Sensors detect tool wear or misalignment, ensuring continuous quality.

We designed this machine to adapt to different manufacturing requirements while keeping cycle times short and production output stable.

Why is TAICHUANG the trusted choice for factories worldwide?

We build for your parts, not force them to fit the machine. We never force your production processes to conform to generic standard models. Instead, we will tailor a solution specifically for you, precisely matching all your specific requirements for part size, production cycle, and precision standards.

Rugged and durable, with superior performance. Our equipment is meticulously crafted with heavy-duty frame structures and top-of-the-line components, designed specifically for high-load factory production environments to ensure reliable, long-term stable operation.

Streamlining workflows and improving economic efficiency: By integrating every step of production into a seamless, unified system, we have effectively shortened production cycles, reduced human error, and eliminated unnecessary material handling.

We're here for you every step of the way, providing attentive support. From equipment installation and commissioning, on-site practical training, to continuous after-sales technical guidance, we're always there for you, offering worry-free and considerate service.

FAQ

Q1: Can I drill and tap in a single cycle?

Absolutely. The machine is designed for integrated drill and tap operation without manual intervention.

Q2: How fast can it process a batch of parts?

Cycle time depends on component size and material, but rotary indexing minimizes idle time and maximizes throughput.

Q3: Is tooling interchangeable?

Yes, custom tooling options allow quick replacement for different drill or tap sizes.

Q4: Do you provide customized configurations?

We tailor spindle count, rotation angles, and automation level based on your production requirements.
