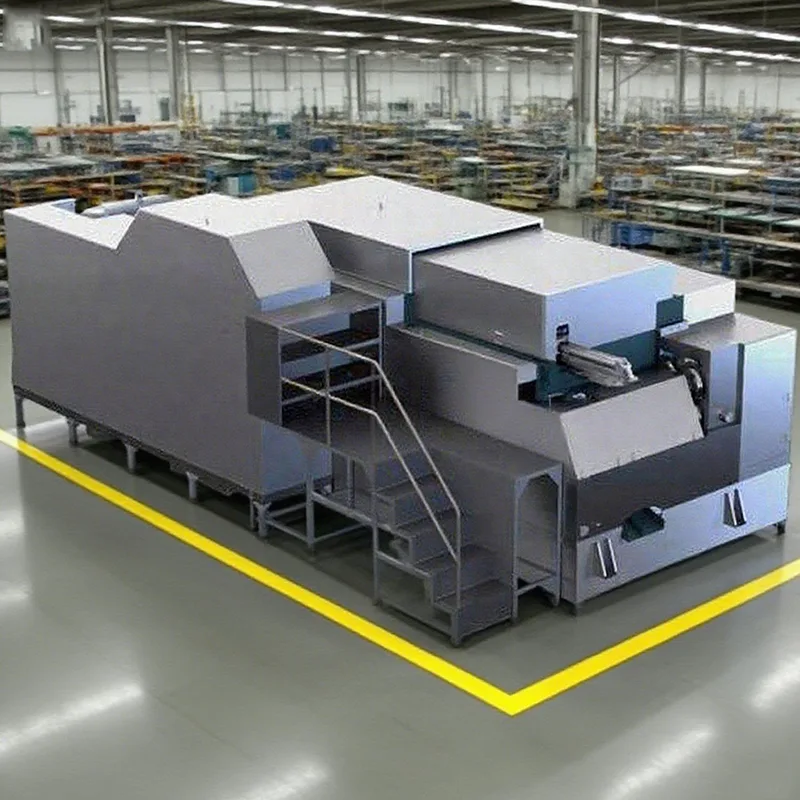

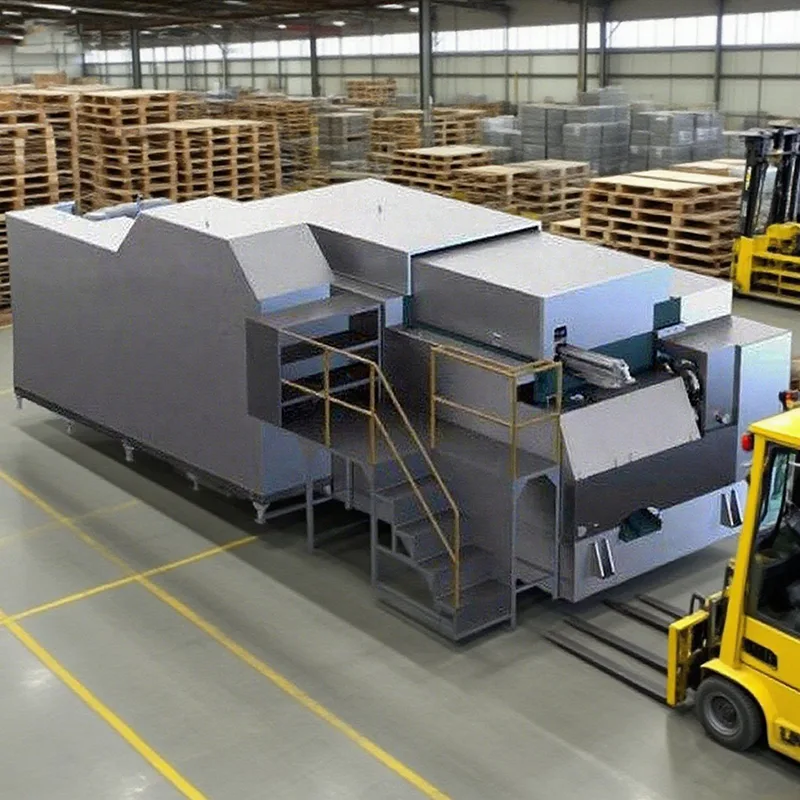

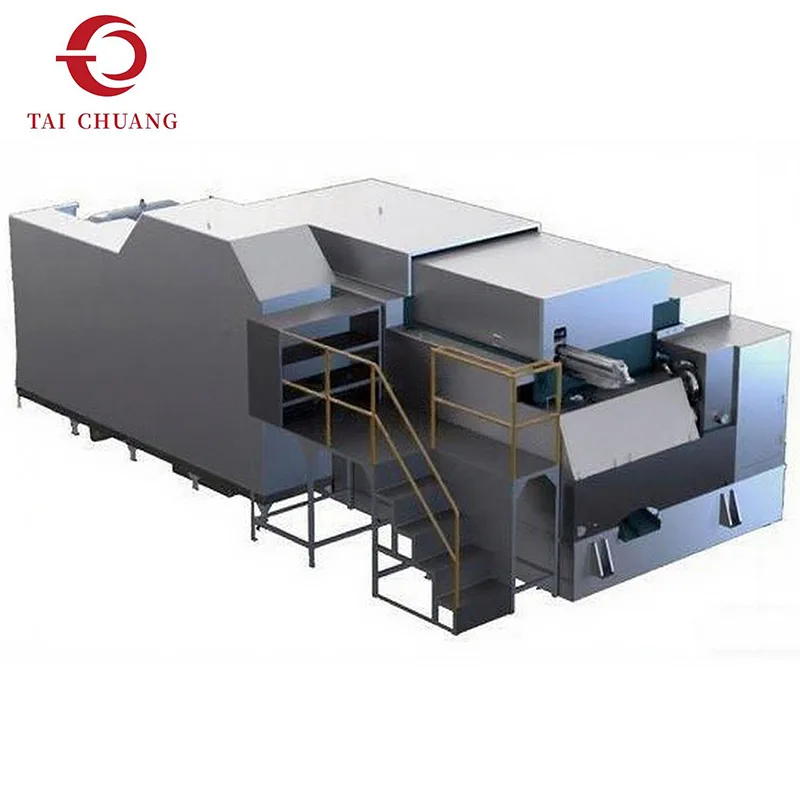

A 6-station nut former is one of the most widely adopted configurations within cold heading machine systems for nut production. Its forming process divides material deformation into six controlled stages, allowing the nut body, chamfer, and internal features to be shaped gradually rather than through aggressive single-step forming.
Compared with lower-station machines, this nut former provides greater control over material flow and dimensional stability. Each station performs a specific forming function, helping reduce internal stress and improve overall shape consistency. This structure supports predictable forming behavior across extended production runs.TAICHUANG introduces this cold heading solution for buyers who focus on process stability, tooling clarity, and consistent nut geometry across standard fastener specifications.
|
Model |
Unit |
SJNF 8B-6S |
SJNF 11B-6S |
SJNF 14B-6S |
SJNF 17B-6S |
SJNF 19B-6S |
SJNF22B-6S |
|
Forging station |
No. |
6 |
6 |
6 |
6 |
6 |
6 |
|
Across flats of nut |
mm |
5-8 |
5.5-12.7 |
10-17 |
14-17 |
14-22 |
17-22 |
|
Suitable hex nut |
mm |
M2.5-M5 |
M3-M6 |
M6-M10 |
M8-M10 |
M8-M14 |
M10-M14 |
|
Cut-off dia.(Max) |
mm |
8 |
11 |
14 |
17 |
19 |
22 |
|
Cut-off length(Max) |
mm |
8 |
15 |
15 |
20 |
17 |
25 |
|
Kick out length(Max) |
mm |
12 |
15 |
18 |
20 |
25 |
30 |
|
Dies pitch |
mm |
38 |
50 |
60 |
70 |
80 |
90 |
|
Forging power |
kgs |
30000 |
55000 |
85000 |
120000 |
130000 |
160000 |
|
Ram stroke |
mm |
50 |
58 |
70 |
80 |
100 |
120 |
|
Output for nut |
pcs/min |
120-300 |
100-280 |
90-220 |
70-170 |
60-140 |
60-135 |
|
Main motor |
kw |
7.5 |
11 |
15 |
22 |
30 |
37 |
|
Lubrication motor |
kw |
1.5 |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
|
Lubricant |
l |
400 |
600 |
900 |
1000 |
1200 |
1500 |
|
Lifting reference weight |
Ton |
3.5 |
4.5 |
8 |
10 |
14 |
16 |
|
Machine dimensions |
cm |
185*160*105 |
240*165*110 |
310*210*145 |
320*220*140 |
375*225*160 |
405*245*165 |
|
Model |
Unit |
SJNF 24B-6S |
SJNF 28B-6S |
SJNF 33B-6S |
SJNF 36B-6S |
SJNF 41B-6S |
SJNF 50B-6S |
|
Forging station |
No. |
6 |
6 |
6 |
6 |
6 |
6 |
|
Across flats of nut |
mm |
17-26 |
24-28 |
24-33 |
30-36 |
30-41 |
41-50 |
|
Suitable hex nut |
mm |
M10-M18 |
M16-M18 |
M16-M22 |
M20-M22 |
M20-M27 |
M27-M33 |
|
Cut-off dia.(Max) |
mm |
24 |
28 |
30 |
36 |
40 |
50 |
|
Cut-off length(Max) |
mm |
22/38 |
35 |
40 |
45 |
52 |
70 |
|
Kick out length(Max) |
mm |
30/45 |
38 |
38/55 |
43 |
68 |
65 |
|
Dies pitch |
mm |
100 |
120 |
140 |
150 |
165 |
195 |
|
Forging power |
kgs |
220000 |
330000 |
360000 |
400000 |
450000 |
800000 |
|
Ram stroke |
mm |
110/160 |
140 |
146/200 |
160 |
210 |
210 |
|
Output for nut |
pcs/min |
50-100 |
50-100 |
45-80 |
40-75 |
40-70 |
30-55 |
|
Main motor |
kw |
55 |
75 |
110 |
132 |
160 |
250 |
|
Lubrication motor |
kw |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
|
Lubricant |
l |
2000 |
2200 |
3000 |
3100 |
3800 |
5800 |
|
Lifting reference weight |
Ton |
25 |
31 |
45 |
52 |
80 |
130 |
|
Machine dimensions |
cm |
455*295*195 |
510*275*200 |
535*355*215 |
615*385*225 |
720*420*250 |
985*550*270 |
Wire feeding and length cutting
Initial blank shaping
Progressive nut body forming
Corner and chamfer shaping
Dimensional refinement
Final forming and discharge
This multi-station layout supports controlled deformation without cutting chips, preserving material integrity.
Q1: What nut types are suitable for a 6-station nut former?
It is commonly used for standard hex nuts and similar nut geometries.
Q2: Is this considered a cold heading machine?
Yes, it belongs to the cold heading machine category and forms nuts through cold deformation.
Q3: Can tooling be adjusted for different nut sizes?
Nut size range depends on tooling configuration and machine setup.

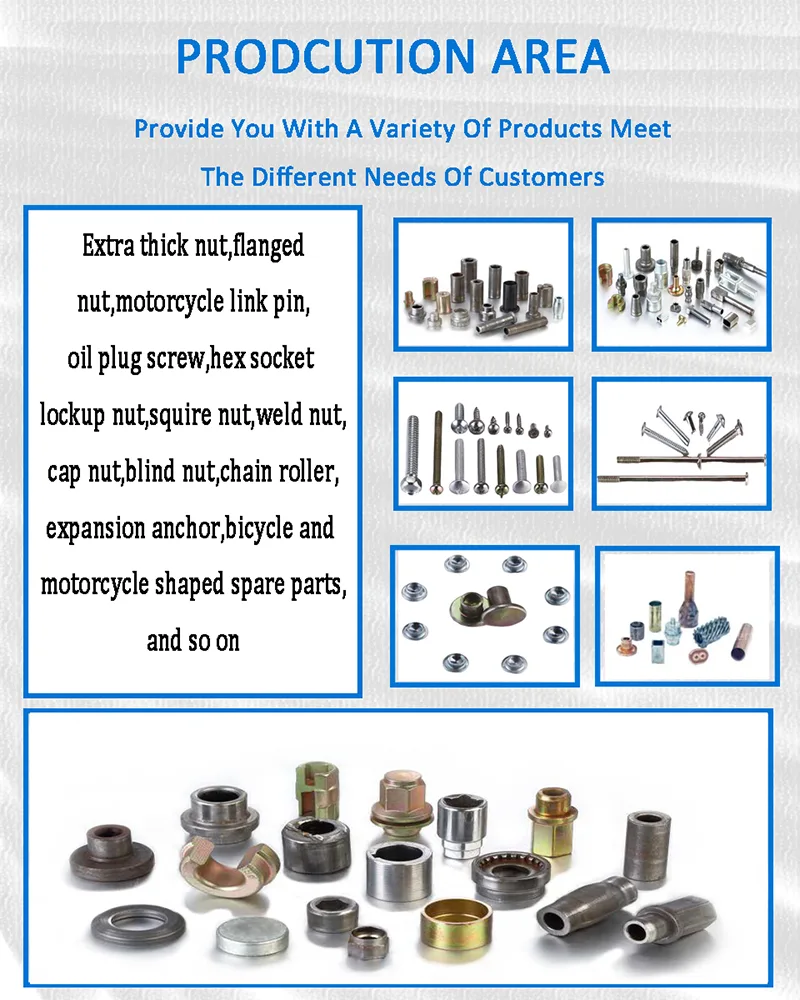

Our 6-Station Nut Former can be used during the production of:

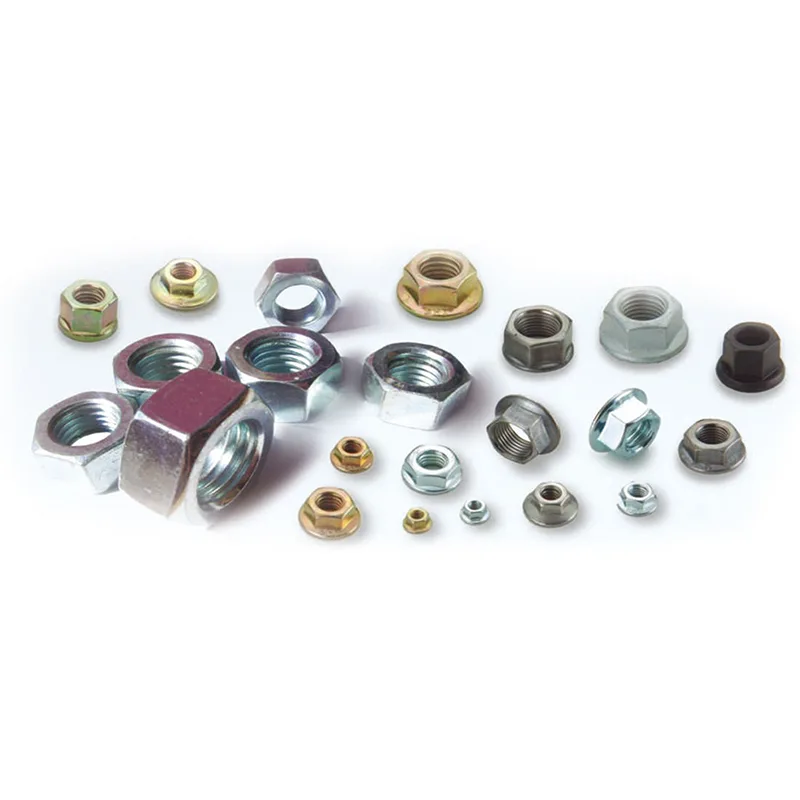

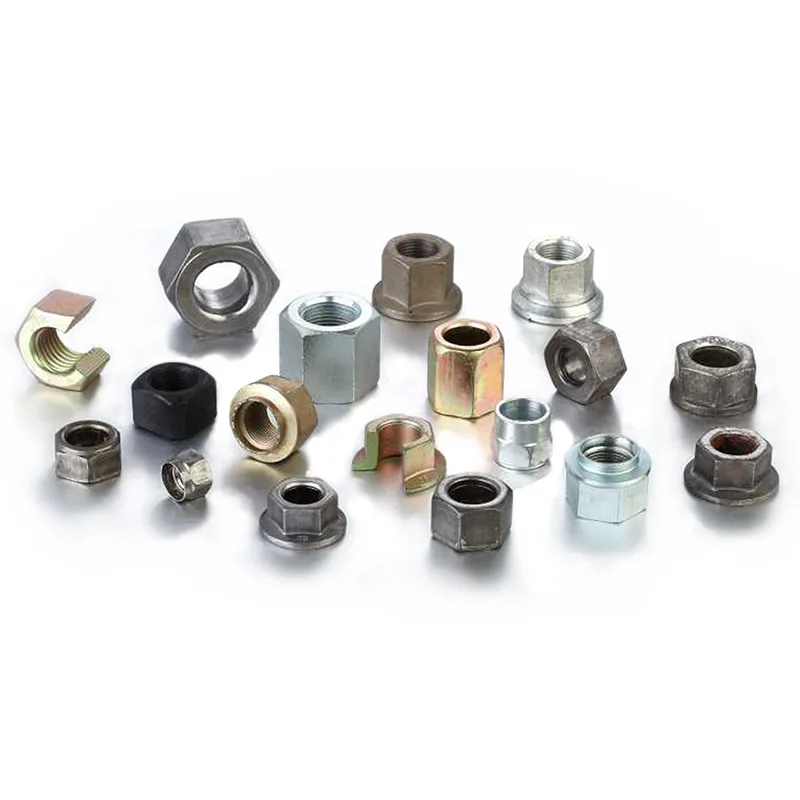

Hex nuts and standard industrial nuts
Automotive fastening components
Machinery and equipment fasteners
General-purpose threaded nuts
