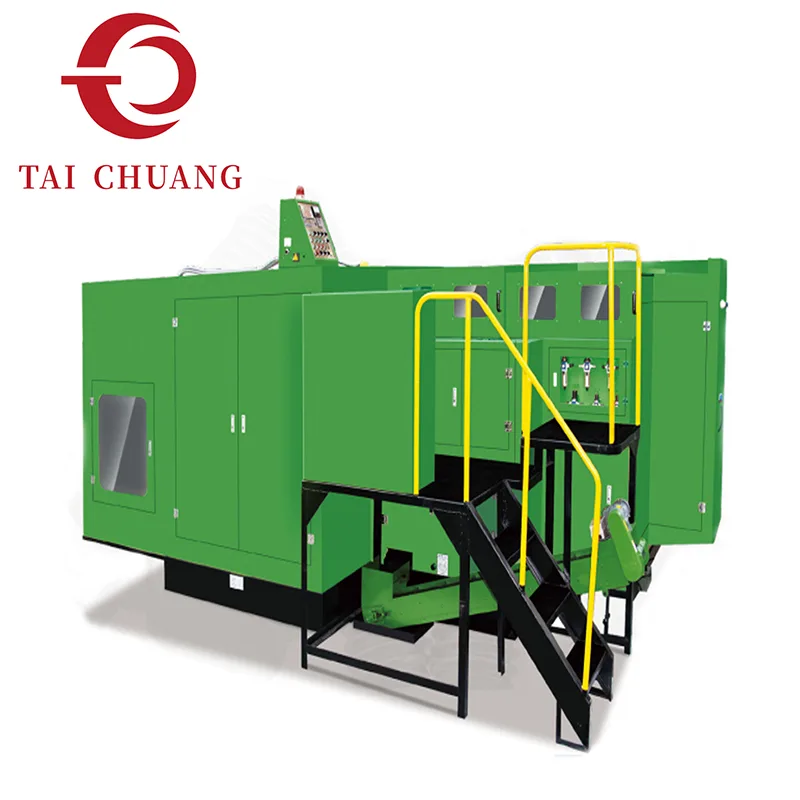

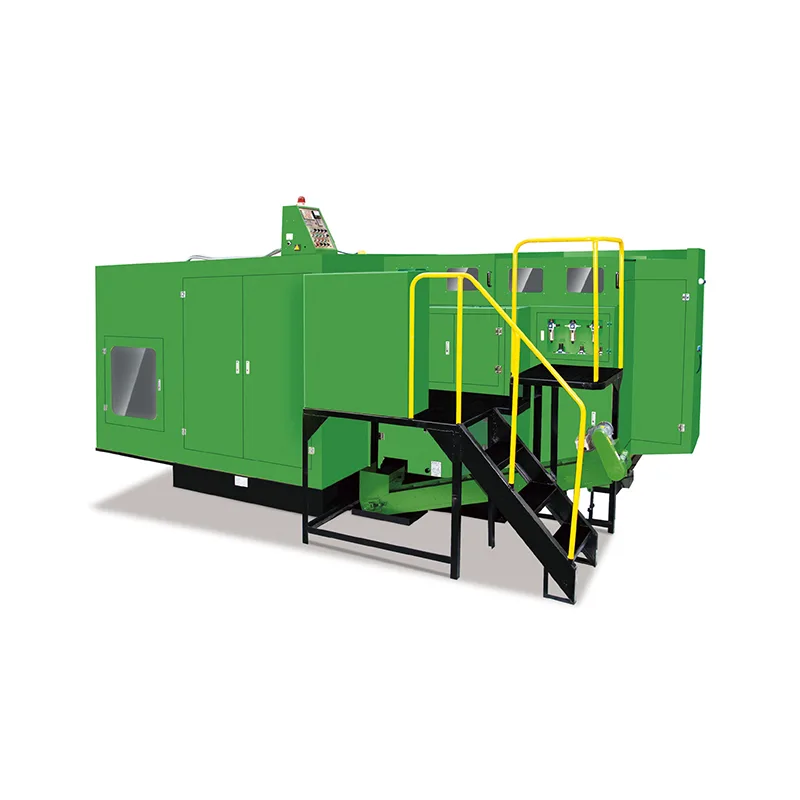

4-Die 4-Blow Cold Heading Machine

4-Die 4-Blow cold heading machine configuration represents an advanced staged forming system in which each die cavity manages a specific transformation phase. Material progresses sequentially through four deformation zones, allowing structural development to occur with controlled progression rather than concentrated impact.

Segmenting the forming process into four dedicated stages improves head geometry accuracy and enhances transitional alignment between shank, shoulder, and head areas. Controlled volume management reduces deformation shock while improving dimensional repeatability across extended production cycles.

Compared with lower-stage systems, this configuration offers expanded capability for bolts featuring more defined structural layering or greater material displacement requirements. Increased coordination between dies and blow mechanisms supports refined geometry development without sacrificing production continuity.

TAICHUANG supplies 4-Die 4-Blow cold heading machine solutions for fastener manufacturers seeking higher forming depth and structured precision control.

Product specifications

Distributed Deformation Architecture

Four die stations divide shaping tasks into manageable progression steps:

• Stage 1 – Material gathering and pre-form formation

• Stage 2 – Transitional geometry shaping

• Stage 3 – Volume redistribution and structural refinement

• Stage 4 – Final head completion

Progressive transformation enhances symmetry and reduces abrupt internal stress accumulation.

Independent cavities allow controlled adjustment at each phase before final geometry stabilization.

Structural Complexity Handling

Multi-die and multi-blow coordination supports:

Defined head layering

Enhanced shoulder precision

Improved concentric alignment

More consistent thickness distribution

Controlled high-volume material flow

Gradual deformation sequencing becomes increasingly valuable when bolt design includes structural variations beyond basic geometry.

Stability Under Extended Production

Spreading deformation load across four stations reduces strain on individual dies and blow components.

Balanced impact energy distribution contributes to:

Predictable production rhythm

Improved tooling longevity balance

Stable batch-to-batch uniformity

Reduced forming variability in long runs

Industrial operations targeting precision fastener markets often transition to four-stage systems for improved process control.

FAQ

1. What distinguishes 4-Die 4-Blow Cold Heading Machine from 3-Die systems?

Additional die stage enables further segmentation of deformation, improving structural layering and geometry control.

2. Is this configuration intended for complex fasteners?

Yes. Multi-stage architecture supports bolts with defined transitions, heavier head mass, or refined geometry requirements.

3. Does higher die count reduce production speed?

Production speed depends on machine specification. Multi-stage systems prioritize controlled precision while maintaining industrial efficiency.
